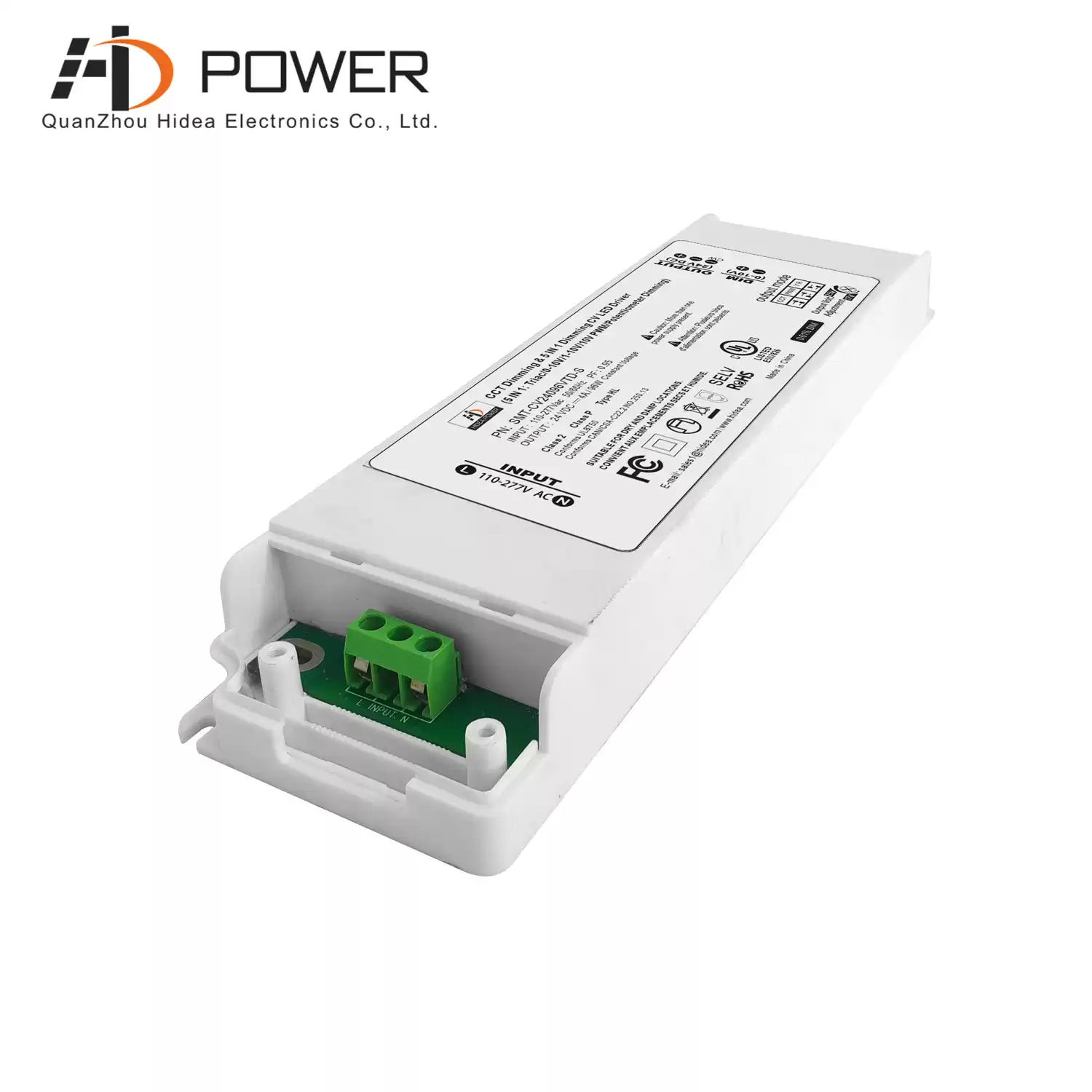

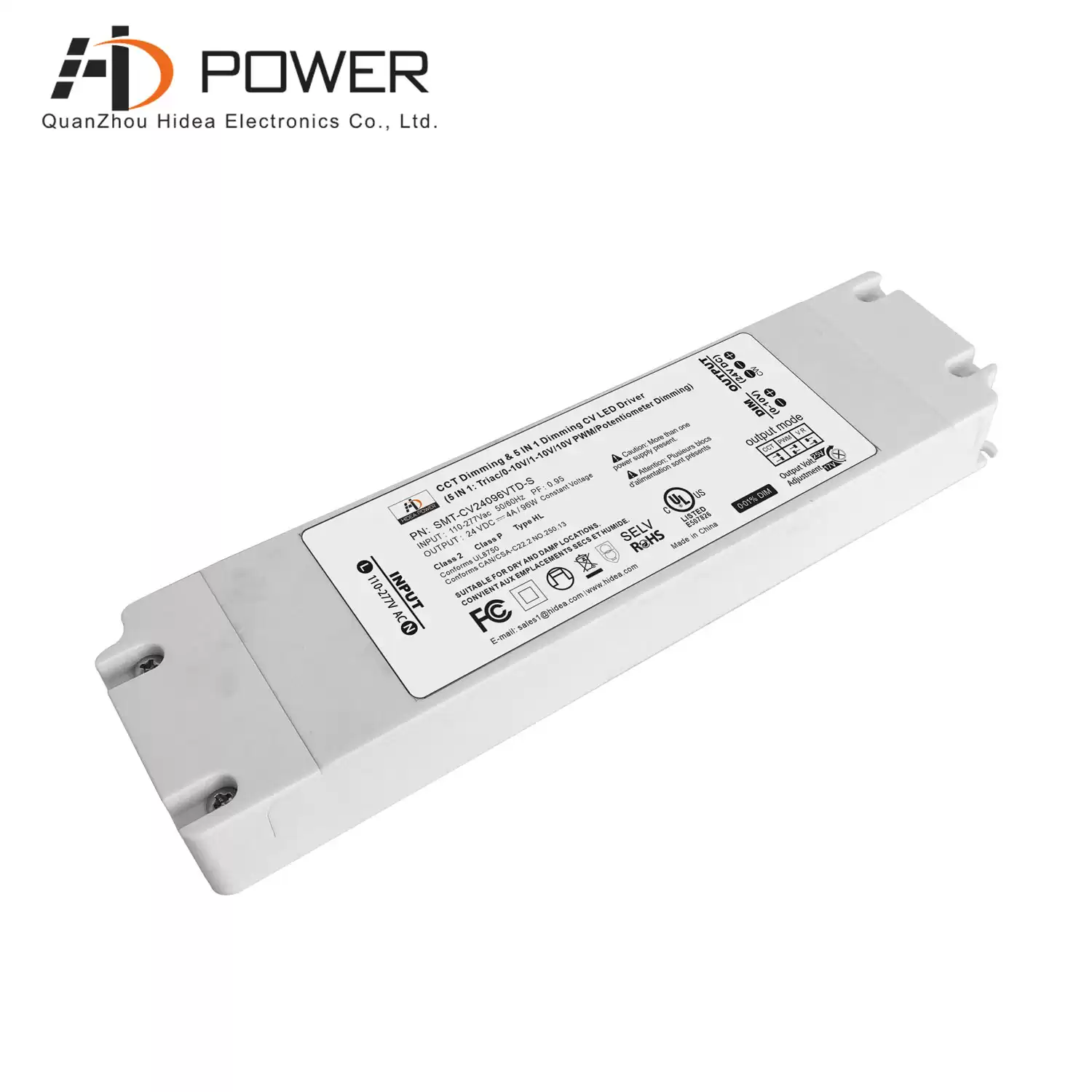

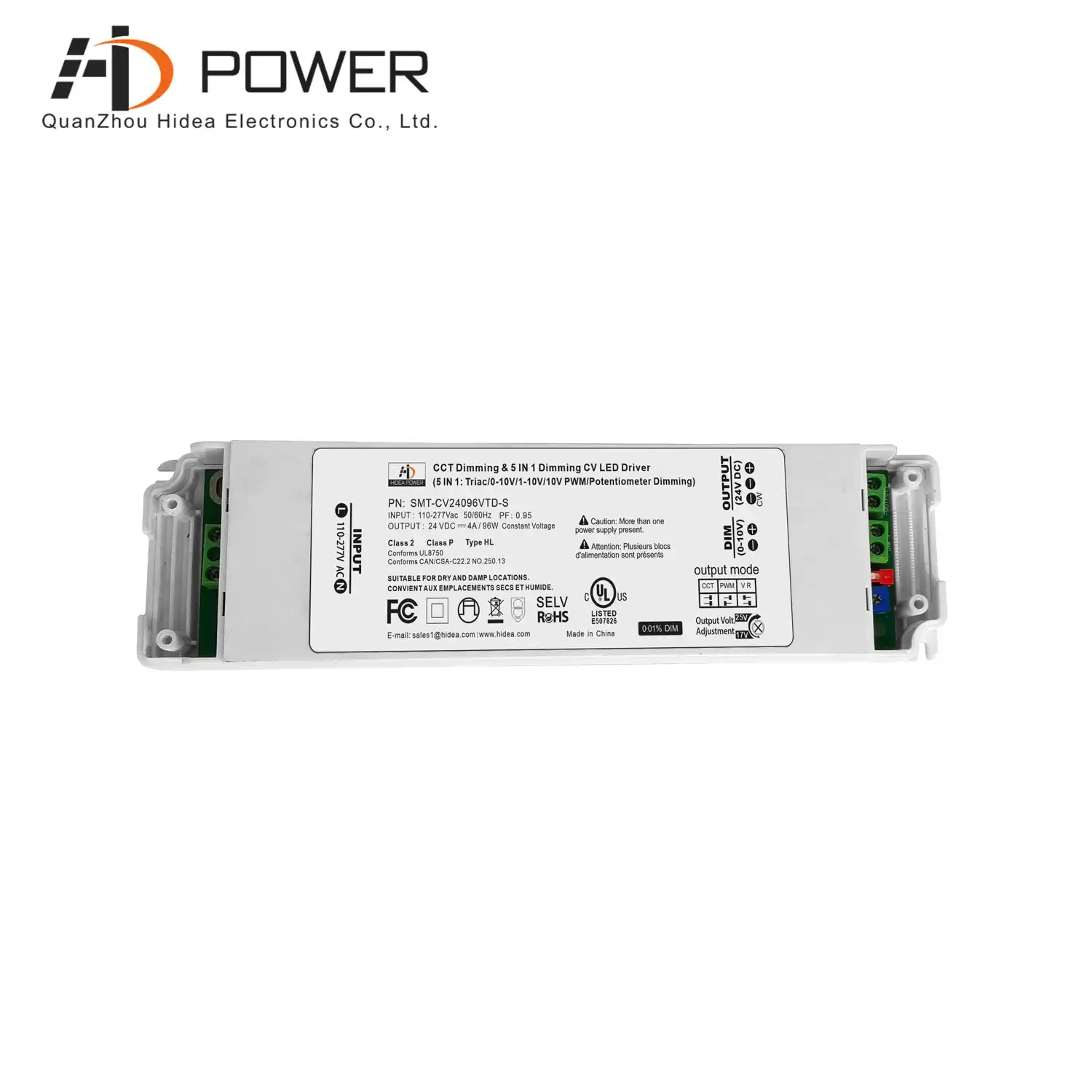

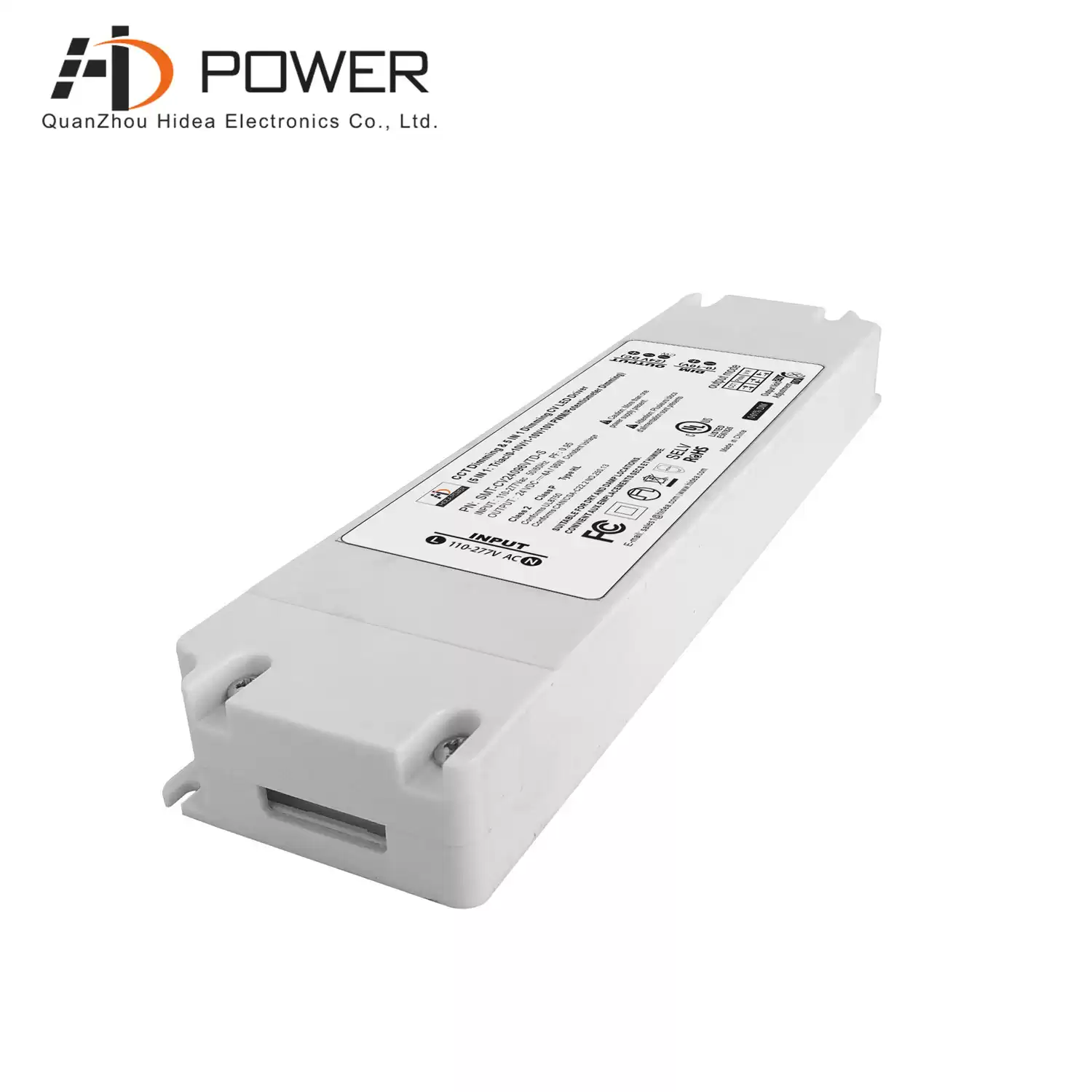

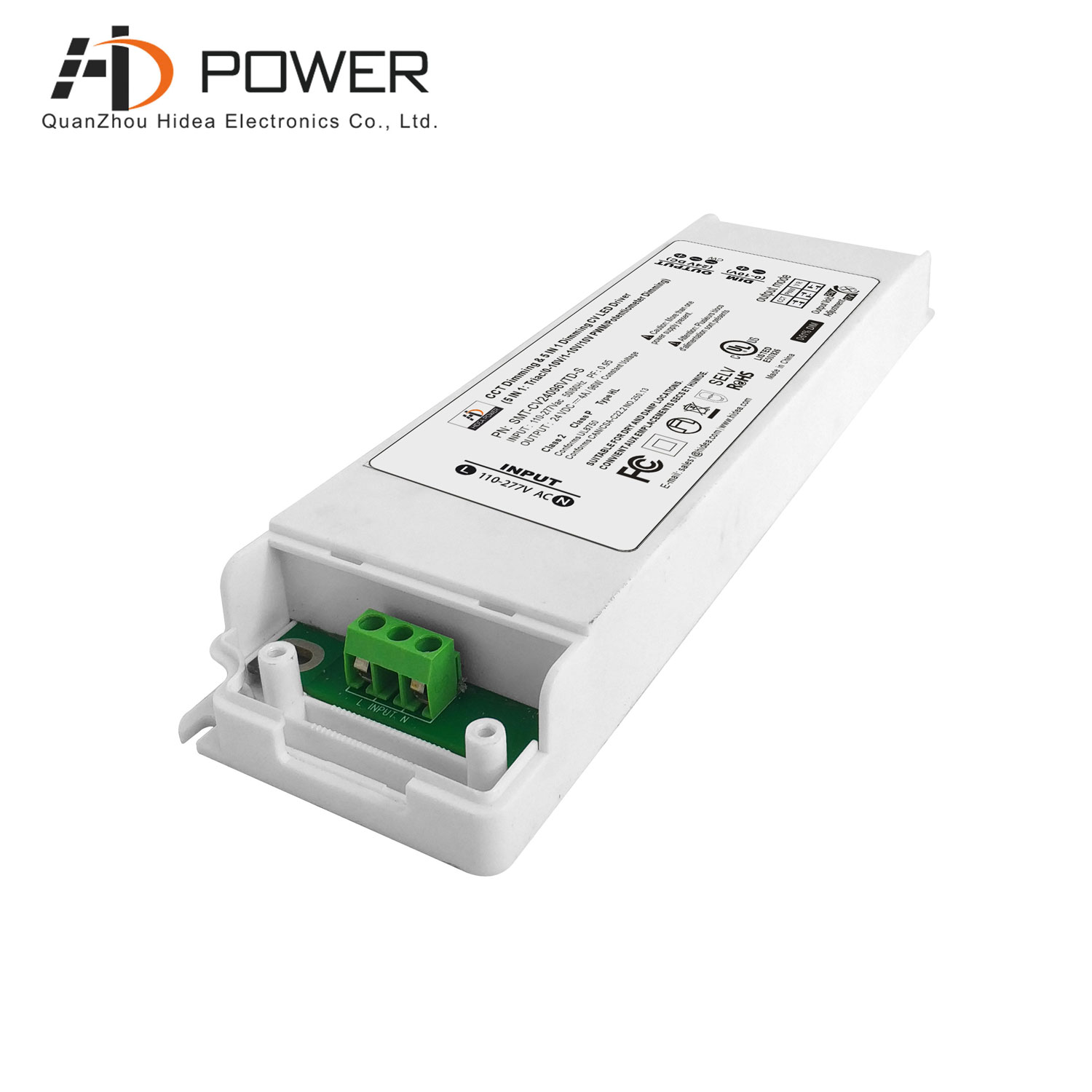

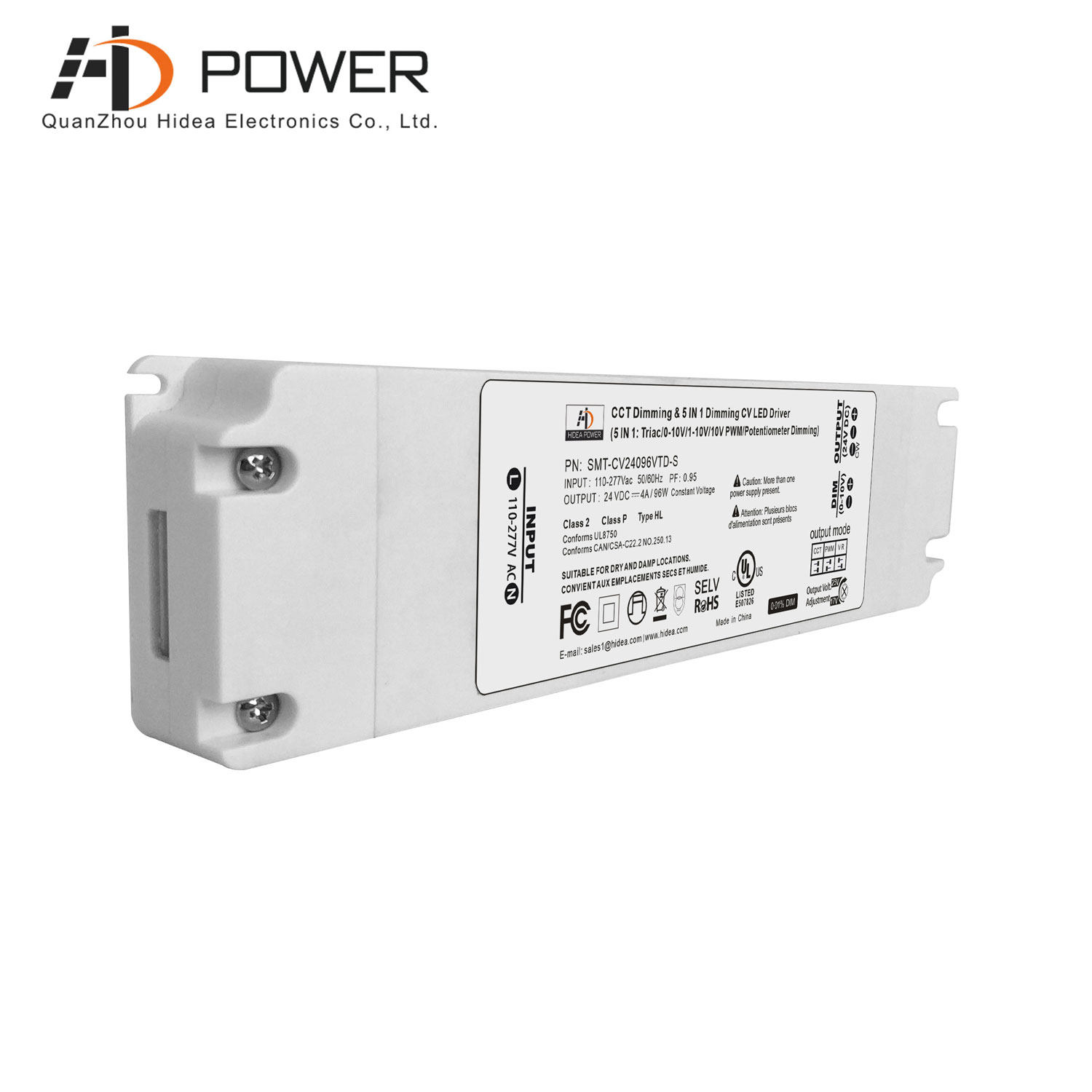

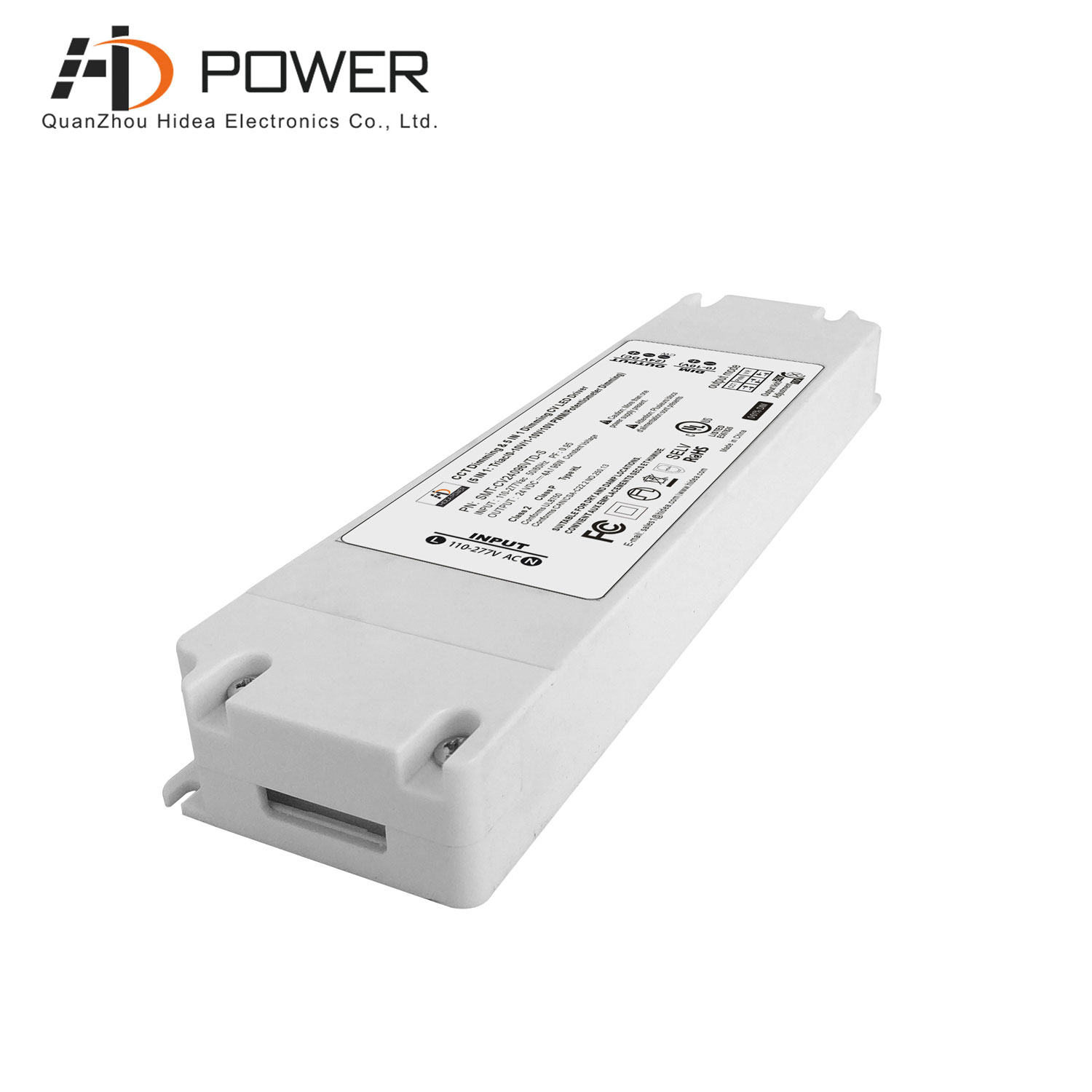

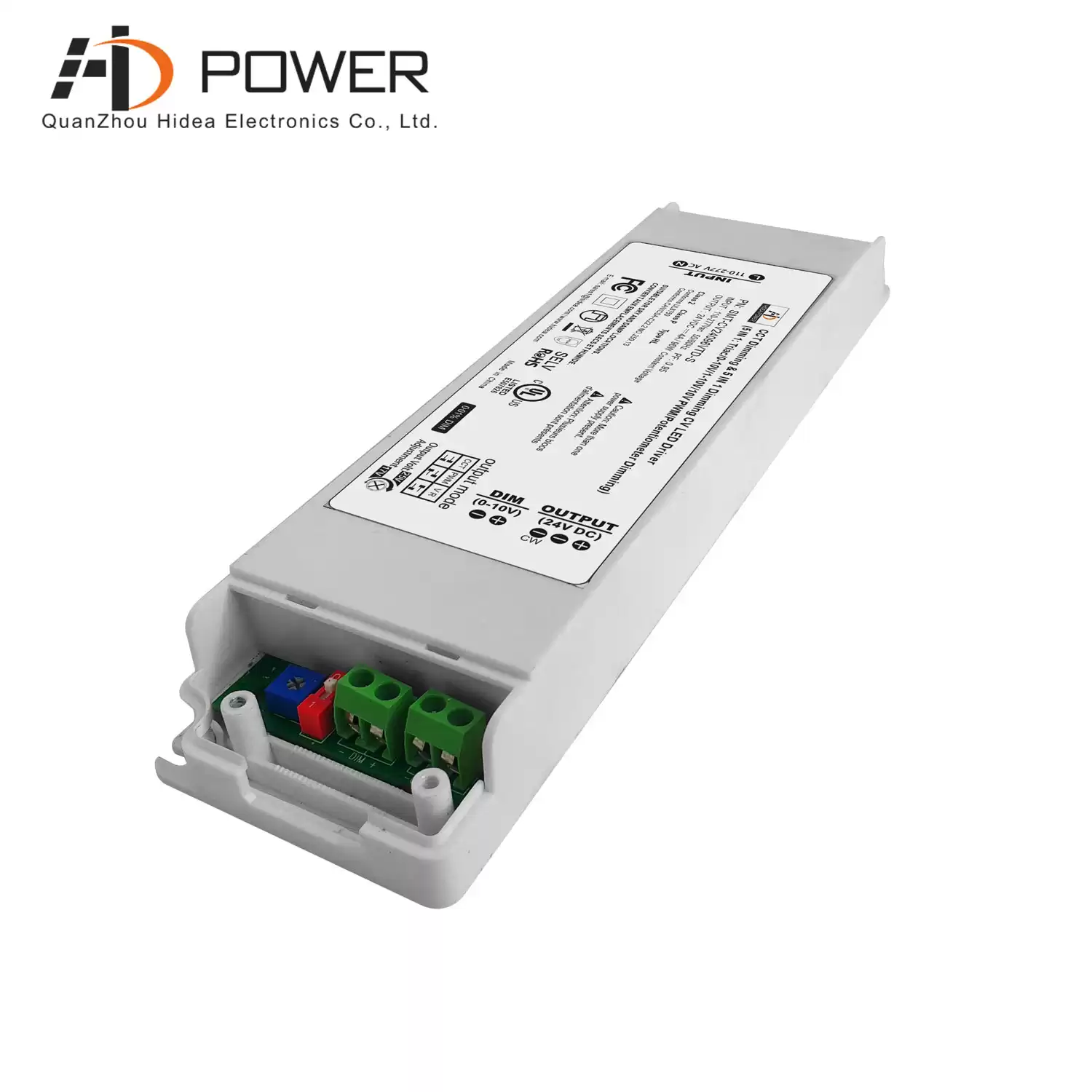

Hidea power offers 7 years warranty for new 5 in 1
dimming led driver 24V 96W, UL listed, passed
North American Lighting Safety Regulations, plastic
case, small size, suitable for indoor use
|
|
Specification
|
Model Number
|
SMT-CV24096-VTD-S
|
SMT-CV48096-VTD-S
|
|
OUTPUT
|
|
Rated Power
|
96W
|
|
Rated Voltage
|
24V
|
48V
|
|
Rated Current
|
4.0A
|
2.0A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98@120VAC 0.95@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
85%@120VAC 86%@277VAC
|
86% @ 120VAC 87% @277VAC
|
|
AC Current(Typ.)
|
1.3A
|
|
Inrush Current(Typ.)
|
27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
212x56x24mm (L*W*H) N.W:0.39kg
|
|
Packing
|
20pcs/CTN G.W:8.4KG SIZE: 270*220*140mm
|

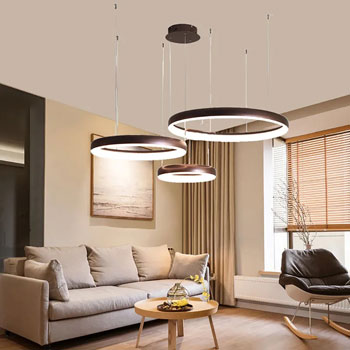

Compatible Light Type
5 in 1 dimmable led power supply 24v 96W input voltage is 100-277vac, passed UL certification, can perform flicker-free 0~100% smooth dimming.
Related Products
|

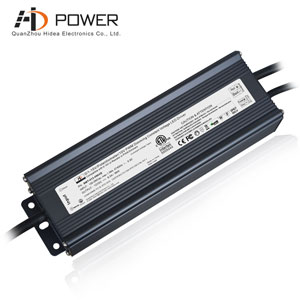

 24v 96W 5 in 1 dimmable led driver All body aluminum shell, waterproof grade ip67, can effectively waterproof and dustproof
