CCT AND DRIVER SELECTABLE LED RECESSEDS DOWNLIGHT

HDL100 series recessed downlights have 3 kinds of power and 3 kinds of color temperature options, which can be used in a variety of places without excessive inventory. Quick-connects and the remote J-box offer an easy installation. Extension cables and frame-in kits allow for versatile applications in new construction and retrofit projects.



All In One Indoor LED Recessed Downlight


Morstar’s all in one Recessed Downlight Fixture with 3CCT and FREEPOWER selectable Technology enables customers to choose the color temperature (3000K, 3500K, 4000K) or power that best suits their application needs prior to installation with just a simple flick of a switch. The downlight is designed with a universal driver and integral whip that connects directly to the junction box and eliminates the need for traditional recessed housing. Simply connect power to the light and use the incorporated spring mounting to place it into the ceiling - no can, bulb or extra labor required. The labor-saving solution for adding recessed downlight to hospitality, retail, office, and other commercial lighting applications.


FEATURES:

• Die-cast aluminum housing with high heat dissipation and durability,multiple colors of paint for choice;
• LM80 Led chips, which guaranteed high lumen and high quality

• Standard High CRI 80 with CRI 90

3 CCT adjustable Traic Dimmable and power adjustable technology is optional

• 100-277V AC perfect dimming of 0-10VDimming
• Junction Box: Included, install directly in Insulated Ceilings (IC) without any thermal housing;
• Fast & Easy Installation,Save labor cost.


SPECIFICATION

HDL101B6-25W

HDL102B8-25W

HDL103B8-36W

HDL101C6-25W

HDL102C8-25W

Power Consumption

15W/18W/25W
Select Drive

15W/18W/25W
Select Drive

36W

25W

25W

Equivalent Wattage

100W MH

150W MH

175W MH

175W MH

250W MH

Size

6 INCH

8 INCH

8 INCH

6 INCH

8 INCH

Lumens Delivered

1,200lm/1,500lm

2,000lm

1,200lm/1,500lm

2,000lm

3,240lm

2,000 lm

2,000 lm

Efficacy

90 lm/W

CRI

80 / 90

Color Temperature

2700K-6000K / 3CCT Selectable(3000K/4000K/5000K)

Input Voltage

AC 100-277V


CONSTRUCTION:
• Recessed installation

Quick-connects and the remote J-box offer easy installation


RECOMMENDED USE:

Hospitality, Retail, Office

• Auto Dealership

• For retrofit or new construction applications


WARRANTY:

5-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -22°F~140°F.


PRODUCT:

Circal LED downlight with matte


APPLICATION:

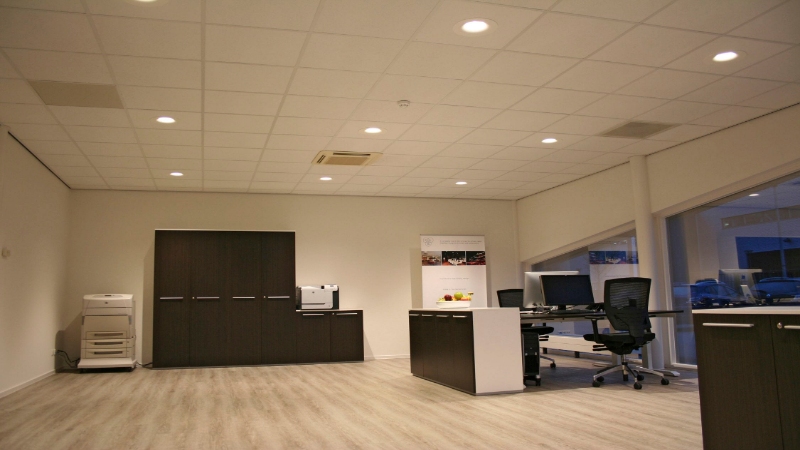

Office LED Downlight

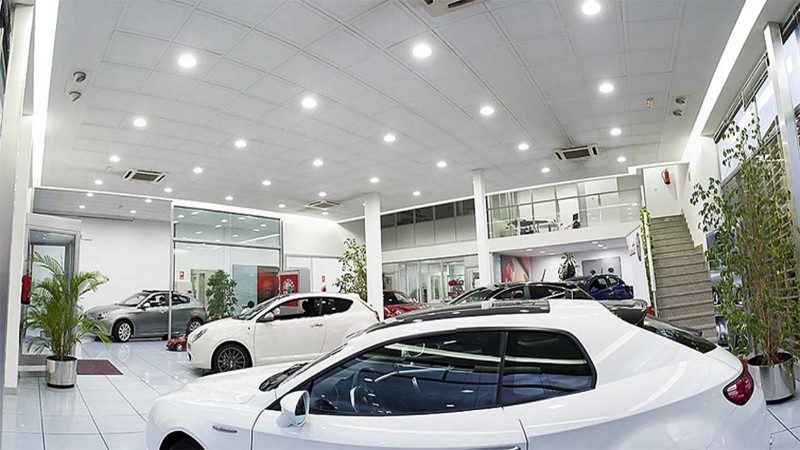

4S Showroom LED Downlight
