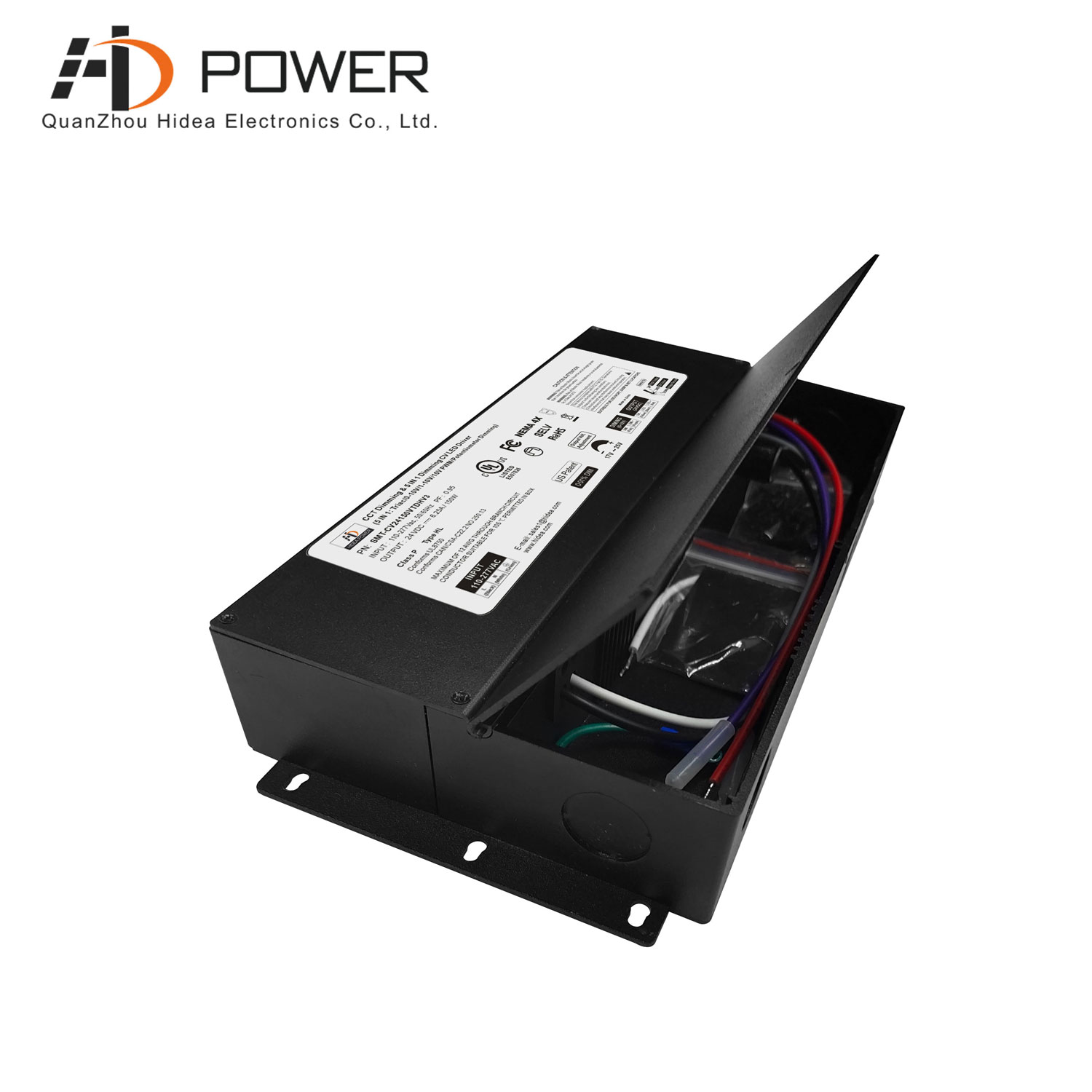

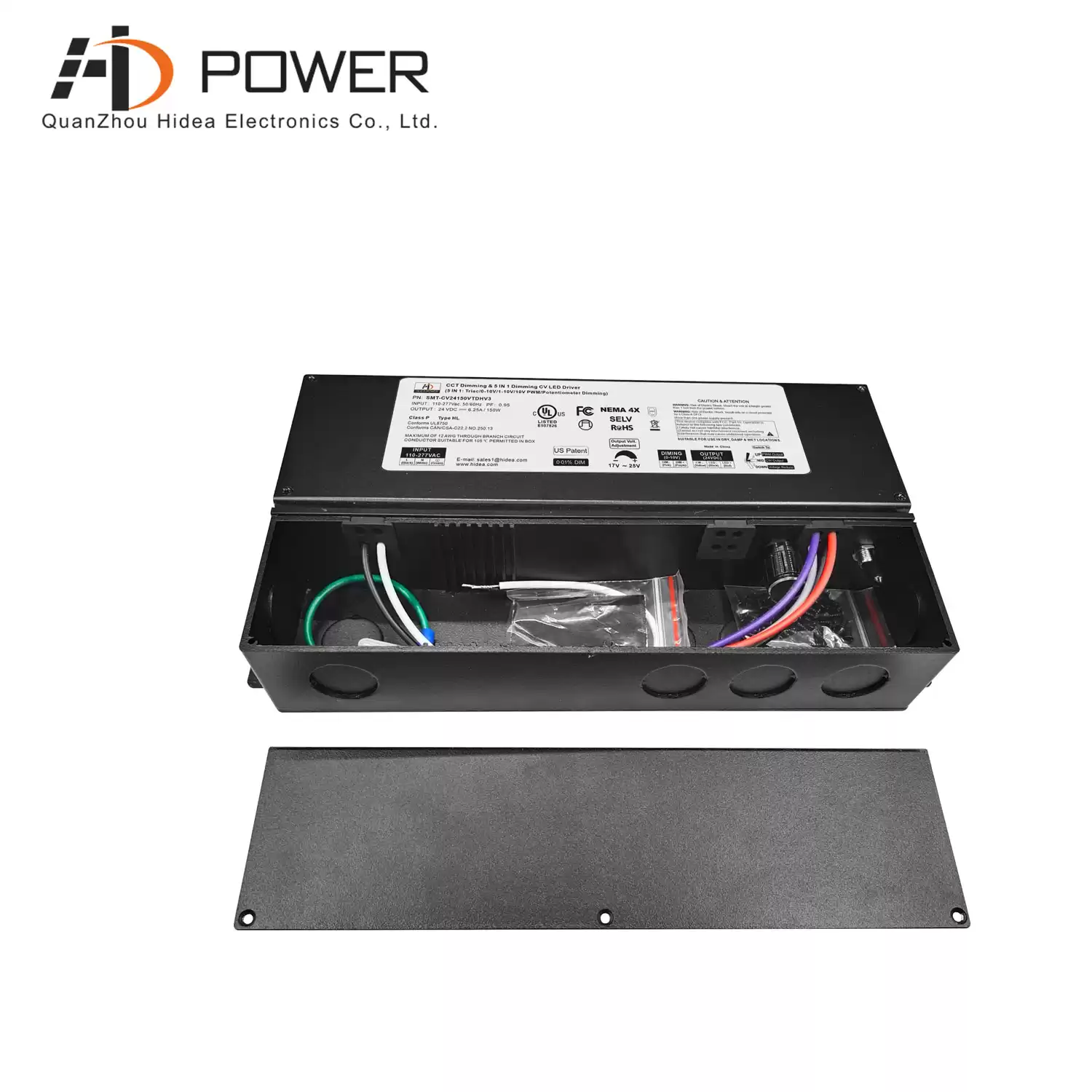

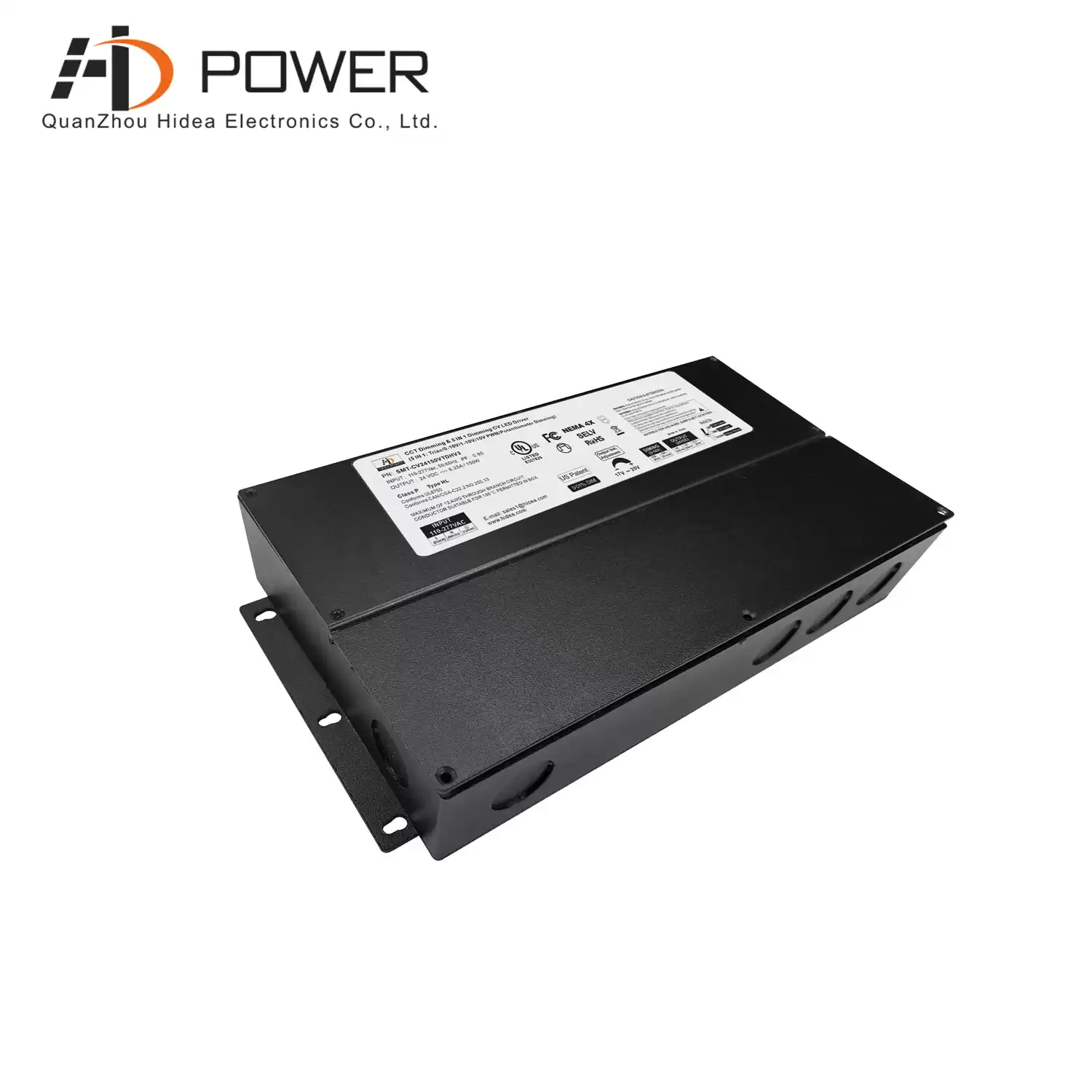

CCT Multiple dimming traic & 0-10v 150w 12v dimmable led driver power supply supplier

277VAC 5 in 1 dimming 12V/24V LED driver 150W has passed UL certification, conforms to North American lighting regulations, unique step-down output design, dimming range of 100%-0.01% ultra-deep amplitude，It can be switched to PWM or step-down output, and can also be switched to two-color light strip output mode

  • Weight1.86KG
  • Size254*132*42.5mm
  • Output Voltage12/24/36/48Vdc
  • Shape & SizeJ-BOX Driver
  • Input Voltage100-277Vac
  • Output Power(Watt)150W
  • OutputDual channel (2 colors)
  • Color DimmingCCT warm dimming
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeCCT & 5 in 1(Triac 0-10V 1-10V Registor 10V PWM) Dimmable
  • CertificationUL
  • Warranty7 Years
Facebook Twitter Pinterest LinkedIn 分享

SMT-CV12150VTDHV3 is a 150W Triac/0-10V/1-10V/10V PWM/

Potentiometer dimming led power supply 12v, which is well

compatible with most dimmers on the market to achieve

smooth flicker-free dimming


  Specification

Model Number SMT-CV12150-VTDHV3 SMT-CV24150-VTDHV3 SMT-CV36150-VTDHV3 SMT-CV48150-VTDHV3
OUTPUT
Rated Power 150W 150W 150W 150W
Rated Voltage 12V 24V 36V 48V
Rated Current 12.5A 6.25A 4.17A 3.125A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 85%@120VAC
86%@277VAC 		86% @ 120VAC
87% @277VAC 		86% @ 120VAC
87% @277VAC 		85% @ 120VAC
86% @277VAC
AC Current(Typ.) 1.85A
Inrush Current(Typ.) 15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 254x132x42.5mm (L*W*H)  N.W: 1.86kg
Packing 10pcs/CTN   G.W:19.8KG   SIZE: 300*285*250mm

led driver 12V
 dimmable led driver
 constant voltage led driver
SMARTS led power supply



  Compatible Light Type

This UL certified dimmable led driver compatible with PWM and buck output has an input voltage of 100-277vac and can be used in residential and commercial lighting for easy and fast installation
