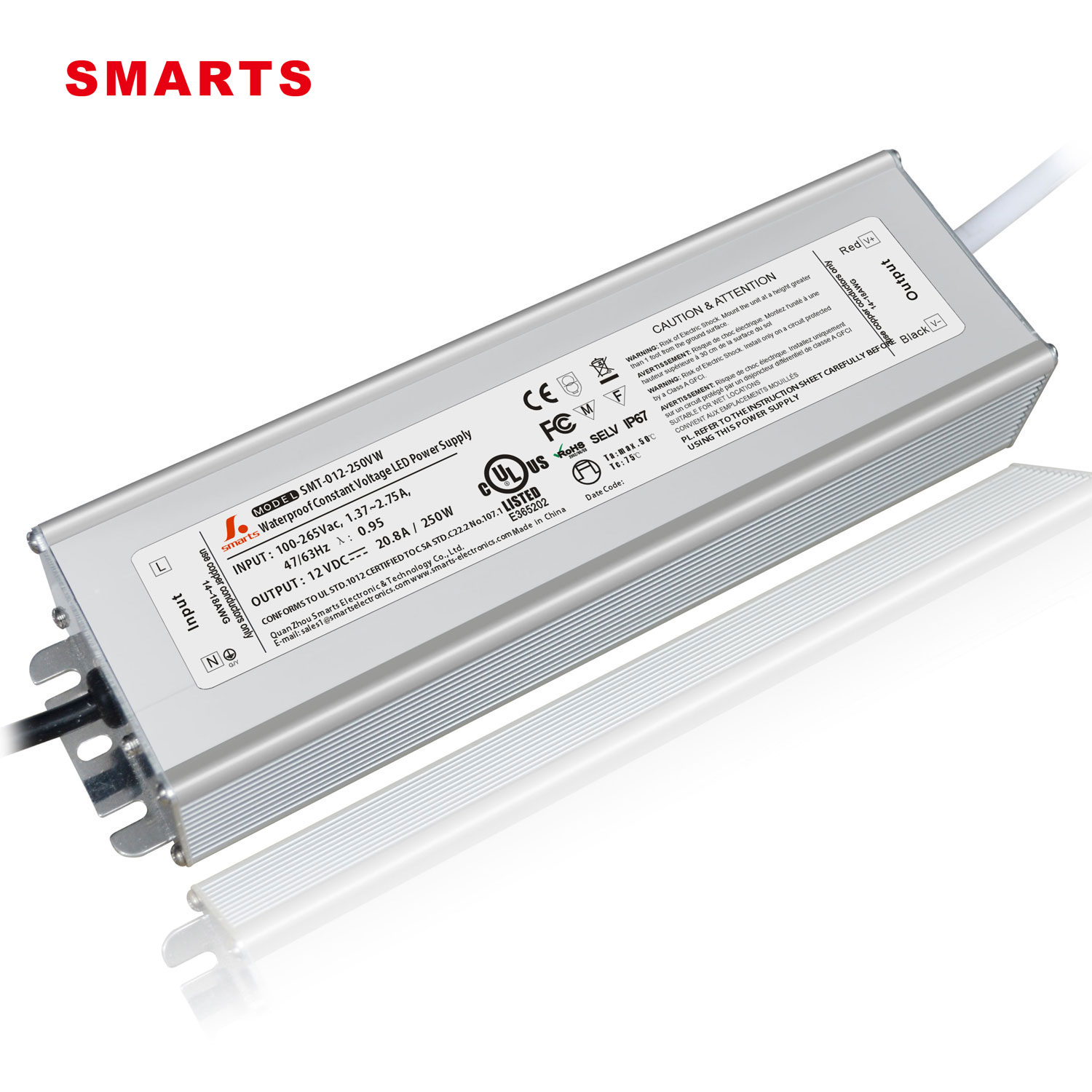

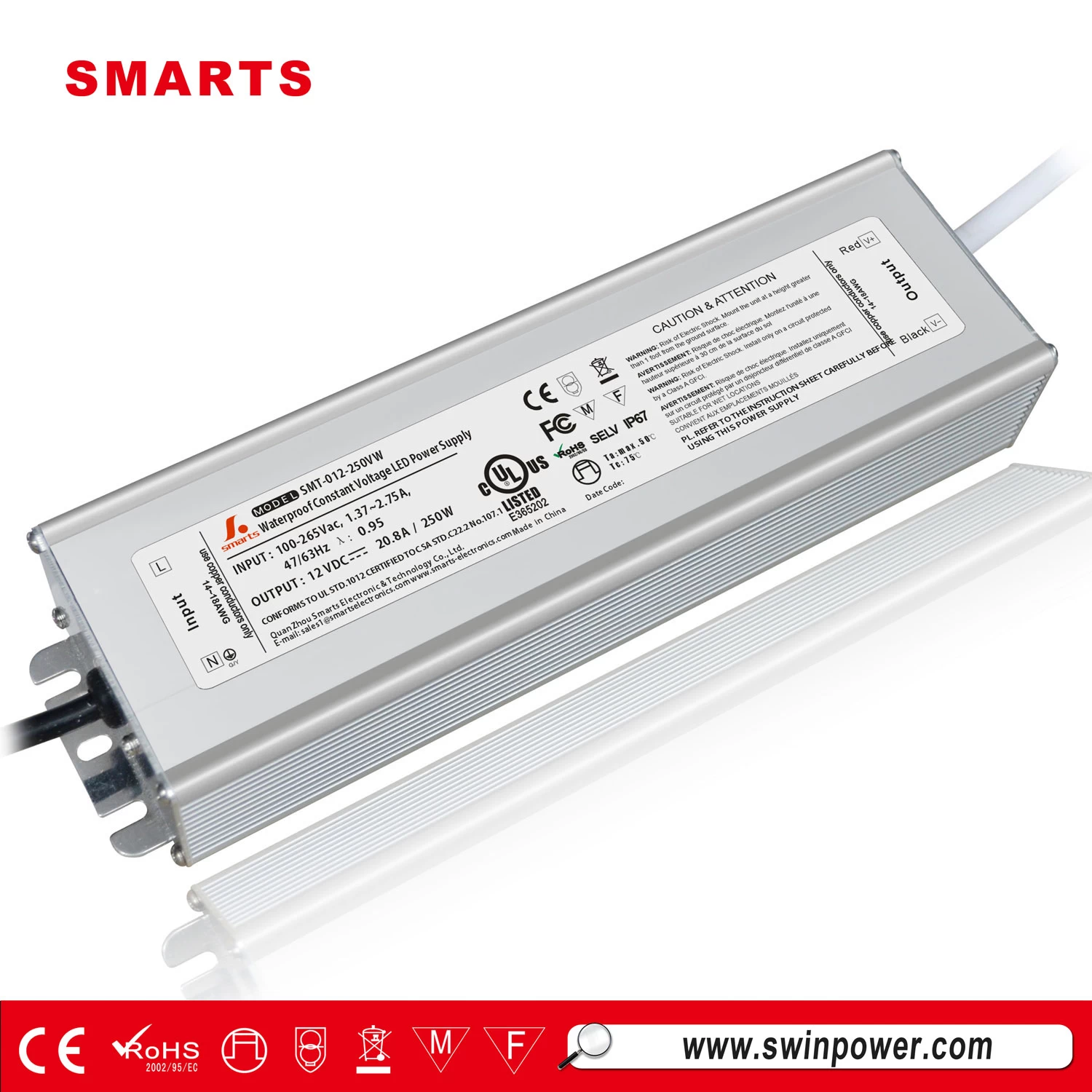

CE 12 volt 300w LED strip lights transformer
SMT-012-300VW is 12 volt LED strip lights transformer. 300w large wattage AC to DC power supply. 3 years warranty.
Features of 12 volt LED strip lights transformer ：
● IP67 for indoor or outdoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through ETL,CE,RoHS Certification
●3 years warranty
Specification of 12 volt LED strip lights transformer :
|
SPECIFICAION
|
|
MODEL
|
SMT-012-300VW
|
SMT-024-300VW
|
SMT-036-300VW
|
|
|
OUTPUT
|
DC VOLTAGE
|
DC12V
|
DC24V
|
DC36V
|
|
|
RATED CURRENT
|
25.00A
|
12.50A
|
8.33A
|
|
|
CURRENT RANGE
|
0-25.00A
|
0-12.50A
|
0-8.33A
|
|
|
RATED POWER
|
300 W
|
300W
|
300W
|
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
150mV
|
|
|
CURRENT TOLERANCE
|
|
|
|
|
|
SETUP RISE TIME
|
80ms/220VAC
|
|
|
HOLD UP TIME(Typ.)
|
60ms/220VAC
|
|
|
INPUT
|
VOLTAGE RANGE
|
170~265VAC
|
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
|
POWER FACTOR(Typ.)
|
PF0.6-0.8/220VAC
|
|
|
EFFICIENCY(Typ.)
|
﹥84%
|
﹥84%
|
﹥84%
|
|
|
AC CURRENT(Typ.)
|
1.85A/220VAC
|
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/20VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-40~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
SELV,CE Mark(LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
|
|
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
|
|
|
|
|
|
capacitor.
|
|
|
|
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
|
|
|
|
FAQ：
What do you mean by constant voltage?
'Constant voltage' refers to the ability to fluctuate output current to maintain a set voltage. Constant voltage can be used for applications where the workpieces do not have flat surfaces, e.g. crossed wires, and where the resistance varies significantly, and for extremely short welds (less than 1 millisecond).
