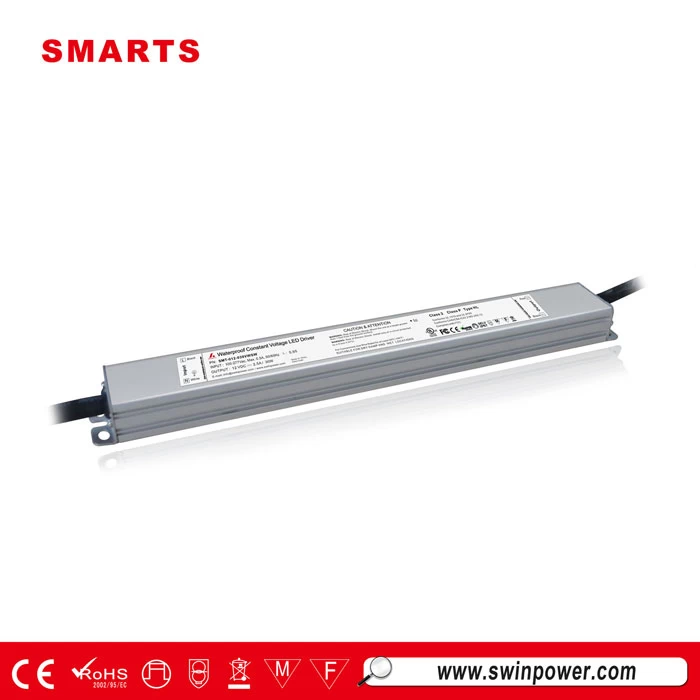

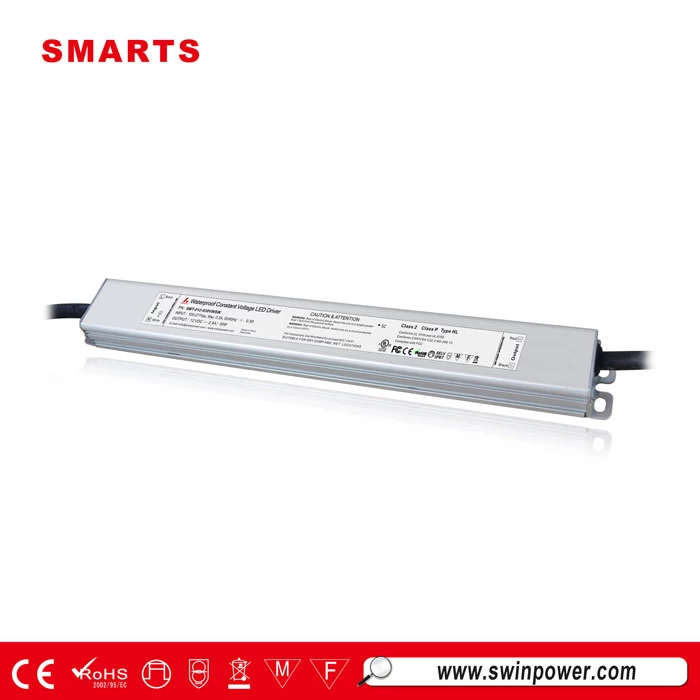

CE 12v dc constant voltage ip67 led driver for led downlight

Super slim led driver, 7 years warranty, with CE certificate.



  • Size260*32*20mm
  • Dimming modenon dimming
  • Working Mode30W
  • Output Current2.5A
  • Output Voltage12Vdc
  • Input Voltage100-277 VAC
  • CertificationCE,UL, RoHS,FC C,Class p

CE 12v dc constant voltage ip67 led driver for led downlight


SMT-012-030VWSW is 12v dc constant voltage led driver. For this series, we have CE listed for Europe market. It is IP67 version, it can be used on dry, damp, wet location, for indoor and outdoor projects. It is very thin for minor lighting or led strip lighting which has very limited space for led driver.


Features of 12v dc constant voltage led driver


·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P approval
·Built-in PFC function / Efficiency > 84% / PF> 0.95
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty


Specification of 12v dc constant voltage led driver :


model

SMT-012-030VWSW

SMT-024-030VWSW

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

2.5Amp

1.25Amp



Rated power

30W

30W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

47~63HZ



Power Factor ( Typ.)

0.99@120VAC 0.98@230VAC 0.95@277VAC



THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC



Full Load Efficiency(Typ.)

82%@120VAC ; 83%@230VAC; 84%@ 277VAC



AC Current(Typ.)

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;

12A,50%480us@277VAC



12A,50%480us@277VAC



Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃



Working Humidity

20~90%RH,non-condensing



Storage TEM.,Humidity

-40~+80℃,10~95%RH



TEMP.coefficient

±0.03%/℃(0~50℃)



Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.35Kg



Size

260*32*20mm (L*W*H)



packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
