CE 600W single output 24v switching power supplies
Description:
This 24V 25A open frame power supply is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.
Features:
1, 600W high efficiency 24v single output power supplies;
2, K18C-UP600S24 model have small size, high efficiency;
3, International universal full voltage input;
4, 600W single output 24v built-in active PFC function;
5, Built-in filter, low noise, high reliability;
6, Overload, short circuit, under voltage, over voltage, over temperature protections and etc.
Parameter
|
|
Item NO
|
K18C-UP600S24
|
|
Output
|
Output Voltage
|
+24VDC
|
|
Rated Current
|
25A
|
|
Current Range
|
0-25A
|
|
Rated Power
|
600W
|
|
Ripple & Noise
|
400mVp-p
|
|
Adjustable Output Range
|
22.8~25.2V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Set up,Rise,Keep up time
|
300ms, 20ms, 12ms
|
|
Input
|
Input Voltage Range
|
100~240V AC
|
|
Input Current
|
3A/230V,6A/115V
|
|
Input Frequency
|
50~60Hz
|
|
Efficiency
|
92%@230VAC, 90%@100VAC
|
|
Power Factor
|
PF＞0.98/115V PF＞0.95/230V
|
|
Inrush Current
|
Cold start 60A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup protection,automatic recovery
|
|
Short Circuit Protection
|
Locked protection,return to normal after restart
|
|
Output over-voltage protection
|
＞120% Shut down,Locked protection,return to normal after restart
|
|
Over-temperature protection
|
TS1 position＞105℃ it will be protection,then automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-20~60℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV;I/P-FG:1.8KV;O/P-FG:0.6KV AC 1min
|
|
Insulation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55022 Class B, EN61000-3-2
|
|
Others
|
Dimension
|
168*82*40mm(L*W*H)
|
|
Weight
|
0.68kg
|
|
MTBF
|
＞50K hrs MIL-HDBK-217F(25℃)
|
|
Fan Supply
|
12V@0.3A for driving a fan,tolerance±15%
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

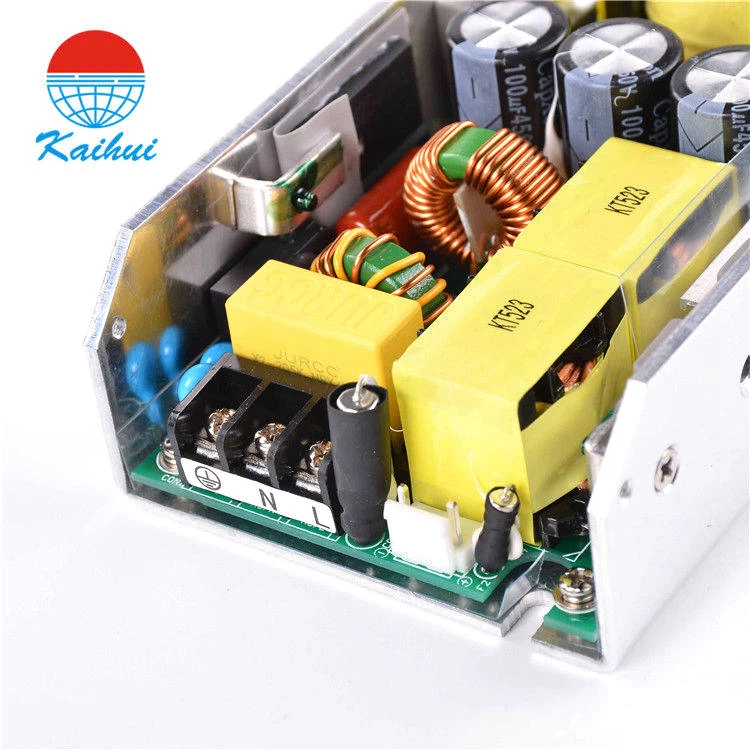

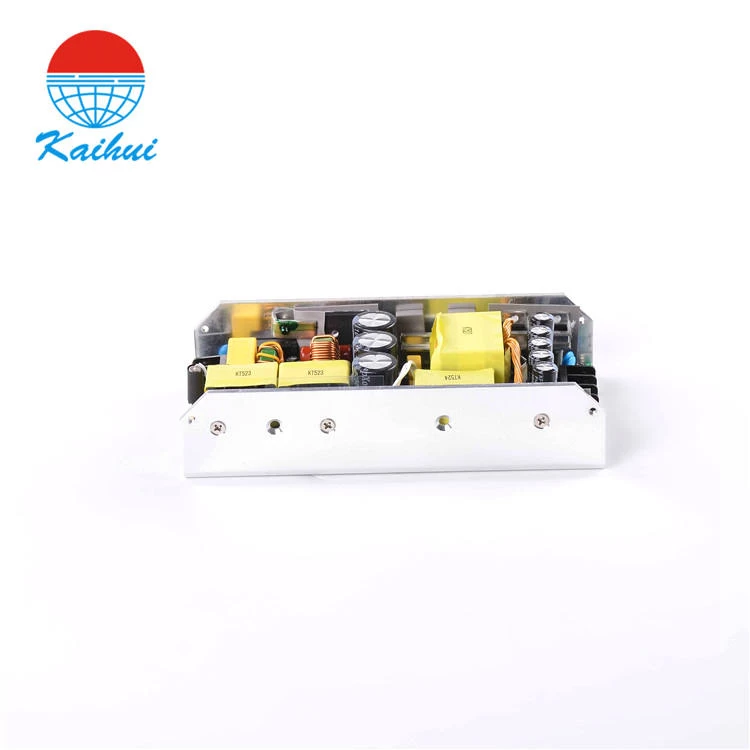

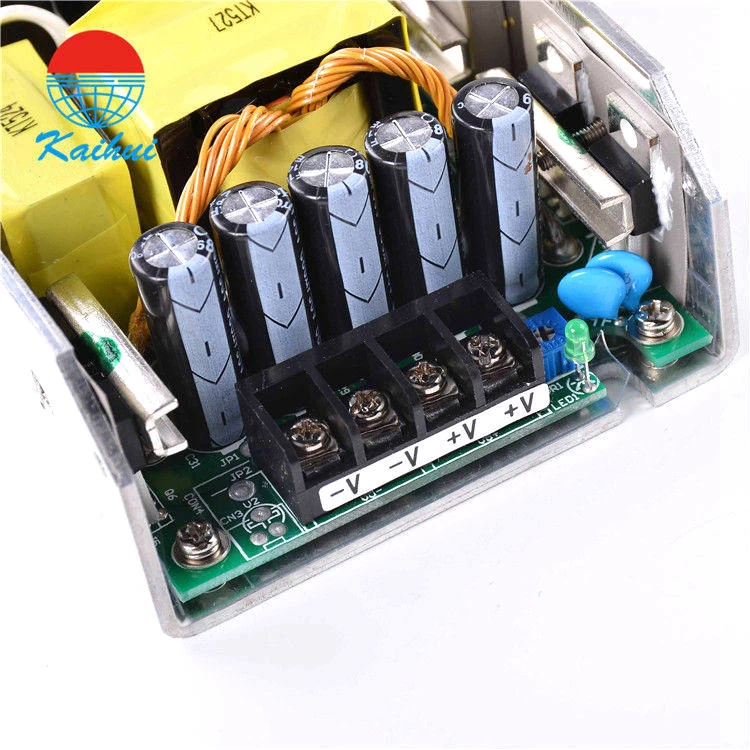

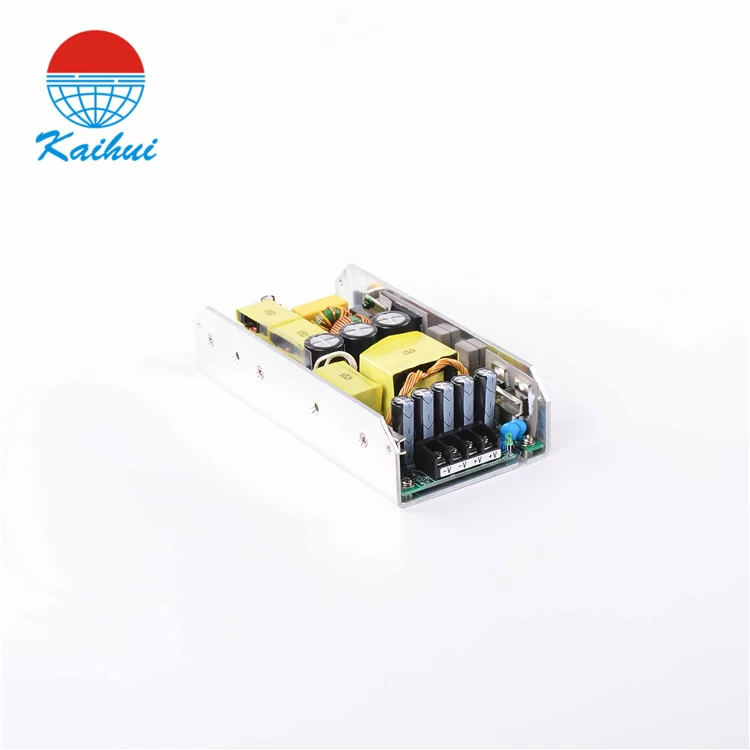

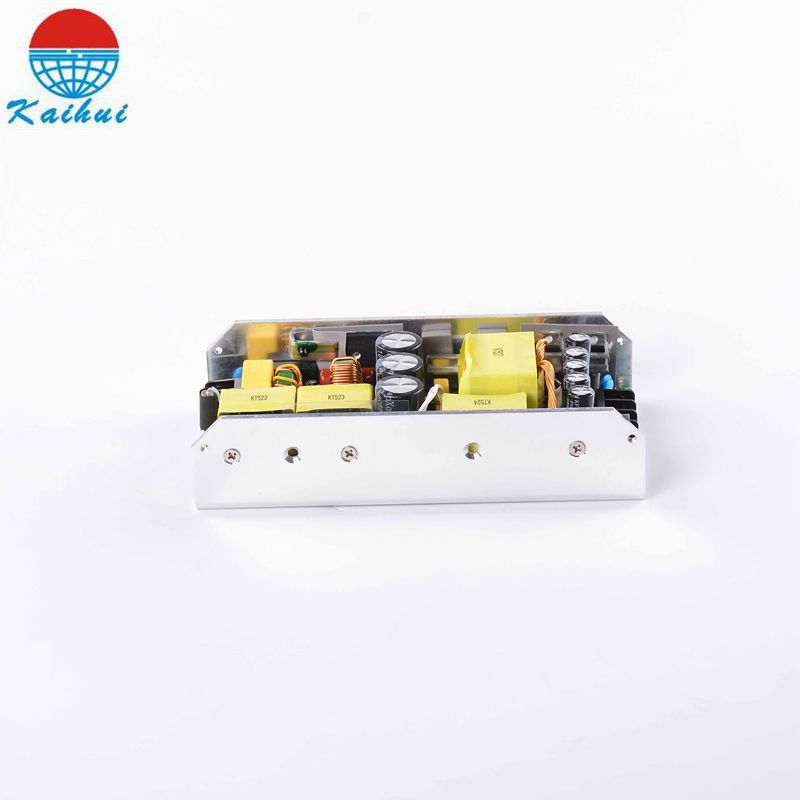

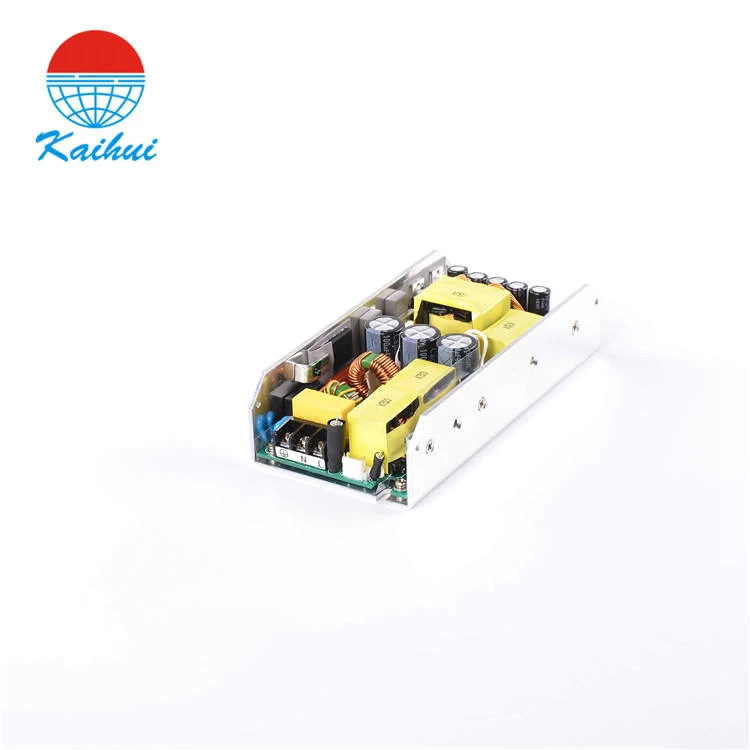

Product picture:
