CE approved AC 110-230v 17-22lpm 2M Head Centrifugal magnetic impeller chemical drive pump

Chemical magnetic pump anti-corrosion high performance






CE approved AC 110-230v 17-22lpm 2M Head Centrifugal magnetic impeller chemical drive pump

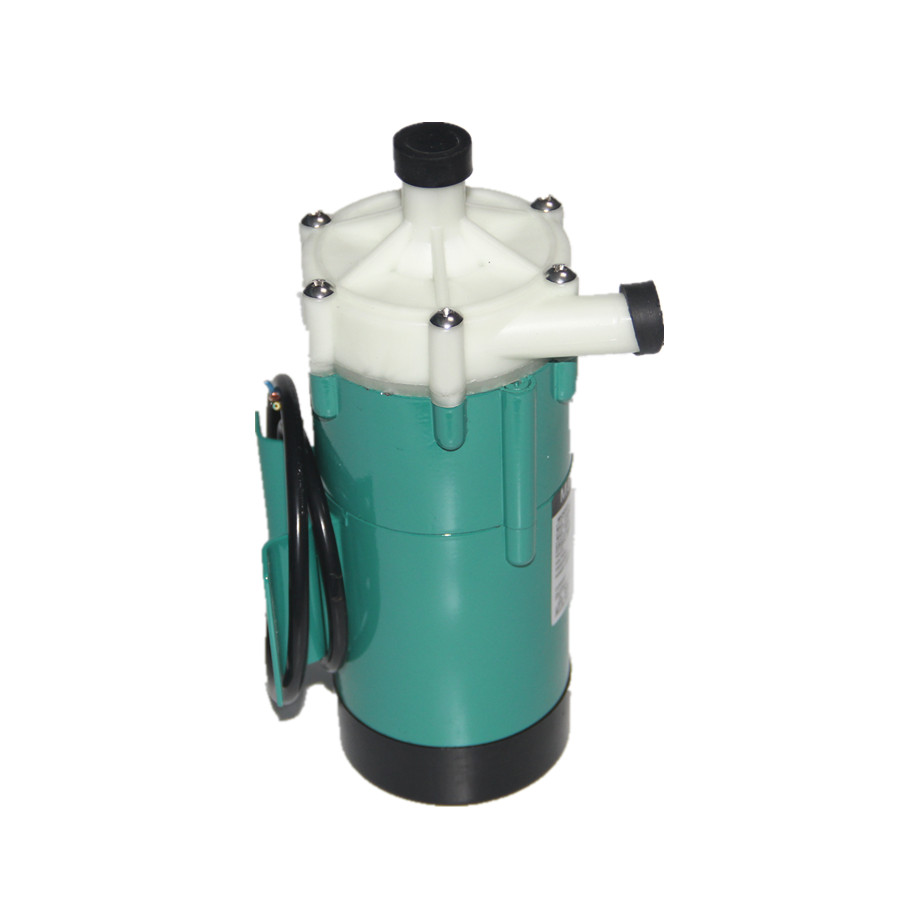

Whaleflo Magnetic pump

The magnetic pump uses corrosion-resistant, high-strength engineering plastics, steel jade ceramics, which have good anti-corrosion properties and can prevent the transported medium from being contaminated.

 The magnetic pump replaces the sealing ring with a static sealing ring, so that the pump is completely sealed, and the sealing problem is completely solved.

All copper motor, the magnetic rotating part is made of ferrite as the main material, the overcurrent part is made of stainless steel, and the most widely used non-leakage magnetic drive centrifugal pump


Whaleflo pump application

Chemical industry, pharmaceutical industry, daily necessities industry, food industry, machinery industry, electronics industry, electroplating industry, photo industry, mining, metal industry, pharmacy, electrical appliance industry, water treatment, pollution control

Whaleflo mag drive chemical pump application

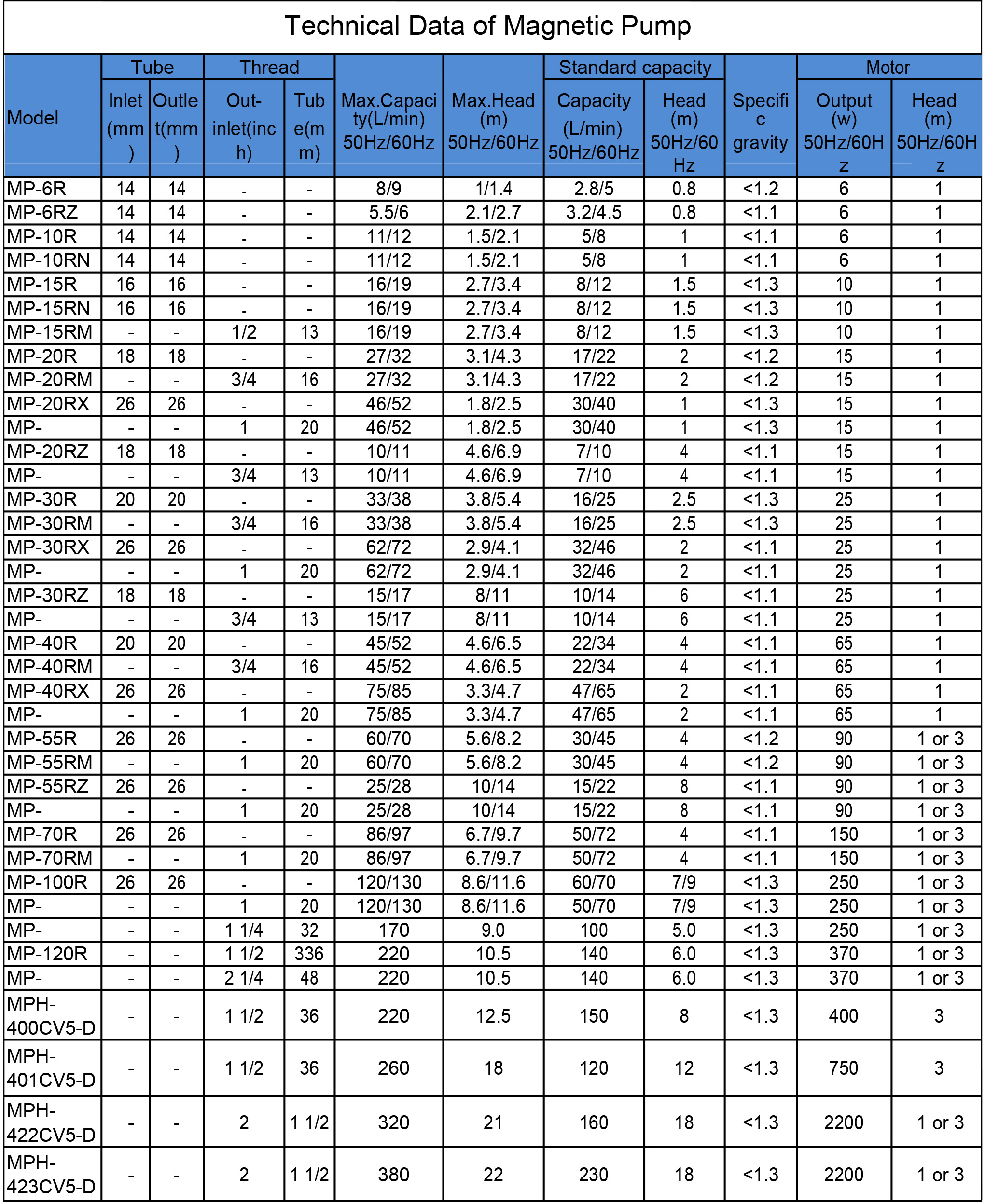

Whaleflo mag pump technical data

MODEL NOTE:


MP-20RX-100

*MP means MP series plastic magnetic-driving centrifugal pump.

*20R means Product specification.

*X means the large capacity type;if become to M means the thread mouthpiece of both inlet and outlet;if the Z means the high-head type;if the T means the special application type;if the N means the modified type,if Non-code means the


*None-code Voltage is 220V;100 means 100V;380 means 380V.

Whaleflo mag technidal data

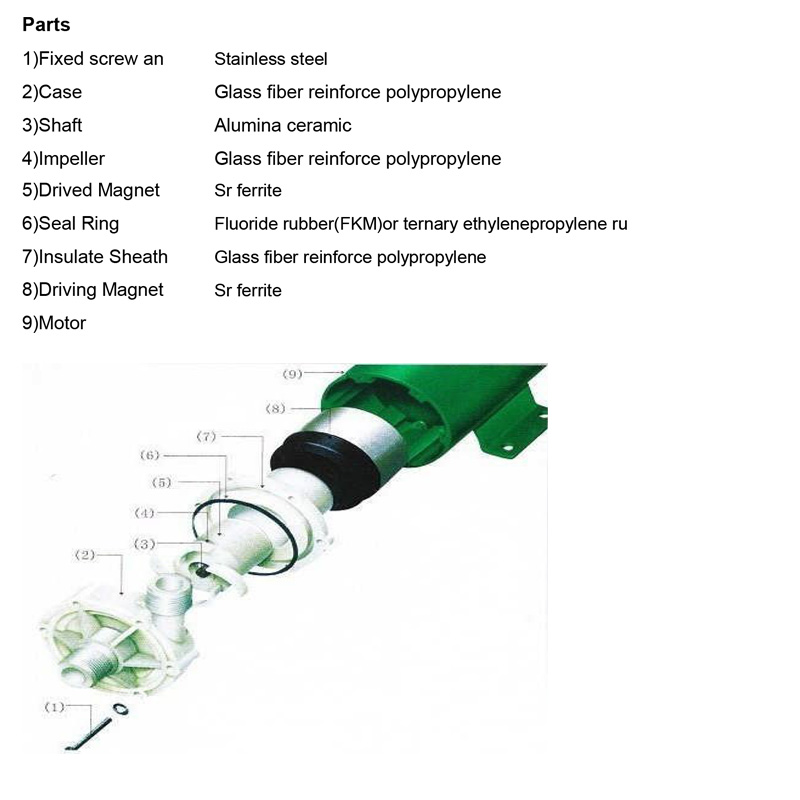

Whaleflo mag pump parts

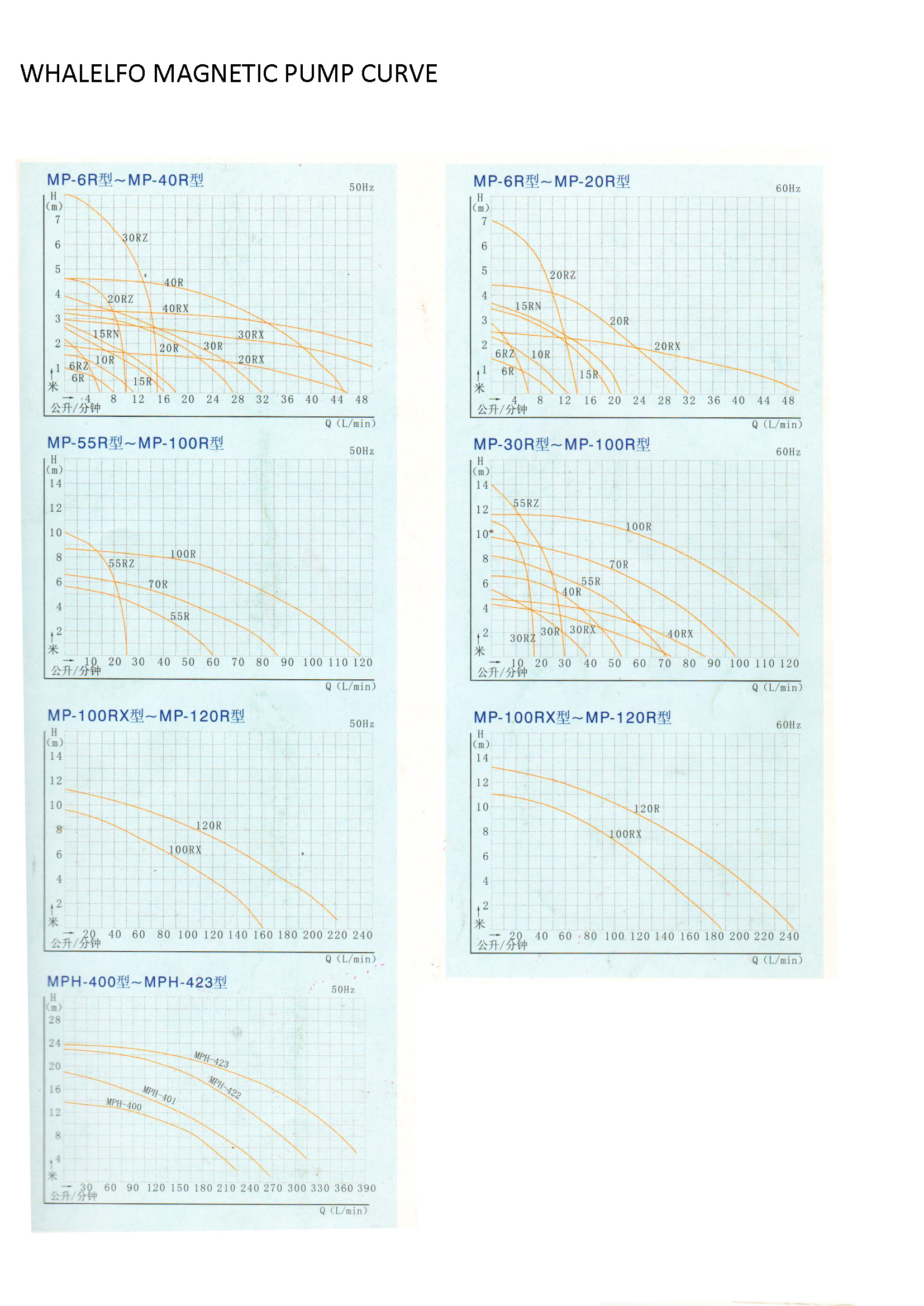

Whaleflo mag working curve

mag working curve
