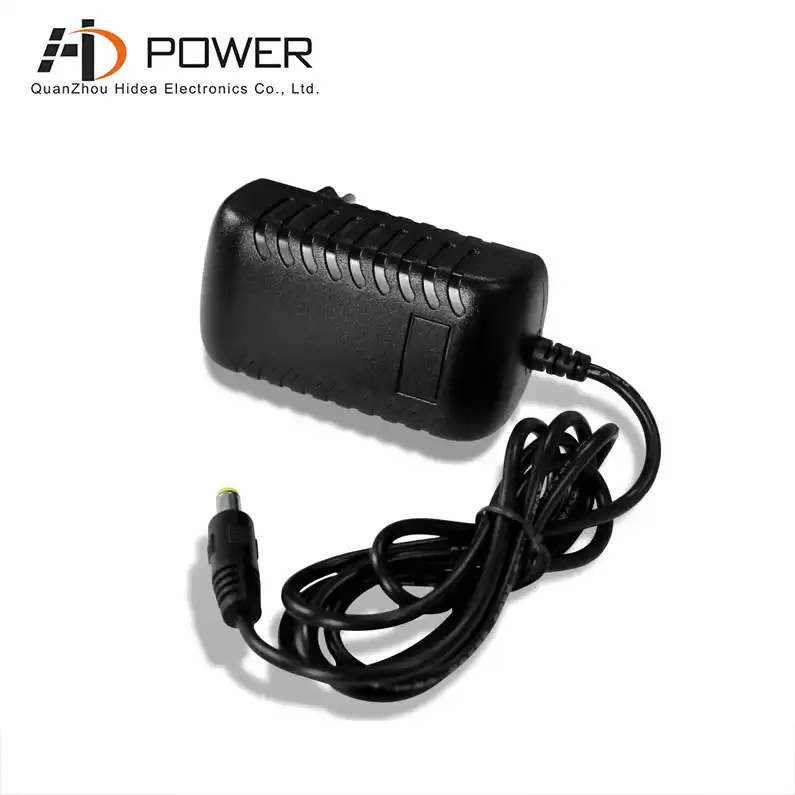

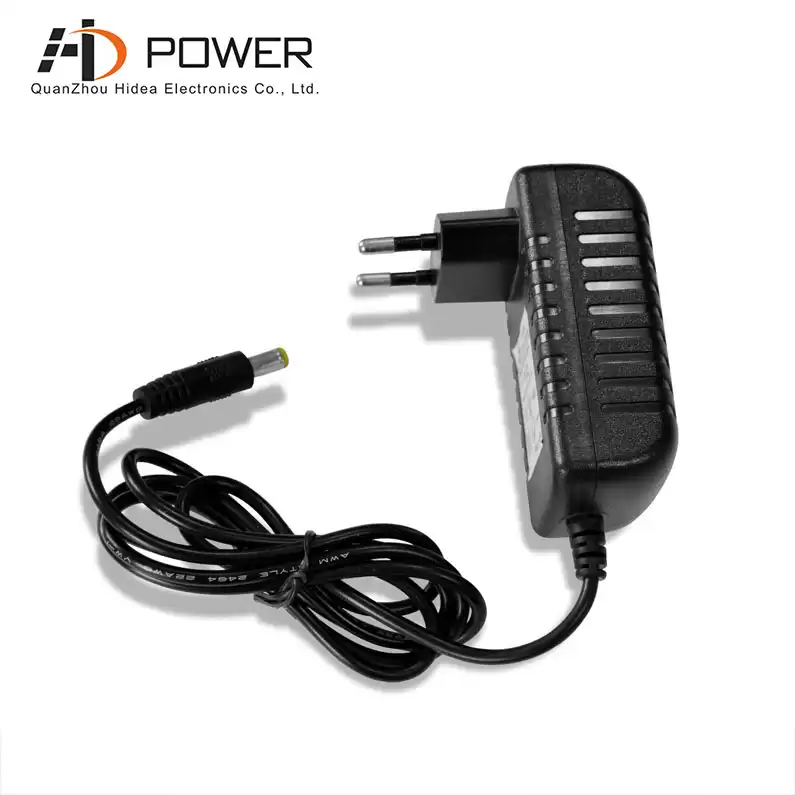

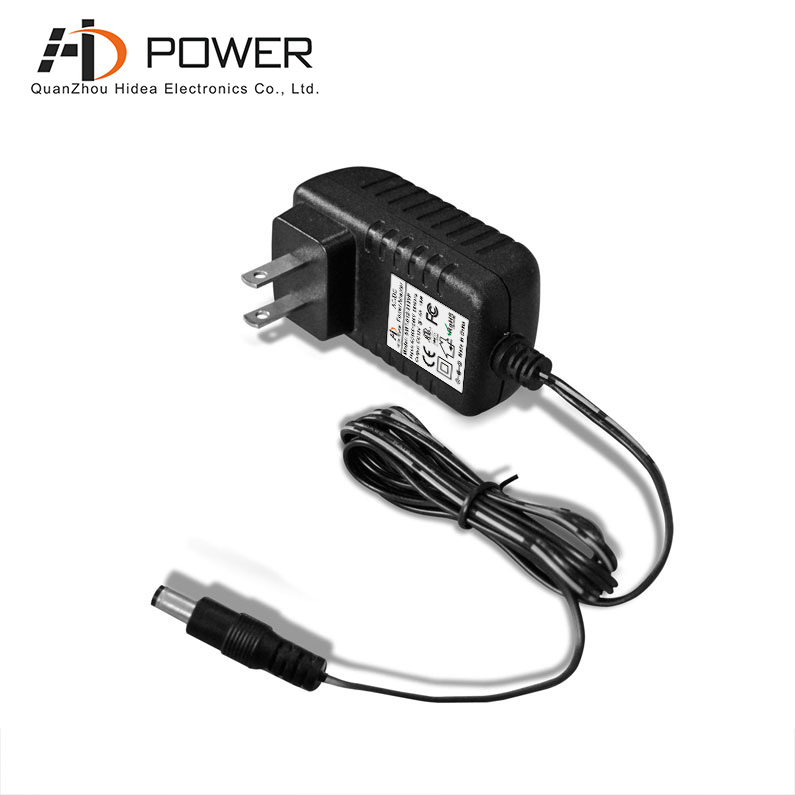

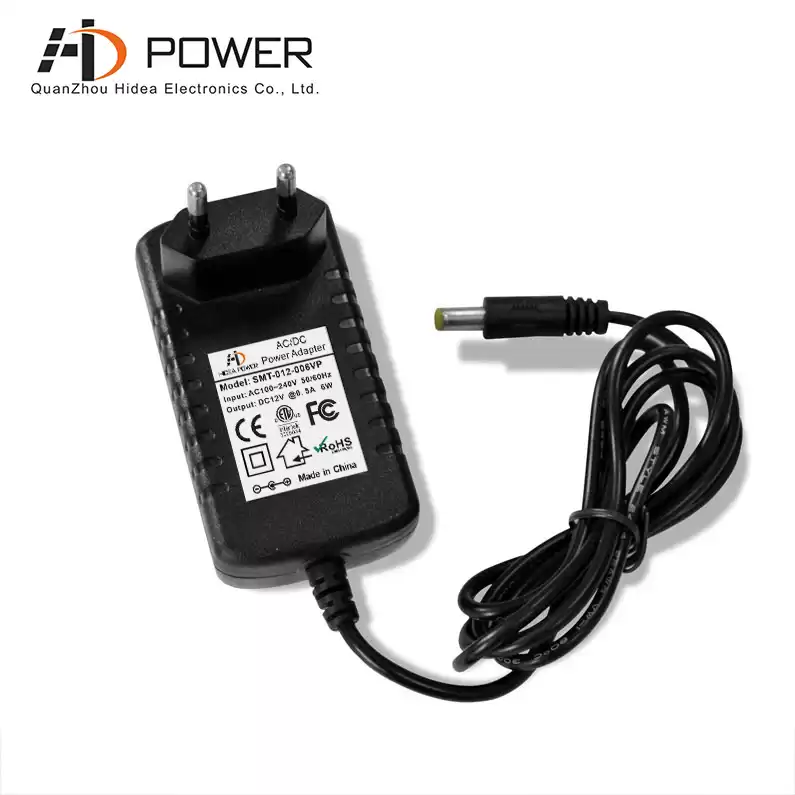

SMT-012-006VP is a plastic case 12v 6W led driver adapter, black plastic case design, working mode is constant voltage
Specification
|
model
|
SMT-012-006VP
|
SMT-024-006VP
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
0.5A
|
0.25A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
6W
|
6W
|
|
Input
|
Voltage Range
|
100-240V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
80%@120V, 80%@230V ,89%@277V
|
80%@120V,80%@230V
|
|
|
Full Load Efficiency(Typ.)
|
0.7
|
0.7
|
|
AC Current(Typ.)
|
500MA MAX.
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120VAC;
|
|
Ripple
|
<200mV
|
|
Over temperature
|
90℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦265VAC
|
|
Environment
|
Working TEMP.
|
0~+40℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-20~+60℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL60950-1,EN60950-1,GB4943-2001
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Hi-Pot
|
AC3000Vrms/50Hz,5mA max
|
|
Others
|
Weight
|
About 0.12Kg
|
|
Size
|
59.80*38.80*45mm (L*W*H)
|
|
packing
|
100PCS/CTN (L*W*H)
|

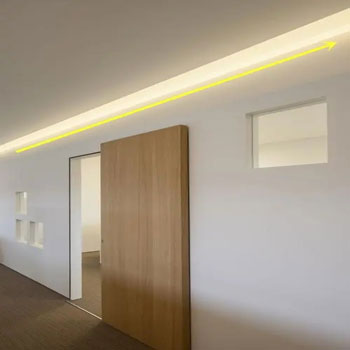

Compatible Light Type
6W 12V wall-mounted power adapter is suitable for single-color led light strip equipment, constant voltage and non-dimmable working mode can make the light strip work stably
Related Products

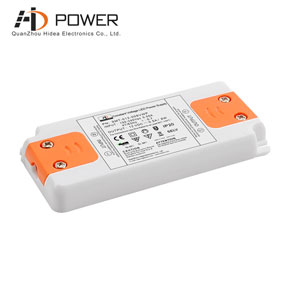

mini size 6W led driver 12v non dimmable,suitable for
