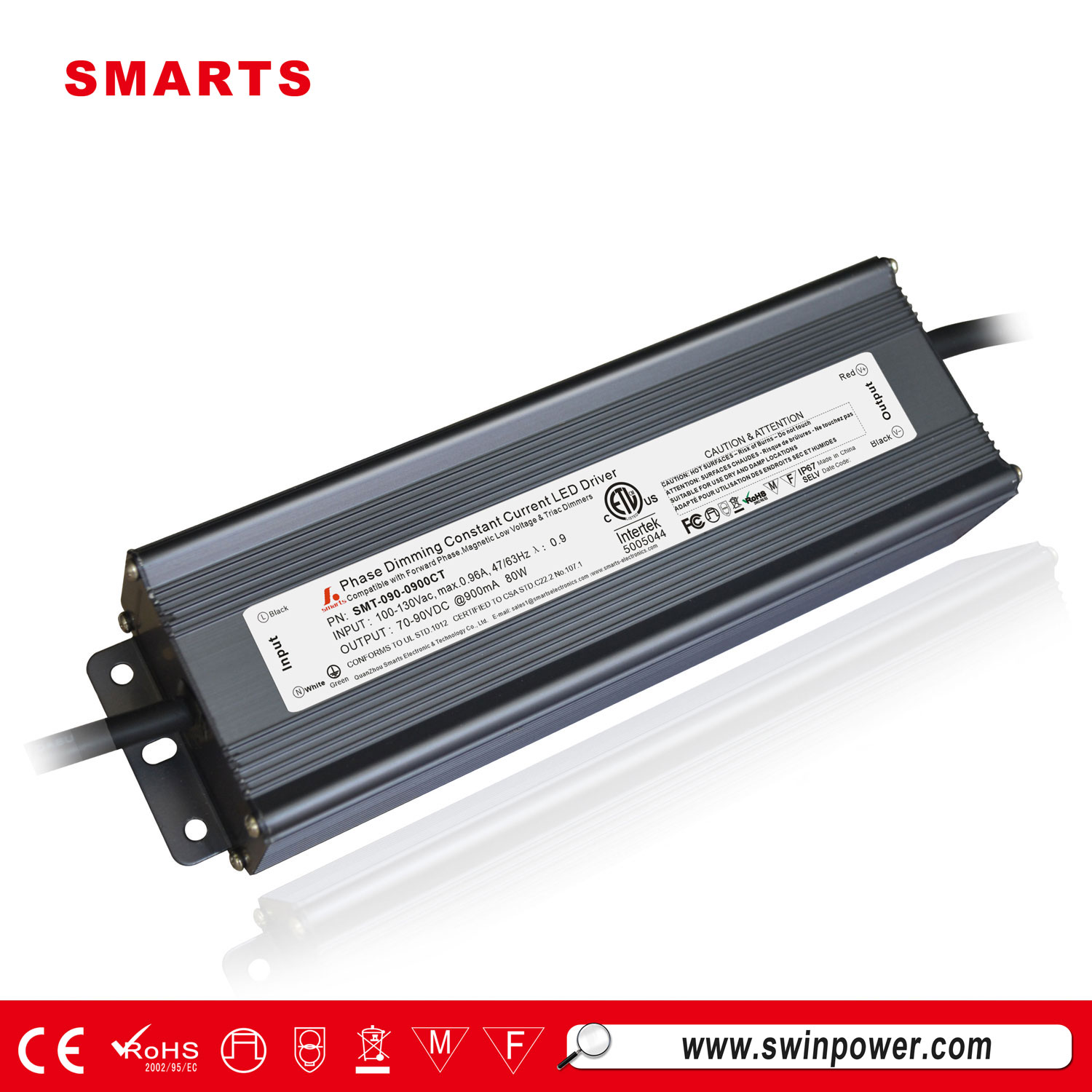

CE ETL ROHS listed triac PWM constant current LED lighting driver

Smarts offer power supply for LED signs separately to accommodate your unique laser safety needs.

Power range is 110 V/277V to 12VDC, 24 V DC.


  • Input Voltage100-130vac/170-265vac
  • Output Voltage70~90VDC
  • Output Current900mA
  • Working ModeConstant current
  • Dimming modetriac dimmable
  • Size200*68*45mm
  • CertificationCE ETL FCC ROHS

CE ETL ROHS listed triac PWM constant current LED lighting driver



The choice of constant current LED lighting driver the world's major fixture manufacturers, Smarts high-efficiency LED drivers last as long as the LEDs in your fixture design. Smarts LED drivers meet or exceed worldwide efficiency standards and provide the most cost effective and safety conscious power solution for lighting fixtures.



Specification:

Model

SMT-115-0700CT

SMT-090-0900CT

SMT-080-1050CT

SMT-067-1200CT

Output

DC Current

700mA

900mA

1050mA

1200mA

Current Accuracy

±5%

Voltage Range

80-115V

70-90V

55-80V

40-67V

Rated power

80W

80W

80W

80W

Input

Voltage Range

 90-130VAC / 170~250VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V

Full Load Efficiency(Typ.)

>85%

>85%

>85%

>85%

AC Current(Typ.)

0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC

Leakage current

<0.27mA/110VAC; ﹤0.25mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

≦270VAC

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN-61347-1-2

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry

level (surge4KV)

Others

Weight

0.34Kg/pcs

Size

200*68*45mm

mmm(L*W*H)

packing

324*298*176mm

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

   25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a

   0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

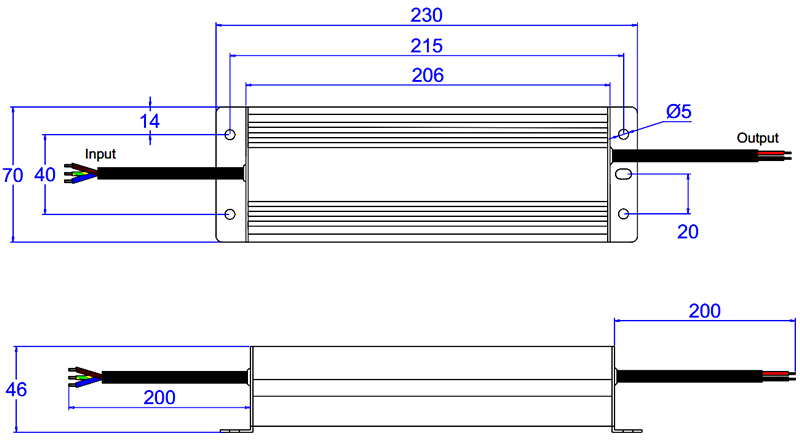

Physical size:

 constant current LED lighting driver


l Input power cord: AC (L), (N), and earth wire (G)

l Output Red isDIM+,Black isDIM-



Dimming Operation:

1. Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

2. Compatible with Leading edge or tailing edge triac dimmers.

3. please try to use the small power dimmers, which can be accessed to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.

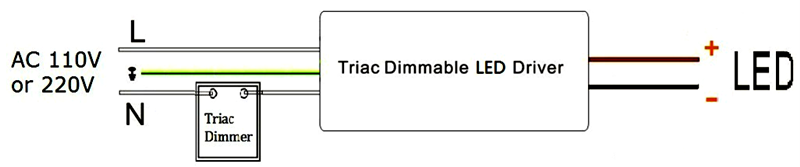

Connection diagram:



 constant current LED lighting driver

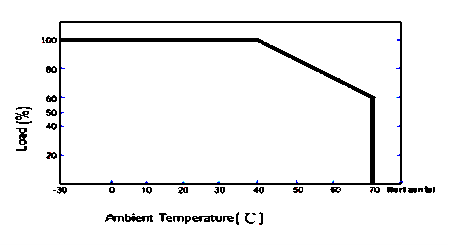

Derating Curve:

constant current LED lighting driver




Instruction:

1. This driver should be installed by qualified and professional person;

2.  Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

3.  Ensure that wiring is correct before test in order to avoid light and power supply damage;

4.  If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com  Or take a phonecall: 0086-595-22863721 ext.808   Official website: www.smarts-electronics.com / www.swinpower.com.
