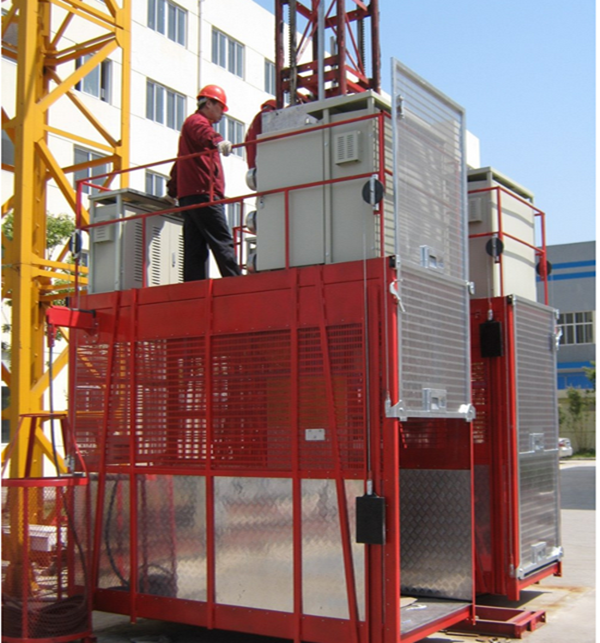

CE Proved Rack and Pinion SCB200/200 Construction Hoist
SCB200/200 is double cage frenquency type constructon hoist. max load for per cage is 2000kg, basic height 50m, max height up to 200m. mast section 650*1508mm. With variable frequency motor driven, it reach the lower speed of 36m/min, the middle speed of 45m/min, 63m/min and the high speed of 96 m/min.
CE Proved Rack and Pinion SCB200/200 Construction Hoist
SCB200/200 construction hoist/lifts//building lifts//building elevator
main Characteristics
---type: frequency conversion type
---cages: double cage
---load capacity: 2t*2 cages
---free height:50m
---max height with wall-ties:300m
The performance parameters of SCB200/200 construction hoist
| model |
SCB200/200 |
|
| Type |
Gear rack type double drives double cages construction hoist |
|
|
Working performance |
Rated loading capacity |
2*2t (2 cage, each cage holds 2t material) |
| Number of passengers |
2*24 (2 cage, each cage holds 24 persons) |
|
| Rated start lifting speed |
33/45/63/96(m/min) |
|
| Rated lifting height |
300m (commodity supplying height 50m) |
|
| Hanging cage size(length*width*height) |
3.2*1.5*2.4(m) |
|
| 3*1.3*2.4(m) |
||
| 3*1.3*2.1(m) |
||
| Basic height |
50m |
|
| Max height |
300m |
|
| Mast section |
800*800*1508(mm) |
|
| Mast section weight |
150kg |
|
| motor |
Motor power |
11*3*2(Kw) |
| Model of safety device |
SAJ40-1.2 |
|
Commercial Terms
MOQ: 1set
Trade terms: FOB (Qingdao) or as per your request
The abroad market: MiddleEast, South Asia, Africa, Russia, etc.
Terms of Payment: T/T (30% advanced payment, 70% before shipment) or 100% irrevocable L/C
Deliverytime: within 15 days after receiving 30% advanced payment or final L/C version
Package:nude in 1*40"HQ containers for basic height (50m)
Warranty:12 months
why choose us？
5. Consulting hotline to receive customers’s inquiry and regularly inquiry the customer machine usage condition, and offer technical guidance and solution to problems in operation and maintenance.
6. oversea service: for installation and debug, We shall send one technician to the site to provide guidance on installation and debugging and the training of operators if necessary.
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
