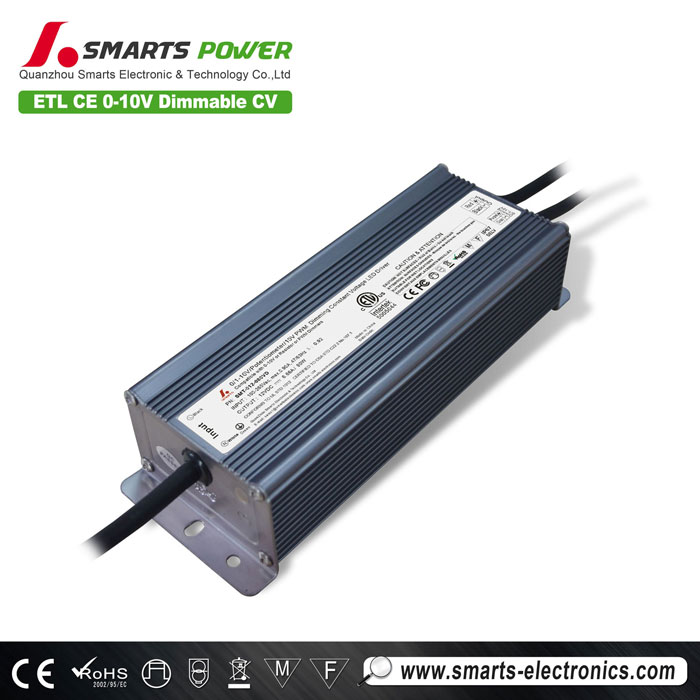

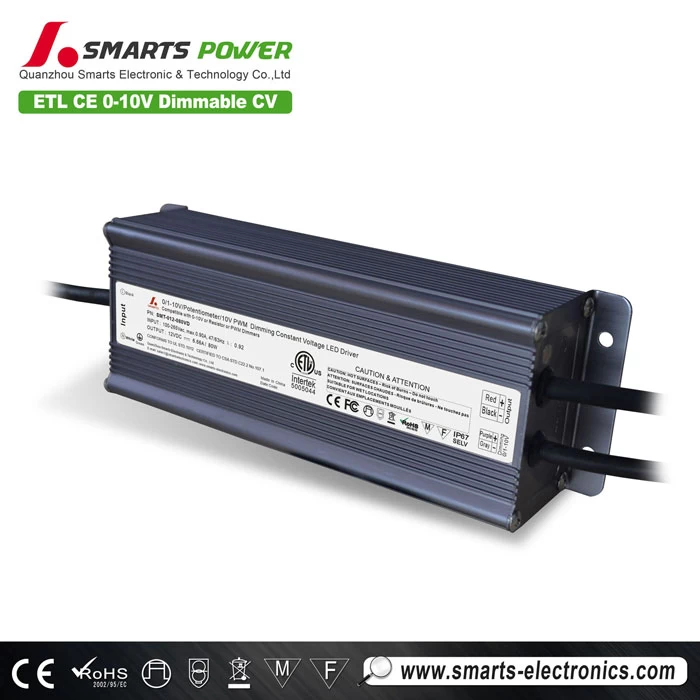

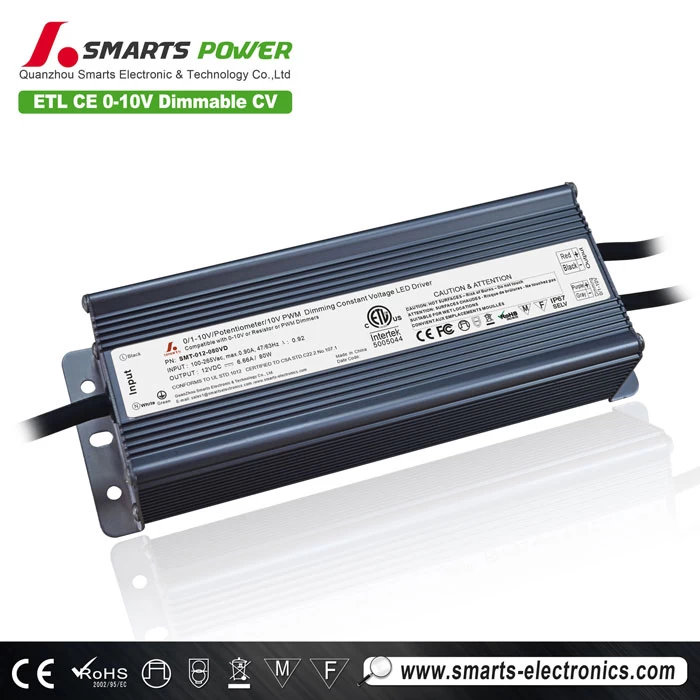

CE RoHS 220v 0-10v dimmable waterproof 80w 12v led driver

0-10v dimmable waterproof 80w 12v led driver;dimmable waterproof 80w 12v led driver;


  • Input Voltage100-265V
  • Output Voltage80w
  • Output Current6.67A
  • Working ModeConstant Voltage
  • CertificationCE ROHS
  • Warranty3 Years

CE RoHS 220v 0-10v dimmable waterproof 80w 12v led driver


 Specification


Model

SMT-012-080VD

SMT-024-080VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

06.67A

03.33A

Rated power

80W

Input

Voltage Range

100-130VAC,170-265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/110V; PF0.90/220V

Full Load EfficiencyTyp.

>88%

>88%

AC CurrentTyp.

0.918A@110VAC

0.459A@220VAC

Leakage current

0.66mA/110VAC ; 0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

280VAC

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13.

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.1Kg

Size

200*68.5*45mmL*W*H

packing

329*279*176mm/10pcs /CTN   245*80*58mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25

of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

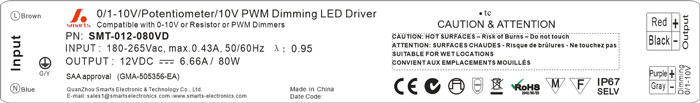

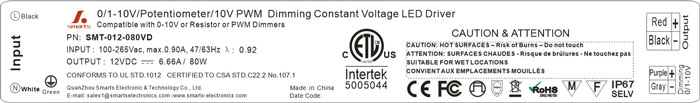

  label

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top




 Product parameters


  1. Dimming mode: 0/1-10v dimmable
  2. working mode:constant voltage type dimming
  3. PF>0.92/110V; PF>0.93/220V
  4. Full Load Efficiency (Typ.):  >87%
  5. AC Current(Typ.): 0.451A
  6. Leakage current: <0.66mA/110VAC ; <0.7mA/220VAC
  7. 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


 Features


  1. High efficiency,save energy ,protected environment
  2. Constant voltage design with high accuracy.
  3. International wide input voltage.
  4. output voltage 12v/24vselectable.
  5. Wattage: 20w-200w.
  6. High efficiency, save energy, protected environment.
  7. High stability and low ripple, increase light efficiency and decrease light attenuation.
  8. Meet to safety standard and EMC.
  9. Assure LED stability long lift and light efficiency by constant voltage.
  10. Cooling by free air convection.
  11. 100% full load burn-in test.
  12. Brand electrotronic components.
  13. ROHS material.
  14. Suitable for LED lighting



 Applications


  1. indoor LED illuminating lights
  2. LED Neon
  3.  LED urban Decoration
  4. LED Lighting Advertising
  5. LED Display
  6. Safety Protection Apparatus
  7. Telecommunications, Networks
  8. Vehicle Lights, Controller Panels


led driver ac to dc






 FAQ


Q1. What's type power supply do you have?

A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI

       dimmable led drivers, enclosure power suppliers, power adapters.



Q2. What's shipping mode can we choose?

A2:1.FedEx/DHL/UPS/TNT/Express for samples;

      2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

      3. Customers specifying freight forwarders or negotiable shipping methods!



Q3. What's the MOQ?

A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4. What can you do if the product is broken?

A4: We promise to replace new ones to you if there is any defective happen during

      the warranty period, but we need pictures or video to prove the defective comes

      from our quality problem.



Q5. How about the protection of product?

A5: Most of our products have protection of short-circuit, overload, over voltage,

       over current and reserve polarity. About the specific product, please consult

       our sales stuff.



Q6. How about the transportation?

A6: For small order,express will be best.And for bulk order,sea ship way is best but

       take much time. For urgent orders,we suggest via air to airport plus our ship partner

       send to your door. We will cooperate with your choice.



Q7. What's the Payment do you have?

A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via

        T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the

        near future.
