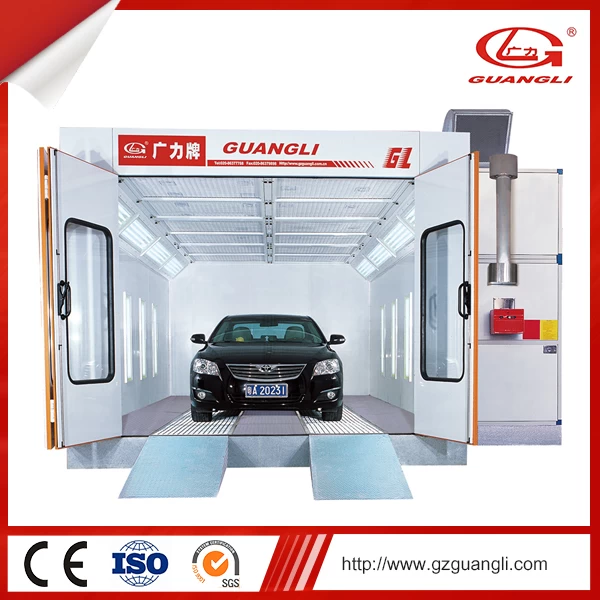

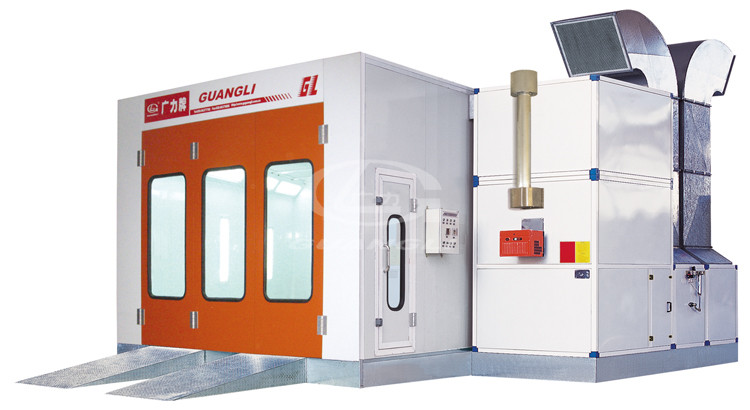

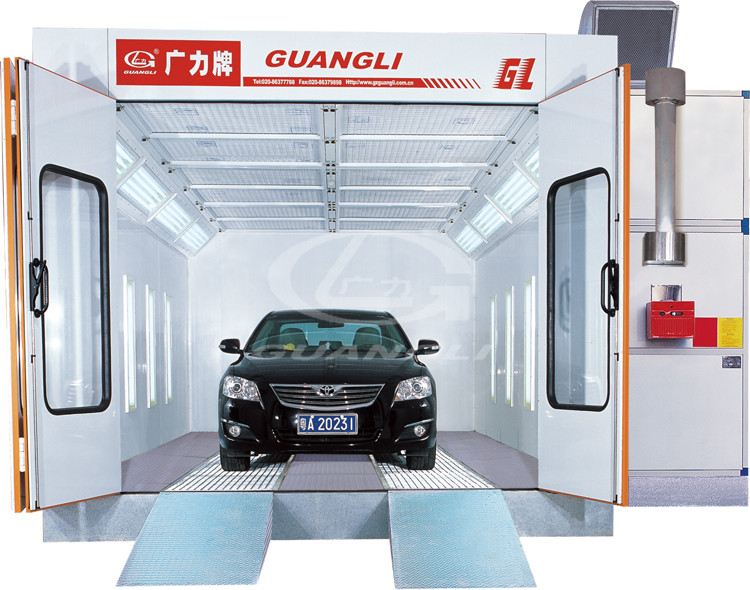

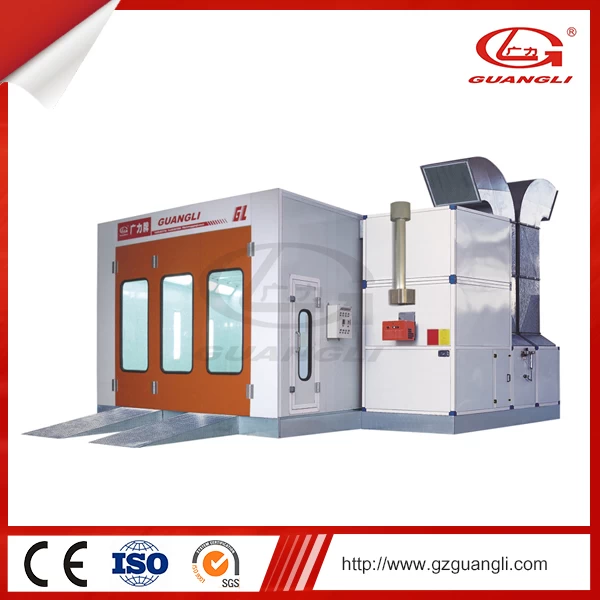

GL2000-A1 CE Approved High Quality Automo Paint Booth for Car Service
Guangli Spray Booth Description
Main room & basement:

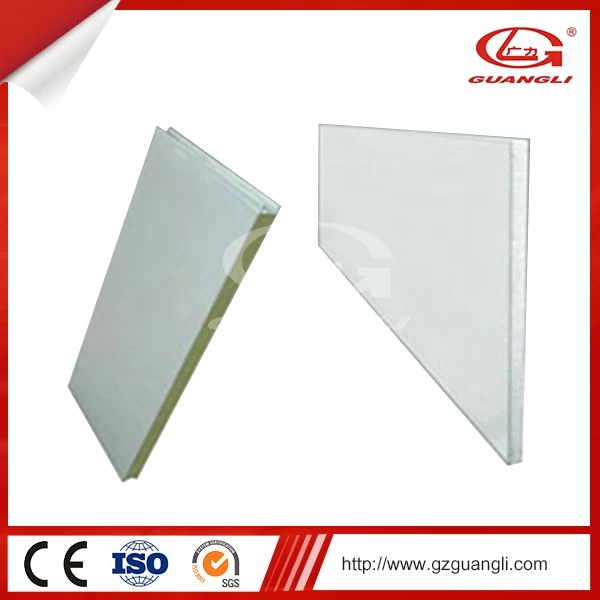

Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.

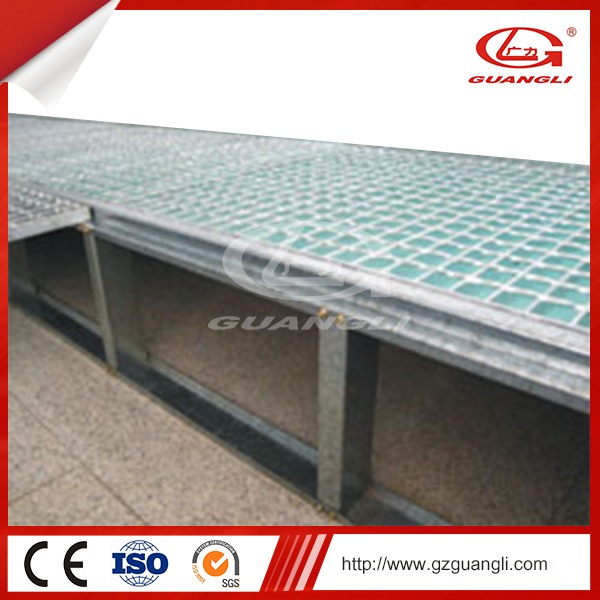

Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
Ramp: 2 pcs of vein board.
Fans & ducts:
One 7.5kw intake fan and one 5.5kw exhaust fan.
4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
Spraying/baking transition damper, automatically air controlled.
Heating & filter:
Heat ex-changer: stainless steel. Riello G20 burner.
Roof filter: 4 pcs of filter, mounted above support frame,which is made of steel and powder coated.
2 pcs of floor filter and 1 pcs of outlet filter.
Light & control box
Upper light: 10 sets, 4*40w per set. Side lights: 8sets,2*40w.
Control box: components is import, overload, overheat, phase-lacking protection, engine Y/△ start.
Automatically stop when preset time is up.Constant temperature spraying.
Environmental filter: adopt either M style or drawer style active carbon equipment.
|
Technical Specifications
|
GL2000-A1-CE
|
|
External size(m) (LxWxH)
|
7.0×5.3×3.5
|
|
Internal size(m) (LxWxH)
|
6.9×3.9×2.7
|
|
Door width(m)
|
3.0
|
|
Door height(m)
|
2.66
|
|
Air flow ( m3/h)
|
30000
|
|
Inside on-load air speed(m/s)
|
0.3-0.35
|
|
Water-based Device
|
As option
|
|
Temperature(℃)
|
20-80
|
|
Power (Kw)
|
25
|
|
Color
|
Orange,Blue,Red,White
|
|
Vehicle suited
|
Saloon car
|
|
Exhaust type
|
Full-undershot,Bilateral,Semi-down,Unilaternal
|

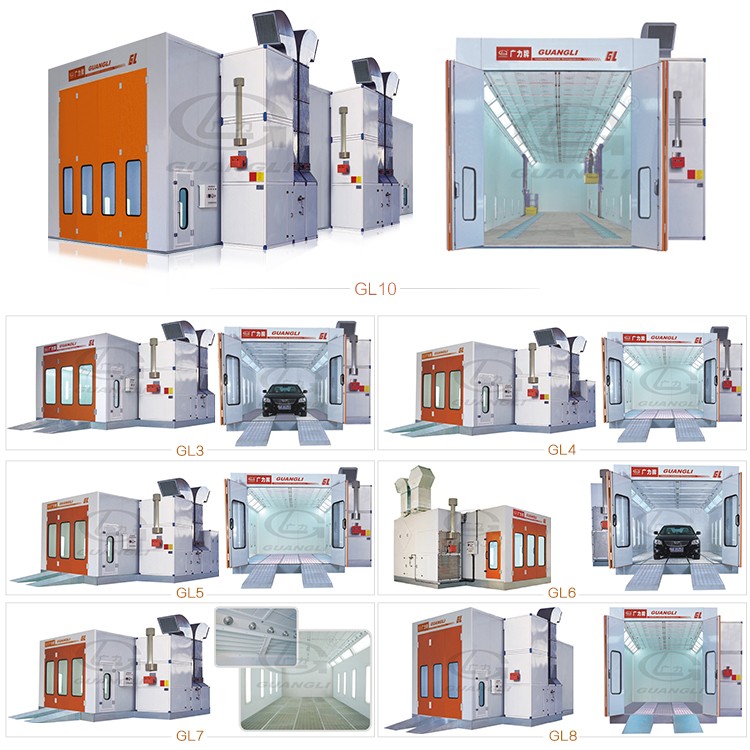

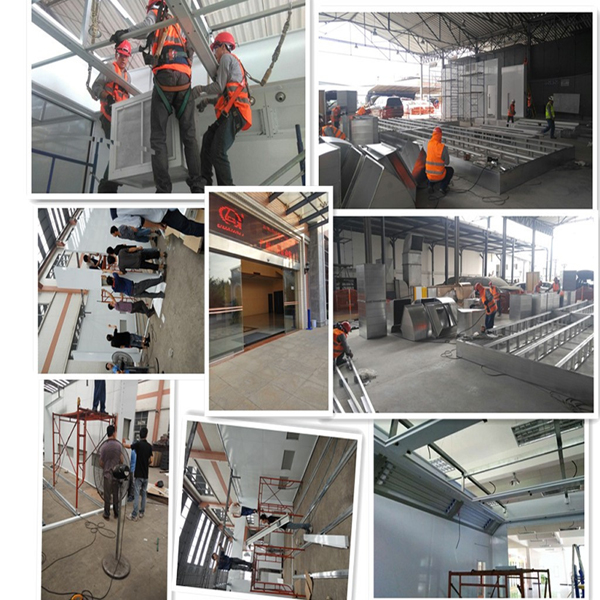

Guangli Spray Booth Show
