CE UL listed constant voltage triac dimming slim led driver 30w

High power factor 0.95, high efficiency 90%, long warranty years 7 years.


  • CertificationCE,UL, RoHS,FCC,Class p
  • Dimming modetriac dimming
  • Size260*32*20mm
  • Working Mode30W
  • Output Current2.5A
  • Output Voltage12Vdc
  • Input Voltage100-277 VAC

CE UL listed constant voltage triac dimming slim led driver 30w


SMT-012-030VTSW is triac dimming led driver. It is Class 2 verison, with low output voltage 12Vdc. For this series we also have 36w, 60w, 96w those three wattage. They are UL FCC CE listed, type HL, Class P standard.


Features of triac dimming led driver


·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P approval
·Built-in PFC function / Efficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load:10~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with leading edge and trailing edge triac dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty


Specification of triac dimming led driver :


model

SMT-012-030VTSW

SMT-024-030VTSW

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

2.5Amp

1.25Amp



Rated power

30W

30W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V



Full Load EfficiencyTyp.

>79%

>81%



AC CurrentTyp.

0.5A/100VAC  /  0.13A/277VAC



Inrush CurrentTyp.

7A, 50%, 420us



Leakage current

<0.27mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:2KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.35Kg



Size

260*32*20mm (L*W*H)



packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

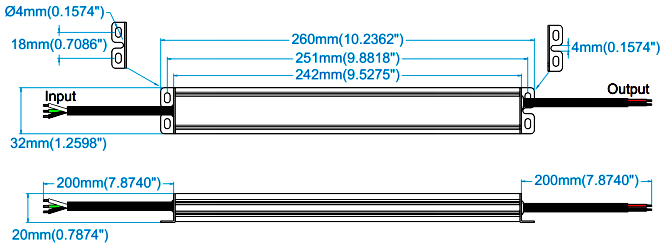

 Mechanical Specification


triac dimming led driver


Instruction:


※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;

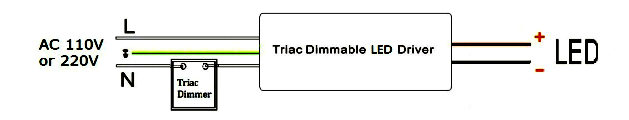

 Simple Connection Diagram:

triac dimming led driver
