CE310 444-310-401-101 Piezoelectric Accelerometer

CE310 - Piezoelectric Accelerometer is available in stock and ready for ship. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.

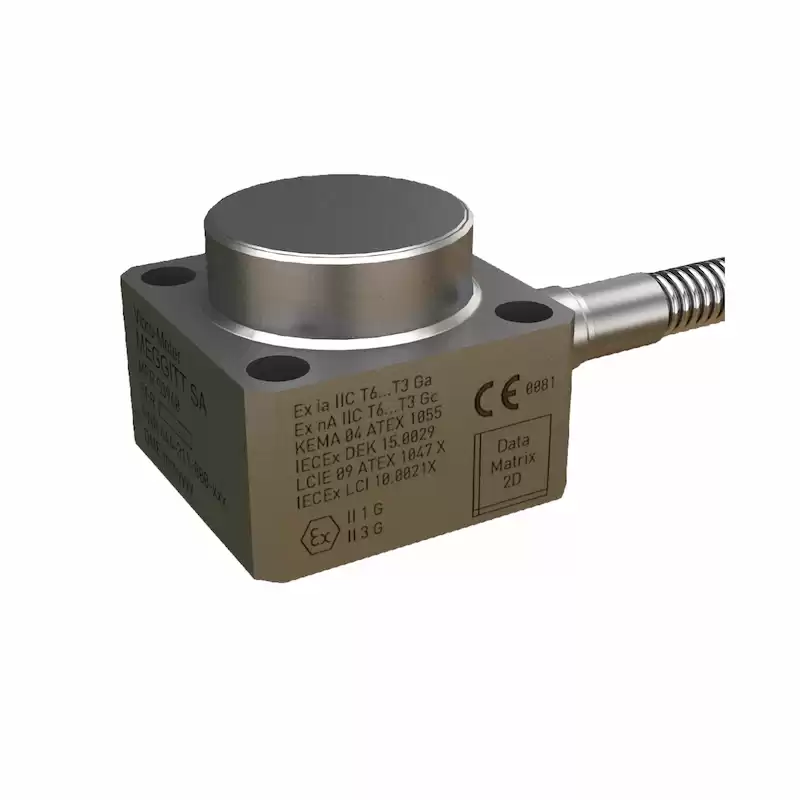

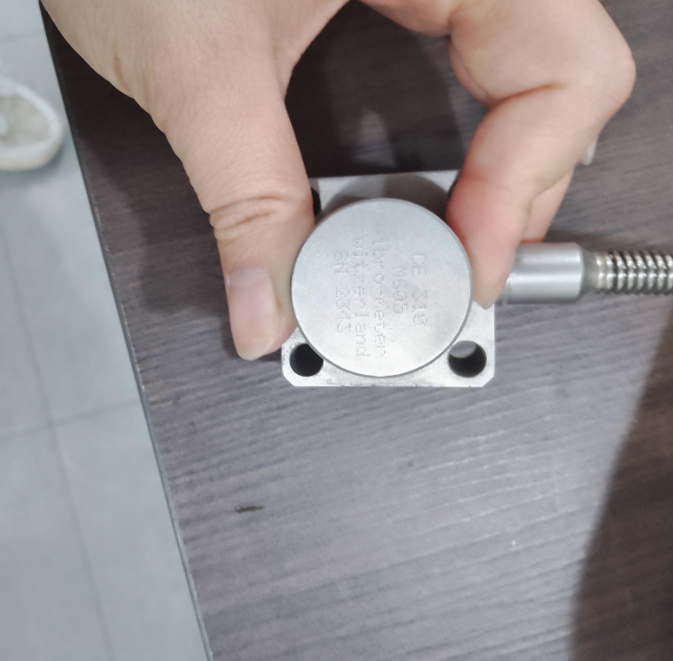

CE310 Piezoelectric Accelerometer



50 μA/g / 40 g

-30 10 150 ℃

5 to 8000 Hz



The CE310 is designed and built for long-term measurement of vibration in severe environments, such as steam turbine and heavy duty gas turbine.



The CE310 piezoelectric accelerometer is a high-quality, high-reliability vibration sensor with a piezoelectric sensing element and integrated electronics that provides a current output.



The CE range of piezoelectric accelerometers have built-in or integrally attached electronics. in general, the temperature range is lower than the CA series, but the versions with integrally attached electronics permit operating temperatures upto 350°C. Models are available with integral cable or rugged industrial connectors. Similar to the CA serles, the current modulation technique allows the signal to be transmitted over long distances, exceeding 1000 m.



KEY FEATURES AND BENEFITS



· Reliable, since there are no moving parts



· Built-in or integrally attached electronics



· Medium temperature ranges up to 350°C



· Frequency range from 0.5 Hz up to 20 KHz



· Most models hermetically sealede



· Exi versions





CE310 Piezoelectric Accelerometer

Technical Specifications

Manufacturer VM
Part Number CE 310
Ordering Information 444-310-401-101
Product Catalog Vibration Monitoring
Description Piezoelectric Accelerometer
Sensitivity 50 μA/g
Frequency response 5 to 8000 Hz
Temperature range -30 10 150 ℃
Dimensions 32 mm x 70 mm x 40 mm
Weight 245 g
