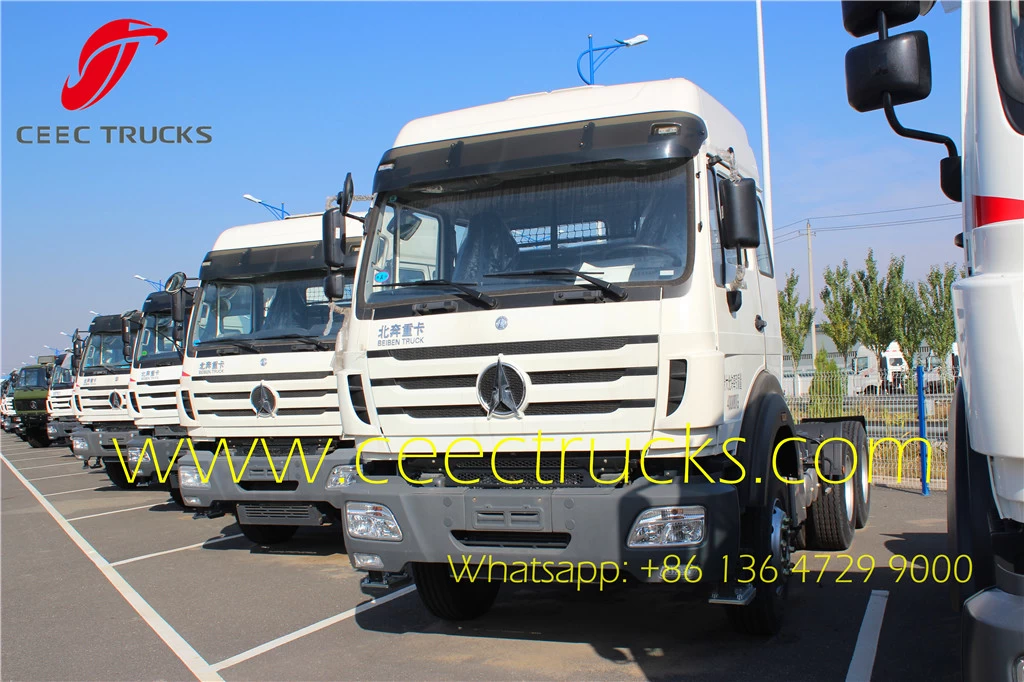

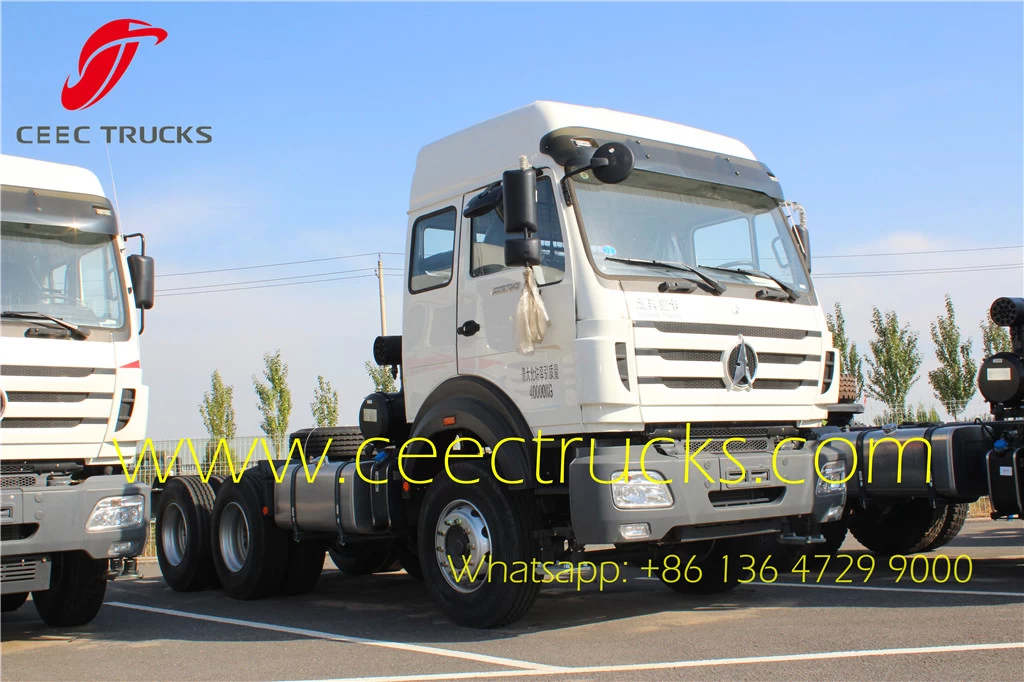

Beiben 2534 tractor truck also named beiben 340HP prime mover, beiben 6*4 towing trucks, etc.
which mainly used for container semitrailer transportation, low bed semitrailer transportation, etc.
Beiben Top Roof 2534 Tractor Truck supplier
The driver's cab uses Bei Ben new NG80B with attractive
appearance, and specific heavy truck metallic framework + stressed-skin
construction, possessing security of same level of European automobiles,
which fulfils European ECER29 safety and regulatory requirements;
stamping molding of frame only once ensures girder strength. The Beiben 2534 prime mover vehicle is oil-saving with high attendance rate; with countless
lightweight design, the weight of outfit is low while cargo dead weight
is high, which is suitable for medium and long-distance transport of
high-speed standard load.
★ CEEC TRUCKS are authorized Beiben 2534 tractor trucks, north benz 2534, 2538 prime movers supplier in China
★ Beiben trucks and Mercedes Benz trucks share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ The price for Benz 2634 towing trucks are relatively at least 10% lower than European and Asian competitors
★ Beiben
truck and benz trucks share familiar gearboxes - ZF and Fuller Fast.
mainly 9-shift manual gearbox and 12-sfhit manual transmissions
★ Mercedes
Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and
4; have displacements of 10 and 12 liters and HP of 270 to 480.
★ Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.
Similar
Key Works: Beiben 2636 towing trucks, Benz 6*4 prime mover, Beiben 2636
tractor truck, Benz 1834 tractors, beiben 6*6 all-wheel-drive tractors,
beiben 2534 towing trucks, beiben 6*4 trailer tower, offroad beiben 6 wheeler trucks

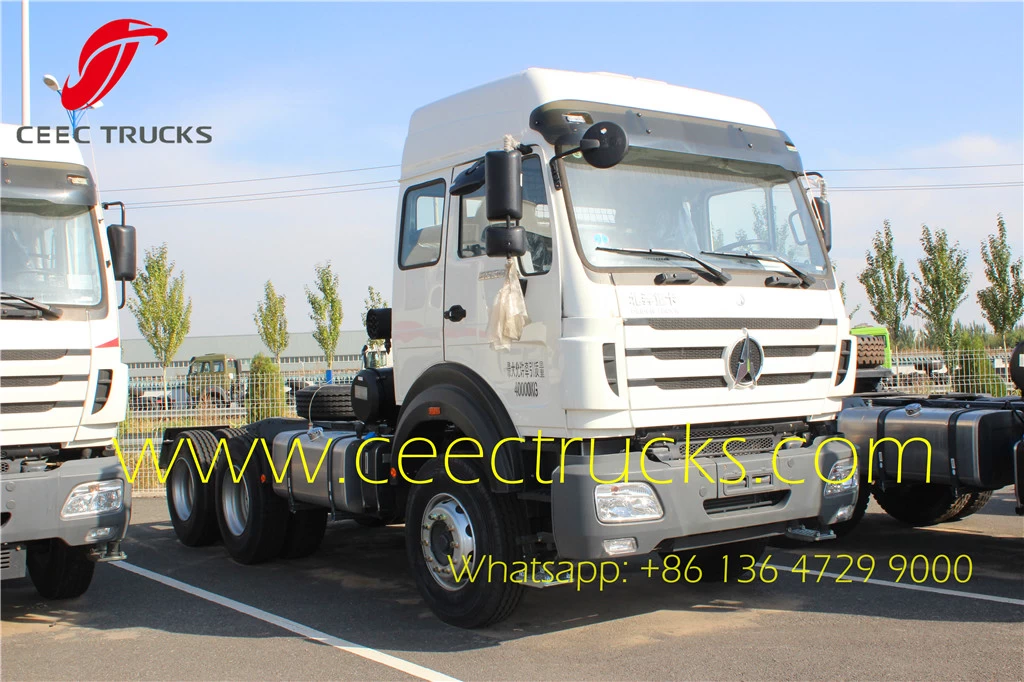

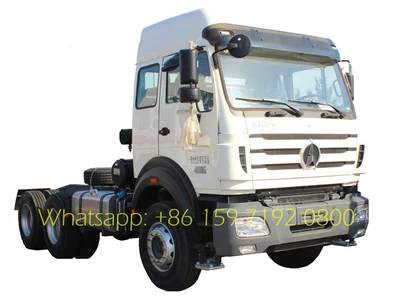

| 2634S /6×4/3450+1450/Long Cab/RHD Beiben 340HP Tractor Head
|
| Dimension
|
7136*2495*3180mm
|
| Approaching angle/Departure angle
|
26/64°
|
| Overhang(front/rear)
|
1410/825mm
|
| Wheel base
|
3450+1450mm
|
| Max speed
|
90km/h
|
| Curb weight
|
9200kg
|
| Max towing weight
|
36900kg
|
| Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.380,water-cooled,four strokes,6 cylinders in line, turbocharged, directly injection
|
| Displacement
|
9.726L/Diesel
|
| Stroke
|
126/130mm
|
| Max. power
|
280/2200 (kw/rpm)
|
| Max.torque
|
1460/1200-1600(Nm/rpm)
|
| Emission stantard
|
Euro Ⅲ
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
430, Single dry frictional disc, Hydraulic boosting
|
| Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
| Suspension system
|

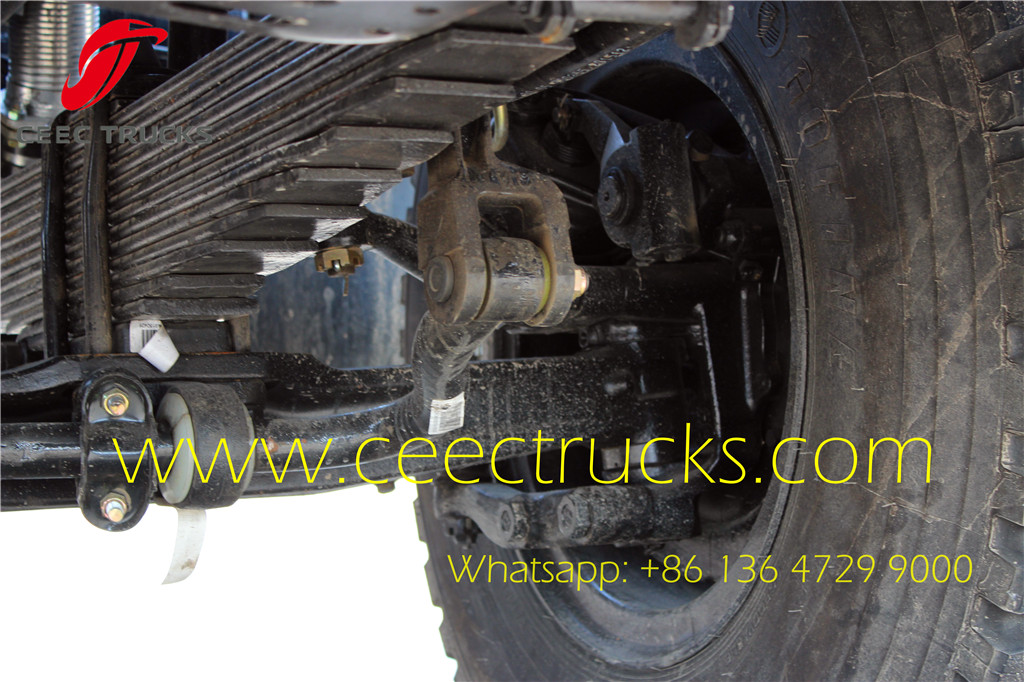

Front
|
Non-free standing leaf spring, telescopic shock absorber with stablizer bar suspension , 13pcs
|

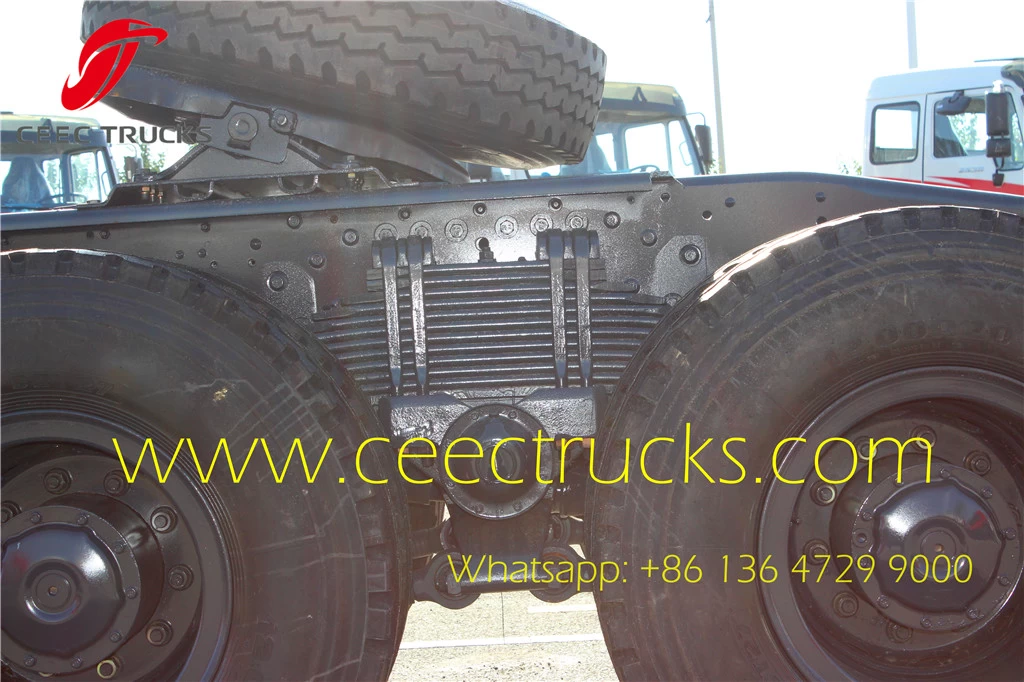

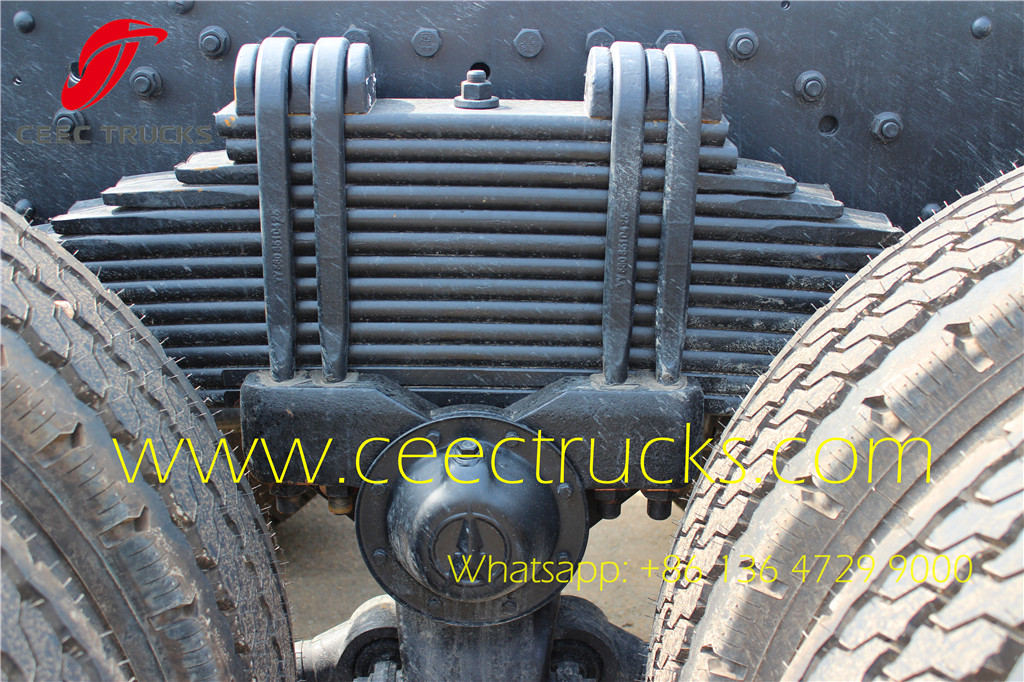

| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Model
|
JOST 90 single direction
|
| Height of fifth wheel(mm) (unload)
|
1410
|
| Radius of front gap (mm)
|
2300
|
| Radius of rear slew (mm)
|
2600
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|

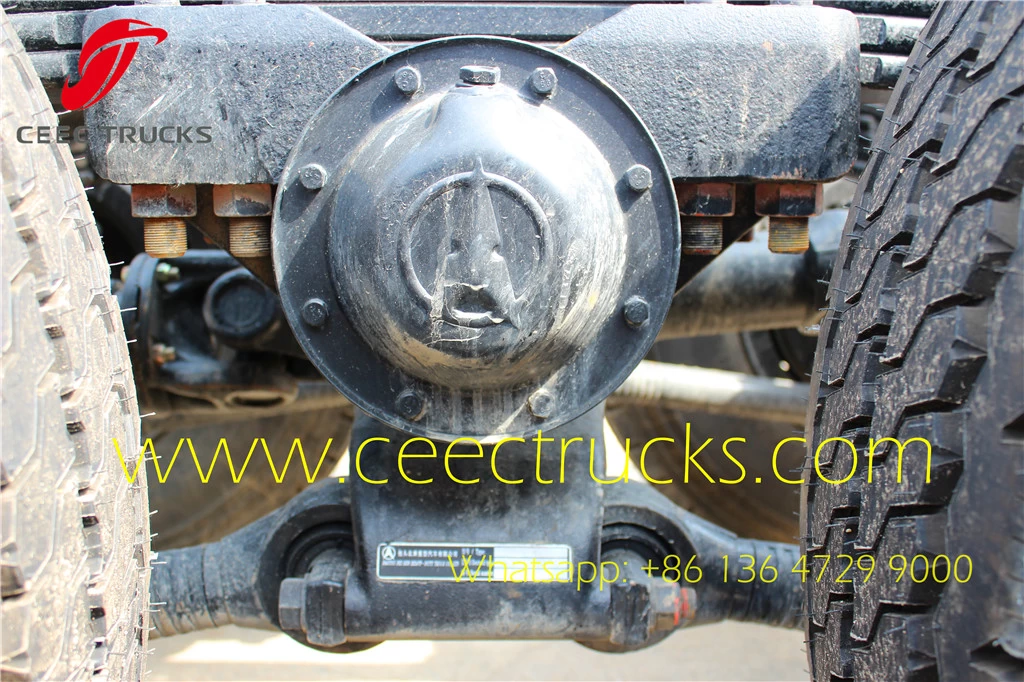

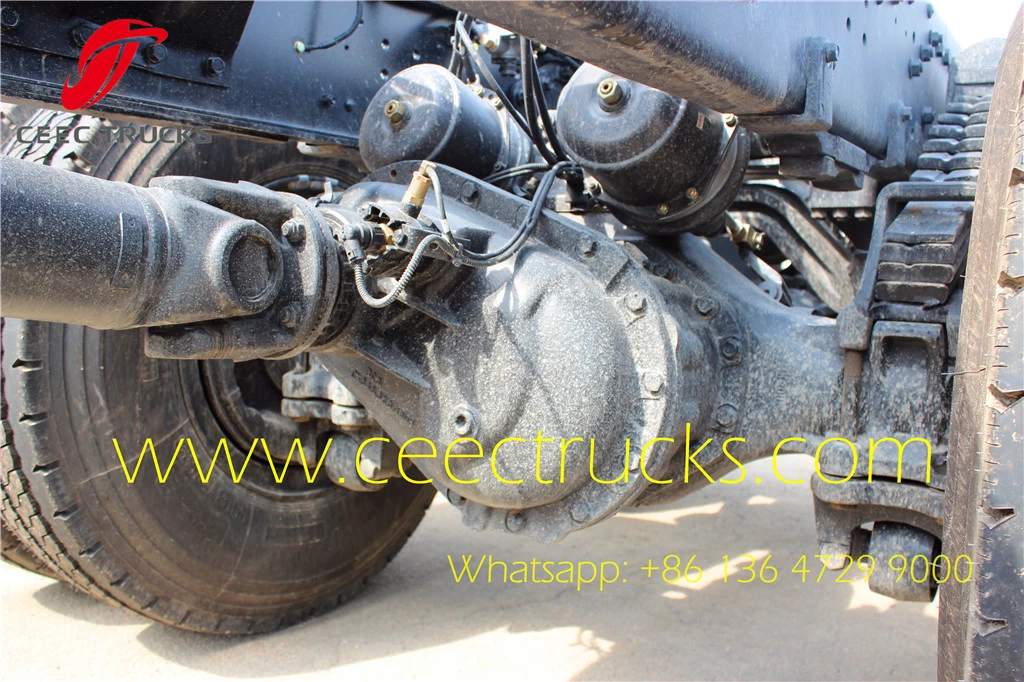

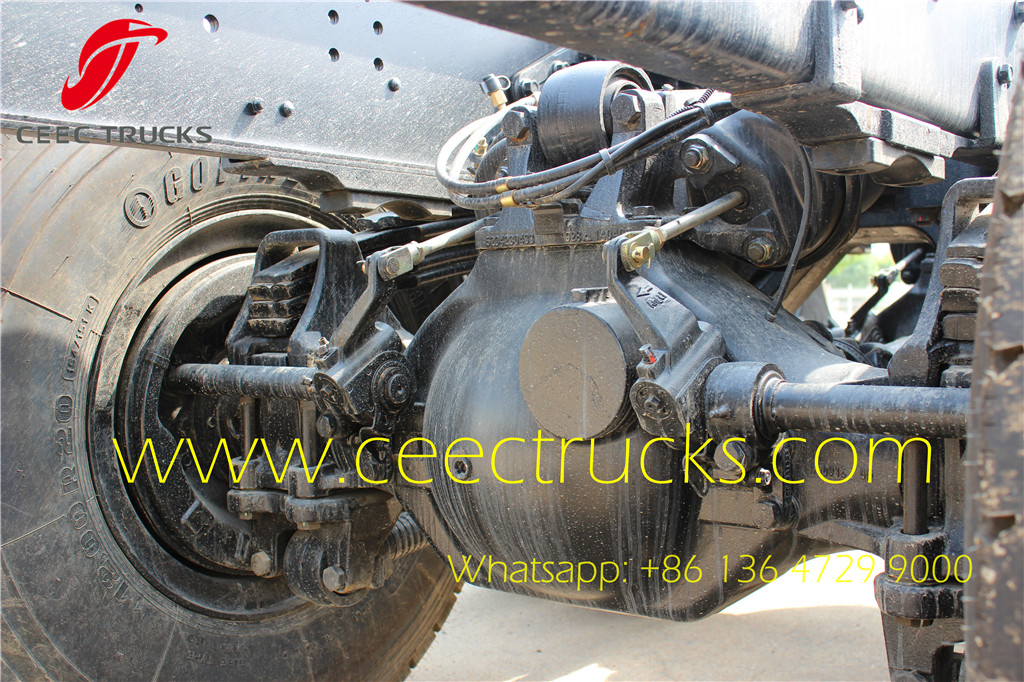

| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00-R20
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

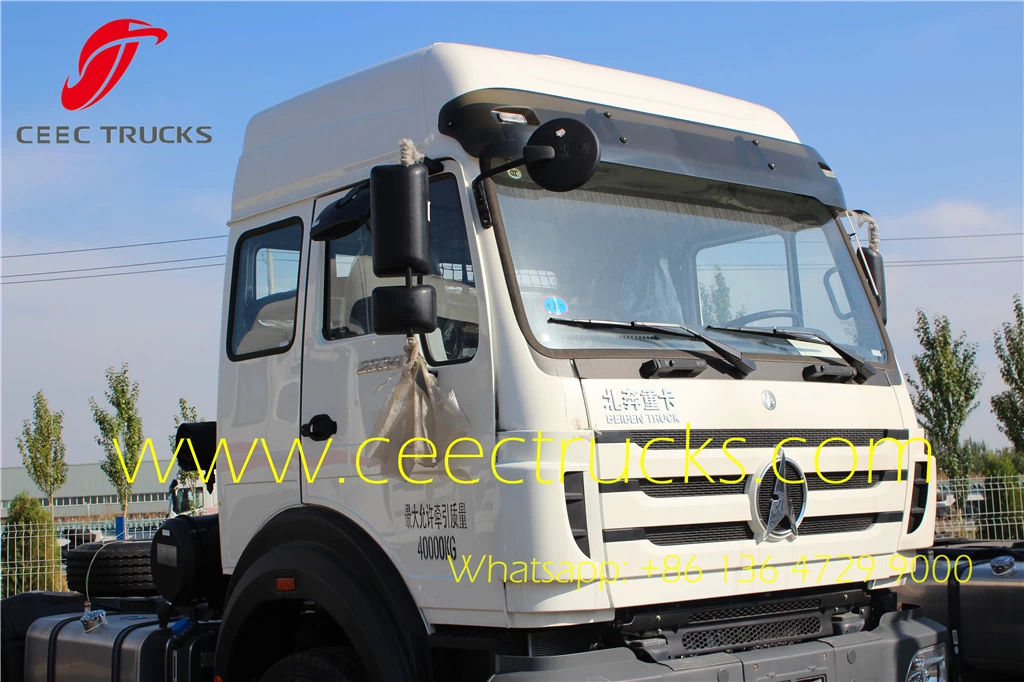

| Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver; Electric lifting window ;
With inner A/C
|
Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale
