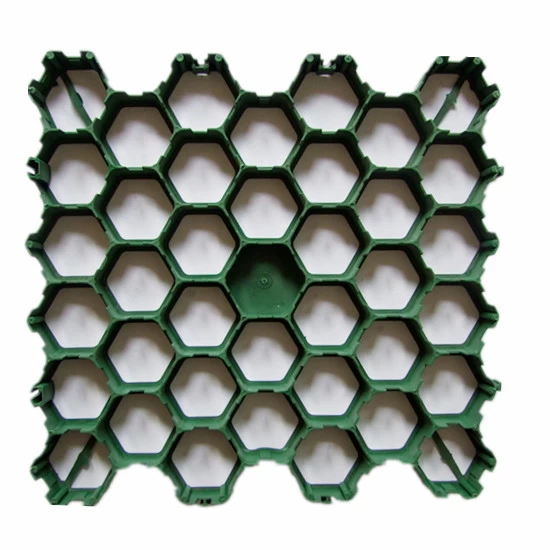

Cellular Geocells Plastic Paver Grid System

Paver grids covers more than 95% grass area with complete green effect, it can absorb noise, dust, heat and reduce the glare produced by the ground reflection.


  • Press Strength120tons/sqm
  • Total Volume0.005CBM/sqm
  • Size410x430x38mm
  • ColorGreen
  • MaterialHDPE

Cellular Geocells Plastic Paver Grid System Specification:

 Item Code  LK-638A
 Material  HDPE
 Size(L x W x H)  410x430x38mm
 Color  Green
 Application

  •  Grass driveways and grass shoulder;
  •  Grass car parks;
  •  fairgrounds Parks;
  •  Disabled access;
  •  Overflow grass car parking lot;
  •  Fire truck access paths/fire lanes;
  •  Handicap access routes;
  •  Pedestrian paths;
  •  Golf buggy/trolley paths;
  •  Emergency vehicle access roads through fields;
  •  Modern factory building;
  •  Noble living communities;
  •  Truck maintenance and equipment yards;

 Compressive Strength  120tons/m2
 Working Temperature  Dimensionally stable for -40℃ to 90℃
 Weight  3.4kg/sqm
 Afforests Rate  95%~100%
 Porosity  90%
 Moisture Absorption  0.1%
 Environmental Compatibility  Non toxic, harmless to plants, animals, and microorganisms, inert material, groundwater neutral
 Anti HCL  According to GB4218-1984, 30%x24h, no visible change
 Anti NaOH  According to GB4218-1984, 40%x24h, no visible change
 Thermal Aging  According to GB/T 7141-1999, 70ICx24h, no visible change
 Anti UV  According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified
 Features and Benefits

 1. Perfect greening, provides more than 95% grass area;

 2. Flat plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change

 3. Manufactured from 100% recycled plastics, eco-friendly grass grids;

 4. Hight compressive strength and durable,the plastic grass grids is permanent and long lasting;

 5. Fast and easy to install, maintenance with low cost;

 6.Unique interlocking plastic grass paving grids are chemically inert, non-toxic and rot free;

 7. Anti-UV, resistance to acid and alkaki corrosion, anti-wear and pressure, anti-temperature -40℃ to 90℃;

 8. Grass grids has an open cell structure allowing unrestricted healthy grass root growth;

 9. The grass grids allow grass to grow with easy and binds firmly;

 10. Permeability drainage performance, high water culvert.

 Packing  Bundle or Carton (or at your request), 8pcs=2sqm=1bundle
 MOQ  100sqm
 Loading Capacity  700sqm=1x20ft container; 1420sqm=1x40ft container; 1628sqm=1x40HC container
 Shipping

 About 20 days after receipt the deposit.

 FOB Xiamen, appointed shipping-terms and port accept.

 Installation Guide






Manufactured from 100% recycled HDPE material, Leiyuan Paver Grids are an interlocking celluar paving grid system for grass and ground   reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.


Paver Grids System harmoniously blend your architecture into the landscape in an attractive, functional and environmentally responsible way.

Paver Grids Production Line:



Leiyuan Paver Grids: High Strength, Long Life Service !
