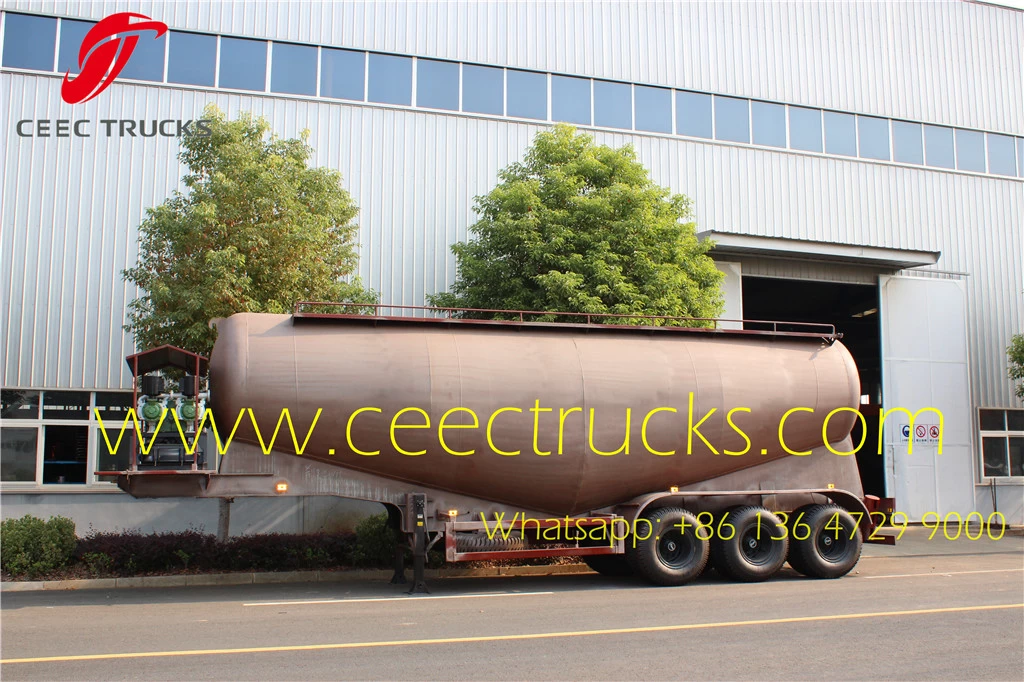

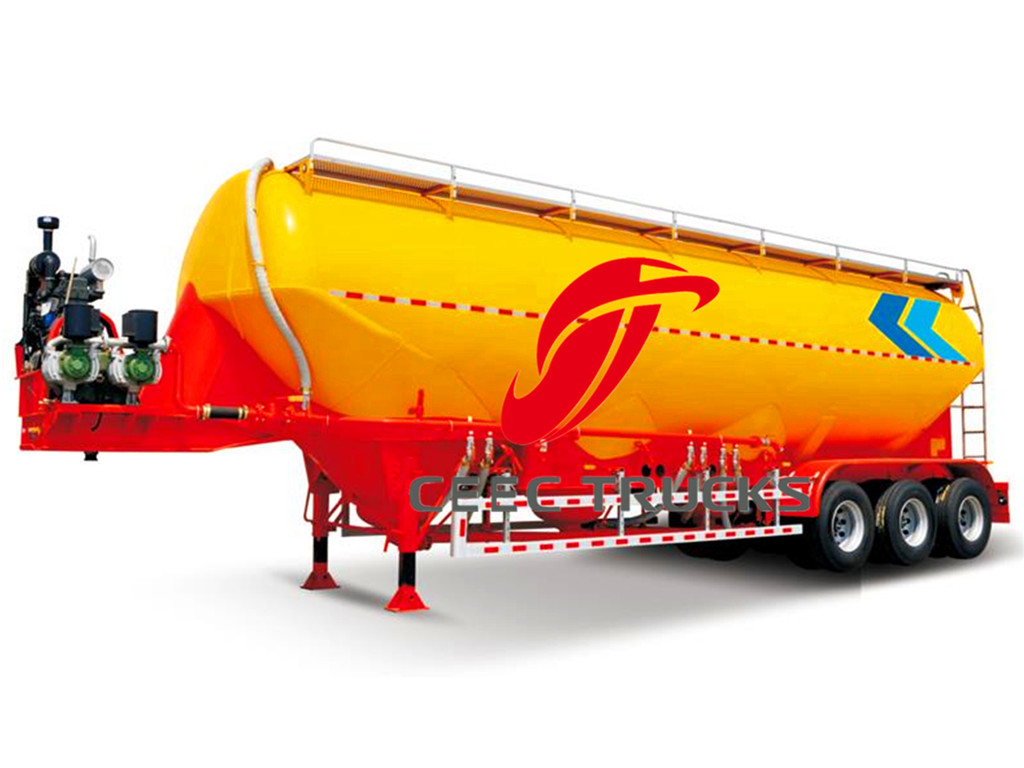

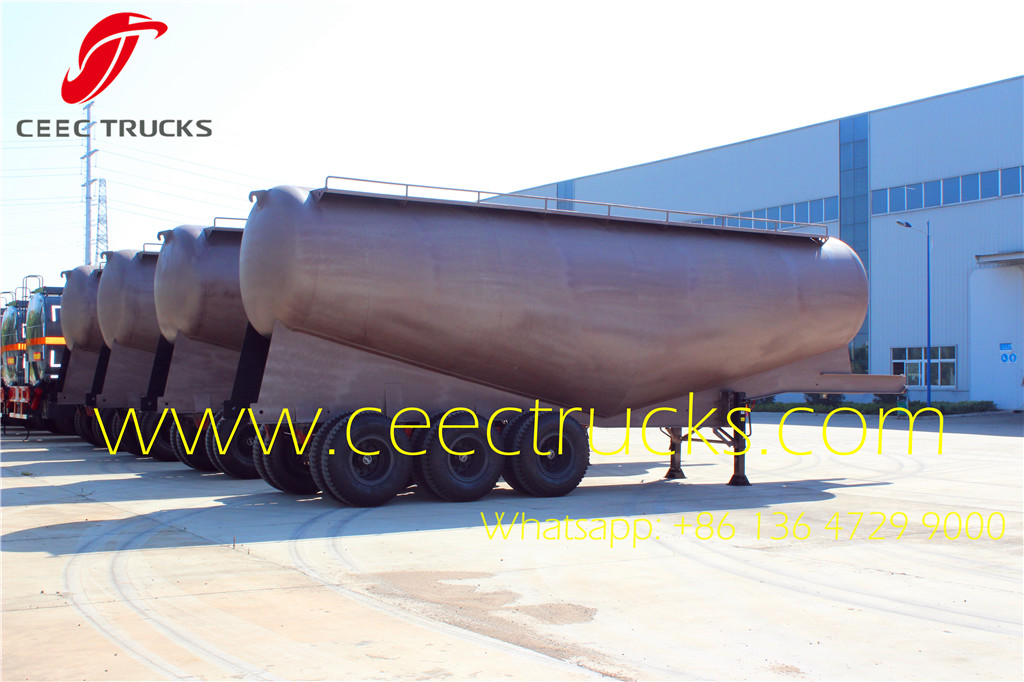

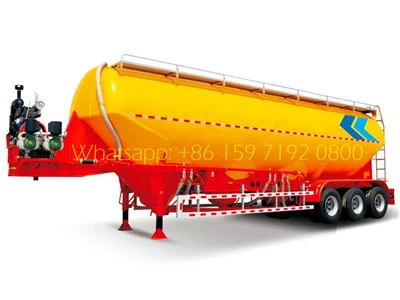

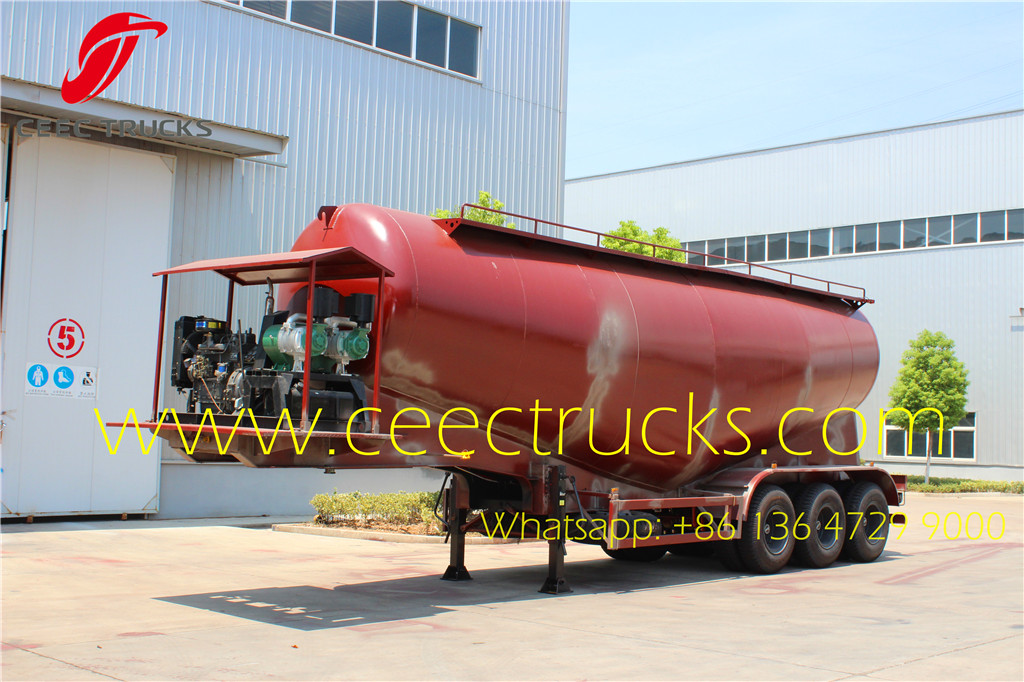

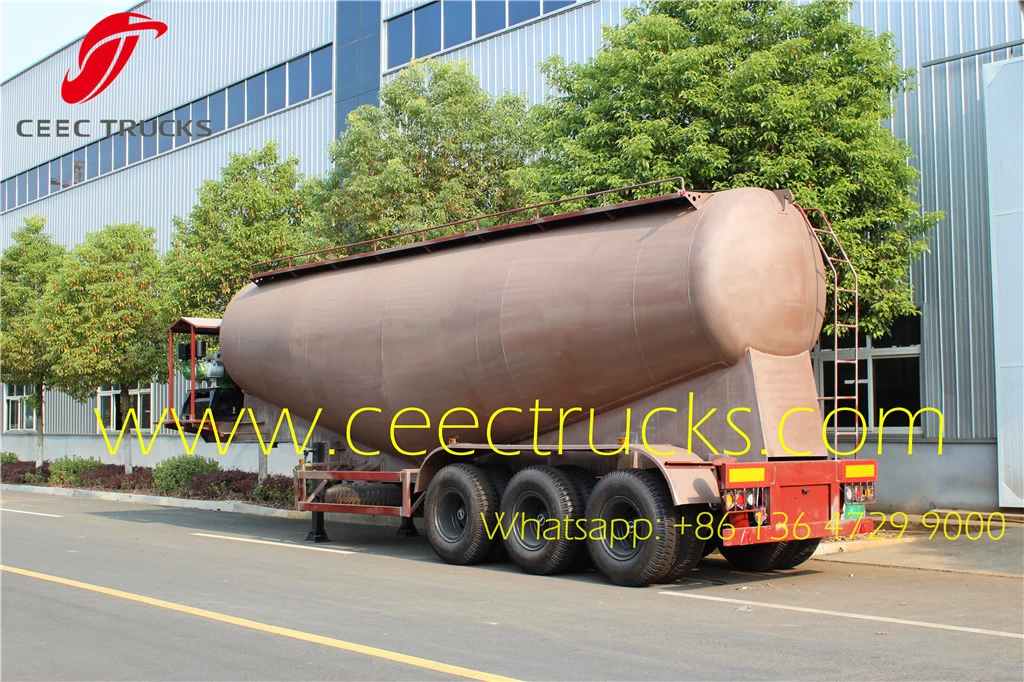

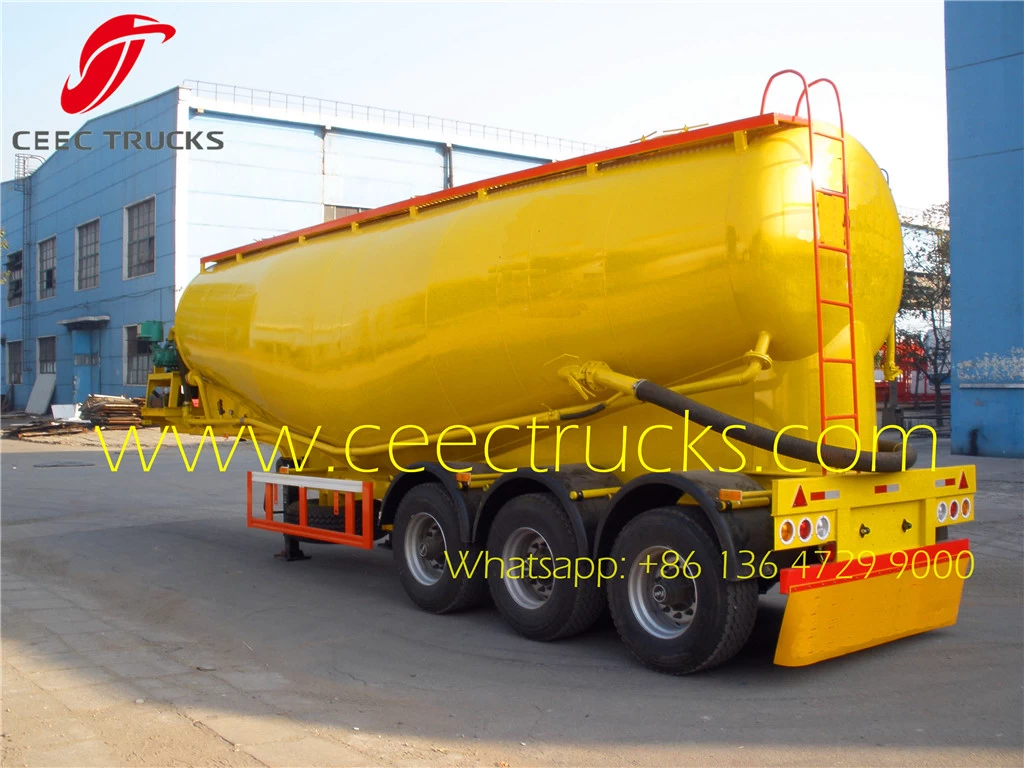

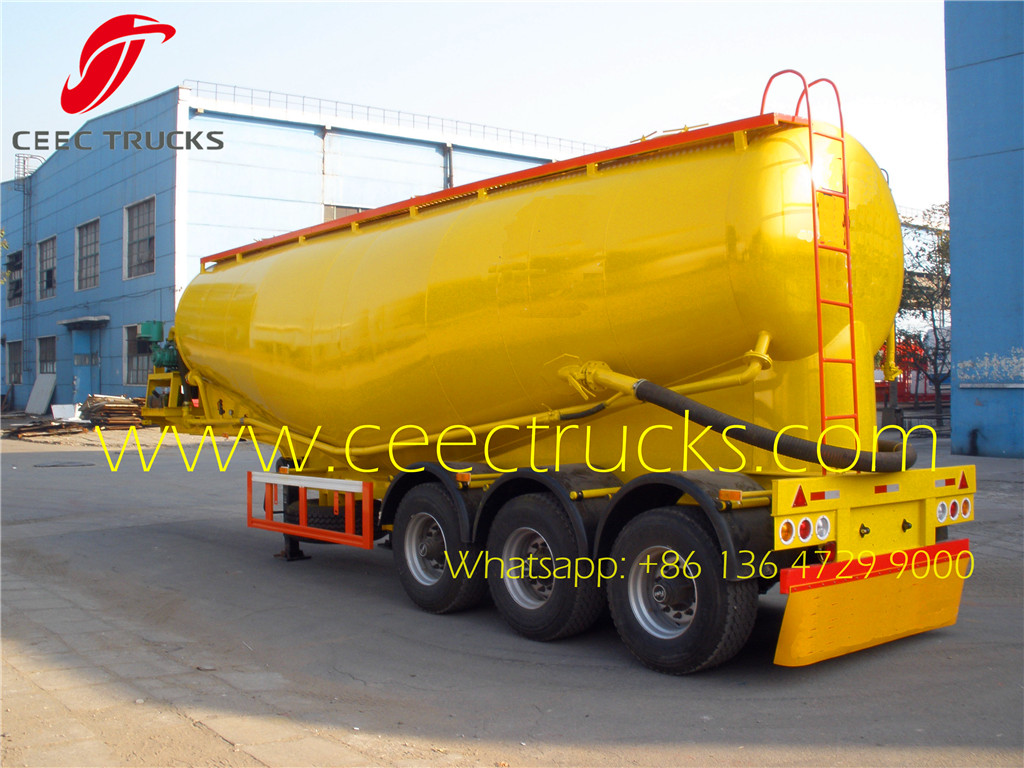

3-Axle 40~45 CBM Cement Bulker Trailer
Functions
Cement bulker trailers are widely used to transport cement, fly ash, grain, and other kind of powder material. Cement trailer is also called dry bulk trailer, cement bulker trailer, bulk cement trailer and silo trailer.
Features
1. The 42 CBM bulk cement trailer dimensions can be tailored to meet your exact needs.
2. We can design and manufature one V shaped silo, double silo and triple silo cement tanks. Typically, we would recommend our client choose the one V shaped silo version when the tank capacity is less than 50 cubic metres, as it's the most cost efficient type.
3. Q235B is a Chinese standardized carbon structural steel with yield strength of 235 MPa.
4. Q345B is a Chinese standardized high strength low alloy steel with yield strength of 345 MPa.
5. This is the specification table for the standard type cement trailer, multiple custom options are available in case you have specific requirements.

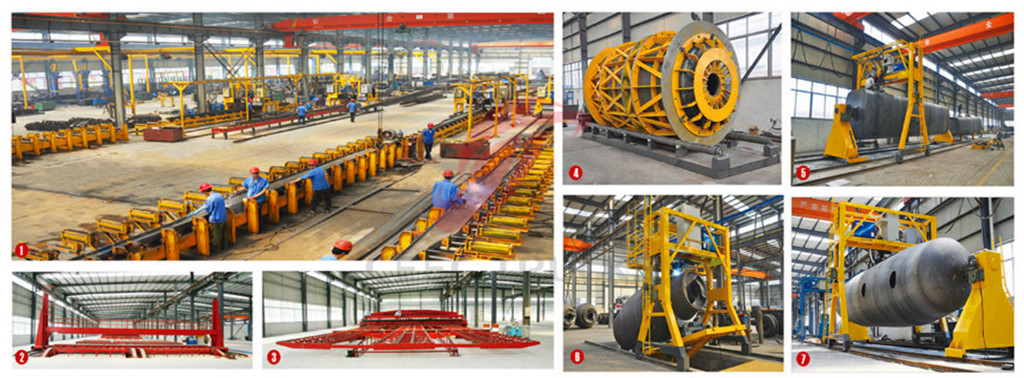

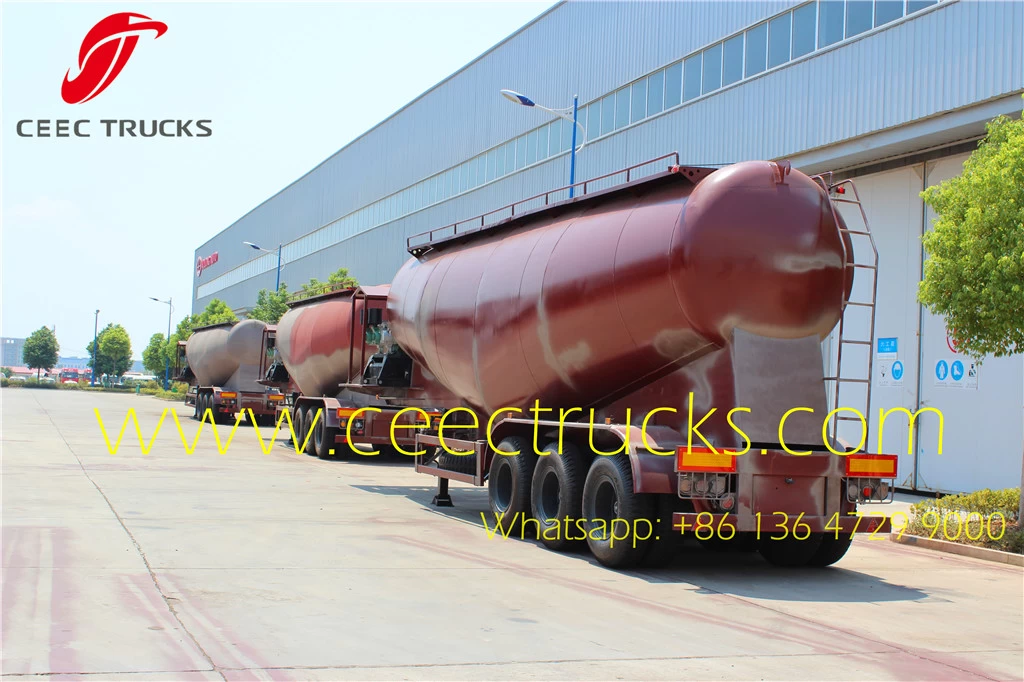

Factory plant & equipment

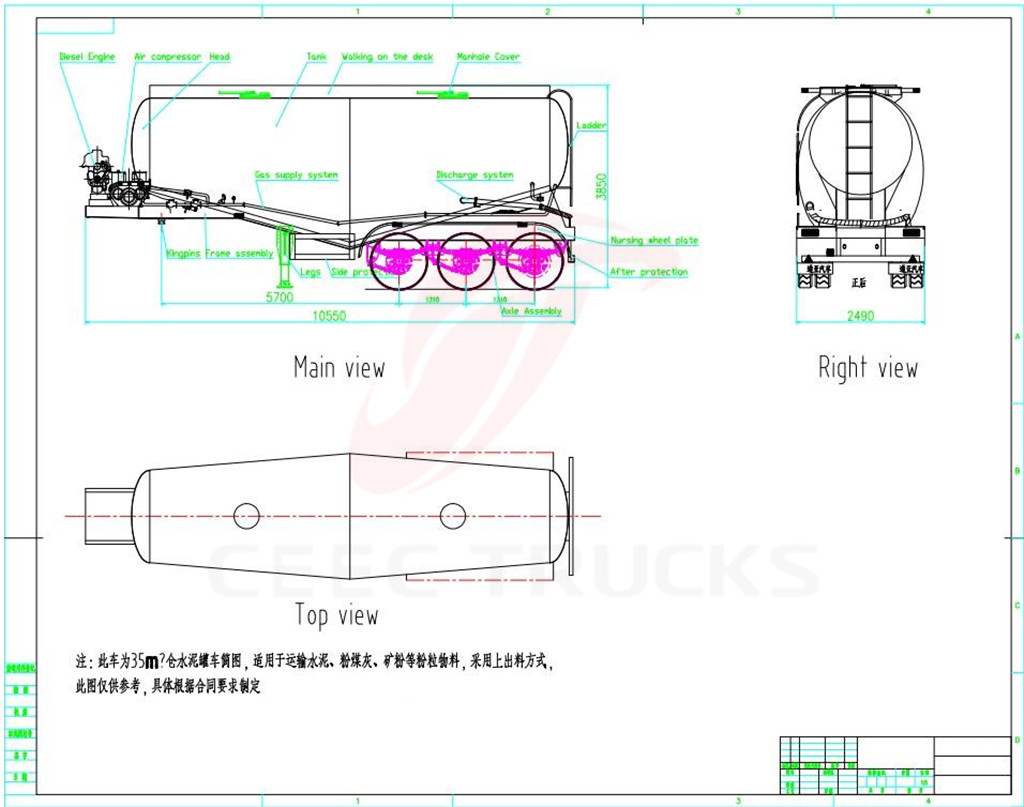

Technical specifications
Similar Key Works: heavy 42 m³ Bulk cement tanker semitrailer, 42CBM powder tanker semitrailer, Cement flour tanker semitrailer, 3 axle cement tanker semitrailer, 3-axle powder semitrailer, 42 CBM bulk powder transport semitrailer, Africa 42 CBM bulk cement trailer
| Type
|
42 m³ Bulk cement semi trailer
|
| Gross weight
|
10 tons
|
| Outside size
|
10260*2500*3950(mm)
|
| Loading capacity
|
50T or others
|

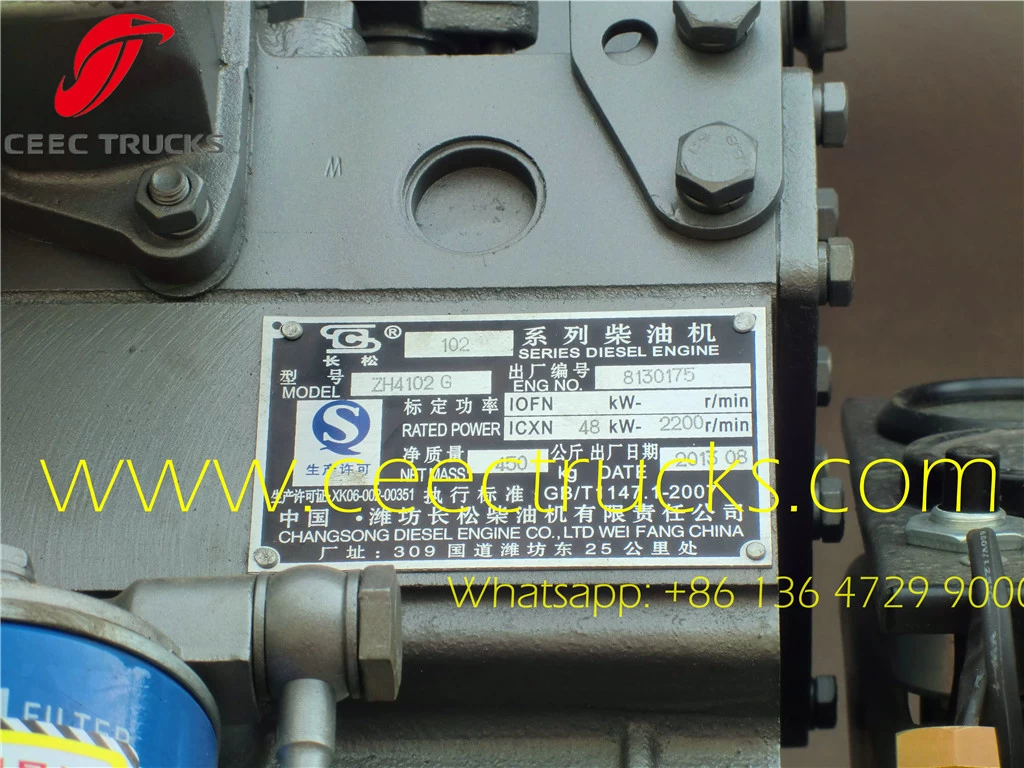

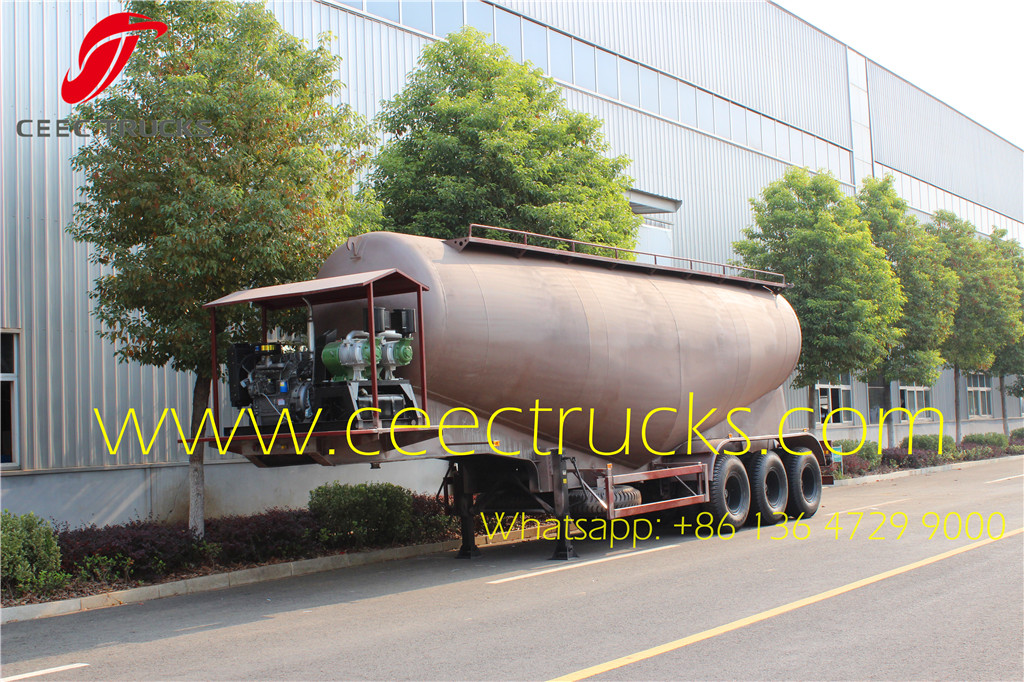

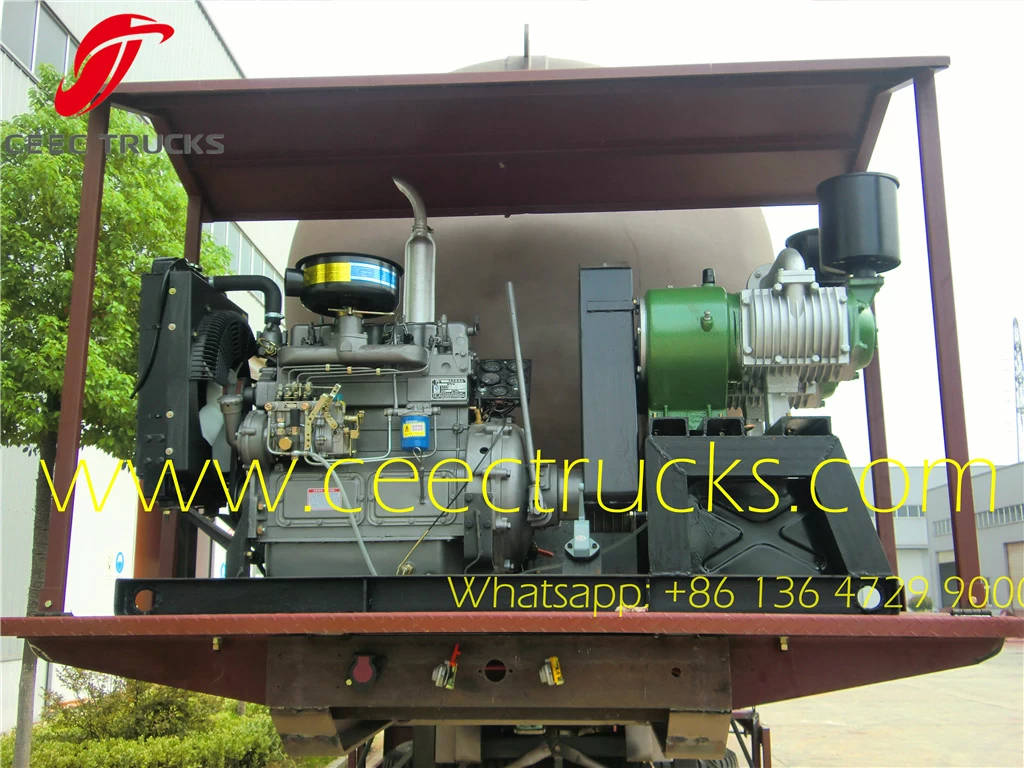

| Compressor
|
10m³ or other size tank
|
| Tank body
|
6mm thickness steel
|
| Forehead and back head
|
6mm thickness steel
|
| Axle weight
|
13T 3axles or others
|
| Tire
|
12.00R22.5 12pieces or others
|
| Rim
|
8.5-20 12pieces or others
|
| Suspension
|
Mechanical suspension or air suspension or others
|
| Leaf spring
|
10 pieces
|
| Kingpin
|
JOST brand 50#(2.0”)bolts type or other sizes
|

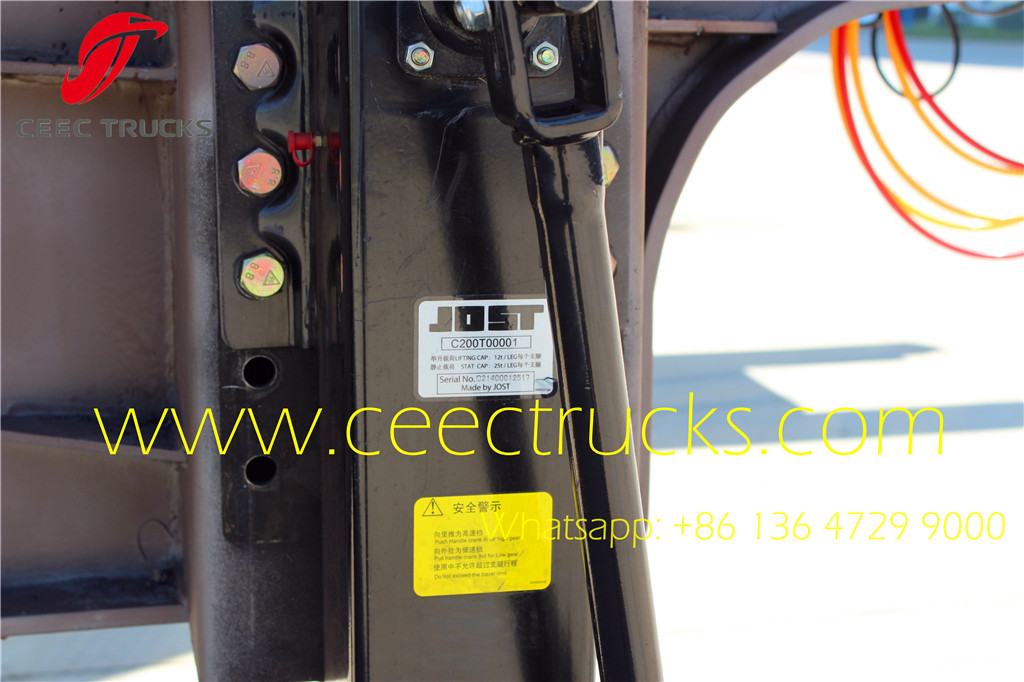

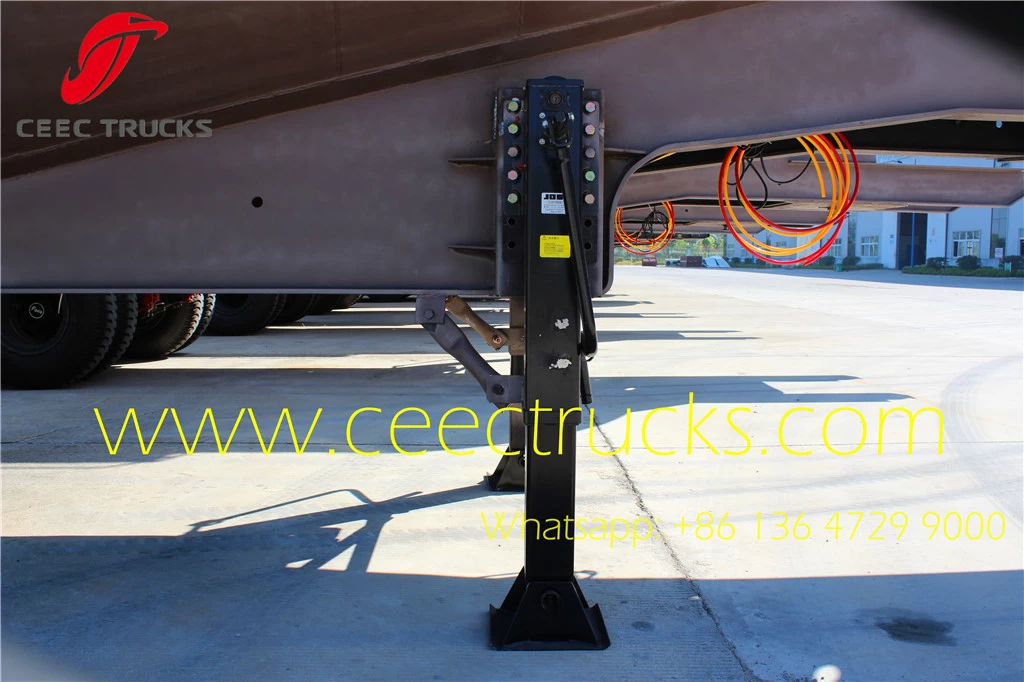

| Landing gear
|
JOST D200T
|
| Main beam
|
Height :500mm upper plate is 14mm.middle plate is 8mm.down plate is 16mm.Q345 steel.side beam 16#channel steel
|
| Platform
|
3mm diamond Q235 steel plate
|
| Brake chamber
|
4 double and 2single chambers
|
| Light
|
LED light
|
| Voltage
|
24V
|
| Receptacle
|
7 ways(7wire harness)
|
| Tool box
|
One piece 1m*0.5m*0.5m
|

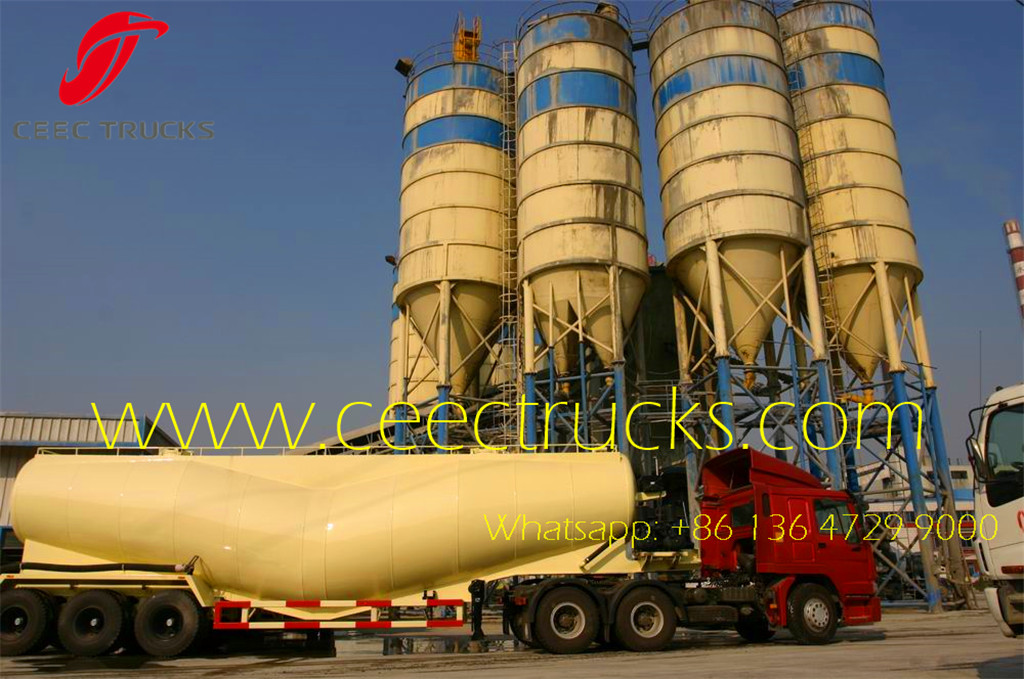

CEEC supplied Bulk Cement Tanker semitrailer usage
(CEEC produced 40-45 m³ bulk cement tanker trailer be used for construction project in Kenya)

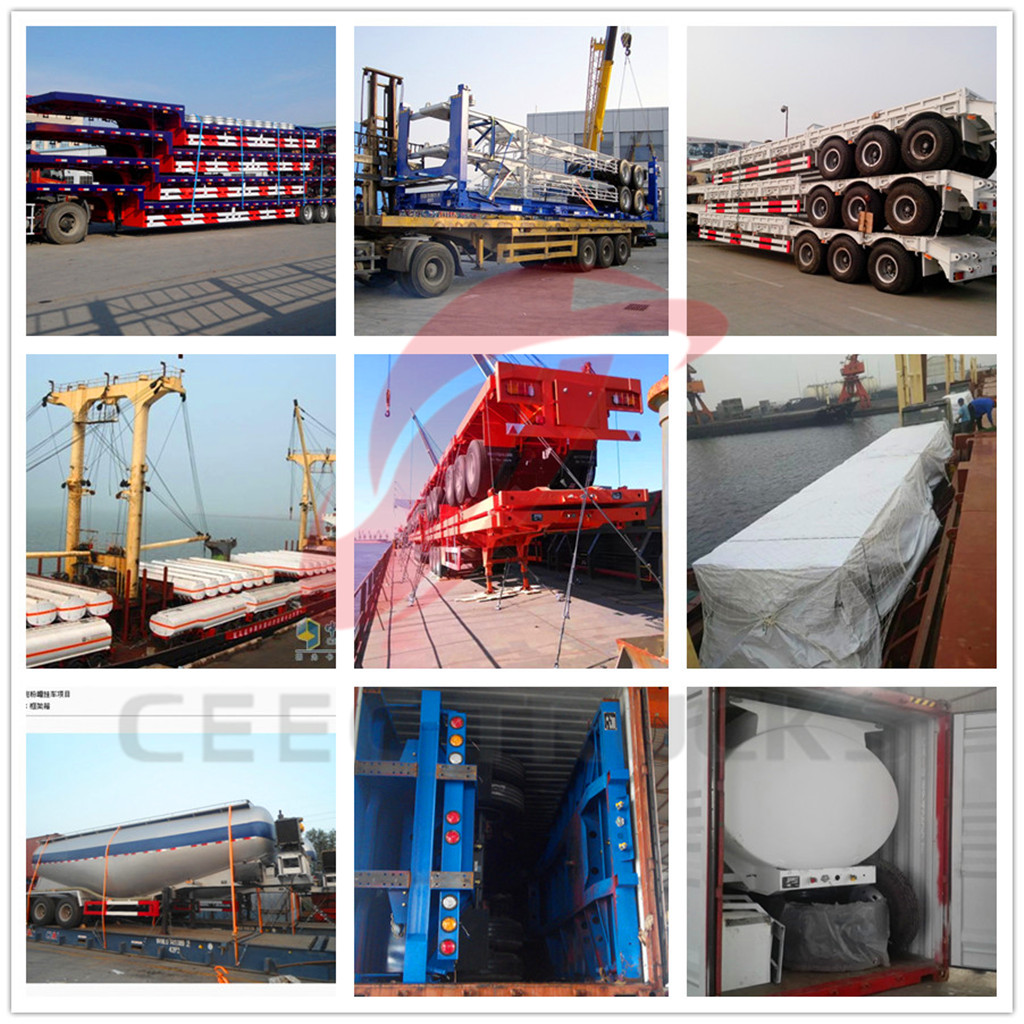

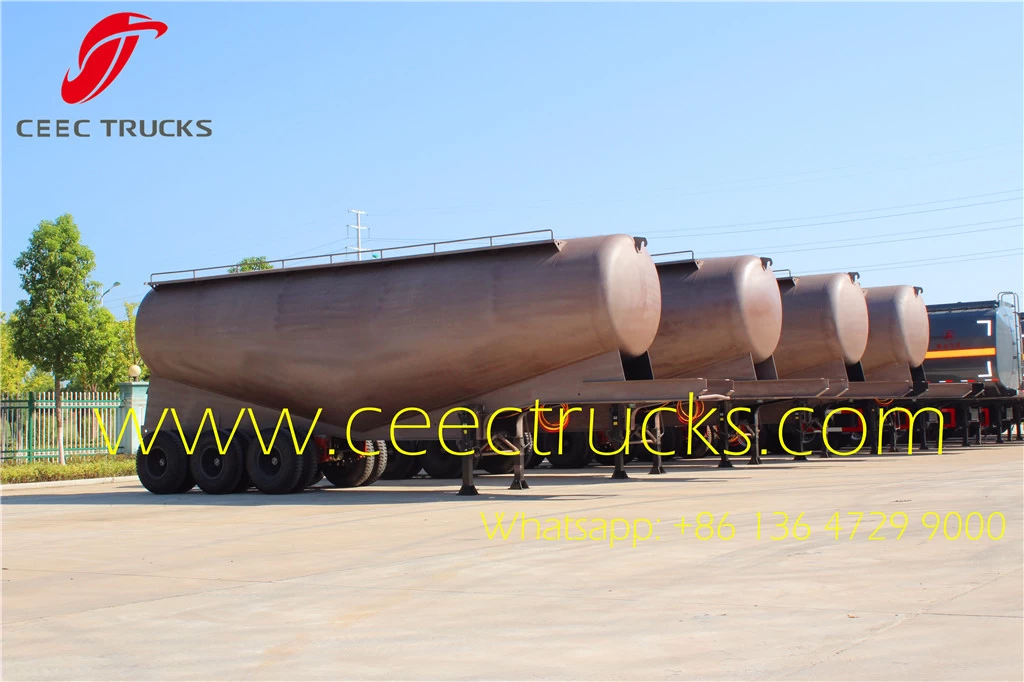

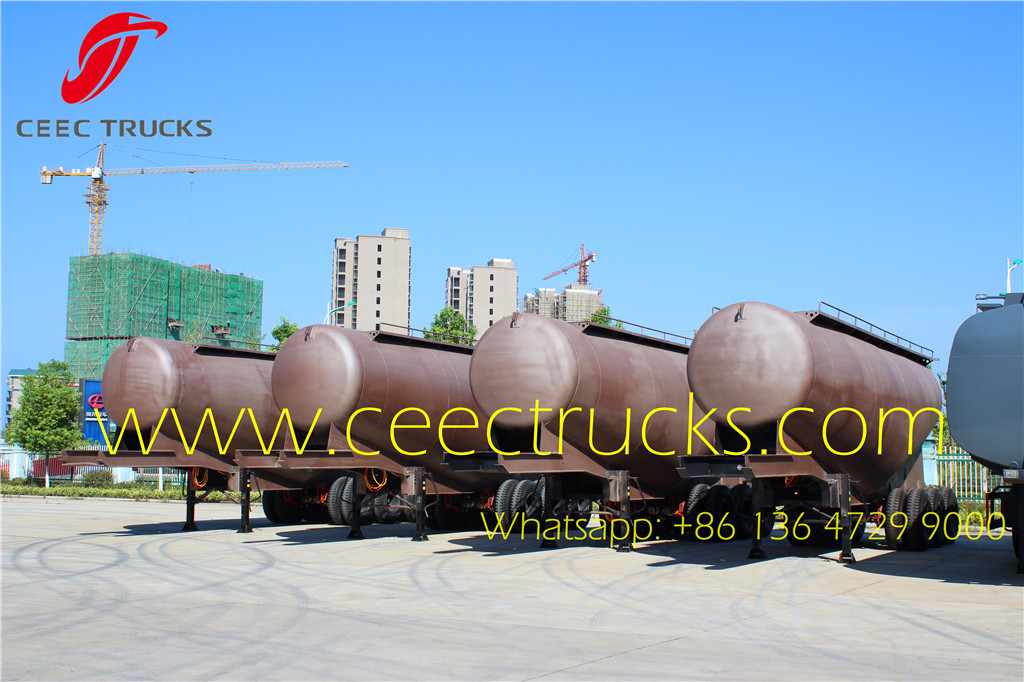

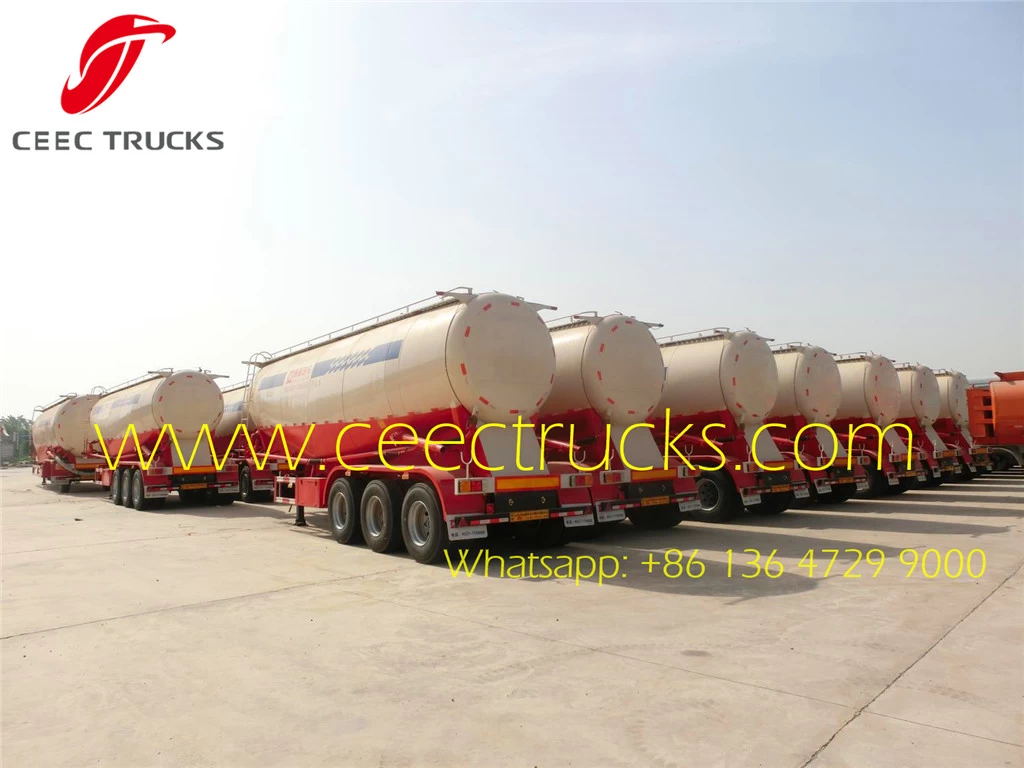

CEEC supplied Bulk Cement Tanker semitrailer shipment
As the most professional semi-trailer manufacturer in China, we CEEC TRUCKS can produce all kinds of semi-trailer based on customers’ request, such as: Flatbed semitrailer (Long Vehicle); Skeletal container semi-trailer; Wall side cargo semi-trailer; Gooseneck skeletal container semi-trailer; Tipper semi-trailer; Stainless tanker semi-trailer; V type bulk cement semi-trailer; Low bed semi-trailer; Concrete mixer semi-trailer; Container semi-trailer, etc.
