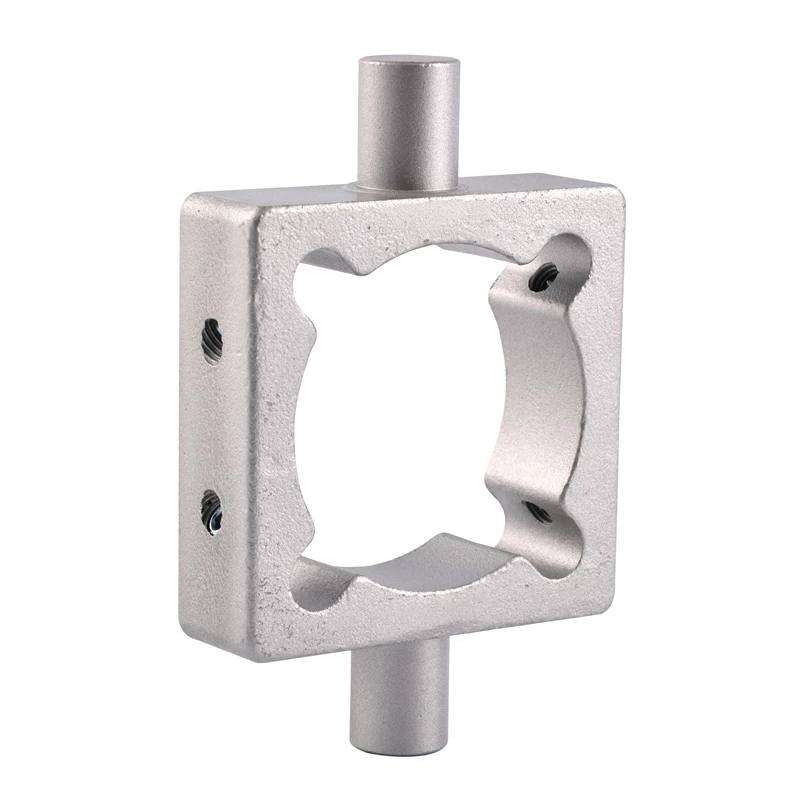

Central Trunnion Mounting ISO-TC

ISO-TC ( Central Trunnion Mounting )

Facebook Twitter Pinterest LinkedIn 分享

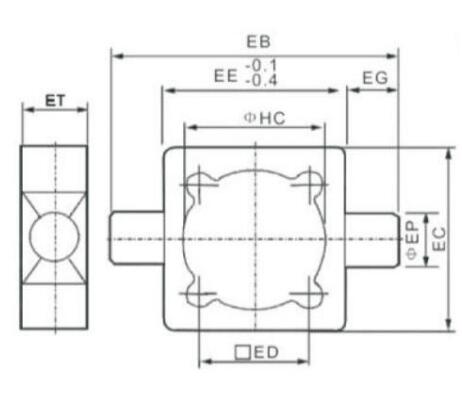

Central Trunnion Mounting ISO-TC40

Symbol
Bore
32 40 50 63 80 100 125 160 200
EB 100 113 125 140 160 182 - - -
EC 52 63 74 80 105 128 - - -
ED 32.5 38 46.5 56.5 72 89 - - -
EE 52 63 75 90 105 128 - - -
EG 25 25 25 25 25 25 - - -
EP 12 16 16 20 20 25 - - -
ET 20 22 22 28 28 34 - - -
HC 37 45 55 68 87 107.5 - - -
