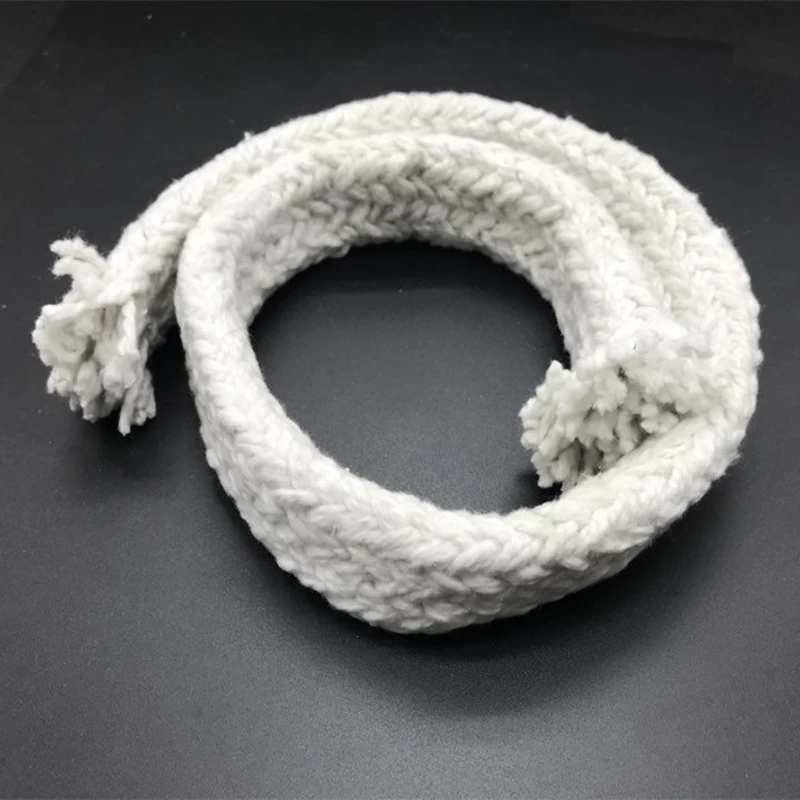

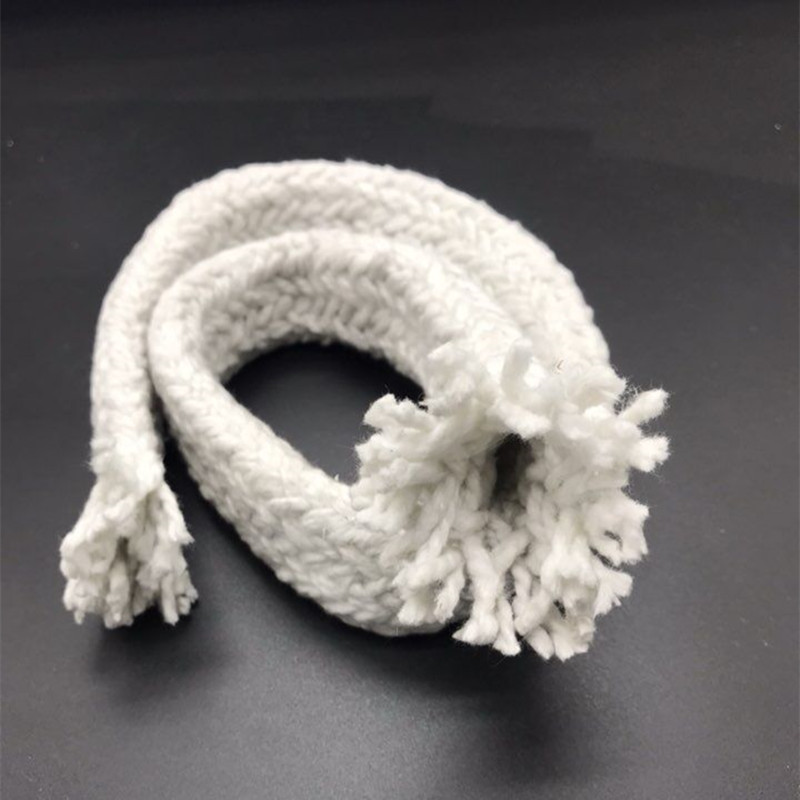

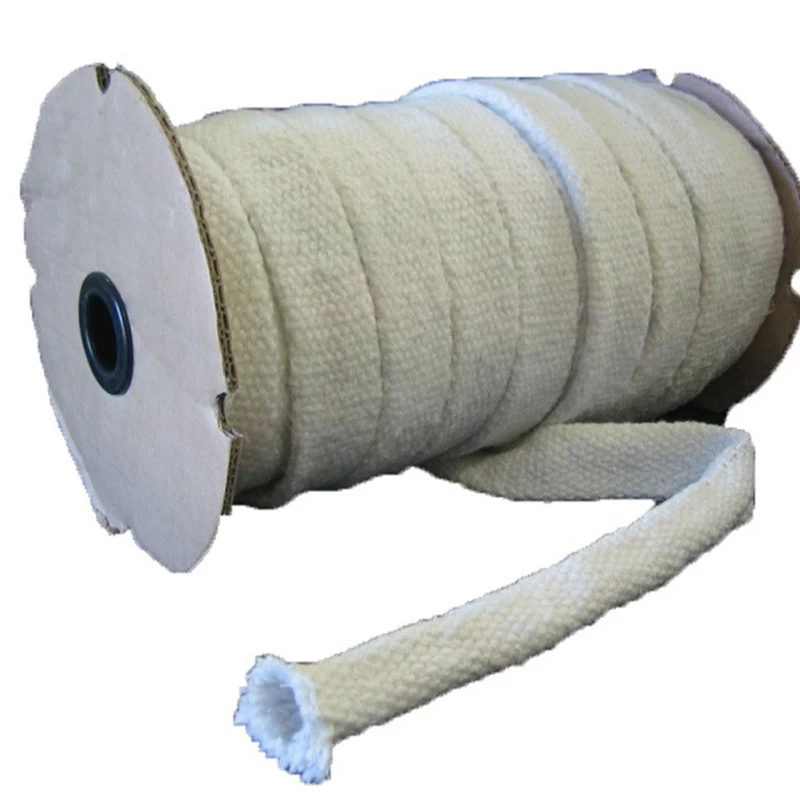

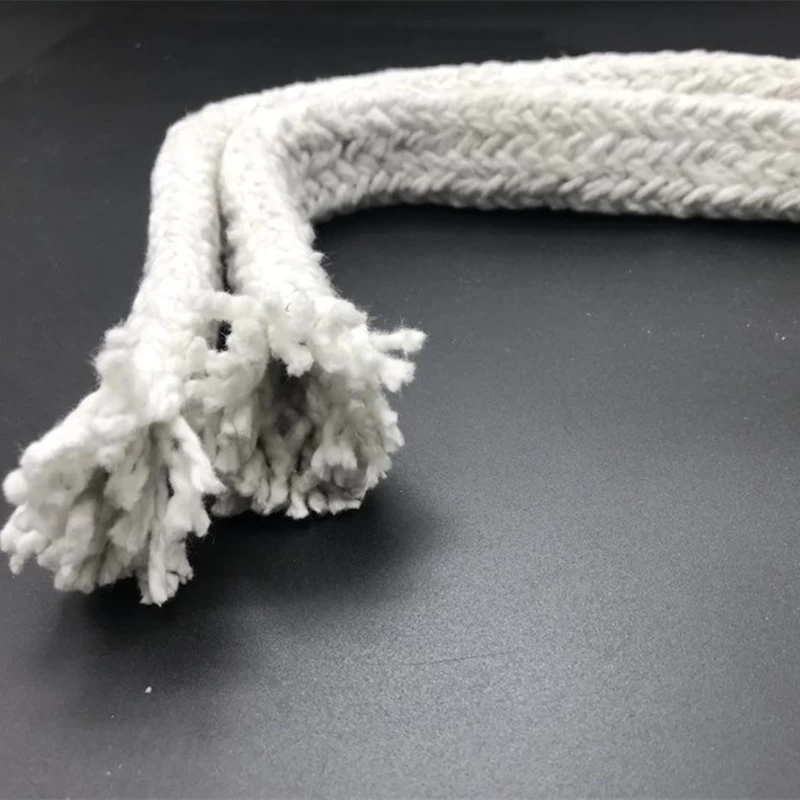

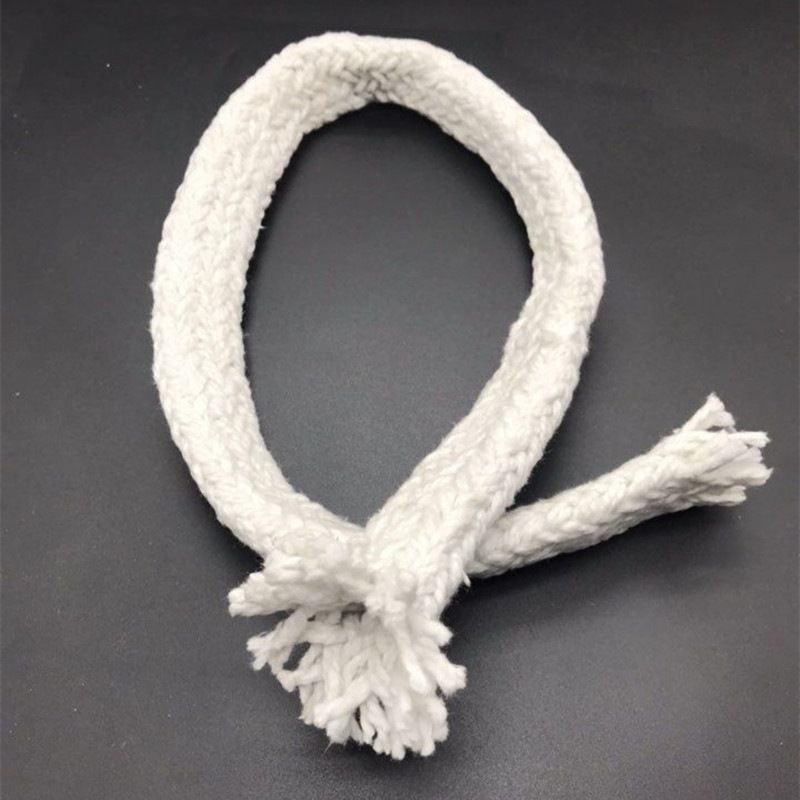

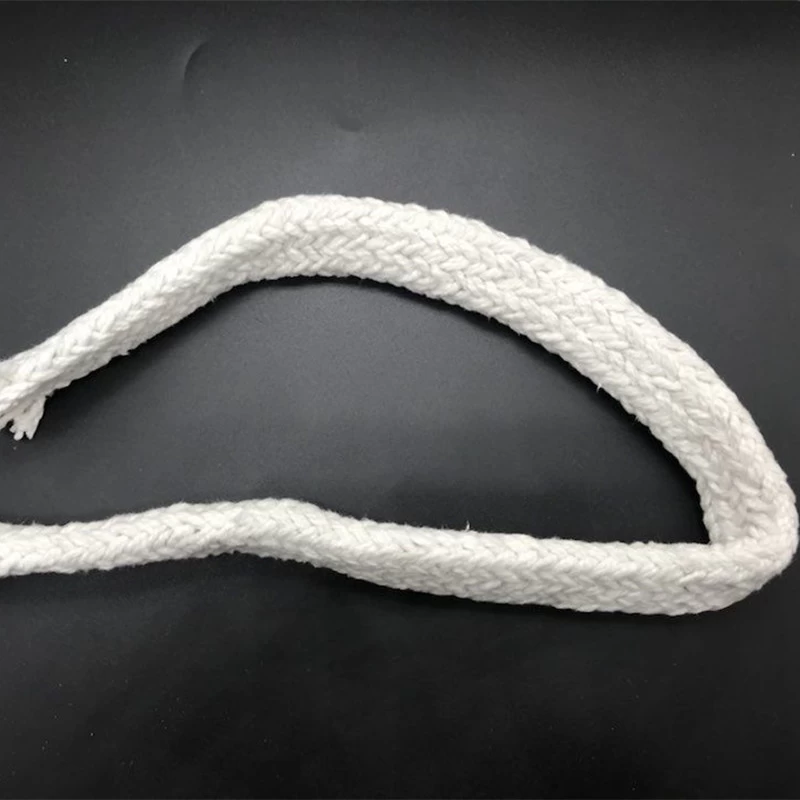

Ceramic Fiber Braided Sleeve

Ceramic Fiber Braided Sleeve suitable for temperatures upto 1260oC, and typically used for covering pipelines carrying high temperature gases or liquids. It serves as a heat loss minimizing agent and also helps in providing protection to a person if he or she comes in contact with the hot surface unintentionally.



Description

CRS high temperature and heat resistant Ceramic Fiber Braided Sleeve is soft and pliable. It is asbestos free. Extreme high temperature and heat resistant ceramic fiber braided sleeve is light-weight, flexible and has good handling strength for wire, cable and hydraulic hose protection.  Provides low thermal conductivity and good dielectric strength and features excellent corrosion resistance.


Features

This material is produced from an extremely pure alumino-silicate ceramic fiber non-woven material and can be used at 2000°F continuously with excursions to 3000°F / 1650°C.



Application

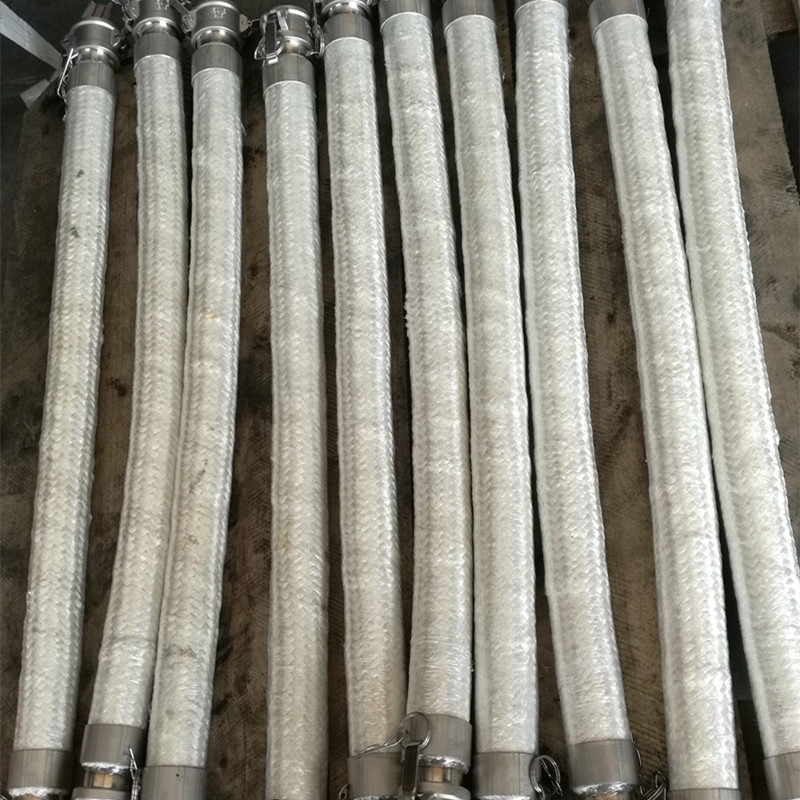

It provides excellent protection for industrial wires, cables, hoses (hydraulics), tube and pipes and also provides thermal insulation and personnel protection.


Specifications


DATASHEET
Part Number Normal Inside diameter Meter for spool
Inches mm Dash # Meter
CRS-6 1/4 6 -4 50
CRS-10 3/8 10 -6 50
CRS-13 1/2 13 -8 50
CRS-19 3/4 19 -12 50
CRS-25 1 25 -16 50
CRS-29 1 1/8 29 -18 50
CRS-32 1 1/4 32 -20 50
CRS-35 1 3/8 35 -22 50
CRS-38 1 1/2 38 -24 50
CRS-41 1 5/8 41 -26 50
CRS-44 1 3/4 44 -28 50
CRS-48 1 7/8 48 -30 50
CRS-51 2 51 -32 50
Technical Datasheet
Material Ceramic
Working temperature -40 - +1260
Flammability VW-1
Melting point +1650
Standard Color White
Standard thickness 2 mm
MOQ 200 meter each size
Cutting tool Scissors


Notes:
Special thickness, length or packing upon request.
Part nymber will be followed "-1.0" for 1.0 mm thickness“-1.5” for 1.5 mm thickness, “-3” for 3 mm thickness
