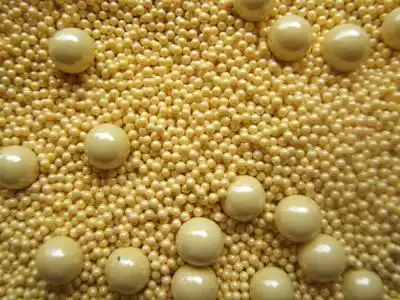

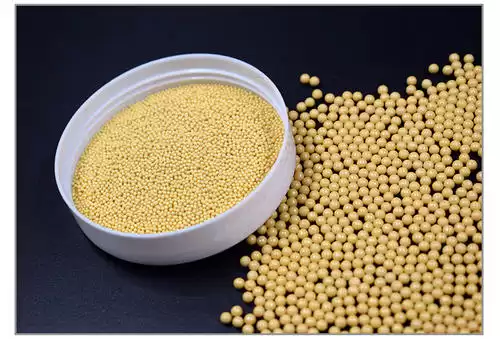

Ceria Stabilized Zirconia Grinding Beads

CZC (Ceria Stabilized Zirconia Bead) is a high density zirconia bead that is suitable for large capacity vertical mills for dispersion of CaCO3. It has been applied to the grinding CaCO3 for high viscosity paper coating. It is also suitable for the production of high-viscosity paints and inks.



About Ceria Stabilized Zirconia Grinding Beads


※ Ceria Stabilized Zirconia beads come with properties such as high fracture toughness and strength.



※ Long lifespan: 30 times longer life than glass beads, 5 times than zirconium silicate beads;


※ High efficiency: around 2 to 3 times higher than zirconium silicate beads;


※ Low contamination: no cross contamination and color shade from beads and mills.



Ceria Stabilized Zirconia Grinding Beads Specification

Production Method Main Components Specific Gravity Bulk Density Moh's Hardness  Abrasion Compressive Strength
Sintering Process ZrO2 80% +CeO2 20%
6.1g/cm3 3.8g/cm3 8.5
<20ppm/hr
(24hr)
>2000KN
(Φ2.0mm)
Particle Size Range
 0.4-0.6mm  0.6-0.8mm  0.8-1.0mm  1.0-1.2mm  1.2-1.4mm  1.4-1.6mm  1.6-1.8mm    1.8-2.0mm  2.0-2.2mm  2.2-2.4mm  2.4-2.6mm  2.6-2.8mm  2.8-3.0mm  3.0-3.5mm  3.5-4.0mm  4.0-4.5mm  4.5-5.0mm  5.0-5.5mm  5.5-6.0mm  6.0-6.5mm  6.5-7.0mm  Other sizes may also be available based upon customers’ request

Packing Service:Be carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.


What is Ceria Stabilized Zirconia Grinding Beads used for?

Ceria Stabilized Zirconia beads can perform ultrafine grinding of high viscosity items, such as paint, offset inks and even screen printing inks.It is also used as high strength materials for piezoelectric ceramics, dielectric ceramics, capacitors ceramics, and magnetic materials in the electrical industry. Ceria Stabilized Zirconia beads are used for milling CaCO3 and metals such as titanium dioxide.You can use it with nanomaterials such as barium sulfate, lithium battery components such as lithium iron phosphate, as well as for grinding ceramic ink.It is suitable for high purity products such as pharmaceutical and foodstuff.
