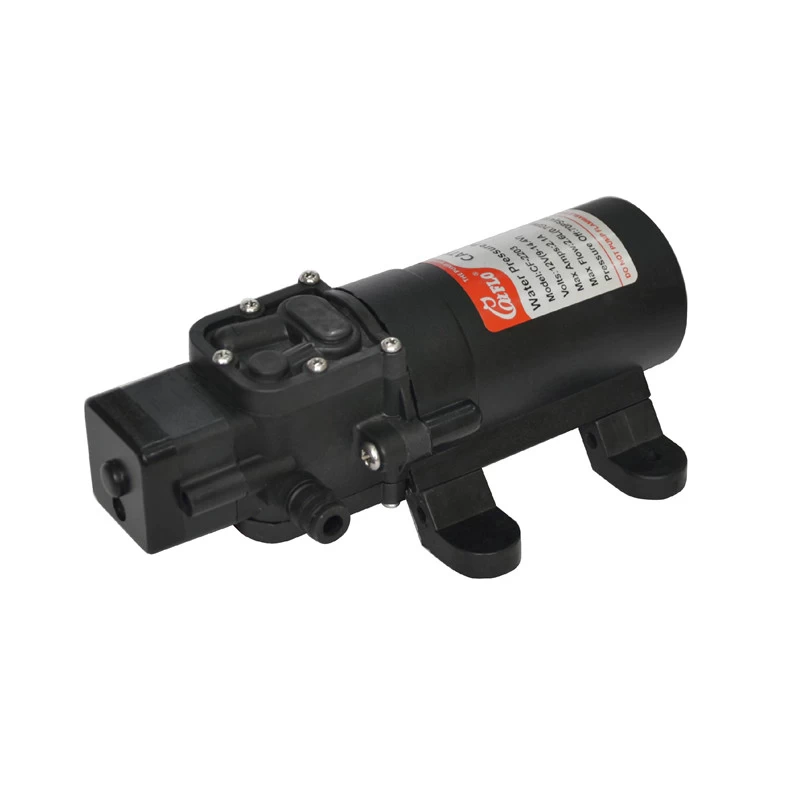

CF-20 Series DC 12V/24V 2.0-4.3LPM 35-70PSI fresh water pump marine pump water heater pump
2 Chamber positive displacement diaphragm pump for smooth and quiet operation,The CF-20 series of diaphragm pumps are self-priming and can be run dry without harm. Small water pumps provide up to 4.3Liter of water per minutes. With built-in pressure switch , the pump automatically starts and stops when the faucet is opened and closed.
Features and Benefits
l Adjustable pressure switch from 35psi-70psi for OEM when needed
l smooth and quiet operation
l Multi -inlet&outlet connection ways for your choice
l Self-priming
l Intermittent duty.
l Industry standard mounting pattern
l 1 Year Warranty
TYPICAL APPLICATIONS
Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.
|
PUMP
|
|
Type
|
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
|
|
Control Type
|
pressure switch controlled or by-pass controlled
|
|
Max Recommended Temperature
|
60° C (140° F)
|
|
Priming Capabilities
|
4 feet (1.2 m) suction lift
|
|
Pressure off
|
Shut-off Pressure 35 PSI: 25 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 40 PSI: 30 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 70 PSI: 56 PSI ±5 PSI (±0.3 bar)
|
|
Valve
|
EPDM
|
|
Wire connection
|
2-Pin/Leads
|
|
MOTOR
|
|
Leads
|
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent
|
|
Max.Amp Draw
|
4.0A
|
|
Fuse
|
6.0A
|
STANDARD PUMP CONFIGURATIONS
|
Model
|
Voltage
|
Open flow
(LPM/GPM)
|
Pressure off
(PSI/BAR)
|
Amp Draw
(A)
|
|
CF-2201
|
12V
|
2.0/0.5
|
55/3.8
|
1.6
|
|
CF-2401
|
24V
|
2.0/0.5
|
55/3.8
|
0.8
|
|
CF-2202
|
12V
|
4.3/1.2
|
35/24
|
2.7
|
|
CF-2402
|
24V
|
4.3/1.2
|
35/24
|
1.7
|
|
CF-2203
|
12V
|
2.6/0.7
|
70/4.8
|
2.1
|
|
CF-2403
|
24V
|
2.6/0.7
|
70/4.8
|
1.1
|
|
CF-2203-1
|
12V
|
3.1/0.8
|
70/4.8
|
2.6
|
|
CF-2403-1
|
24V
|
3.1/0.8
|
70/4.8
|
1.4
|
|
CF-2202A
|
12V
|
2.0/0.5
|
55/3.8
|
1.6
|
|
CF-2402A
|
24V
|
2.0/0.5
|
55/3.8
|
0.8
|
DIMENSIONS
DETAIL COMPOSITION
SHIPPMING INFORMATION
|
Unit pump weight(N.W/G.W)
|
0.62kg/0.7KGS
|
|
Unit size
|
200*115*78mm
|
|
Mater carton size
|
58*37.5*38cm
|
|
Mater carton quantity
|
50pcs
|
|
Mater carton weight
|
40kgs
|
