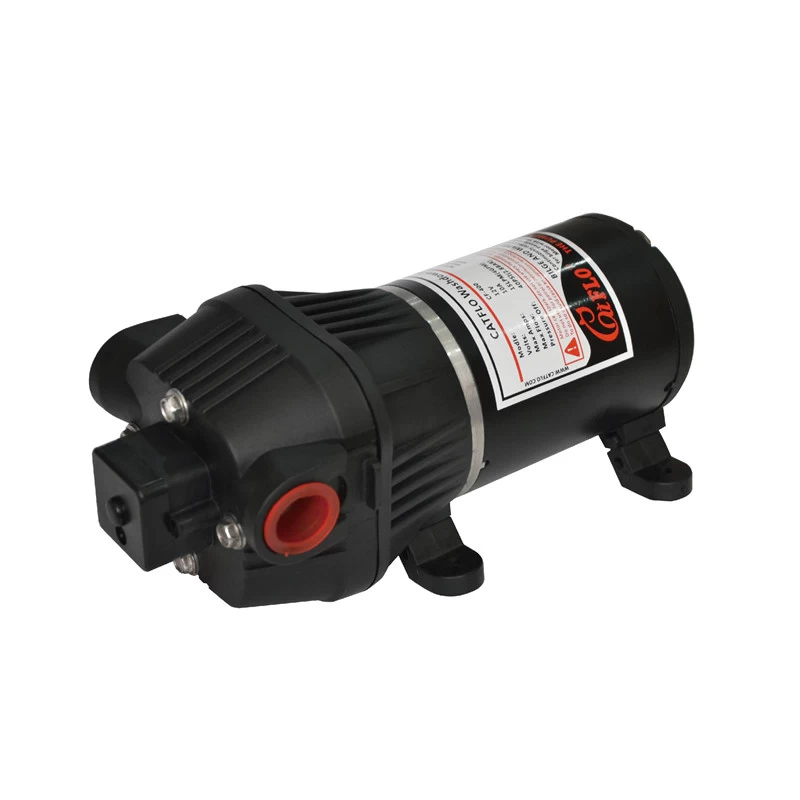

CF-30 Series DC Diaphragm pump 12V/24V 4.5-6.0LPM 80-100PSI
CF-30 series Pumps are designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. Pumps are self-priming, can be run dry without harm and RV water pump provides up to 6Liters per minute. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
Features and Benefits
l smooth and quiet operation
l Self-priming
l Intermittent duty.
l Industry standard mounting pattern
l 1 Year Warranty
l rubber feet for noise reduction from vibration
l Adjustable pressure for OEM when needed

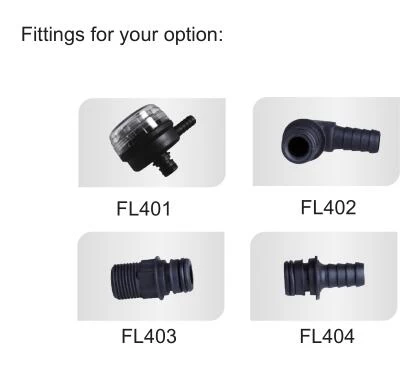

l Hose connection with multiple fittings allow connection to any outlet
TYPICAL APPLICATIONS
Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.
|
PUMP
|
|
Type
|
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
|
|
Control Type
|
pressure switch controlled or by-pass controlled
|
|
Max Recommended Temperature
|
60° C (140° F)
|
|
Priming Capabilities
|
6 feet (1.8 m) suction lift
|
|
Pressure off
|
Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 100 PSI : 75 PSI ±5 PSI (±0.3 bar)
|
|
Inlet/Outlet Ports
|
3/8" (10 mm) hose barb
|
|
Valve
|
EPDM
|
|
Wire connect
|
2-Pin/Leads
|
|
MOTOR
|
|
Leads
|
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent
|
|
Max.Amp Draw
|
5.5A
|
STANDARD PUMP CONFIGURATIONS
|
Model
|
Voltage(V)
|
Open flow(LPM/GPM)
|
Pressure off(psi/bar)
|
AMP Draw(A)
|
|
CF-3201
|
12
|
4.5/1.2
|
100/7.0
|
4.5
|
|
CF-3401
|
24
|
4.5/1.2
|
100/7.0
|
2.5
|
|
CF-3202
|
12
|
5.8/1.6
|
80/5.5
|
5.5
|
|
CF-3402
|
24
|
5.8/1.6
|
80/5.5
|
3.0
|
|
CF-3203
|
12
|
5.2/1.4
|
100/7.0
|
5.0
|
|
CF-3403
|
24
|
5.2/1.4
|
100/7.0
|
3.0
|
DIMENSIONS
DETAILS
l Housing Material:Nylon/Polypropylene
l Valves/Seals Material:EPDM/VITION
l Wire Connection:2-PIN Leads
l Diaphragm
Shipping information
|
Unit pump weight(N.W/G.W)
|
1.2kg/1.3KGS
|
|
Unit size
|
185*110*65mm
|
|
Mater carton size
|
56*40.5*24.5cm
|
|
Mater carton quantity
|
30pcs
|
|
Mater carton weight
|
39.5kgs
|
