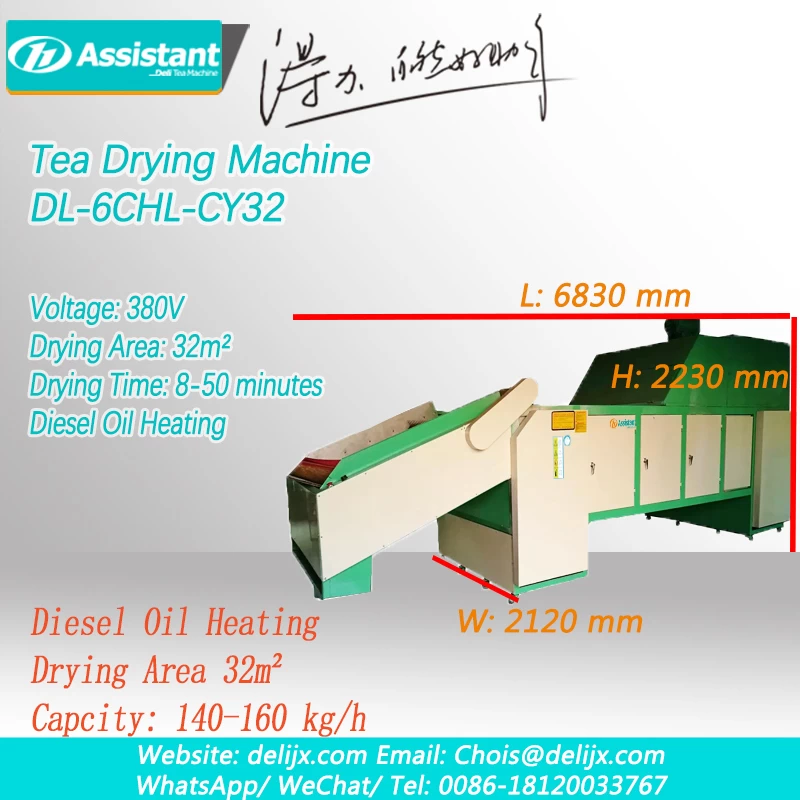

Chain Plate Belt Type Continuous Tea Leaf Dryer Machine 6CHL-CY

DL-6CHL-CY chain plate diesel oil heating continuous tea leaf dryer machine can use for all most kind of tea, such as green tea, black tea, CTC tea and so on.

  • Output140-160 kg/h
  • Fuel typeDiesel oil
  • Heating elementDiesel engine combustor
  • Drying time8-90 min
  • Drying layer8
  • Drying area32 m2
  • Voltage380/50 V/Hz
  • Dimension6380×2120×2230 mm
Facebook Twitter Pinterest LinkedIn 分享

Description:
1. Adopting the diesel engine imported from Japan, with precise computer program control, ensuring full fuel combustion, achieving the highest thermal efficiency, energy saving and environmental protection;
2. Using the latest hot gas recovery technology, mechanical heating fast, heat loss is small;
3. Using the latest CNC punching technology, the mesh is flat, the air permeability is good, the water vapor transmission speed is fast, the water in the tank does not accumulate, ensuring that the color of the drying material is more fresh green;
4. The whole machine is strong, the appearance is generous, the lines are tough, the new ultra-low hopper design, stable and practical, easy to dump, high work efficiency; at the same time with high-quality parts, new microcomputer automatic control, easy to operate, stable quality It saves time and effort, and is the ideal machine for drying your materials.

Application:
Chain plate belt type continuous tea leaf drying machine can use for all most tea, such as green tea, black tea, oolong tea, CTC tea and so on.

Parameter:
DL-6CHL-CY chain plate belt type tea dryer specification:
Model DL-6CHL-CY16 DL-6CHL-CY20 DL-6CHL-CY24 DL-6CHL-CY30 DL-6CHL-CY32
Dimension 464×223×187 cm 464×223×212 cm 526×212×223 cm 638×212×223 cm 638×212×223 cm
Voltage 380/50 V/Hz
Drying area 16 m² 20 m² 24 m² 30 m² 32 m²
Drying plate later 4 5 6 7 8
Drying time 8-50 min
Heating element Diesel engine combustor
Fuel Diesel oil
Production efficiency 83-96 kg/h 105-120 kg/h 125-145 kg/h 156-180 kg/h 166-192 kg/h
The above data is based on fresh tea leaf water content of 75-80%.

Advantage:

Chain Plate Belt Type Continuous Tea Leaf Dryer Machine 6CHL-CY
 Chain Plate Belt Type Continuous Tea Leaf Dryer Machine 6CHL-CY

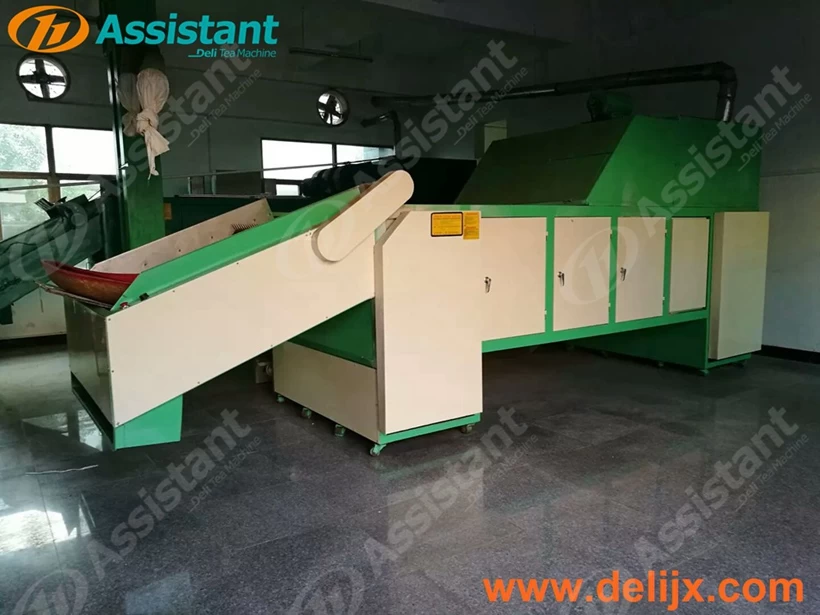

The dryer can be used by a single machine to save cost, and can also be used by a complete set of assembly lines, with a high degree of automation.
Chain Plate Belt Type Continuous Tea Leaf Dryer Machine 6CHL-CY
 Chain Plate Belt Type Continuous Tea Leaf Dryer Machine 6CHL-CY

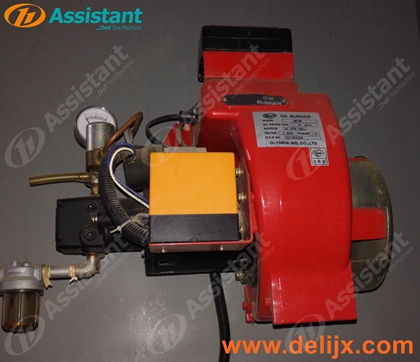

Japanese diesel burner, high thermal efficiency

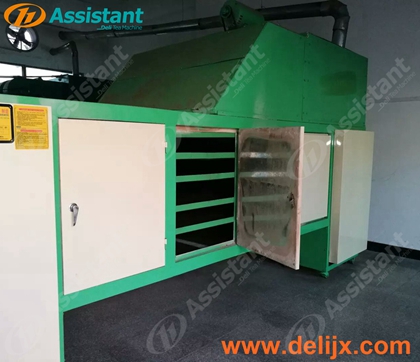

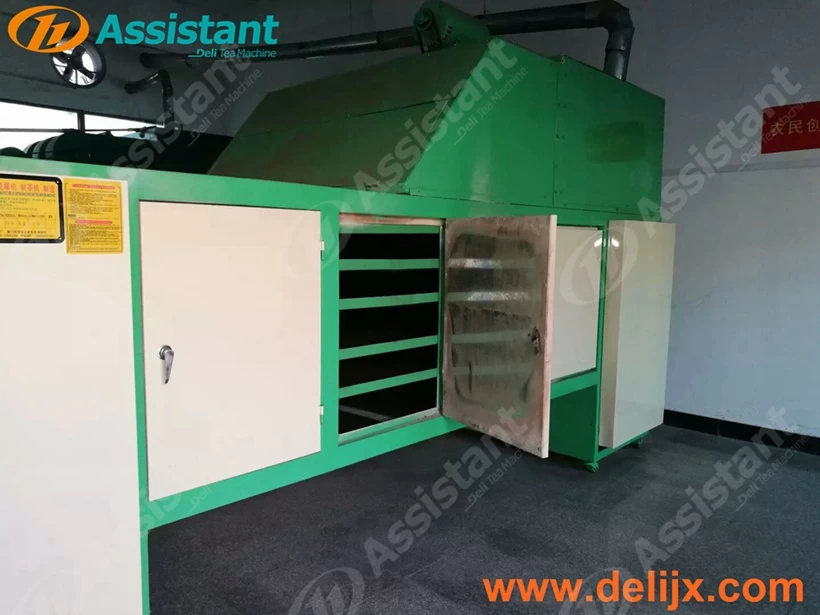

 Door design allows quick replacement of accessories.

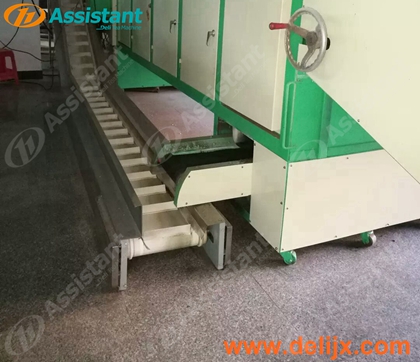

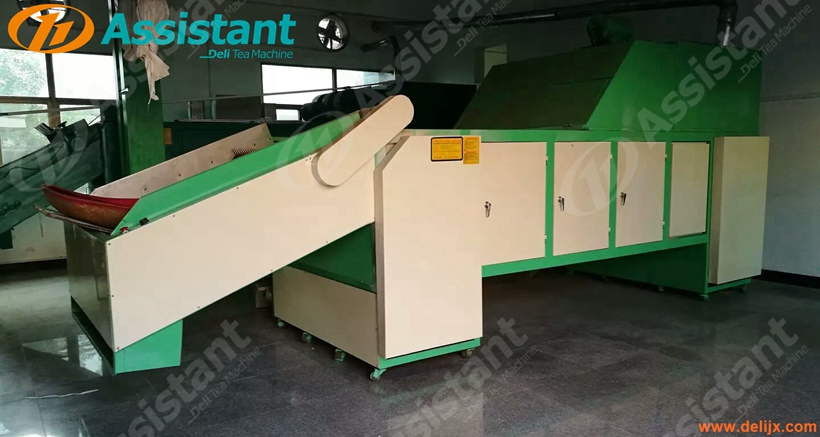

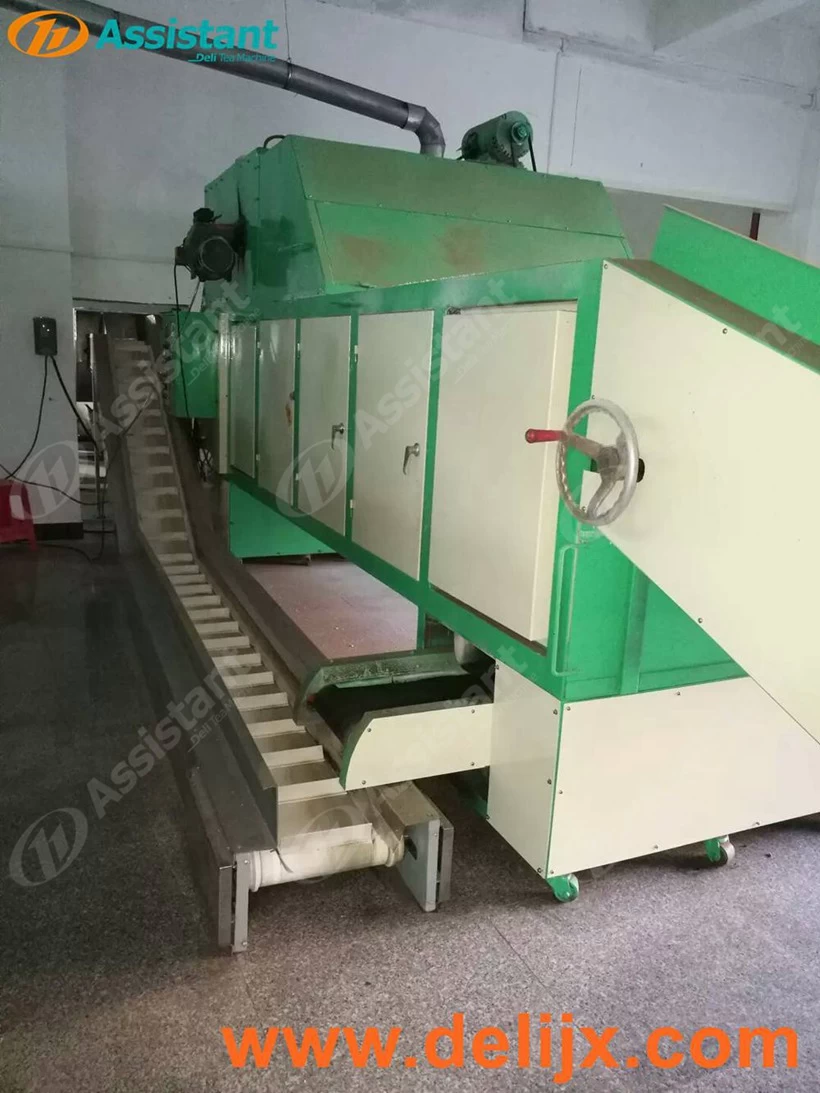

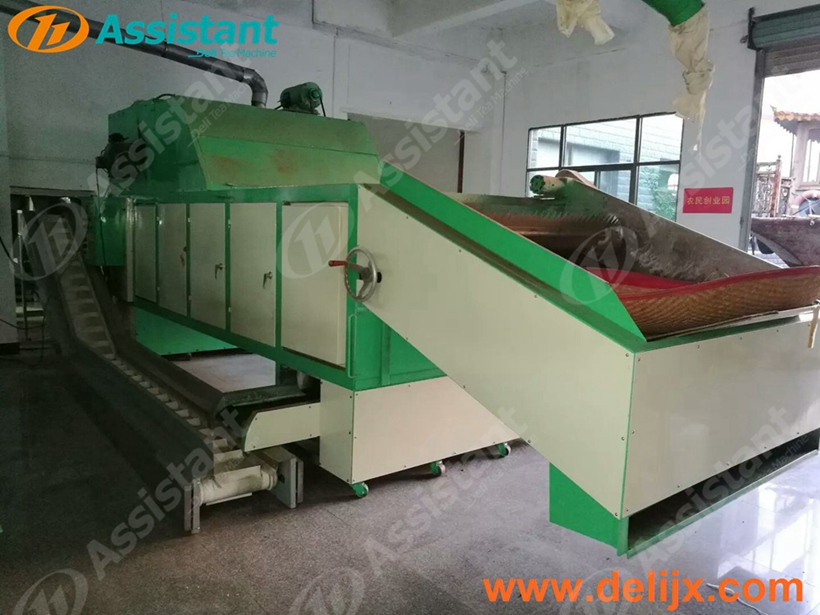

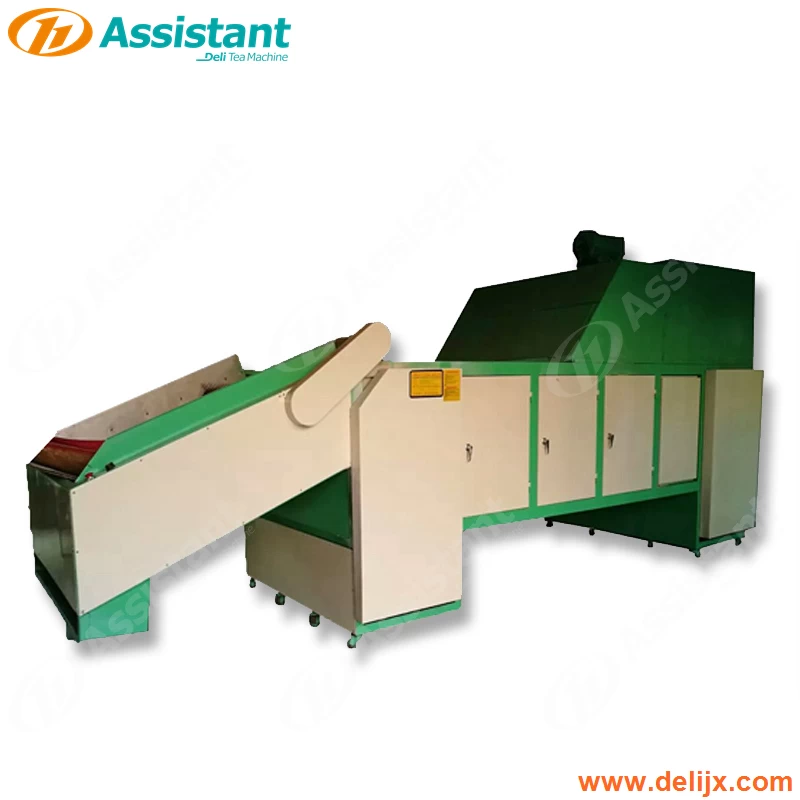

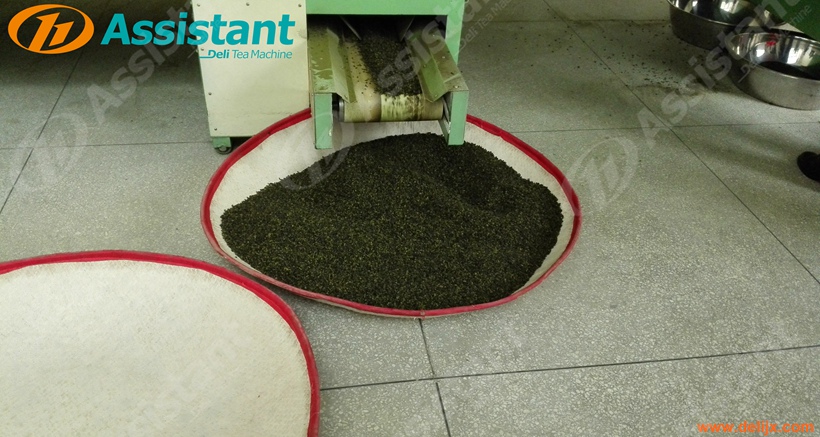

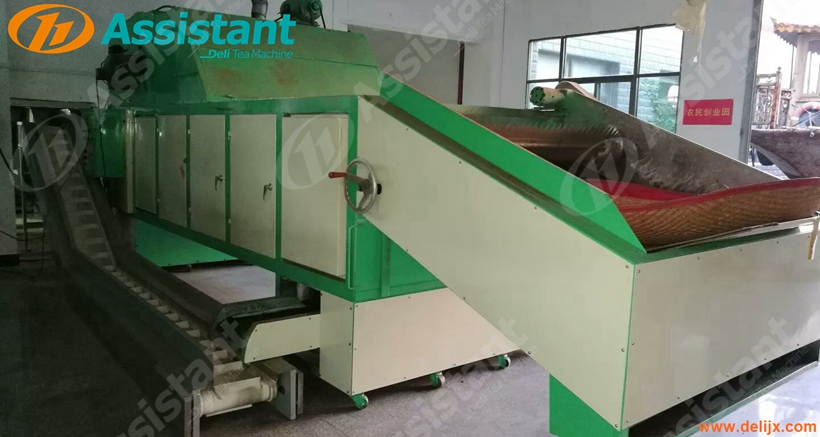

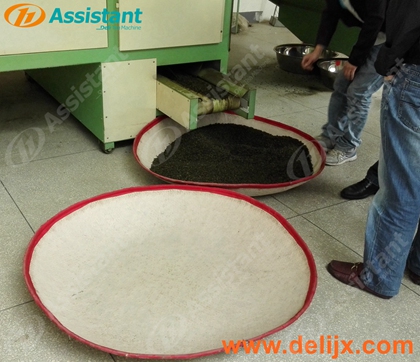

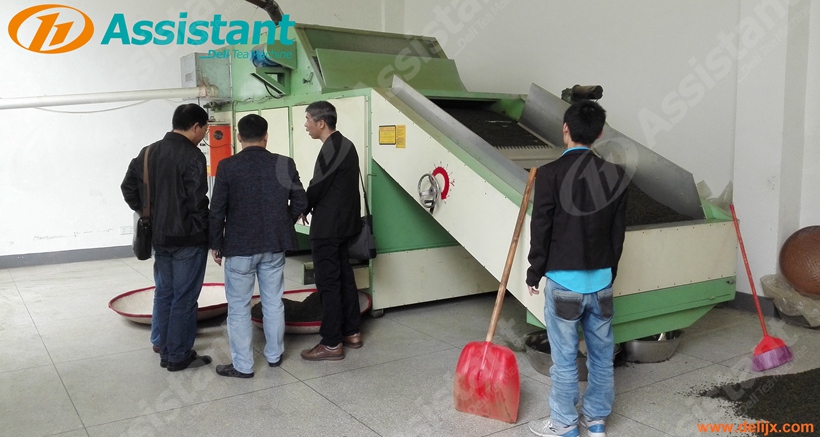

DL-6CHL-CY Chain plate belt type tea dryer machine photos:

Chain Plate Continuous Belt Type Tea Leaf Dryer Machine Manufacturer 6CHL-CY
Chain Plate Continuous Belt Type Tea Leaf Dryer Machine Manufacturer 6CHL-CY
Chain Plate Continuous Belt Type Tea Leaf Dryer Machine Manufacturer 6CHL-CY
Chain Plate Continuous Belt Type Tea Leaf Dryer Machine Manufacturer 6CHL-CY
Chain Plate Continuous Belt Type Tea Leaf Dryer Machine Manufacturer 6CHL-CY
