Applications:

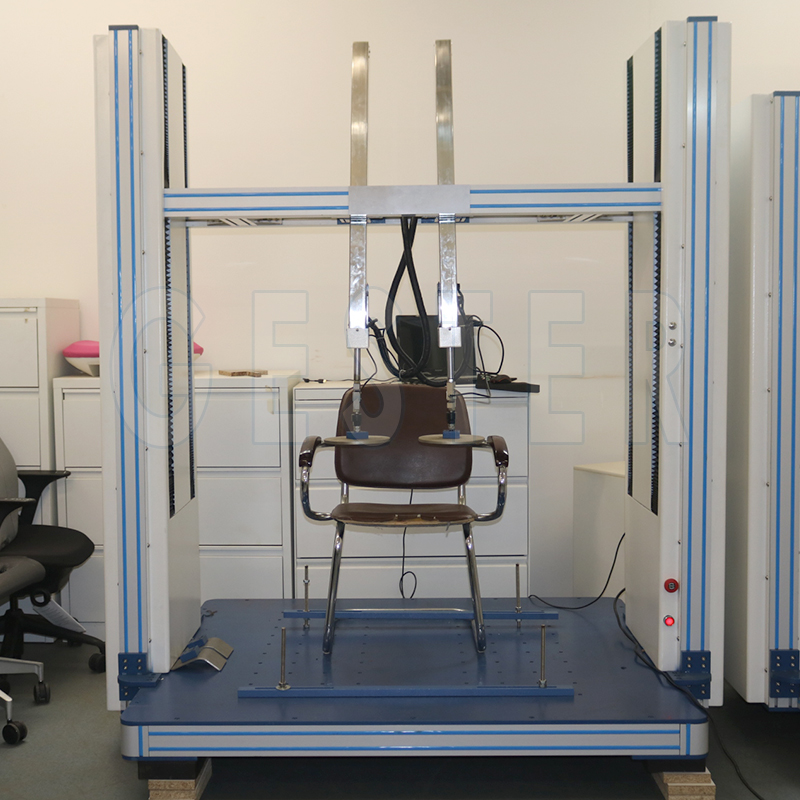

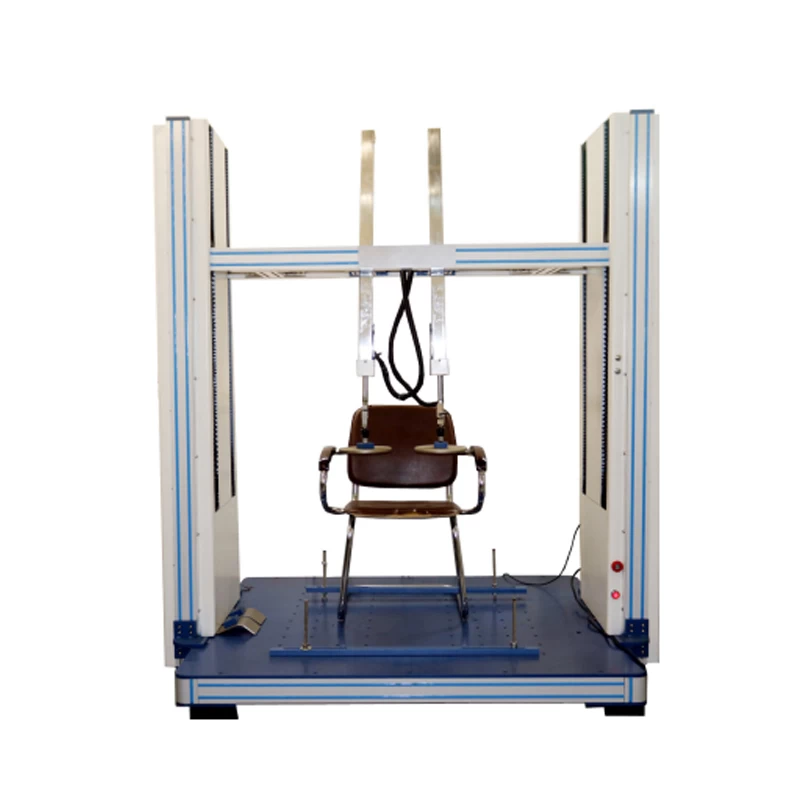

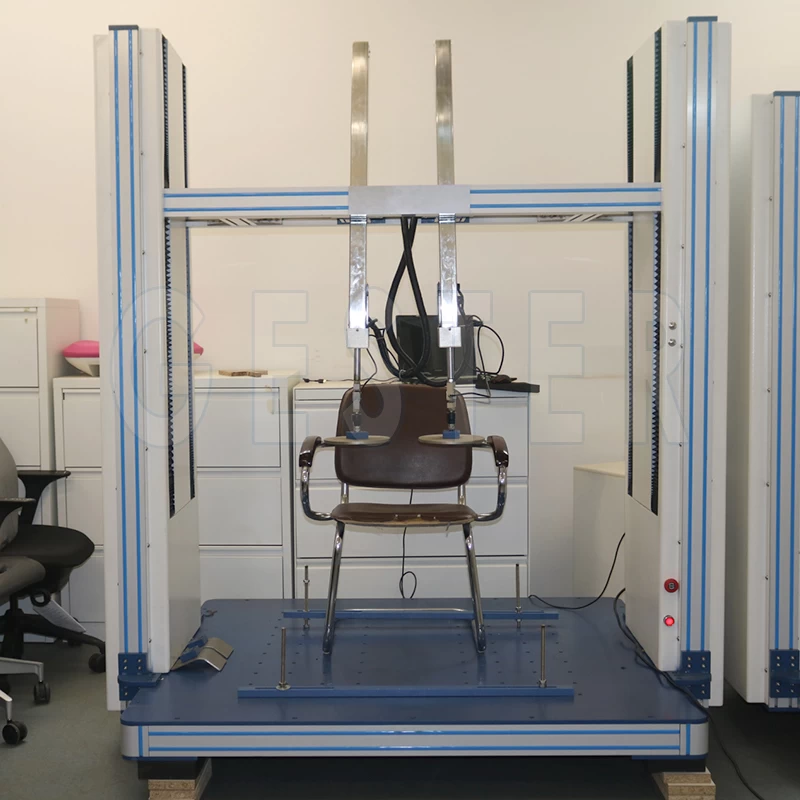

Chair Armrest Testing Machine tests the strength and durability of the handrails, seats,or other parts by simulating the loading of the seats during routine use. The machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:

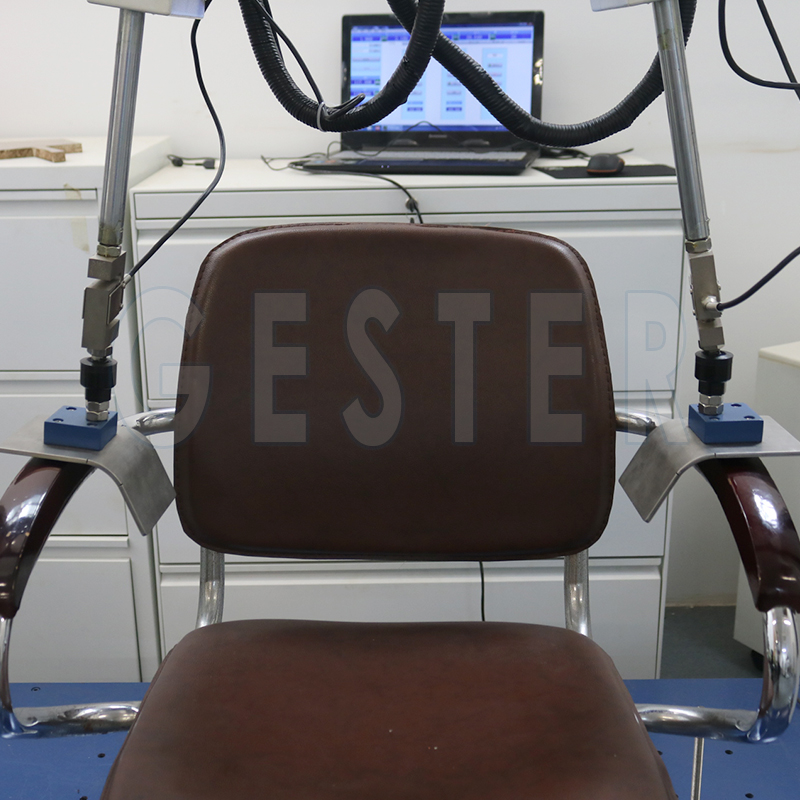

1.Armrests vertical static load test;
2.10°angle armrests durability test;

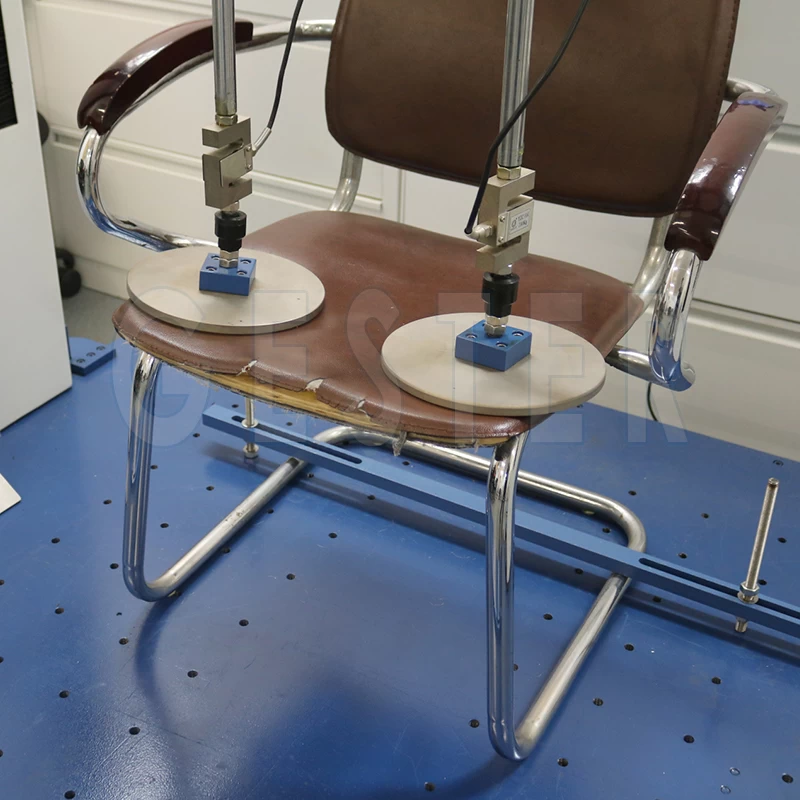

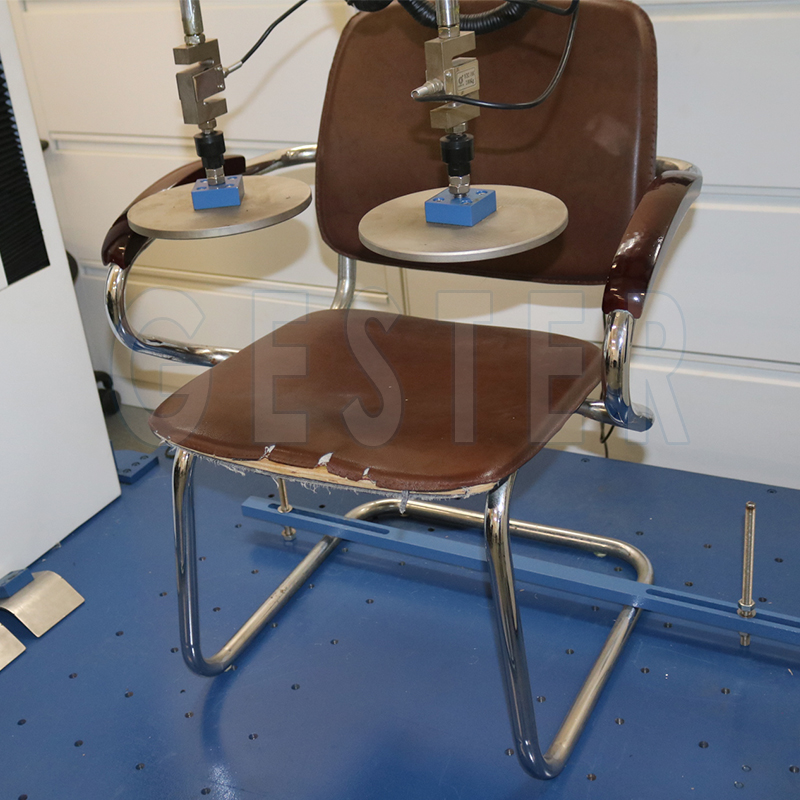

3.Seats front edge static load and durability test;
4.Vertical static load test on backrests;
5.Footrest static load and durability test;
6.Leg rest static load test;
7. Armrest upward static load test (need to be equipped with the weights);
8. Writing board vertical static load and durability test.
Standards:
EN 1728-2012 Section 6.6,6.8, 6.9, 6.11, 6.12, 6.13,6.14, 6.18,6.20, 6.21 ,6.22, 7.4, 7.5, 7.6, 7.8, 7.10 , 7.12
EN1335-3 -2009 Section 7.2.1, 7.2.3, 7.2.4, 7.2.6, 7.3.2,7.3.4,
EN 1729-2-2012 Section 5.3.4, 5.3.9,5.3.11, 5.3.12
EN581-2-2015 (corresponding with EN1728-2012),
ISO 7173-1989 Section 7.1, 7.4
GB/T 10357.3 Section 4.3.3, 4.4, 4.6, 4.9,
QB/T 2280-2007 Section 6.6.5, (6.6.13.2 Load pad(optional accessory) is required)
BIFMA X5.1 - 2011 Section 21,(11.4,19, 20, 23,24 Load pad(optional accessory) is required(
EN 16139-2013 (corresponding with EN1728-2012)
BS5459-2-2000 Section A5.5, A7.3
|
