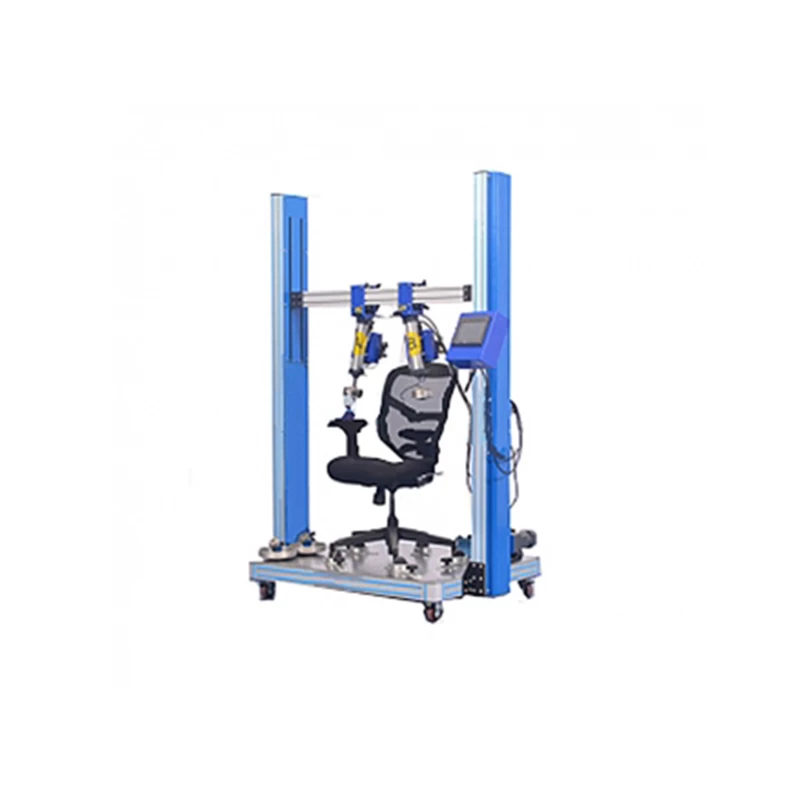

Chair Armrest Durability Testing Machine GT-LB03L

Chair Armrest and Seat Front Edge Testing Machine GT-LB03L tests the strength and durability of the handrails, seats, or other parts by simulating the loading of the seats during routine use.



Chair Armrest Durability Testing Machine GT-LB03L


Product Introduction

Application:

The tester tests the strength and durability of the handrails, seats,

or other parts by simulating the loading of the seats during routine use.

The machine is equipped with two drive units, and can be individually

controlled to repeatedly load the test points of the seat. Through

different parameter settings, the machine can complete the

following types of test functions on the seat:

1. Armrests Vertical static load test;

2. 10o angle handrail durability test;

3. Seat front edge static load and durability tests;

4. Vertical static load test on backrests;

5. Foot rest static load and durability testing;

6. Leg rest static load test;

7. Armrest upward static load test(need to tie the weight test);

8. WordPad vertical static load and durability test.

9.Additional seating and leg static load test for the reclining chair

10. Recliner chair additional seat surface durability test



Standards:

EN 1728-2012, EN1335-3 -2009, EN 1729-2-2012, EN581-2-2015, ISO 7173-1989, GB/T 10357.3, BIFMA X5.1 - 2011, EN 16139-2013

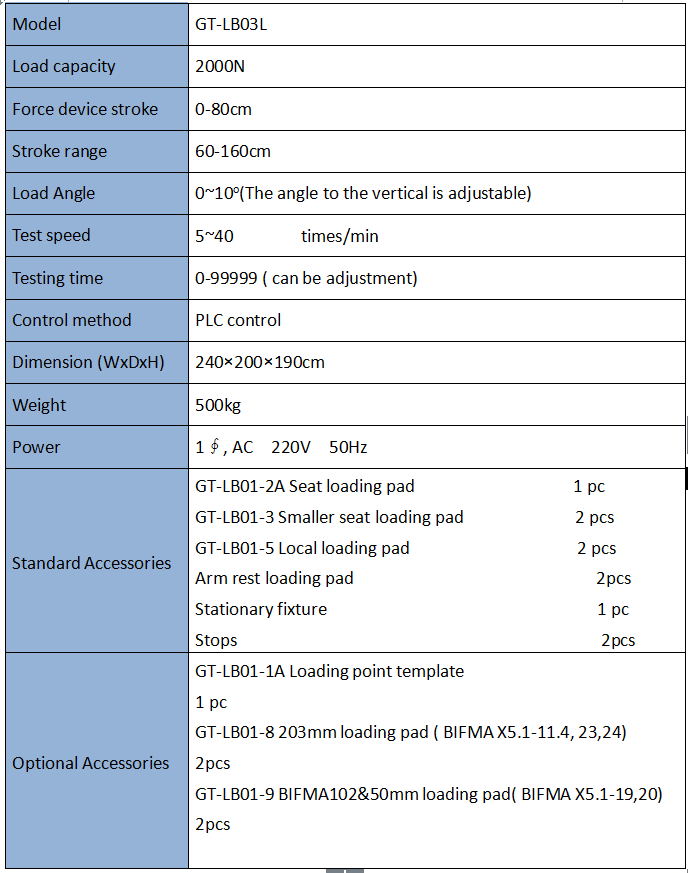

Key Specifications





Applications Industry

All kinds of chair products can be tested on the Chair Armrest Durability Testing Machine


Product Tags chair tester          chair assembly tester          chair durability tester          chair stability tester          chair armrest tester          chair backrest dynamic tester          chair out stop tester          chair castor durability tester          chair back durability tester
