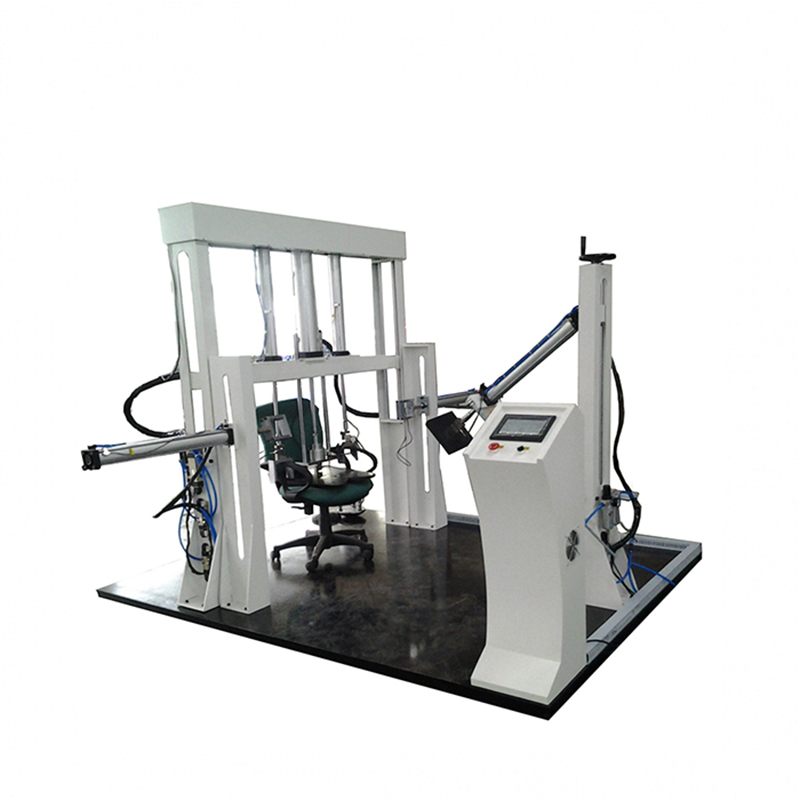

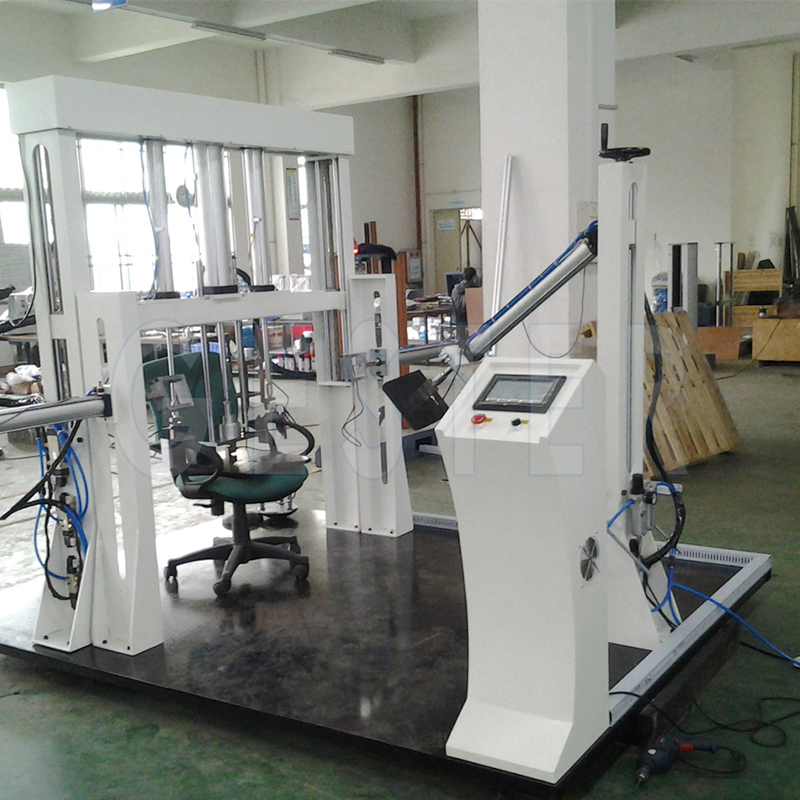

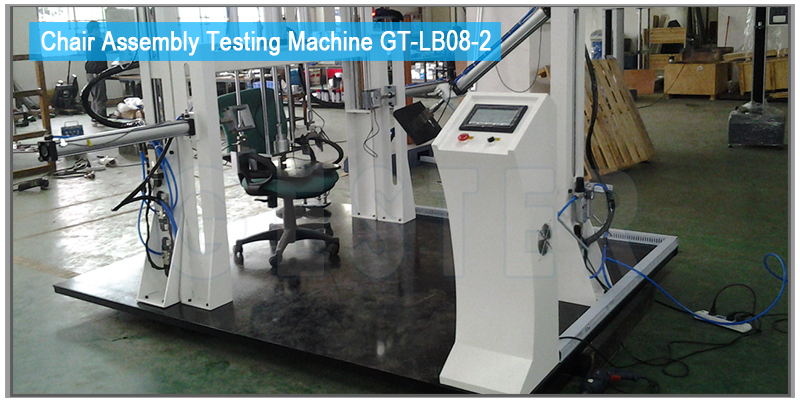

Chair Assembly Testing Machine GT-LB08-02

Chair Assembly Testing Machine is according for the standard EN 1728 and combination with different methods



  • certificateISO 9001, UKAS, CE
  • standardEN 1728-2012, ISO 7173-1989, GB/T 10357.3 -2013, BS5459-2-2000

Chair Assembly Testing Machine

Chair Assembly Testing Machine

Applications:

This Chair Assembly Testing Machine is according for the standard EN 1728 and combination with different methods:

  • Back rests vertical load test
  • Back rests horizontal forward static load test
  • Headrest static load test
  • Foot rest static load test or durability test
  • Back impact test
  • Leg rest static load test
  • Leg forward or sideways static load test
  • Auxiliary writing surfaces static load test and durability test
  • Arm rests vertical upwards static load test


Standards

EN 1728-2012 Section 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6.11, 6.12, 6.13, 6.14, 6.15, 6.16, 6.17, 6.18, 6.20, 6.21, 6.22, 6.24, 6.25, 6.26, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.12

EN 581-2-2015 correspond EN1728-2012),

EN 16139-2013 correspond EN1728-2012),

EN 1335-3 -2009 Section 7.2, 7.3.1, 7.3.2, 7.3.4,

EN 1729-2-2012 Section 5.3

ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.11, 7.12

GB/T 10357.3 -2013 Section 4.3, 4.4, 4.5,4.6, 4.7, 4.8,4.9, 4.10,4.11, 4.12, 4.13 , 4.14

BS 5459-2-2000 Section A5.1, A5.2, A5.3, A5.5, A7.2, 7.3, A7.4, A7.7, A7.9


Feature

1.This Chair Assembly Testing Machine is single station comprehensive test instrument, which could only test one function of chair every time.
2.Imported cylinder together with servo valve, make test load control more accurate, and noise small.
3.The crossbeam could be lifted automatically, which make test space more extensive.
4.It is easy to operate with PLC touch screen.


Key Specifications

Model

GT-LB08-2

Smaller seat loading pad

Diameter  200mm

Back loading pad

200 mm x 250 mm

Local loading pad

Diameter  100mm

Seat impactor

Diameter  200mm, 25 kg

Impact hammer

Hammer: 6.5 kg  Arm: 2kg

Dimensions(WxDxH)

180 x 150 x 205cm

Weight(Kg)

600Kg

Standard Accessories

1 pc

GT-LB01-1A Loading point template

1 pc

GT-LB01-2A Seat loading pad

2 pc

GT-LB01-3 Smaller seat loading pad

1 pc

GT-LB01-4 Back loading pad

2 pc

GT-LB01-5 Local loading pad

1 pc

GT-LB01-6 Seat impactor device

1 pc

GT-LB01-7 Impact hammer

1 pc

Stationary fixture

2 pc

Stops


Applications Industry

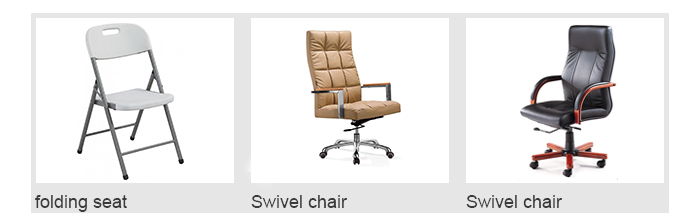

All kinds of chair products can be tested on the Chair Assembly Testing Machine

Chair Assembly Testing Machine
