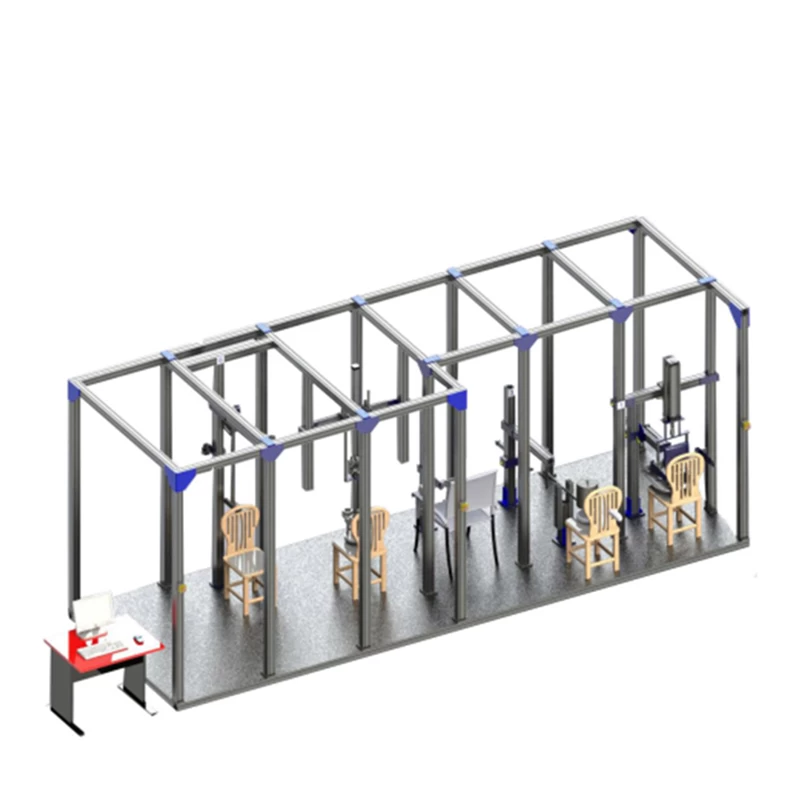

Applications:
This tester is according for the standard EN 1728 and combination with different methods:
-
Seat static load and back static load test
-
Seat front edge static load test
-
Seat front edge durability test
-
Seat impact test
-
Back rests vertical load test
-
Back rests horizontal forward static load test
-
Back impact test
-
Leg rest static load test
-
Leg forward or sideways static load test
-
Arm rest sideways static load test
-
Arm rest downwards static load test
-
Arm rest durability test
-
Arm rest impact test
-
Arm rests vertical upwards static load test
-
Headrest static load test
-
Foot rest static load test or durability test
-
Auxiliary writing surfaces static load test and durability test
Standards:
EN 1728-2012 Section 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6.11, 6.12, 6.13, 6.14, 6.15, 6.16, 6.17, 6.18, 6.20, 6.21, 6.22, 6.24, 6.25, 6.26, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.12, 8.2, 8.3, 8.4, 8.5 , 8.6, 8.7, 8.8, 8.9
EN581-2-2015 (correspond EN1728-2012),
EN 16139-2013 (correspond EN1728-2012)
EN1335-3 -2009 Section 7.2, 7.3.1, 7.3.2, 7.3.4,
EN 1729-2-2012 Section 5.3
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.11, 7.12
GB/T 10357.3 -2013 Section 4.3, 4.4, 4.5,4.6, 4.7, 4.8,4.9, 4.10,4.11, 4.12, 4.13 , 4.14
BS5459-2-2000 Section A5.1, A5.2, A5.3, A5.5, A7.2, 7.3, A7.4, A7.7, A7.9
|
