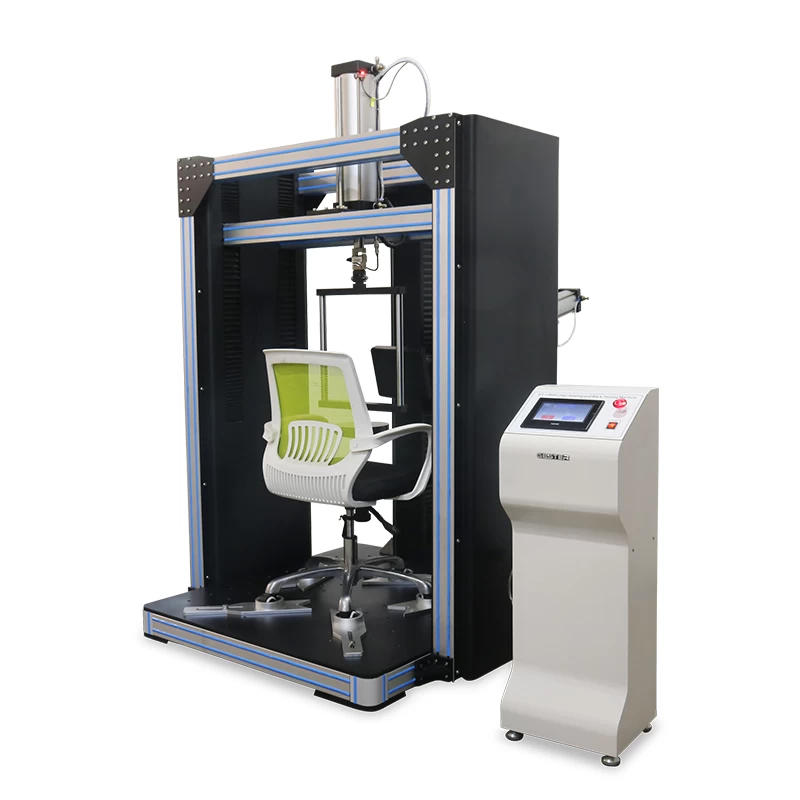

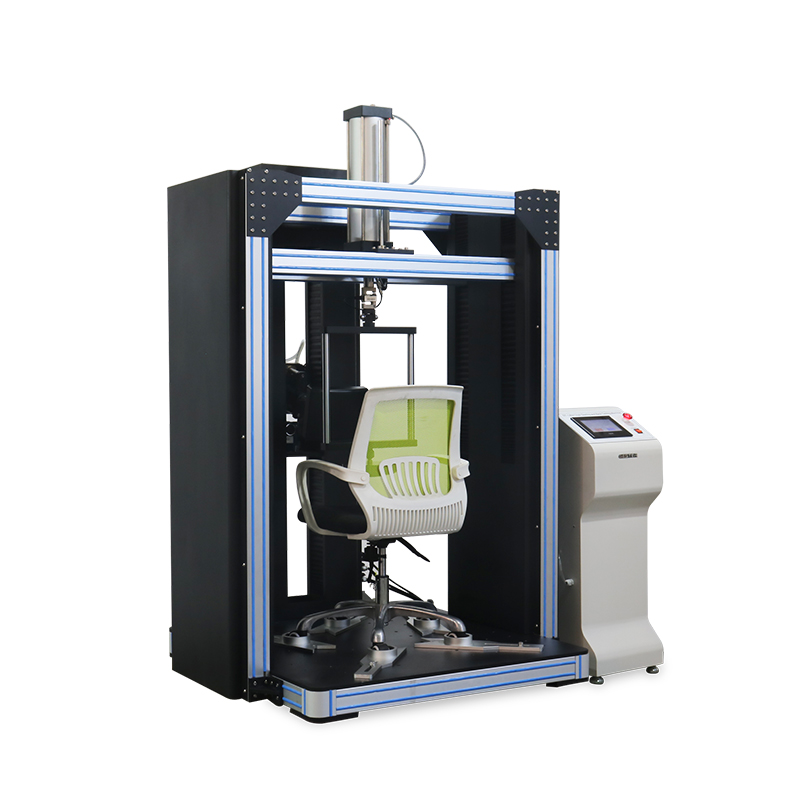

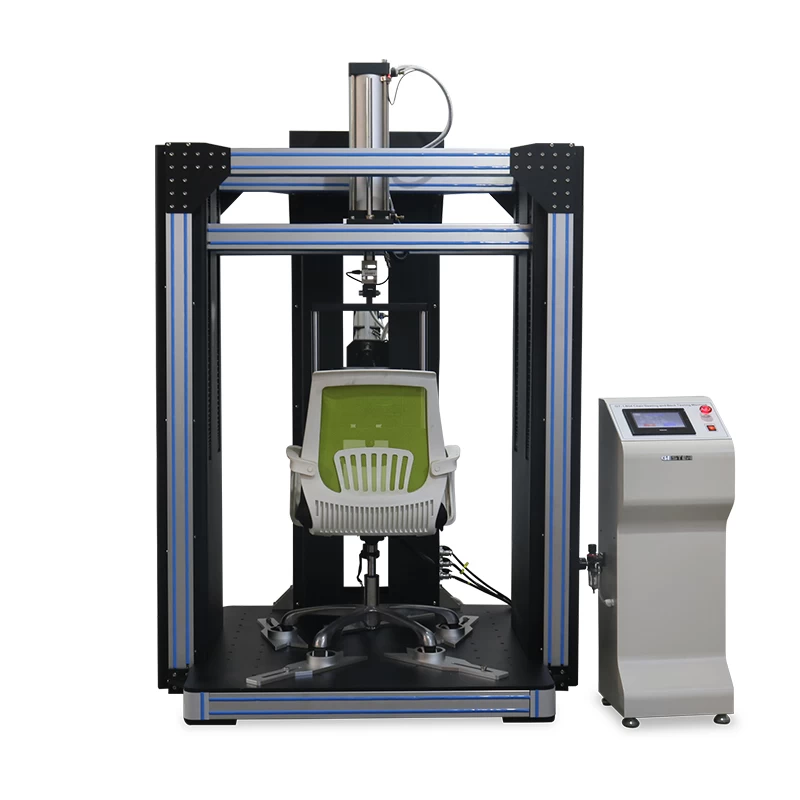

Chair Seating and Back Testing Machine GT-LB04-2

Chair Seating and Back Testing Machine is to simulate the daily use of the process of loading the seat on the seat and back to test the durability.



Chair Seating and Back Testing Machine GT-LB04-2


Product Introduction

Application:

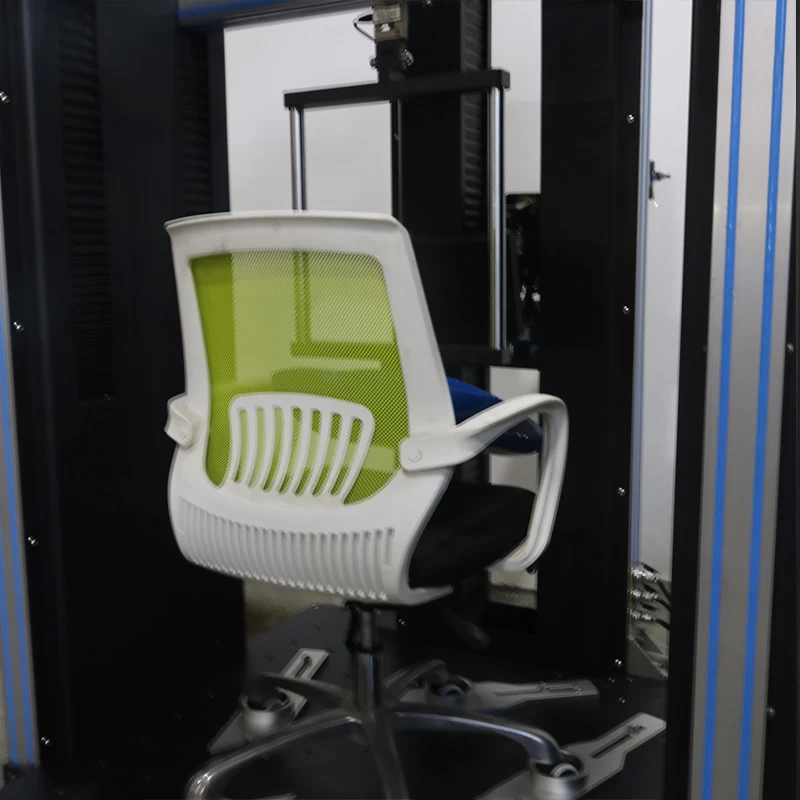

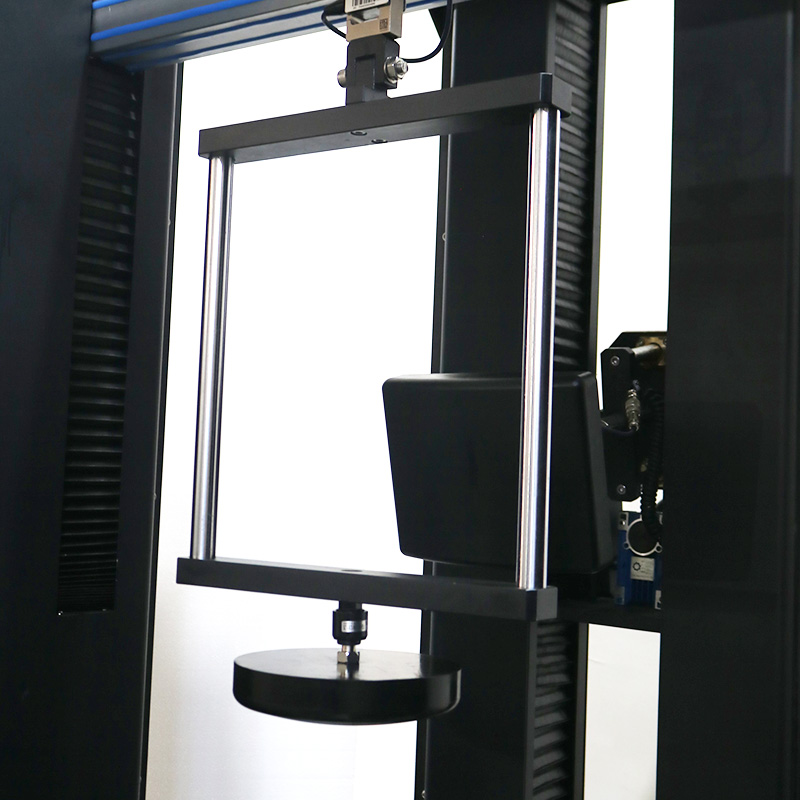

The test machine is to simulate the daily use of the process of loading the seat on the seat and back to test the durability. Firstly, the seat surface loading module is used to load the seat surface. Secondly, the back loading module is loaded to the seat back and then unloaded. Thirdly, the seat surface loading module is unloaded to complete a loading. The loading operation is repeated a certain number of times to test the durability performance of the seat .



Standards:

EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 7.3, 7.4,7.9, 8.2, 8.4.1,8.5 (6.25, 6.26 optional accessories)

EN581-2-2015 (corresponding with EN1728-2012),
EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1
EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, (5.3.8 need the optional accessories)
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8, (7.11,7.12  need the optional accessories)
GB/T 10357.3 -2013 Section 4.3, 4.4,4.7,4.8,4.10,4.11, (4.13,4.14  need the optional accessories)
BIFMA X5.1 - 2011 Section 5,6,18 , (10,15,16  need the optional accessories)
EN 16139-2013 (corresponding withEN1728-2012)
BS5459-2-2000 Section A5.1 (A5.3, A7.4 need the optional accessories)
QB/T 2280-2007 Section 6.6.4, 6.6.9 (6.6.10, 6.6.11 need the optional accessories)

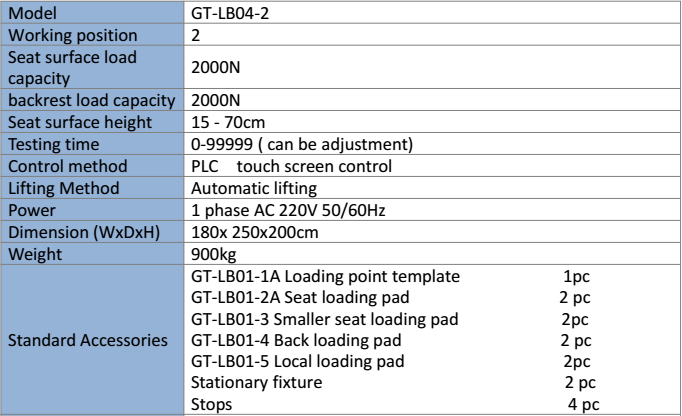

Key Specifications

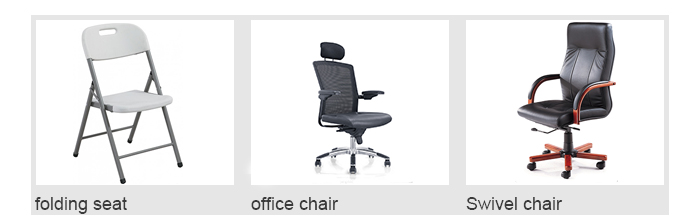

Applications Industry

All kinds of chair products can be tested on the Chair Seating and Back Testing Machine
