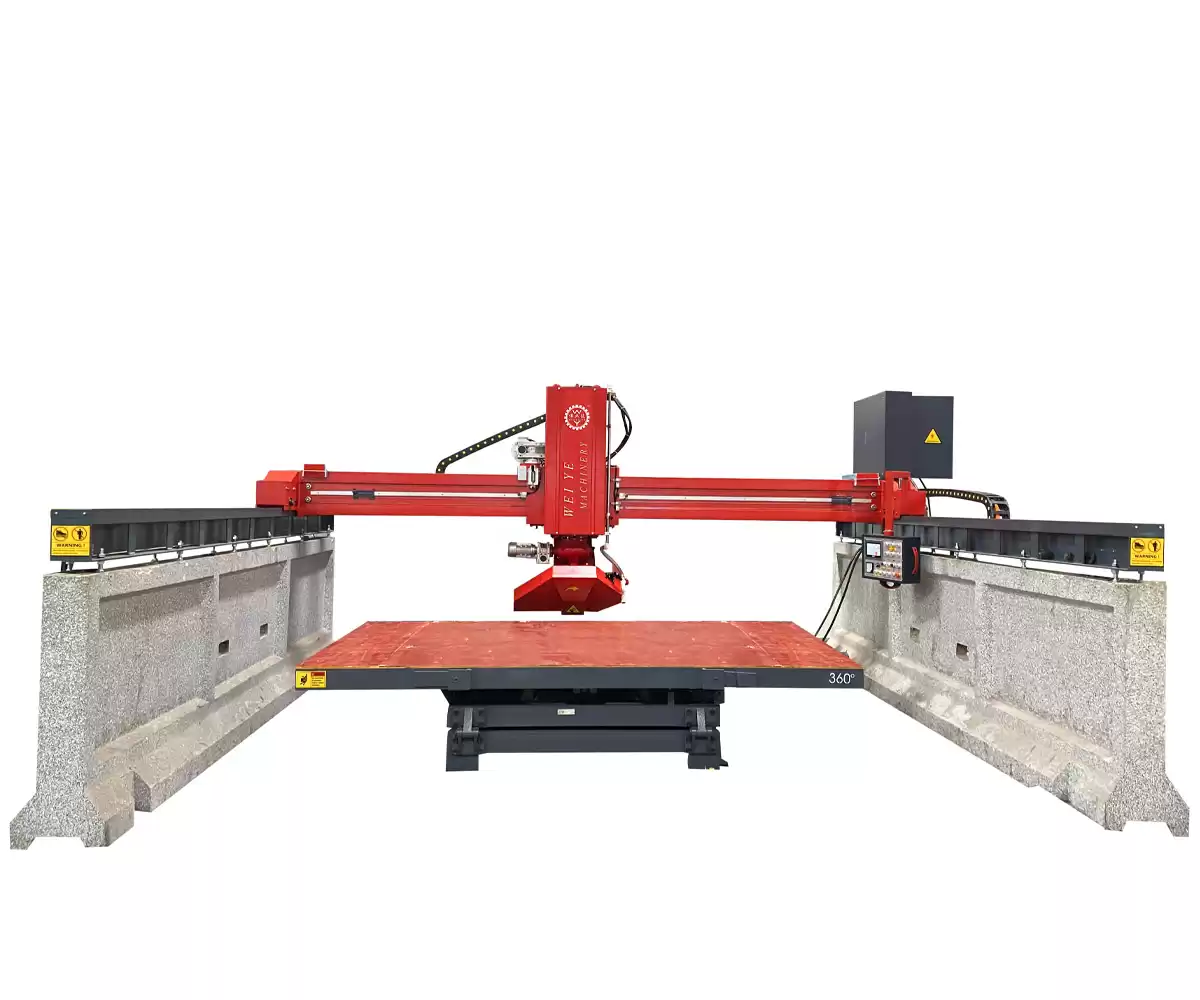

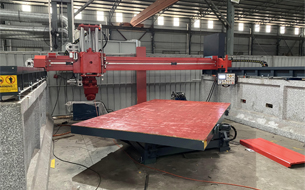

Product name: Chamferable Bridge Cutting Machine
Product Specifications
|
Description
|
Unit
|
ZDQJ-450 C
|
ZDQJ-600 C
|
ZDQJ-800 C
|
|
Max.blade diameter
|
MM
|
Φ450
|
Φ600
|
Φ800
|
|
Max.lifting stroke
|
MM
|
220
|
350
|
590
|
|
Worktable size
|
MM
|
3200×2000
|
3200×2000
|
3200×2000
|
|
Worktable horizontal rotation angle
(Optional)
|
°
|
90°/360°
|
90°/360°
|
90°/360°
|
|
Worktable Vertical ascent angle
|
°
|
0°-85°
|
0°-85°
|
0°-85°
|
|
Head tilting angle
|
°
|
0°-45°
|
0°-45°
|
0°-45°
|
|
Max.processing height
|
MM
|
100
|
170
|
270
|
|
Water consumption
|
M³/H
|
3
|
3
|
3
|
|
Power of main motor
|
KW
|
15
|
18.5
|
22
|
|
Total power
|
KW
|
21
|
24
|
28
|
|
Dimension(L×W×H）
|
MM
|
6000×4800×3100
|
6000×4800×3300
|
6000×4800×3300
|
|
Weight(Without foundation)
|
KGS
|
5400
|
5600
|
5800
|
Product Features
|
|
|
|
|
|
Cross Bridge and Side Beam
|
Cutting spindle
|
Electric and Program
|

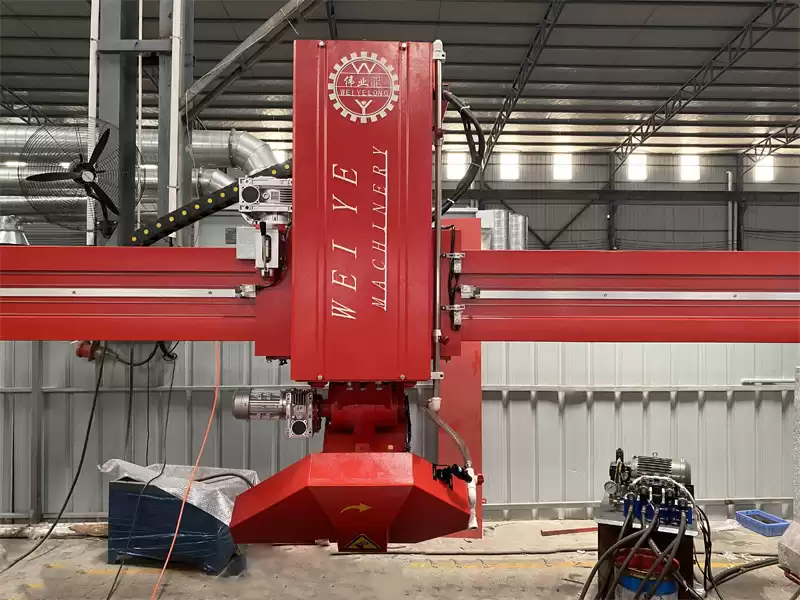

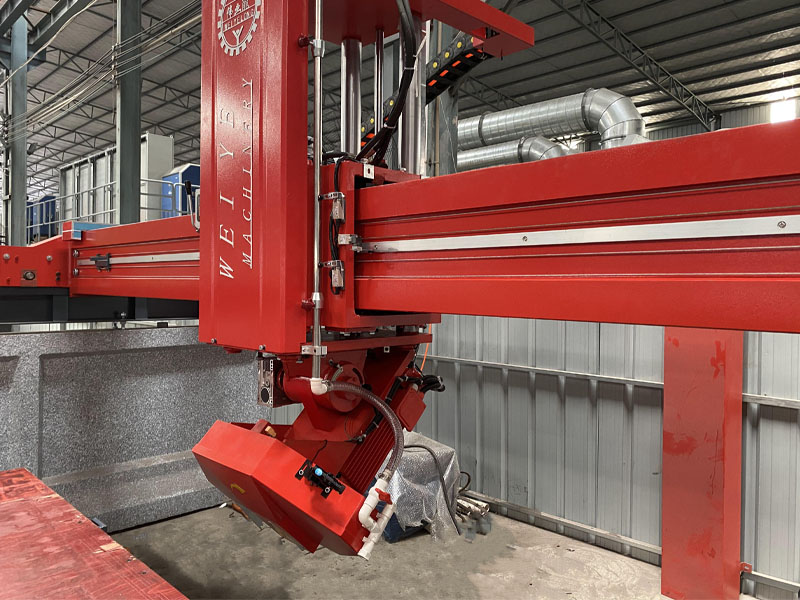

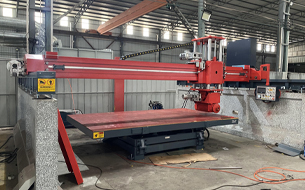

Bridge cutting machine is composed of side beams, cross bridges, worktable and lifting systems. Rely on inverters control, the motor drives the cross bridge to slip on the side beams, and the side beams are embedded with gear tracks and positioning tracks to reduce running errors of bridge, thereby ensuring cutting accuracy. The cross bridge is an important part of the whole machine. Its rigidity and wear resistance are what we must consider. Therefore, we choose pig iron for casting. The entire cross bridge is integrated, without welding. This process perfectly guarantees the wear resistance and hardness , greatly increase the service life of the machine.
|

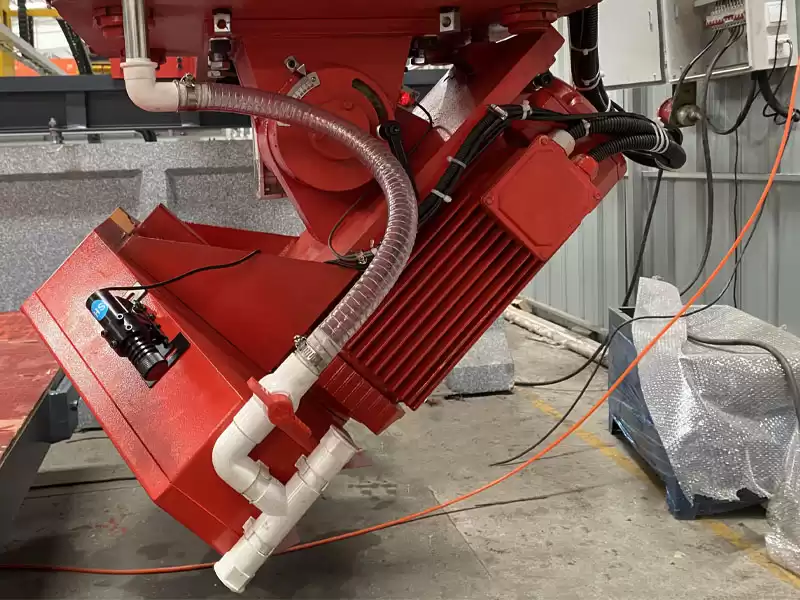

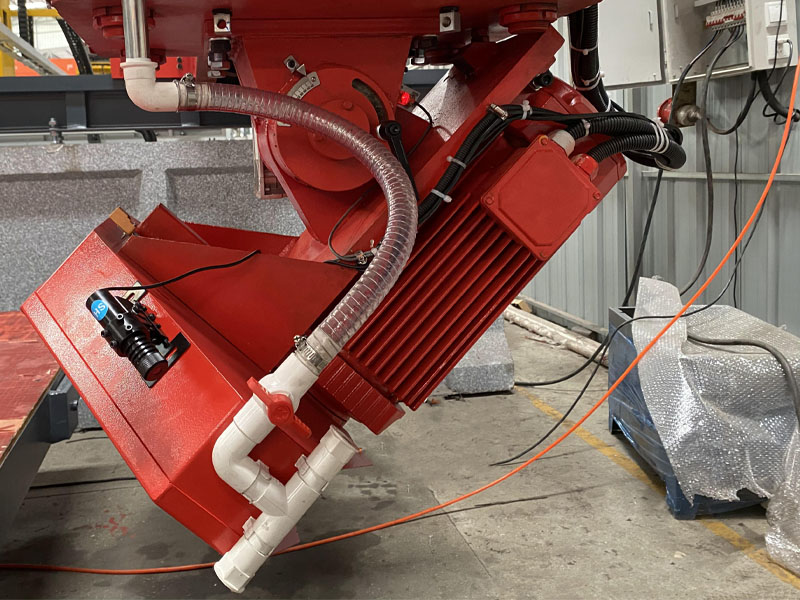

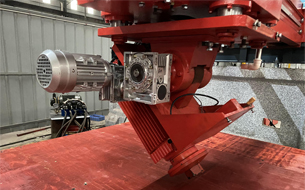

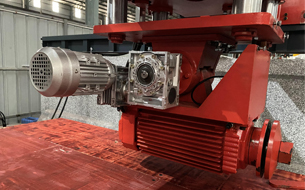

The cutting spindle of this series of stone cutting machines is completely different from the Bridge Cutting Machine. Its cutting spindle is integrated with the motor and is not transmitted through belts. The rotation efficiency is higher than that of the Bridge Cutter, the cutting force is stronger, and the cutting speed is better than Bridge Cutting Machine. This design can realize the 0-45° inclination of the main shaft and complete the chamferable cutting of the edge of the slabs, with high efficiency and high cutting precision.
|

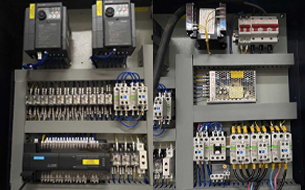

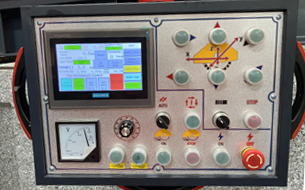

1）Bridge cutting machine series use PLC system and HDMI touch screen control, combined with ultra -high precision magnetic grid to locate and infrared device, uses inverter to control left-right running, adjusts the speed according to the stone material.
2）The operating program is the soul of the machine. We have equipped this machine with an automated operating program. This program integrates fully automatic operation, fault detection, and data statistics to achieve an intelligent human-computer interaction experience. And it is mounted on the world first class PLC control platform to accurately calculate the cutting path, optimize the cutting efficiency, and ensure the cutting quality.
|
our advantage
1)Average annual sales over 300 sets of bridge cutting machines;
2)Cutting error range is within 0.5mm.
Quality Service
We provide free installation service and one year warranty time to our customers.
Packaging and shipment
Waterproof plastic film, well fixed in container suitable for long transportation.
