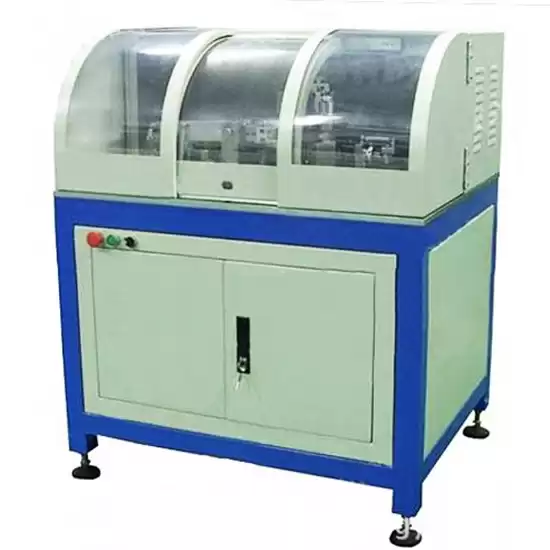

Channeling Capper Machine For Cylindrical Supercapacitor
1. Functional overview
Suitable for the channeling sealing of cylindrical supercapacitor and lithium-ion power battery.
2. Functional characteristics
1.Adopt precision guide rail modules for positioning, with high precision of the channeling sealing position.
2.Adopt cam mechanism, with stable and even channeling sealing.
3.PLC program control. With high production efficiency.
4.The whole machine has compact structure, small noise and stable property.
Its appearance is delicate and beautiful.
3. Technical parameters
|
Product specification
|
φ22~35mm(customized)
|
|
Capacity
|
0~10ea/min
|
|
Power source
|
AC220V/50Hz,Power:0.75kW
|
|
Overall dimensions(LxWxH)
|
980 x 780 x 1200mm
|
|
Weight
|
300kg
|
