Cheap Carbon Road Frame With Direct Mount Brakes

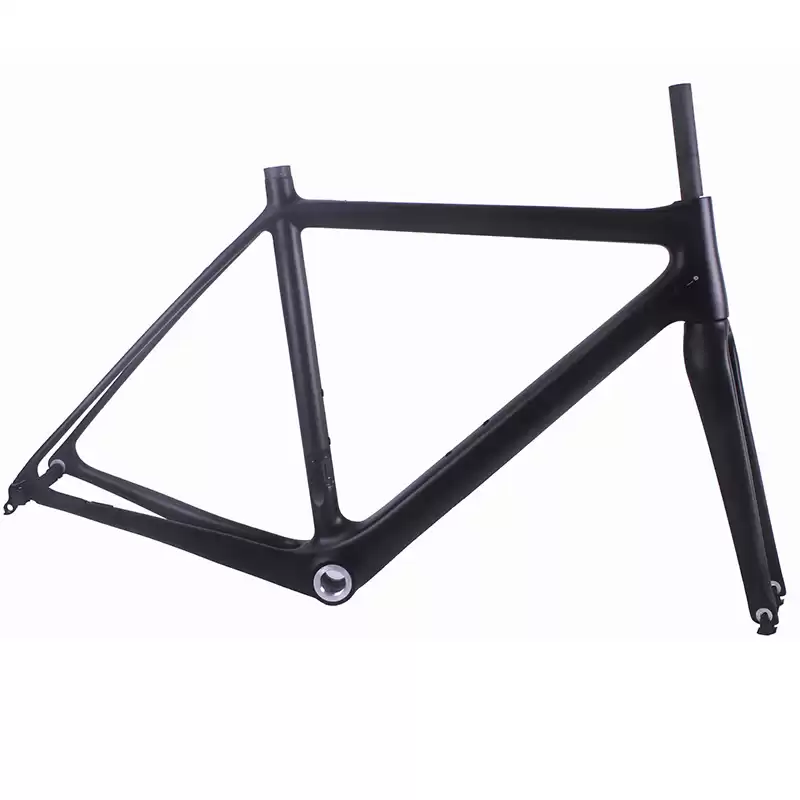

R602-C is an economical carbon fiber 700C road frame with a simple design

that can be used as a training frame for daily riding and competitions.

  • BrakeRim Brake
Facebook Twitter Pinterest LinkedIn 分享

R602-C SPECIFICATION

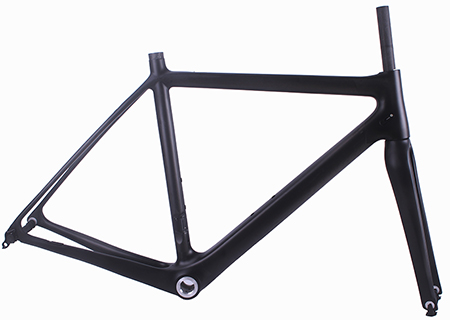

ORNAN R602-C Carbon Road Bike Rim Brake Frame

Model name R602-C
Size 500 / 520 / 540 / 565 / 585mm

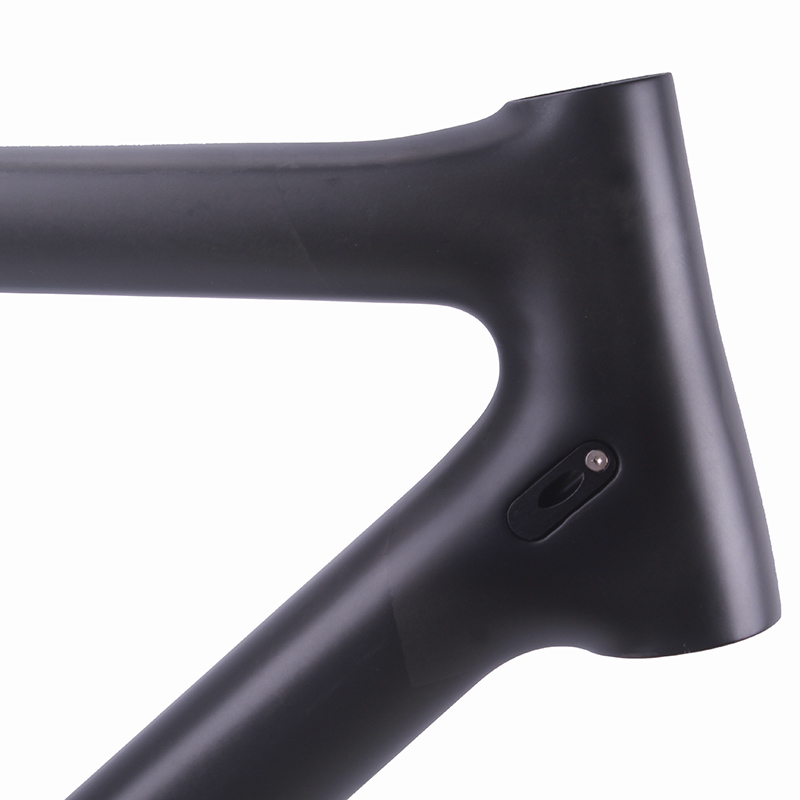

Headtube Tapered 1 1/8" - 1 1/2"

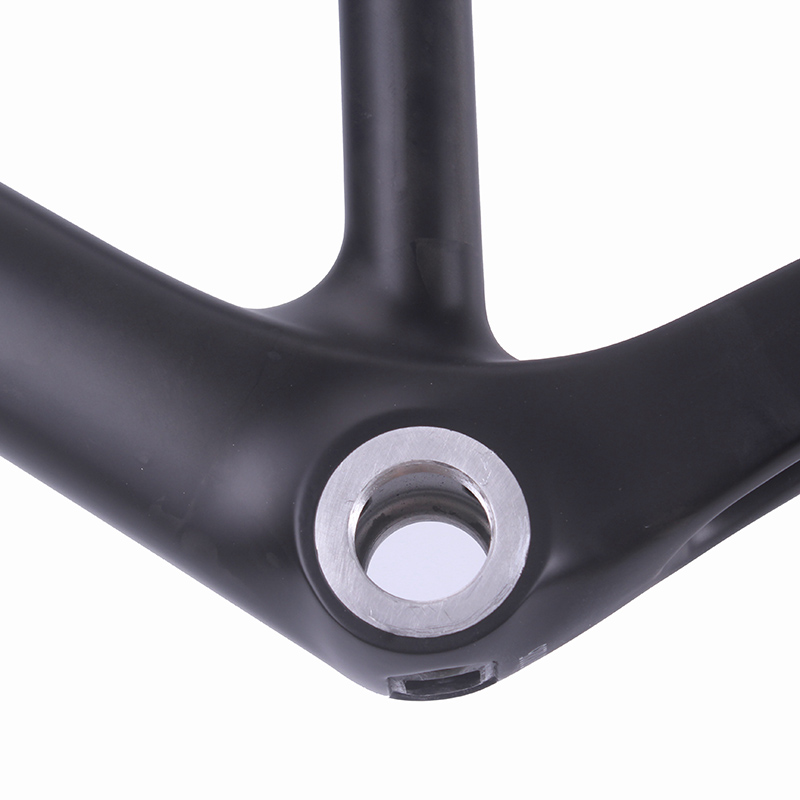

Bottom bracket BSA

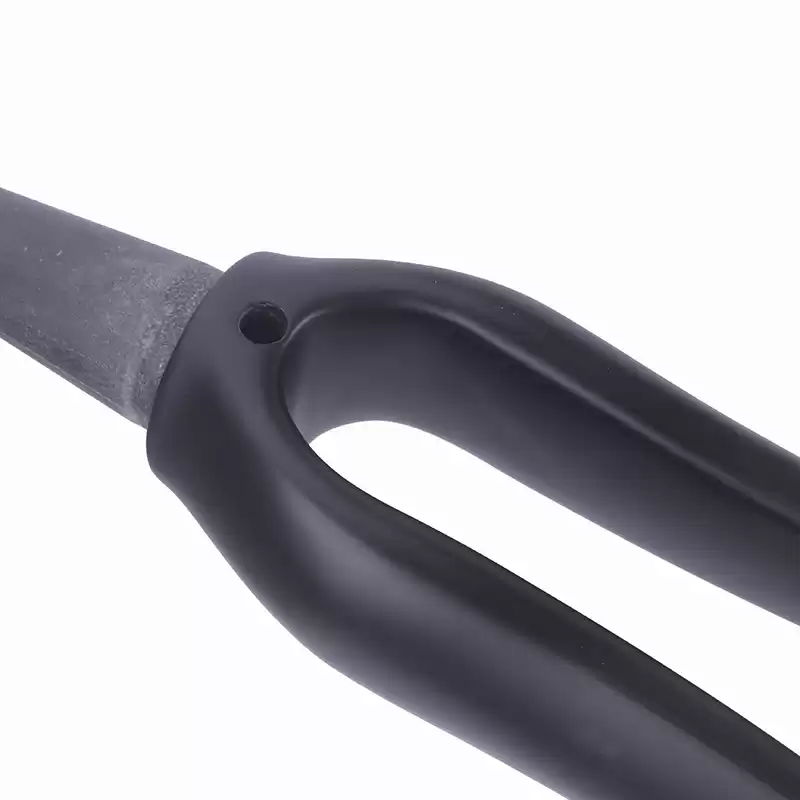

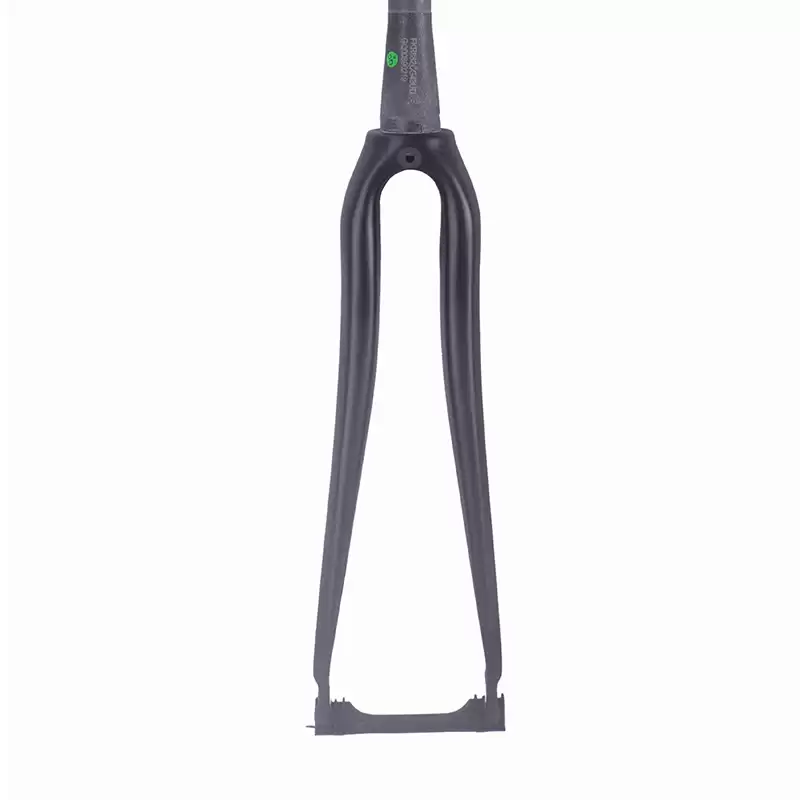

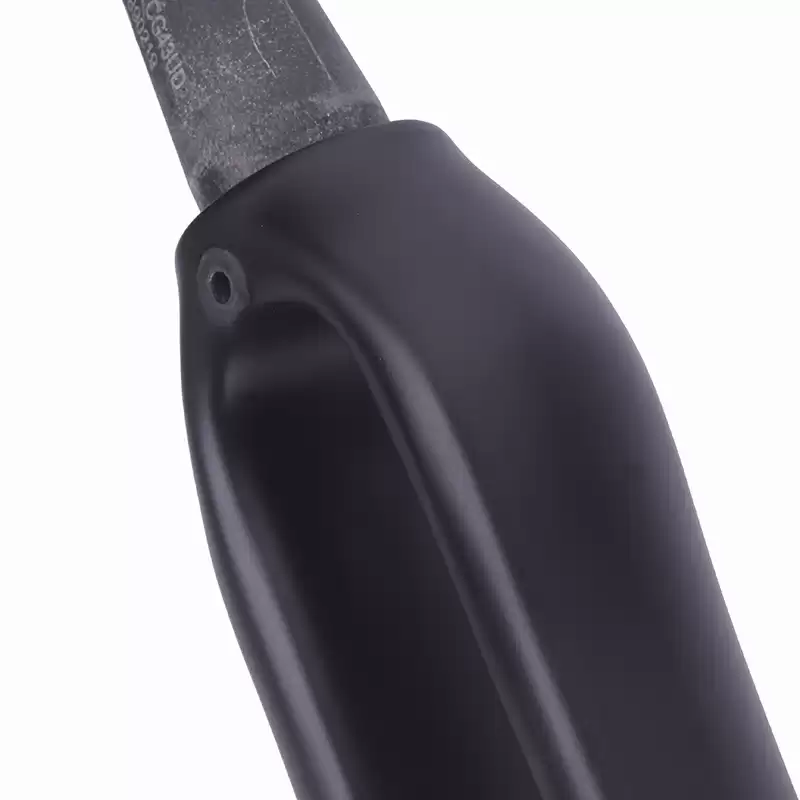

Fork ORNAN specify carbon fork
Seat post ∮31.6
Brake mount type Standard caliper brake
Groupset Machanical and Di2 compatible
Dropout Normal Front 9x100mm QR, Rear 9x130mm QR
Max tire clearance 700x28C
Material  High modulus Toray T700 and T800 carbon fiber
Weight 1120g+/-30g (Size: 540mm)
Test Standard
 ISO4210
Warranty
 2 years

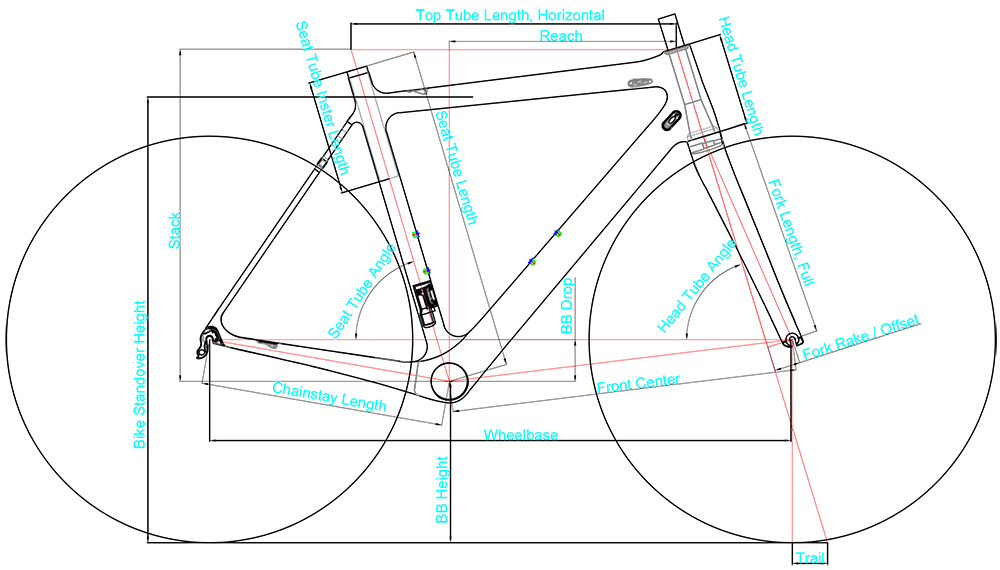

R602-C FRAME GEOMETRY

ORNAN R602-C Carbon Road Bike Rim Brake Frame


SIZE 500 520 540 565 585
SEATPOST INSERT LENGTH 210mm 240mm 270mm 300mm 340mm
SEAT TUBE LENGTH 500mm 520mm 540mm 565mm 585mm
STACK 511mm 531.5mm 558mm 582.5mm 601mm
REACH 364mm 371.5mm 382mm 393.5mm 403mm
HEAD TUBE LENGTH 115mm 135mm 155mm 180mm 200mm
HEAD TUBE ANGLE 71° 71°
 73°
 73°
 73°
BB HEIGHT (700x28C) 274mm 274mm
 274mm
 274mm
 276mm
BB DROP 70mm 70mm
 70mm
 70mm
 68mm
TOP TUBE LENGTH, HORIZONTAL 501mm 520.5mm 538mm 567.5mm 584mm
SEAT TUBE ANGLE 75° 74.5° 74° 73.5° 73°
CHAINSTAY LENGTH 409mm 409mm 409mm 409mm 412mm
FRONT CENTER 575.5mm 587mm 579mm 601mm 615mm
FORK LENGHT, FULL 371mm 371mm
 371mm
 371mm
 371mm
FORK RAKE/OFFSET 52mm 52mm
 43mm
 43mm
 43mm
BIKE STANDOVER HEIGHT (700x28C) 740mm 760mm 777mm 800mm 820mm
TRAIL 59mm 58mm 59.5mm 56.5mm 58mm
WHEELBASE 975mm 986mm 978mm 1000mm 1014mm
