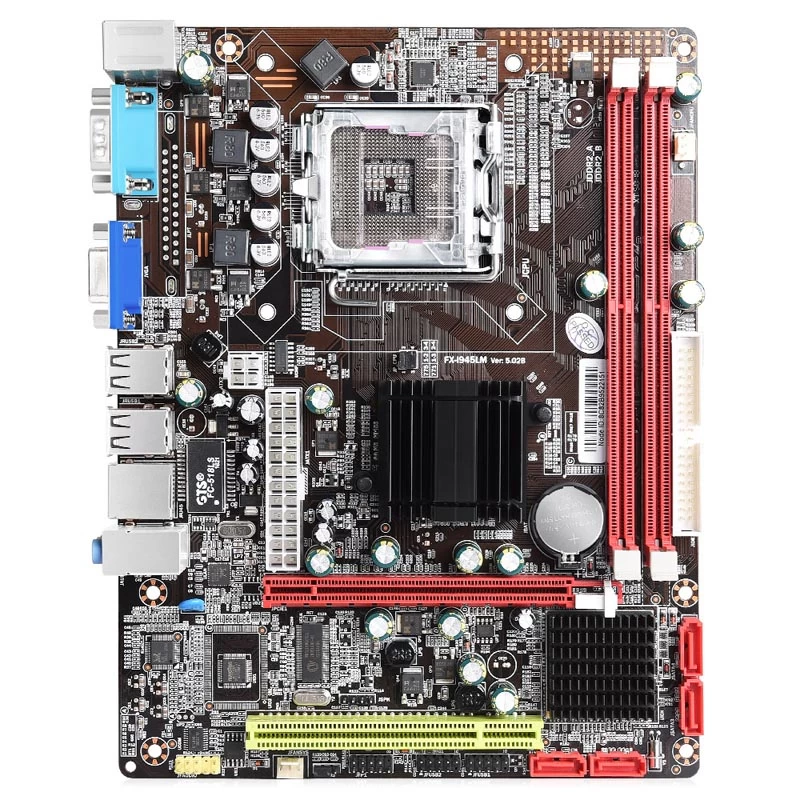

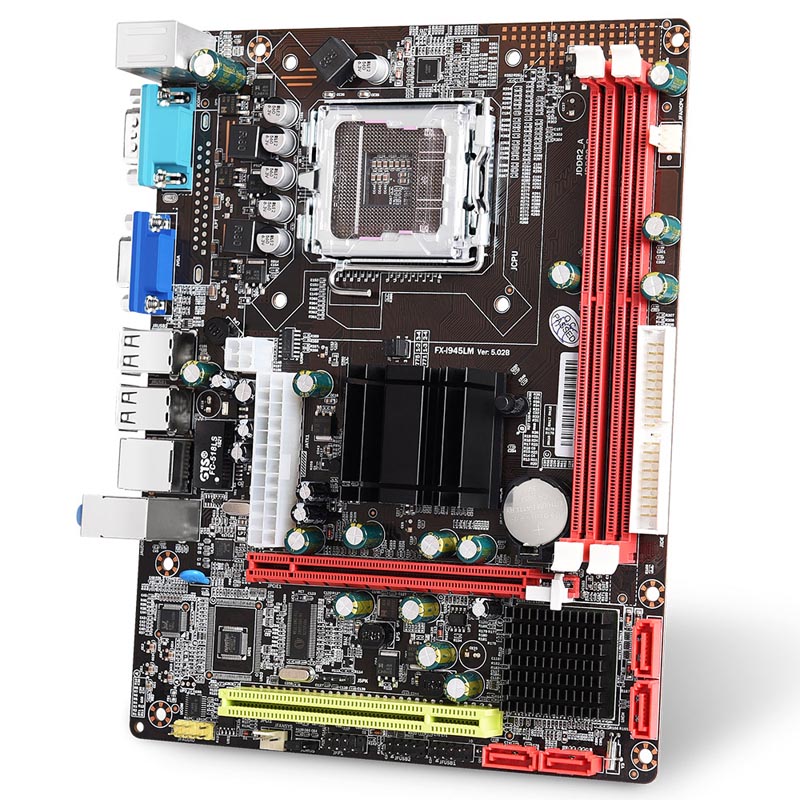

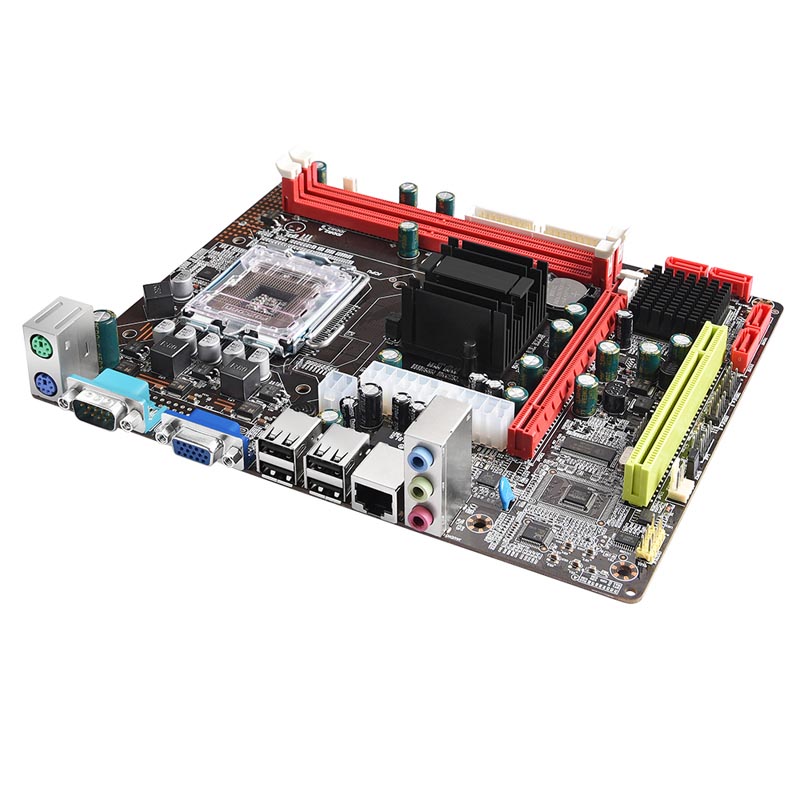

Cheap Intel 945 LGA 771 775 motherboard

  • Intel 945G / 945PL / 945GC express chipset + ICH7
  • Intel LGA 771/775 socket, support Intel Celeron D / Celeron Dual Core / Core 2 Extreme / Core 2 Duo / Core 2 Quad / Pentium D / Pentium Dual Core / Pentium 4 / Xeon 50xx / 51xx / 52xx series processors
  • Dual channel DDR2, up to 4GB
  • Integrated Intel graphics media accelerator 950 with VGA ports
  • Built-in LPT port

  • MemoryDual channel DDR2 up to 4GB
  • ChipsetIntel 945 chipset
  • CPU socketLGA 771/775
Facebook Twitter Pinterest LinkedIn 分享

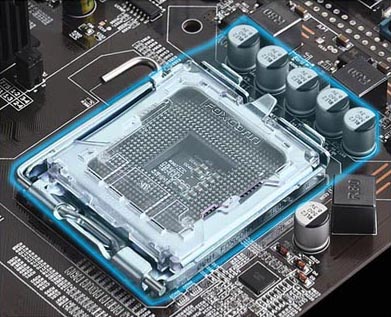

CPU

LGA 775/771 CPU Optional
3 Phases Power Supply With
All Solid Capacitors.

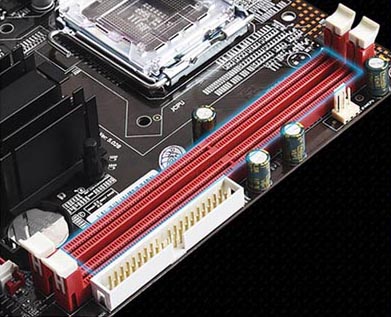

MEMORY

2 X 240-Pin DDR2 DIMM Slots
Support Up To 4GB Of System
Memory, Dual Channel DDR2
533/667/800mhz Architecture.

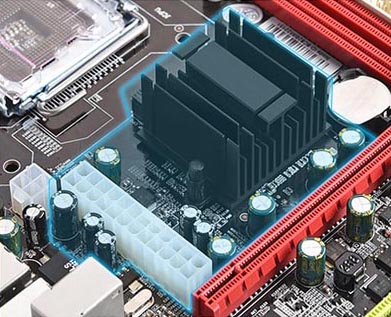

945 CHIPSET

North Bridge: Intel 945
South Bridge: Intel ICH7

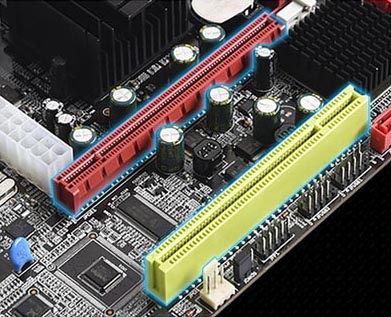

PCI-E Slots

1 x PCI Express x16 slot
delivers the utmost graphics
experience
1 x PCI slot provides scalable
bandwidth for multi-purpose usage.
LGA 775 socket CPU
Intel Pentium 4 (2.60 - 3.80 GHz)
Intel Celeron D (2.53 - 3.60 GHz)
Intel Pentium 4 Extreme Edition (3.20 - 3.73 GHz)
Intel Pentium D (2.66 - 3.60 GHz)
Pentium Extreme Edition (3.20 - 3.73 GHz)
Pentium Dual-Core (1.40 - 3.33 GHz)
Intel Core 2 Duo (1.60 - 3.33 GHz)
Intel Core 2 Quad (2.33 - 3.00 GHz)
Intel Core 2 Extreme (2.66 - 3.20 GHz)
Intel Xeon (1.86-3.40 GHz)
Intel Celeron (1.60 - 2.40 GHz)
Product Name # of Cores Processor Base Frequency Cache
Products formerly Conroe
Intel® Core™2 Duo E6600 2 2.40 GHz 4 MB L2 Cache
Intel® Core™2 Duo E6700 2 2.66 GHz 4 MB L2 Cache
Intel® Core™2 Duo E6300 2 1.86 GHz 2 MB L2 Cache
Intel® Core™2 Duo E6400 2 2.13 GHz 2 MB L2 Cache
Intel® Core™2 Extreme X6800 2 2.93 GHz 4 MB L2 Cache
Intel® Core™2 Duo E4300 2 1.80 GHz 2 MB L2 Cache
Intel® Core™2 Duo E4400 2 2.00 GHz 2 MB L2 Cache
Intel® Core™2 Duo E6320 2 1.86 GHz 4 MB L2 Cache
Intel® Core™2 Duo E6420 2 2.13 GHz 4 MB L2 Cache
Intel® Core™2 Duo E4500 2 2.20 GHz 2 MB L2 Cache
Intel® Core™2 Duo E6540 2 2.33 GHz 4 MB L2 Cache
Intel® Core™2 Duo E6550 2 2.33 GHz 4 MB L2 Cache
Intel® Core™2 Duo E6750 2 2.66 GHz 4 MB L2 Cache
Intel® Core™2 Duo E6850 2 3.00 GHz 4 MB L2 Cache
Intel® Core™2 Duo E4600 2 2.40 GHz 2 MB L2 Cache
Intel® Core™2 Duo E4700 2 2.60 GHz 2 MB L2 Cache
Intel® Pentium® E2140 2 1.60 GHz 1 MB L2 Cache
Intel® Pentium® E2160 2 1.80 GHz 1 MB L2 Cache
Intel® Pentium® E2180 2 2.00 GHz 1 MB L2 Cache
Intel® Pentium® E2200 2 2.20 GHz 1 MB L2 Cache
Intel® Pentium® E2220 2 2.40 GHz 1 MB L2 Cache
Intel® Celeron® 420 1 1.60 GHz 512 KB L2 Cache
Intel® Celeron® 430 1 1.80 GHz 512 KB L2 Cache
Intel® Celeron® 440 1 2.00 GHz 512 KB L2 Cache
Intel® Celeron® 220 1 1.20 GHz 512 KB L2 Cache
Intel® Celeron® E1200 2 1.60 GHz 512 KB L2 Cache
Intel® Celeron® E1600 2 2.40 GHz 512 KB L2 Cache
Intel® Celeron® 450 1 2.20 GHz 512 KB L2 Cache
Intel® Celeron® E1500 2 2.20 GHz 512 KB L2 Cache
Intel® Celeron® E1400 2 2.00 GHz 512 KB L2 Cache
Intel® Xeon® 3040 2 1.86 GHz 2 MB L2 Cache
Intel® Xeon® 3050 2 2.13 GHz 2 MB L2 Cache
Intel® Xeon® 3060 2 2.40 GHz 4 MB L2 Cache
Intel® Xeon® 3070 2 2.66 GHz 4 MB L2 Cache
Intel® Xeon® 3065 2 2.33 GHz 4 MB L2 Cache
Products formerly Wolfdale
Intel® Core™2 Duo E8200 2 2.66 GHz 6 MB L2 Cache
Intel® Core™2 Duo E8400 2 3.00 GHz 6 MB L2 Cache
Intel® Core™2 Duo E8190 2 2.66 GHz 6 MB L2 Cache
Intel® Core™2 Duo E8500 2 3.16 GHz 6 MB L2 Cache
Intel® Core™2 Duo E8300 2 2.83 GHz 6 MB L2 Cache
Intel® Core™2 Duo E7400 2 2.80 GHz 3 MB L2 Cache
Intel® Core™2 Duo E7200 2 2.53 GHz 3 MB L2 Cache
Intel® Core™2 Duo E7300 2 2.66 GHz 3 MB L2 Cache
Intel® Core™2 Duo E7500 2 2.93 GHz 3 MB L2 Cache
Intel® Core™2 Duo E8600 2 3.33 GHz 6 MB L2 Cache
Intel® Core™2 Duo E7600 2 3.06 GHz 3 MB L2 Cache
Intel® Pentium® E5300 2 2.60 GHz 2 MB L2 Cache
Intel® Pentium® E5200 2 2.50 GHz 2 MB L2 Cache
Intel® Pentium® E5400 2 2.70 GHz 2 MB L2 Cache
Intel® Pentium® E6300 2 2.80 GHz 2 MB L2 Cache
Intel® Pentium® E6500 2 2.93 GHz 2 MB L2 Cache
Intel® Pentium® E6500K 2 2.93 GHz 2 MB
Intel® Pentium® E6600 2 3.06 GHz 2 MB Intel® Smart Cache
Intel® Pentium® E5500 2 2.80 GHz 2 MB Intel® Smart Cache
Intel® Pentium® E6700 2 3.20 GHz 2 MB Intel® Smart Cache
Intel® Pentium® E5700 2 3.00 GHz 2 MB Intel® Smart Cache
Intel® Pentium® E6800 2 3.33 GHz 2 MB Intel® Smart Cache
Intel® Pentium® E5800 2 3.20 GHz 2 MB
Intel® Celeron® E3200 2 2.40 GHz 1 MB L2 Cache
Intel® Celeron® E3300 2 2.50 GHz 1 MB L2 Cache
Intel® Celeron® E3400 2 2.60 GHz 1 MB Intel® Smart Cache
Intel® Celeron® E3500 2 2.70 GHz 1 MB Intel® Smart Cache
Intel® Xeon® L3110 2 3.00 GHz 6 MB L2 Cache
Intel® Xeon® X5260 2 3.33 GHz 6 MB L2 Cache
Intel® Xeon® X5272 2 3.40 GHz 6 MB L2 Cache
Intel® Xeon® E5205 2 1.86 GHz 6 MB L2 Cache
Intel® Xeon® L5240 2 3.00 GHz 6 MB L2 Cache
Intel® Xeon® E3120 2 3.16 GHz 6 MB L2 Cache
Intel® Xeon® E3110 2 3.00 GHz 6 MB L2 Cache
Intel® Xeon® L5238 2 2.66 GHz 6 MB L2 Cache
Intel® Xeon® E5220 2 2.33 GHz 6 MB L2 Cache
Intel® Xeon® E5240 2 3.00 GHz 6 MB L2 Cache
Intel® Xeon® L5215 2 1.86 GHz 6 MB L2 Cache
Intel® Xeon® L3014 1 2.40 GHz 3 MB L2 Cache
Intel® Xeon® X5270 2 3.50 GHz 6 MB L2 Cache
Products formerly Kentsfield
Intel® Core™2 Quad Q6600 4 2.40 GHz 8 MB L2 Cache
Intel® Core™2 Extreme QX6700 4 2.66 GHz 8 MB L2 Cache
Intel® Core™2 Quad Q6700 4 2.66 GHz 8 MB L2 Cache
Intel® Core™2 Extreme QX6800 4 2.93 GHz 8 MB L2 Cache
Intel® Core™2 Extreme QX6850 4 3.00 GHz 8 MB L2 Cache
Intel® Xeon® X3210 4 2.13 GHz 8 MB L2 Cache
Intel® Xeon® X3220 4 2.40 GHz 8 MB L2 Cache
Intel® Xeon® X3230 4 2.66 GHz 8 MB L2 Cache
Products formerly Yorkfield
Intel® Core™2 Extreme QX9650 4 3.00 GHz 12 MB L2 Cache
Intel® Core™2 Quad Q9300 4 2.50 GHz 6 MB L2 Cache
Intel® Core™2 Extreme QX9770 4 3.20 GHz 12 MB L2 Cache
Intel® Core™2 Quad Q9650 4 3.00 GHz 12 MB L2 Cache
Intel® Core™2 Quad Q9450 4 2.66 GHz 12 MB L2 Cache
Intel® Core™2 Extreme QX9775 4 3.20 GHz 12 MB L2 Cache
Intel® Core™2 Quad Q9550 4 2.83 GHz 12 MB L2 Cache
Intel® Core™2 Quad Q9400 4 2.66 GHz 6 MB L2 Cache
Intel® Core™2 Quad Q8200 4 2.33 GHz 4 MB L2 Cache
Intel® Core™2 Quad Q9500 4 2.83 GHz 6 MB L2 Cache
Intel® Core™2 Quad Q8300 4 2.50 GHz 4 MB L2 Cache
Intel® Core™2 Quad Q8400 4 2.66 GHz 4 MB L2 Cache
Intel® Core™2 Quad Q8400S 4 2.66 GHz 4 MB L2 Cache
Intel® Core™2 Quad Q9400S 4 2.66 GHz 6 MB L2 Cache
Intel® Core™2 Quad Q9550S 4 2.83 GHz 12 MB L2 Cache
Intel® Core™2 Quad Q8200S 4 2.33 GHz 4 MB L2 Cache
Intel® Core™2 Quad Q9505 4 2.83 GHz 6 MB L2 Cache
Intel® Core™2 Quad Q9505S 4 2.83 GHz 6 MB L2 Cache
Intel® Xeon® X3320 4 2.50 GHz 6 MB L2 Cache
Intel® Xeon® X3350 4 2.66 GHz 12 MB L2 Cache
Intel® Xeon® X3360 4 2.83 GHz 12 MB L2 Cache
Intel® Xeon® X3330 4 2.66 GHz 6 MB L2 Cache
Intel® Xeon® X3370 4 3.00 GHz 12 MB L2 Cache
Intel® Xeon® X3380 4 3.16 GHz 12 MB L2 Cache
Intel® Xeon® L3360 4 2.83 GHz 12 MB L2 Cache
