Basic Info
Brace Tube
Solid 5mm Diameter Bar
Applicatiion
Wedding, Exhibition and advertisement
Transport Package
Air Bubble Film
Specification
SGS TUV ISO
Truss Description:
Chaodastage has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are
designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage
truss structures prepared for high loading.

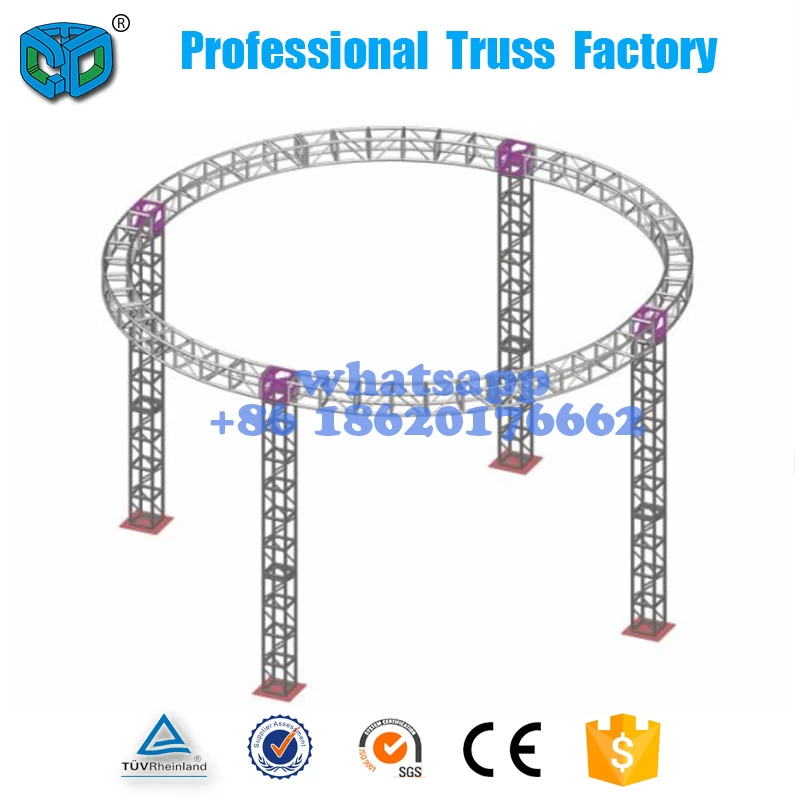

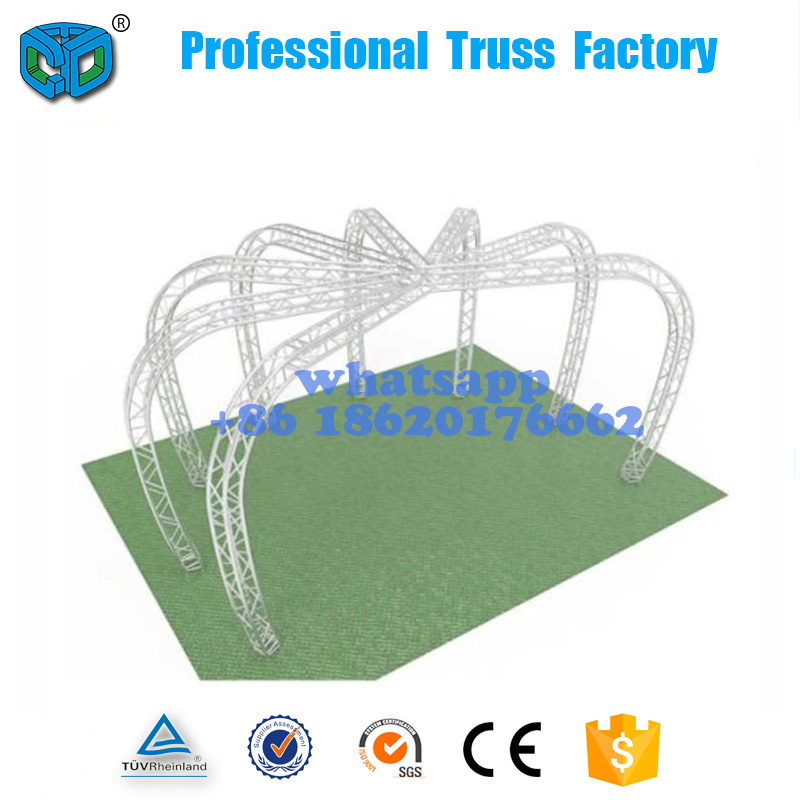

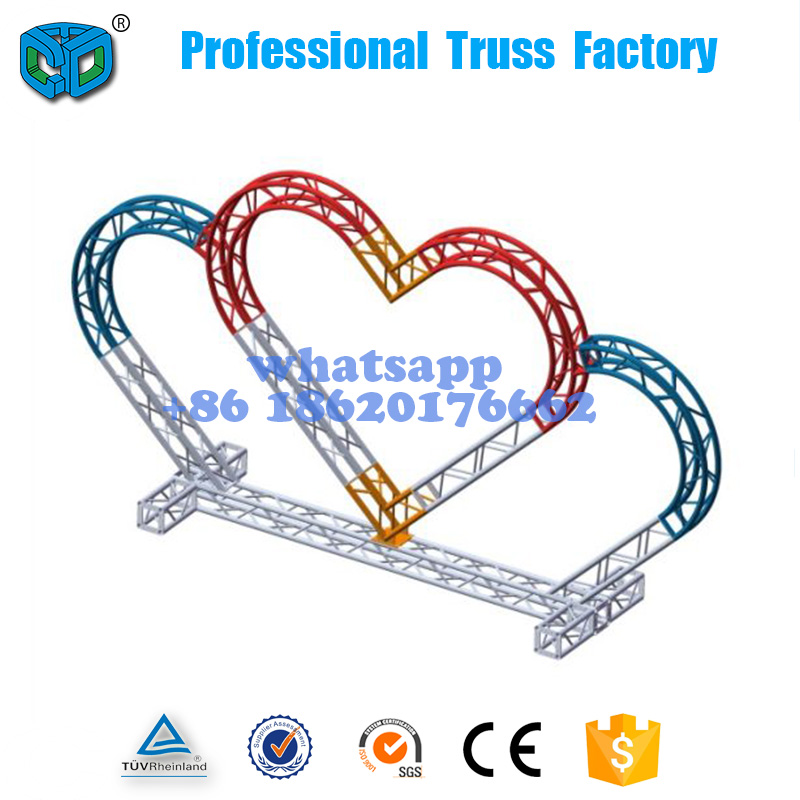

Chaodastage truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and
manufactured according to European standard EN13814 and welding EN1090 , we give you loading date, user manual and
video to teach you how to use these truss.
Truss Advantages:

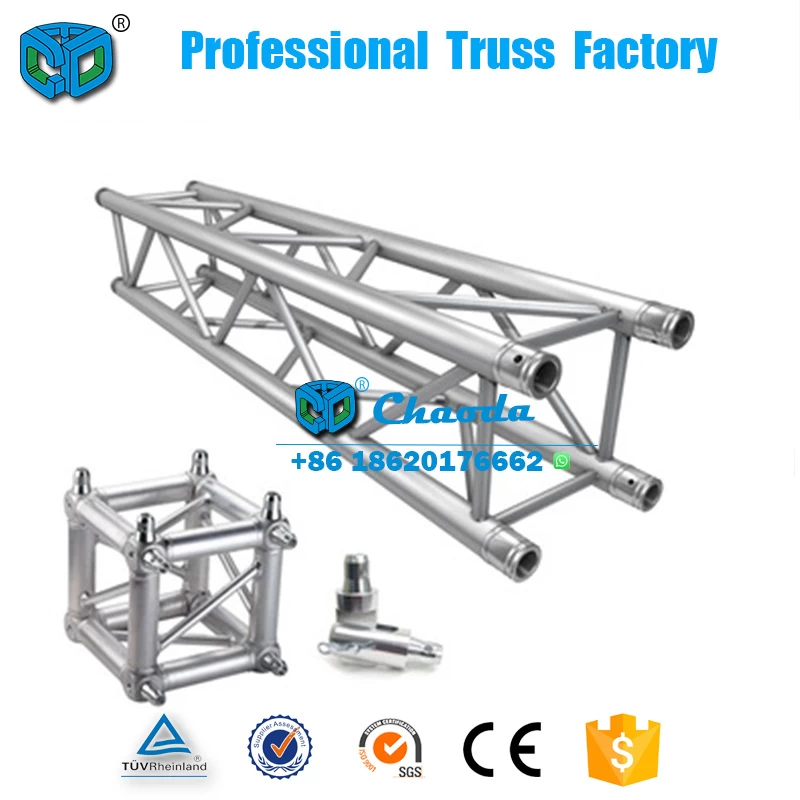

1. Spigot connection way, easily and quickly installation
2. Make sure delivery time
3. Cooperate with supplier over 5 years, keep quality stable
4. Aluminum material report by SGS
5. TUV & CE certificate
6. Factory audited by SGS
7. Get ISO 9001: 2008 quality manage system
What A Event Management !
|
product
|
material
|
size
|
main tube
|
brace tube
|
Vice tube
|
Shape
|
length
|
Spigot aluminum truss
|
Aluminum Alloy 6061-T6/6082-T6
|
290*290mm
|
50*3mm
|
20*2mm
|
20*2mm
|
square/traingle/ladder/Arch
|
0.5-4m
|
|
350*350mm
|
50*3mm
|
25*2mm
|
25*2mm
|
|
390*390mm
|
50*3mm
|
25*2mm
|
25*2mm
|
|
400*400mm
|
50*3mm
|
50*2mm
|
25*2mm
|
|
400*500mm
|
50*3mm
|
50*2mm
|
25*2mm
|
|
400*600mm
|
50*3mm
|
50*2mm
|
25*2mm
|
|
450*450mm
|
50*3mm
|
50*2mm
|
25*2mm
|
Specification:
|
Aluminum Alloy 6061-T6/6082-T6
|
|
Main Tube
|
Vice Tube
|
Brace Tube
|
|
50x4mm/50x3mm
|
50x2/30x2mm
|
20x2/25x2/30x2mm
|
|
Tube size base on truss size or customer's request
|
|
Span(m)
|
symmetrical load(kg)
|
Deflection(mm)
|
Centre Load(kg)
|
Deflection(mm)
|
|
2
|
1800
|
10
|
1300
|
10
|
|
3
|
1500
|
25
|
1060
|
20
|
|
4
|
1200
|
40
|
880
|
30
|
|
5
|
880
|
55
|
620
|
40
|
|
6
|
750
|
65
|
380
|
65
|
|
8
|
510
|
80
|
195
|
85
|
|
10
|
410
|
95
|
120
|
95
|
|
12
|
210
|
110
|
95
|
105
|
Chaoda has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage truss structures prepared for high loading.
Chaoda truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and manufactured according to European standard EN13814 and welding EN1090 , we give you loading date, user manual and video to teach you how to use these truss .
Installation:
Test report:
Packing and shipping:
Factory:
FAQ:
1. Q: What certificate do Chaoda Truss have?
A: SGS and TUV certification.
2. Q: What is the terms of payment?
A: We accept Western Union, by T/T, 30% of invoice value as deposit, 70% balance paid before shipment, and some others.
3. Q: Where is the loading port?
A: Port Huangpu in Guangzhou or Ports in Shenzhen.
4. Q: What is your packaging?
A: Air bubble film or carton or flight case.
5. Q: How long the deliver time?
A: General it is about 5-15 days.
6. Q: What is your after-sales service?
A: Free parts provided once broken within one year.
7. Q: Do Chaoda Truss accept OEM order?
A: Yes, we welcome OEM order as well.
8. Q: Do Chaoda Truss accept customized logo order?
A: Yes, we can make logo on the truss for clients.
