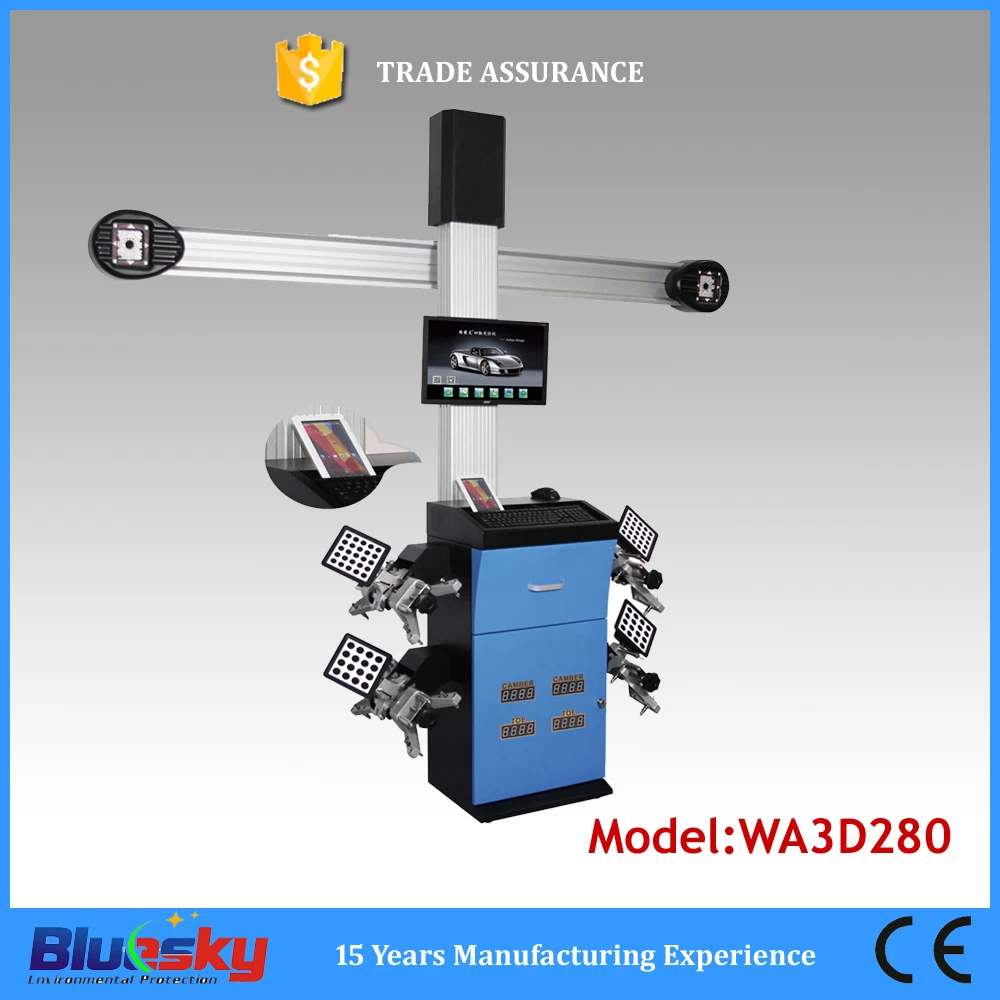

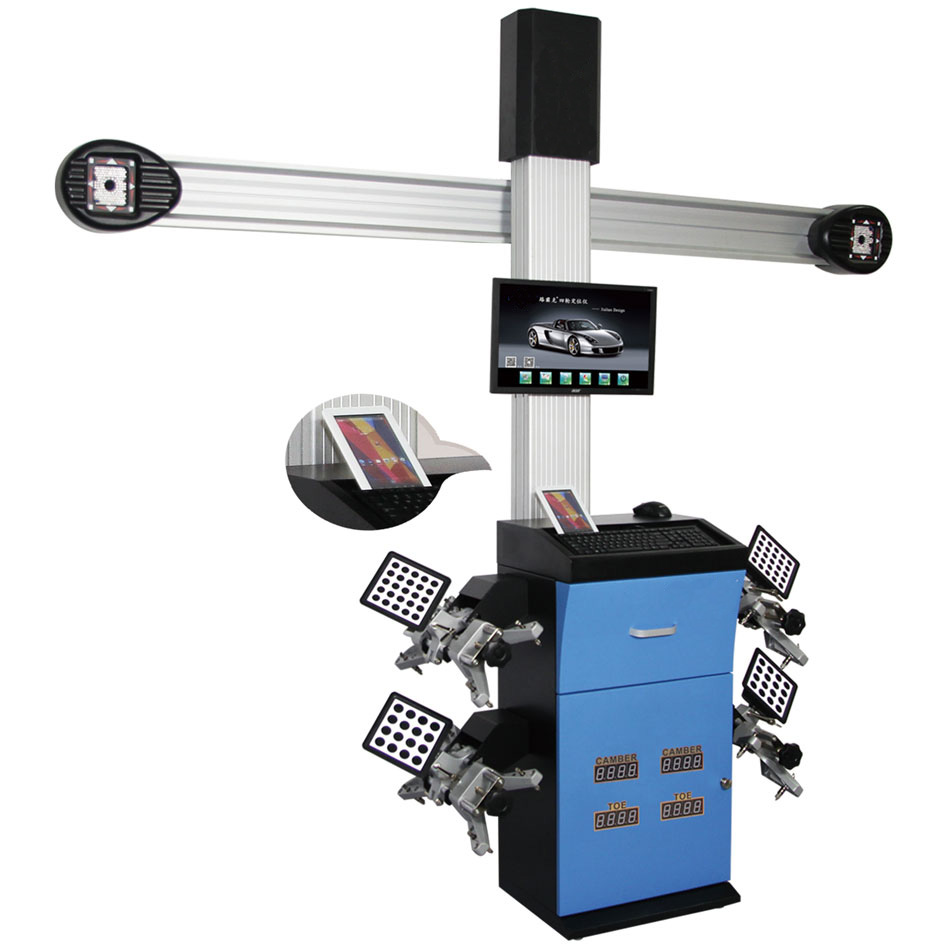

Wheel Aligner WA3D280
Main technical performance and parameter of Wheel Aligner WA3D280:
ITEMS
|
Front wheel measurement precision
|
Front wheel measurement range
|
Rear wheel measurement precision
|
Rear wheel measurement range
|
Toe
|
±0.02
|
±20°
|
±0.02
|
±20°
|
Camber
|
±0.02
|
±15°
|
±0.02
|
±15°
|
S.A.I
|
±0.02
|
±26°
|
x
|
x
|
Caster
|
±0.02
|
±26°
|
x
|
x
|
Thrust angle
|
x
|
x
|
±0.02
|
±5°
|
Standard configuration：
1. Options:Application software could be installed in the Table PC with Android system. Clients can long-distance operate the wheel alignment measurement through Bluetooth.
2. Apply high strength plastic target, which is lighter, thinner and stronger.
3. Fast installation, suitable for all rims between 12”-23” . Double chuck, which can install both on iron and aluminum wheel hub.
4. 5 million high definition camera: it can also assure accurate alignment measurement when target plates get smaller. Intelligent LED navigation system: the operator doesn’t need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.
Wheel Aligner Features:
1. Exceed 20,000 database around the world and with a lifetime update service.
2. Repeat measurement accuracy is ±0.03，which be a world's leading level.
3. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base,Wheel rolling redius.
4. Android cell phone and laptop are supported to show the vehicle measurement data, more convenient for operator.
5. Humanized software design, animation video can be used to help technician more quickly complete the operation.
6. Ultra-low chassis and refit vehicle—Volks Wagen and Audi, XLWB and with ESP function vehicle are also can be measured.
7. Secondary jack-up function, which can be used to more conveniently help technician adjust Camber.
Item/Model
|
WA3D280
|
WA3D380
|
WA3D580
|
WA3D780
|
Table PC
|
0
|
1 set
|
1 set
|
1 set
|
Computer
|
1 set
|
1 set
|
1 set
|
1 set
|
Displayer
|
21.5”
|
21.5”
|
32”
|
21.5”
|
Camera
|
2 sets
|
2 sets
|
2 sets
|
2 sets
|
Web Camera
|
0
|
0
|
1 set
|
1 set
|
Printer
|
1 set
|
1 set
|
1 set
|
1 set
|
Mouse/keyboard
|
1 set
|
1 set
|
1 set
|
1 set
|
Speaker
|
0
|
0
|
0
|
1 set
|
Pillar
|
fixed
|
fixed
|
fixed
|
automatic lifting
|
Camera beam
|
1 set
|
1 set
|
1 set
|
1 set
|
Pad
|
1 set
|
1 set
|
1 set
|
1 set
|
Clamp/Target
|
4 sets
|
4 sets
|
4 sets
|
4 sets
|
Turntable
|
2 sets
|
2 sets
|
2 sets
|
2 sets
|
Hanger
|
4 sets
|
4 sets
|
4 sets
|
4 sets
|
Brake lock
|
1 set
|
1 set
|
1 set
|
1 set
|
Wedge Pad
|
2 sets
|
2 sets
|
2 sets
|
2 sets
|
