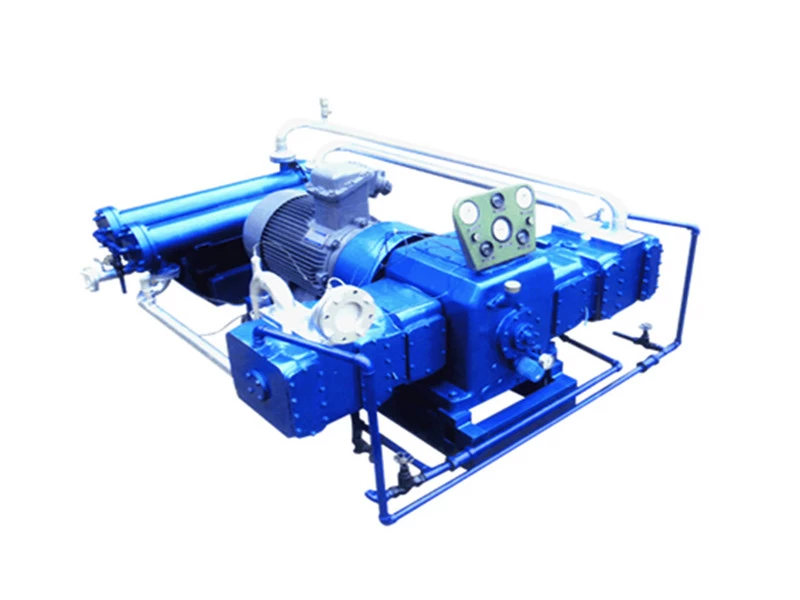

Chemical gas compressor
Product usage and features：
Chemical series compressors can be compressed gas: gas, ammonia, chloromethane, dichloromethane, nitrous oxide, tetrafluoroethylene, hexafluoropropylene, vinyl chloride, propylene, propane and so on. Using a new generation of PLC control system, remote touch screen display and monitoring, so that the compressor operation more safe and reliable.
Enterprise information:
Bengbu longhua has a complete range of products with strong design, production, manufacturing and marketing strength. The products can be used in CNG gas station series compressors, oil and gas field series compressors, medium-high pressure series compressors, special gas series compressors, chemical process series compressors and power series compressors. Product parameters: exhaust volume from 0.05-200m3/min, exhaust pressure from 0.1-50mpa, compressible air, nitrogen, liquefied petroleum gas, gas, natural gas, carbon dioxide, propane, hydrogen, helium, ethylene, ammonia and other different media. Widely used in natural gas filling stations, urban construction, gas fields, petroleum, national defense, coal, geology, chemical industry, metallurgy, machinery manufacturing, medicine, food, beverage and other fields.
Parameter：
|
Model
|
Medium
|
Exhaust volume (m3 /min)
|
Suction pressure (MPa)
|
Suction pressure (MPa)
|
Motor power (Kw)
|
Overall dimension (mm)
|
|
VW-9/10
|
Gas
|
9
|
Atmospheric pressure
|
1
|
55
|
1850 × 1490 × 1550
|
|
VW-10/(0-0.12)-8
|
Gas
|
10
|
0-0.012
|
0.8
|
90
|
2200 × 1550 × 1550
|
|
2VW-34/13
|
Gas
|
34
|
Atmospheric pressure
|
1.3
|
250
|
4750 × 1950 × 1780
|
|
VW-3/2-30
|
Carbon dioxide
|
3
|
0.2
|
3
|
75
|
2300 × 1650 × 1850
|
|
2VW-30/25
|
Carbon dioxide
|
30
|
Atmospheric pressure
|
2.5
|
280
|
4400 × 1600 × 1600
|
|
2VW-3/17-48
|
Carbon dioxide
|
3
|
1.7
|
4.8
|
132
|
4000 × 1500 × 1750
|
|
ZW-1.125/1-19
|
Carbon dioxide
|
1.125
|
0.1
|
1.9
|
15
|
1470 × 1196 × 940
|
|
VW-20/0.1-8.5
|
Methyl chloride
|
20
|
0.01
|
0.85
|
160
|
4300 × 1650 × 1650
|
|
VW-3.5/10
|
Methyl chloride
|
3.5
|
Atmospheric pressure
|
1
|
22
|
2050 × 1850 × 1600
|
|
ZW-2.5/3
|
Methylene chloride
|
2.5
|
Atmospheric pressure
|
0.3
|
15
|
1500 × 650 × 1550
|
|
ZW-1.5/2.5
|
Methylene chloride
|
1.5
|
Atmospheric pressure
|
0.25
|
7.5
|
1500 × 650 × 1550
|
|
ZW-0.2/1-16
|
Freon
|
0.2
|
0.1
|
1.6
|
3
|
1305 × 700 × 900
|
|
DW-2/0.2-16
|
Freon
|
2
|
0.02
|
1.6
|
22
|
1890 × 1690 × 980
|
|
VW-7/16
|
Methylene fluoride
|
7
|
Atmospheric pressure
|
1.6
|
55
|
2300 × 1950 × 1750
|
|
VW-20/8
|
Methylene fluoride
|
20
|
Atmospheric pressure
|
0.8
|
110
|
2150 × 1800 × 1650
|
|
2VW-23.5/2.2-8.8
|
Methyl chloride
|
23.5
|
0.22
|
0.88
|
230
|
4200 × 2160 × 1850
|
|
VW-12.5/7
|
Vinyl chloride
|
12.5
|
Atmospheric pressure
|
0.7
|
75
|
2100 × 1900 × 1400
|
|
VW-19/8
|
Vinyl chloride
|
9
|
Atmospheric pressure
|
