China 12v dc led power supply electronic driver for led lighting

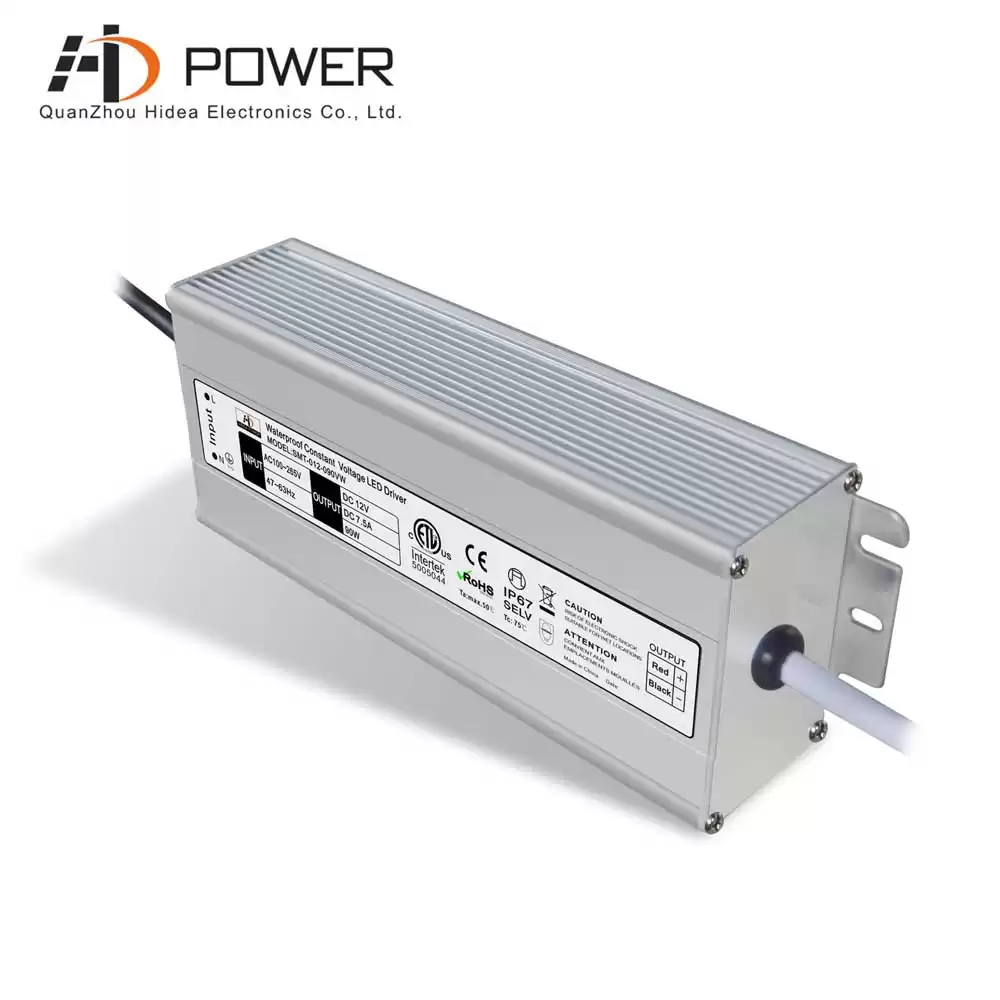

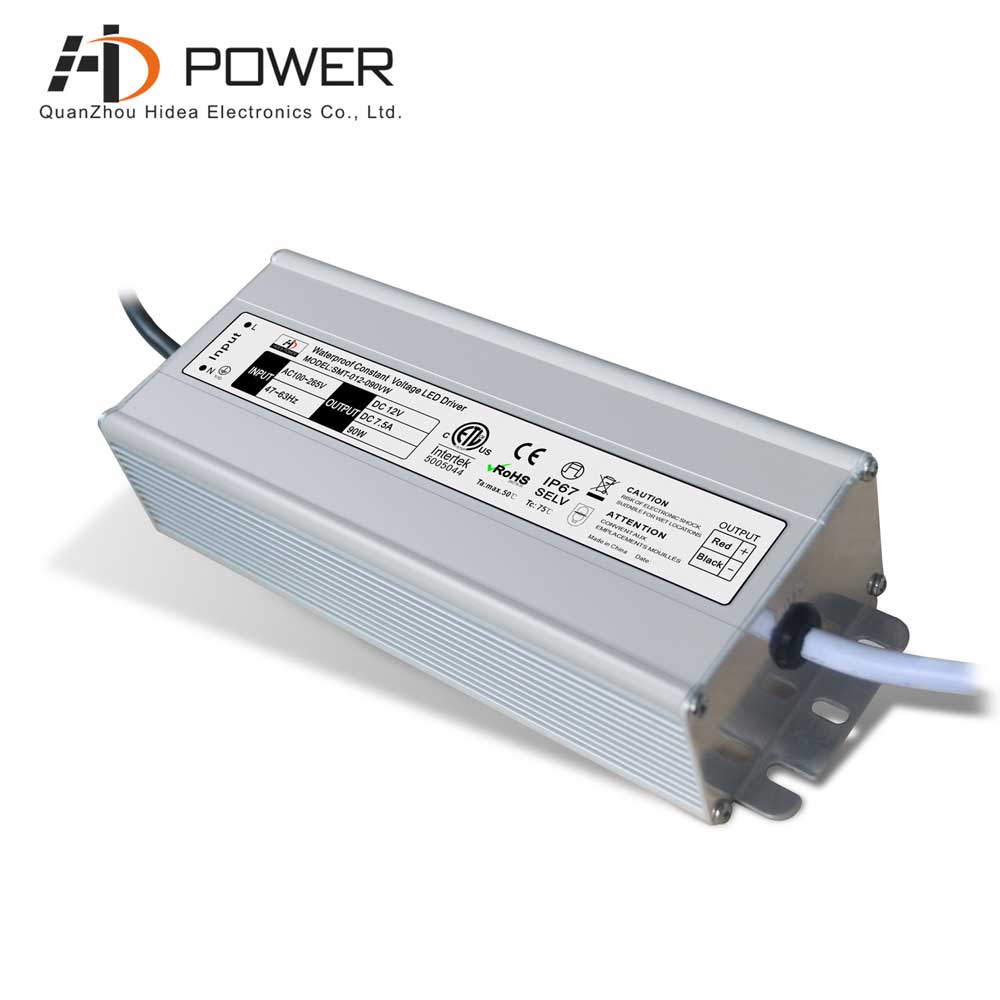

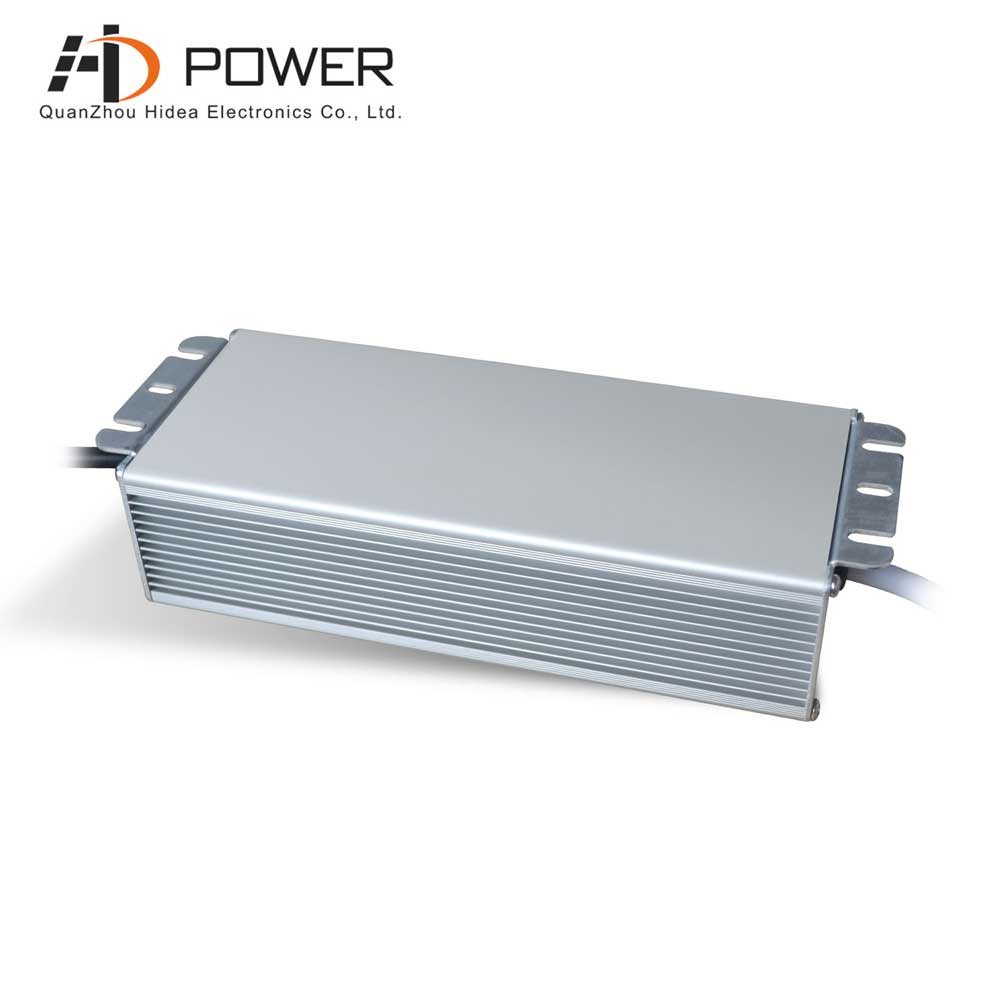

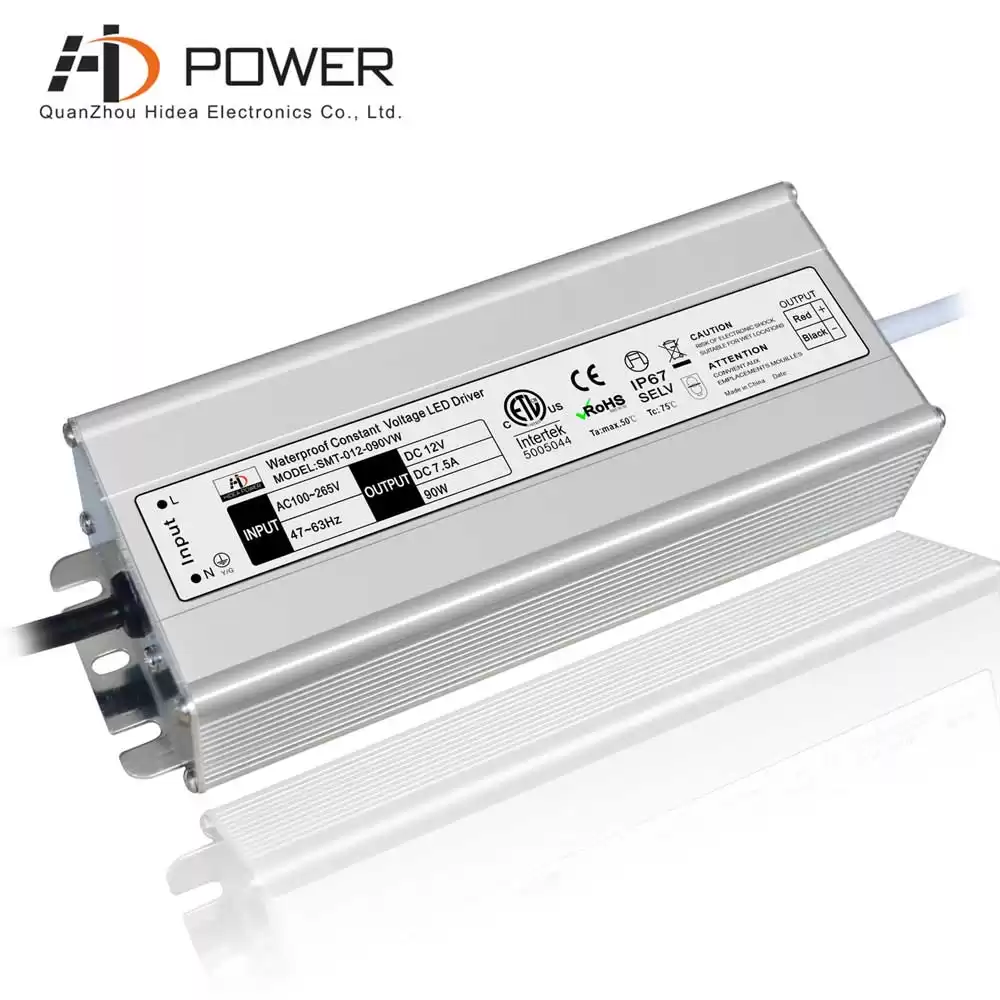

12v 90W waterproof electronic driver for led lighting constant voltage type, 3 years warranty, high pfc 0.95 and efficency 88% , compatitive than MEANWELL LPV series driver 12v.
Specification
|
MODEL
|
SMT-012-090VW
|
SMT-024-090VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
7.5A
|
3.75A
|
|
CURRENT RANGE
|
0~7.5A
|
0~3.75A
|
|
RATED POWER
|
90W
|
90W
|
|
RIPPLE&NOISE(max)
|
150mV
|
140mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.92A/110VAC, 0.86A/220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110VAC, 220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof IP67)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
CE UL Mark(LVD)
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type

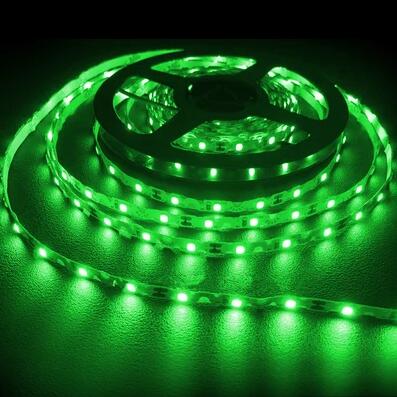

Non dimmable constant voltage led driver 12v are wattage avalible in 12w to max. 250w, all with ETL, CE, ROHS listed, compatible with LED ZIGZAG tape lights 12V DC 16 FT.
Related Products

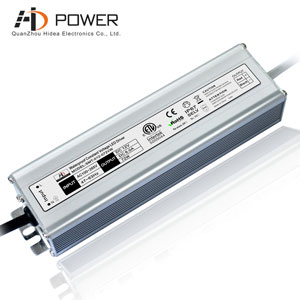

12v 60w waterproof electronic led driver IP67, ETL,CE, ROHS approval, 3 years warranty.
