PRODUCT: PVC fabric conveyor belt,P-20GD
Main feature

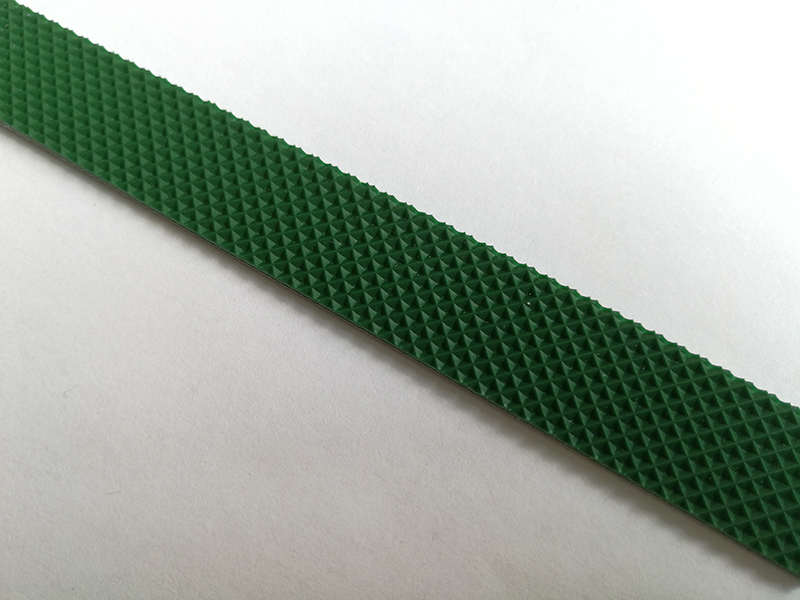

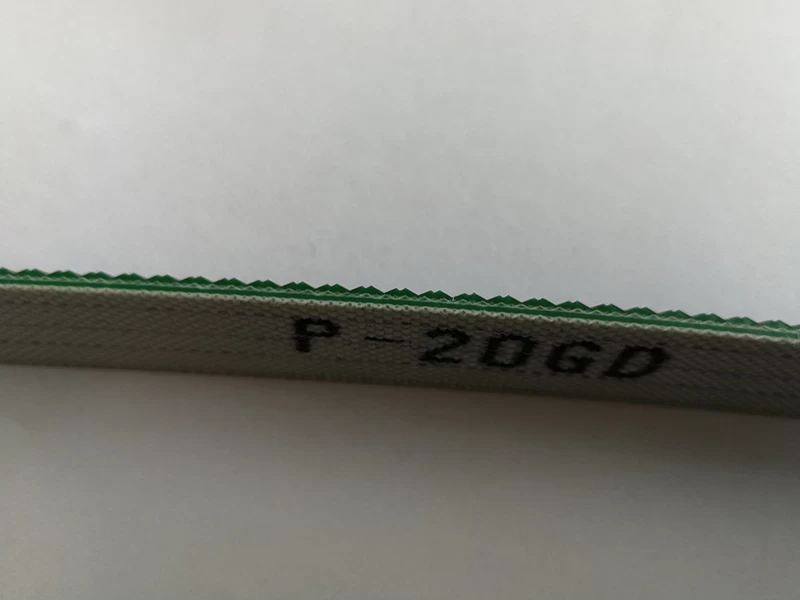

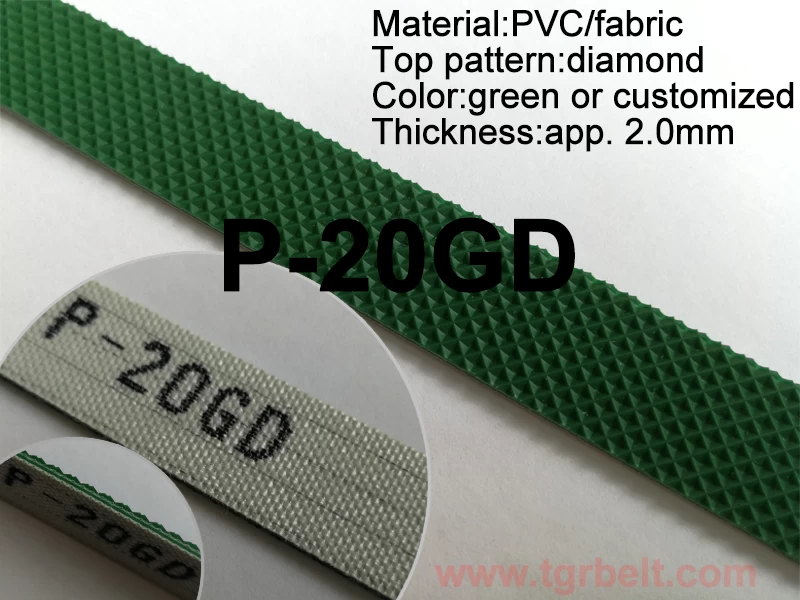

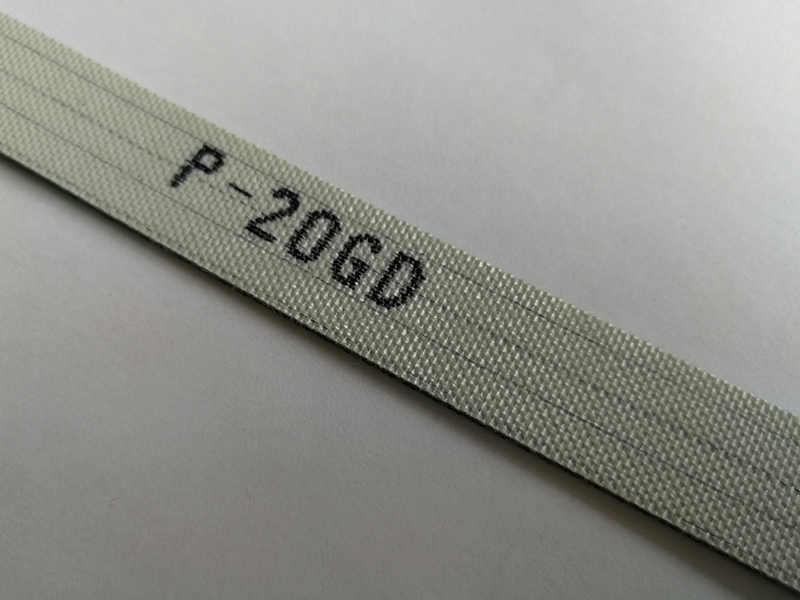

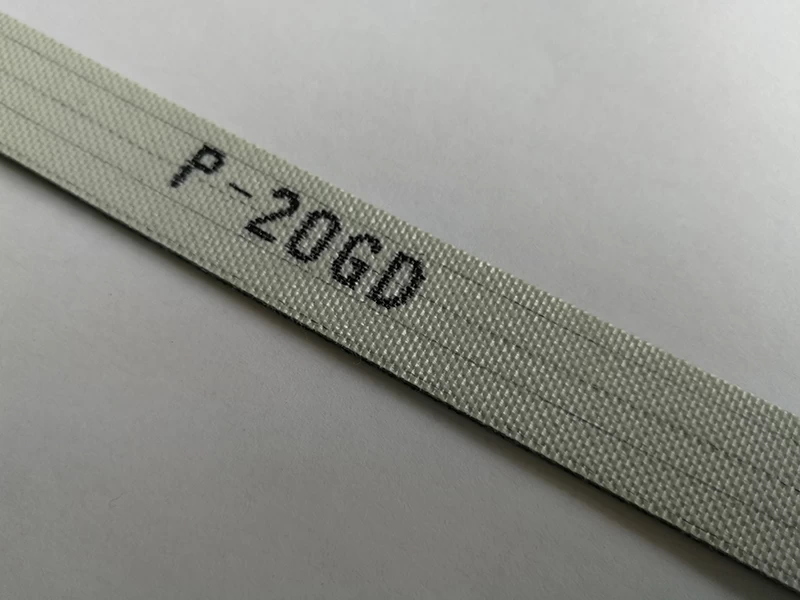

China 2.0mm diamond pattern PVC fabric conveyor belt is 2 polyester of fabric,wear-resistant and easy release diamond top,the bottom can be common fabric or low-noise fabric.
Technical datas
|
Type
|
P-20GD
|
|
Belt thickness
|
2.0mm
|
|
Colorw
|
green
|
|
Surface
|
diamond
|
|
Weight
|
2.0kg/m2
|
0.409 lbs./ft.2
|
|
Force at 1% elongation
|
8N/mm
|
44.79 lbs./in.
|
|
Temperature range
|
-15 to 80°C
|
5 to 176°F
|
|
Min. pulley diameter
|
40mm
|
1.57in.
|
|
Standard roll belt width
|
2000mm
|
78.74in.
|
Joint system
Hot splicing is
always preferable,finger splice, fasteners or overlap are all done
according to the application.
|
finger joint
|
fastener joint
|
overlap
|
Processing example
Cut to length or endless ,welded V guides on the bottom, perforation and other special processing requirement.
Application
in conveyor systems for overall industries
