China Aluminum Long Multi Silver Bolt Triangule Truss

This AluminiumTriangular Truss is with bolt plate connection, and it is cheaper compared with spigot trusses;

Its CLP is 220kg and UDL, 45kg at 10 m span; Usually applied in speakers, concert, event, theatre, audio, exhibition, tv , wedding, party, banner, led bar, music, backdrop, and truss roof constructution.

Facebook Twitter Pinterest LinkedIn 分享

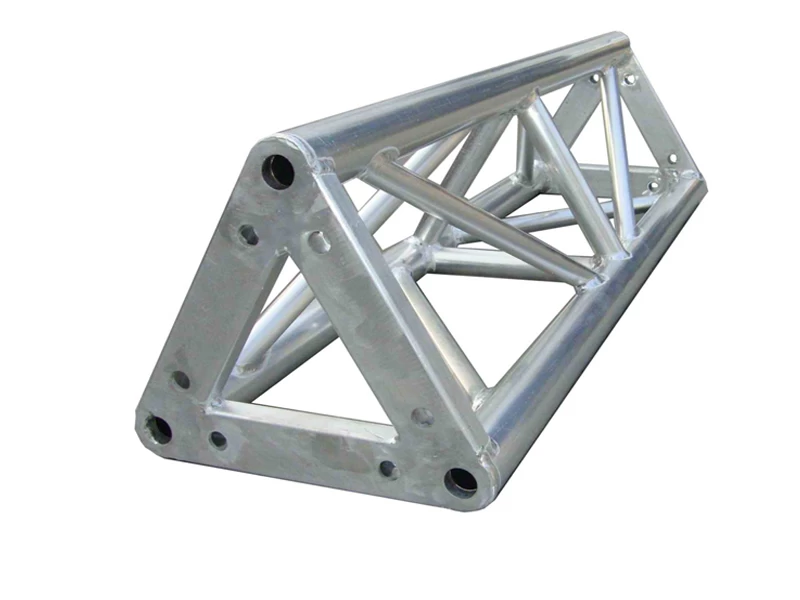

China Aluminum Long Multi Silver Bolt Triangule Truss:

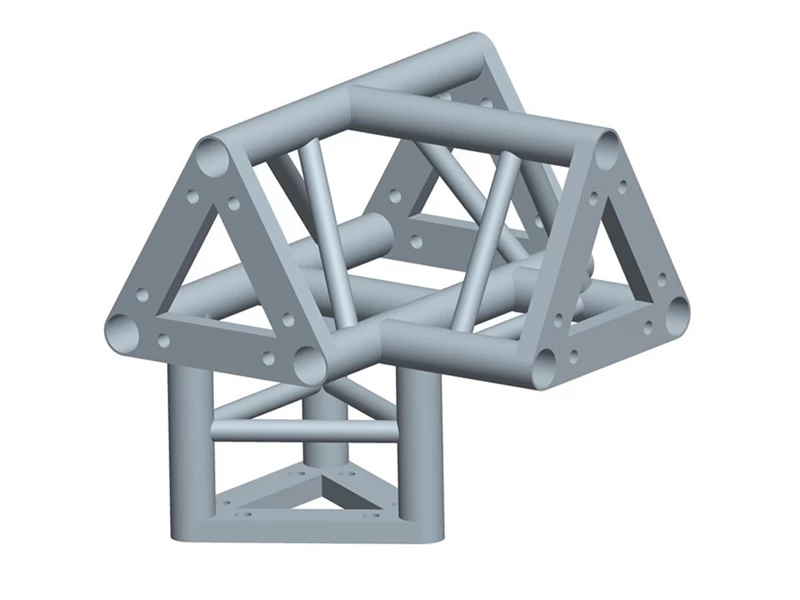

ITSC-BT30 Aluminum Triangle Truss  is lightweight but strong capacity. It can be customized to be curved and circular on request. When combined with its related blocks and different corners, it is mostly applied inTruss Roof Systems Structures.

Features:

  1. Lightweight and heavy capacity
  2. lower volume to transport
  3. And requirement free design available
  4. Powder coating or anodizing to be any color on request
  5. Factory price only

Specification:

Material Aluminum Alloy 6061-T 6/ 6082-T 6
Dimensions 300 x 300 mm
Types Triangular
Main tubes 50 x 3 mm
Braces 30 x 2 mm
Connection type Bolt


Length and Weight:

Length Weight
50 cm  6.37 kg
100 cm 7.3 kg
150 cm 8.25 kg
200 cm 9.2 kg
250 cm 10.1 kg
300 cm 11 kg

Other length can be custom on request.


Application:

This Aluminium Tri truss is commonly applied in constructing all kinds oftrusses roof systemsin events.


Problems:

It will fail to install the Truss Ground Support due to its triangle shape.
