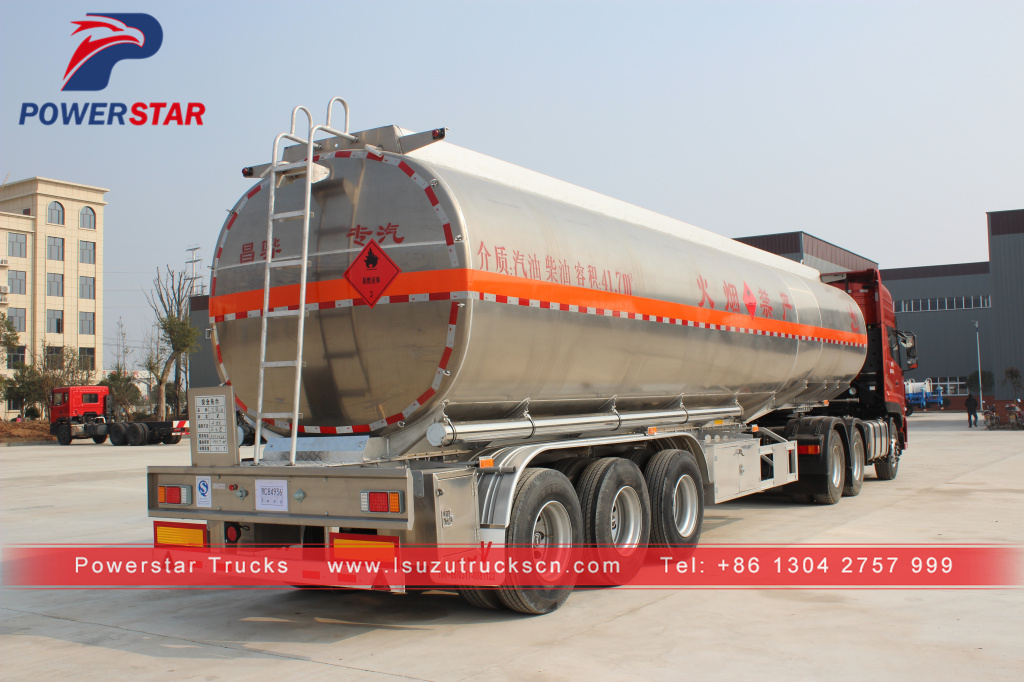

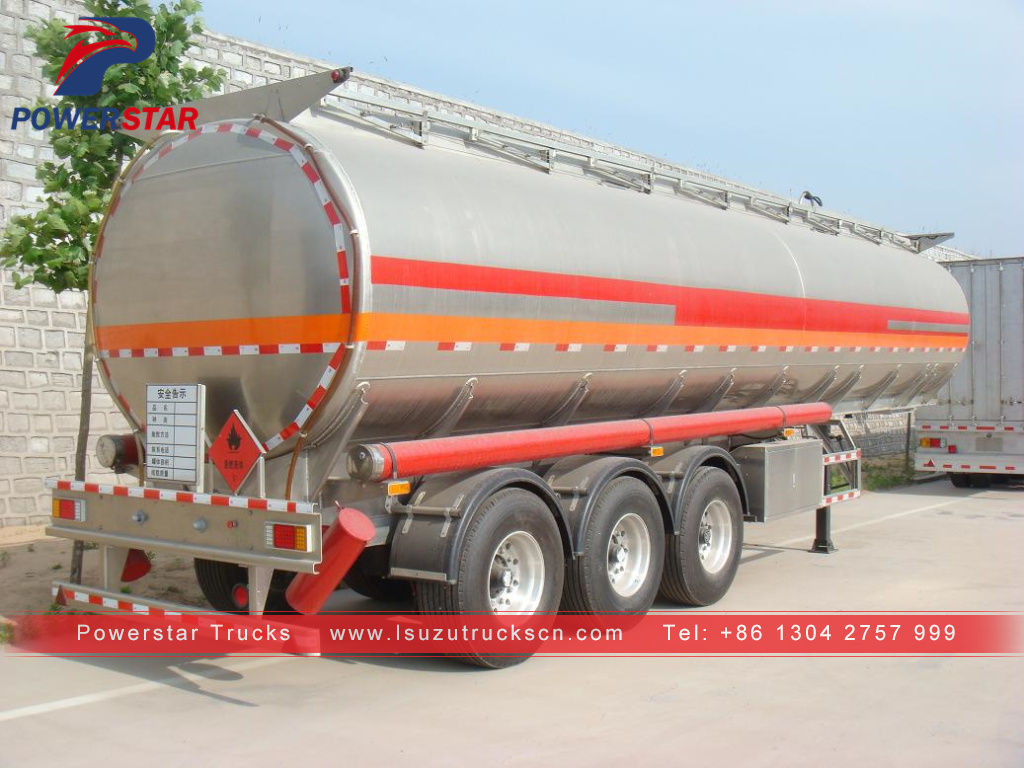

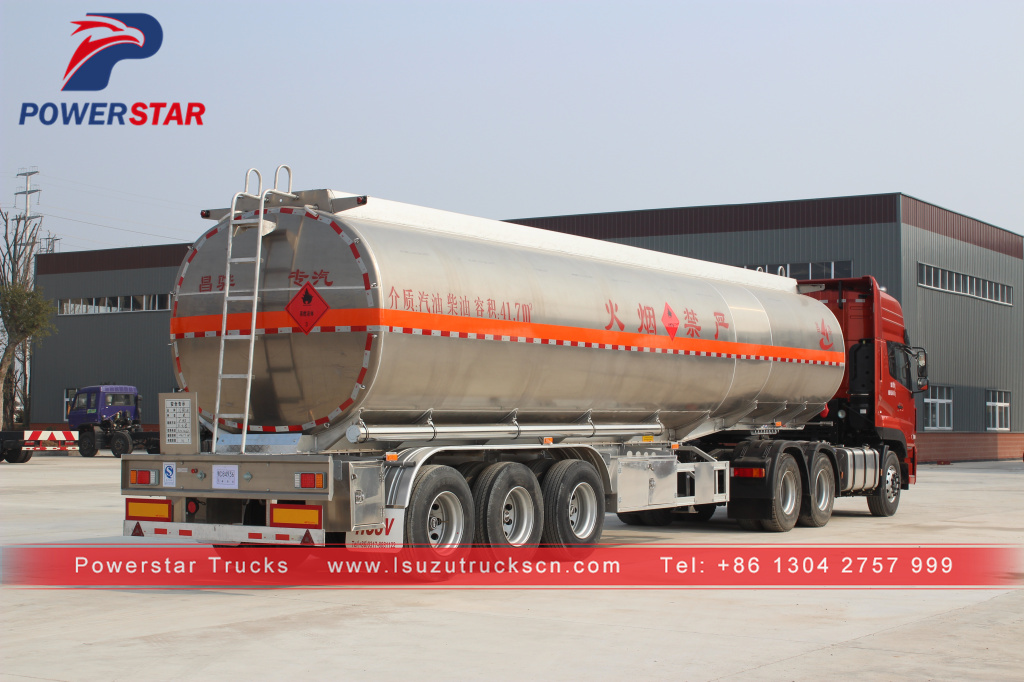

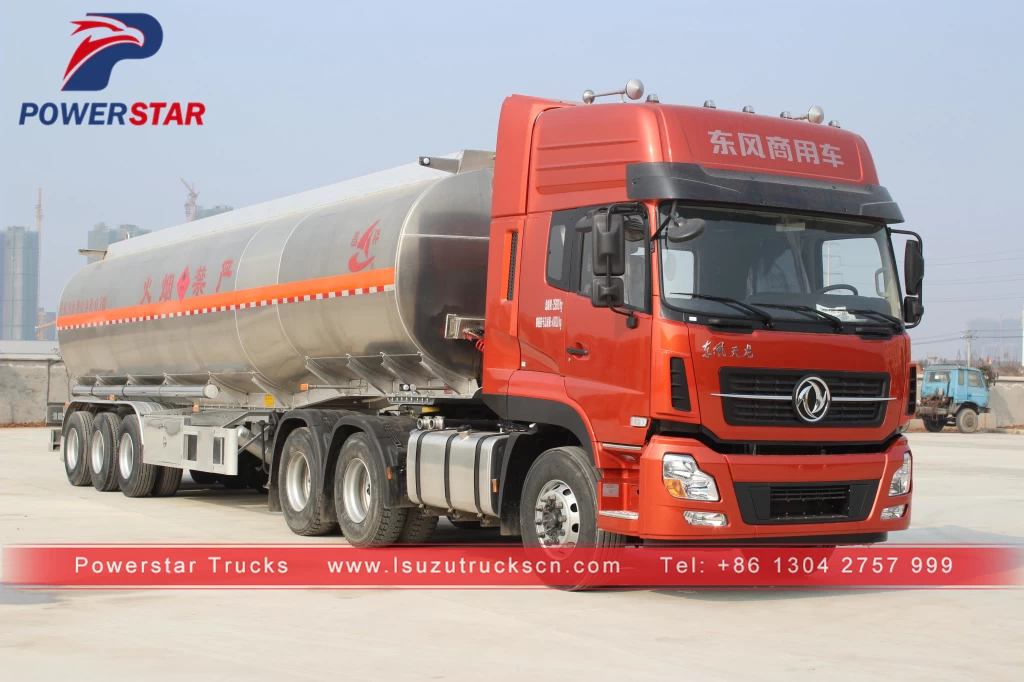

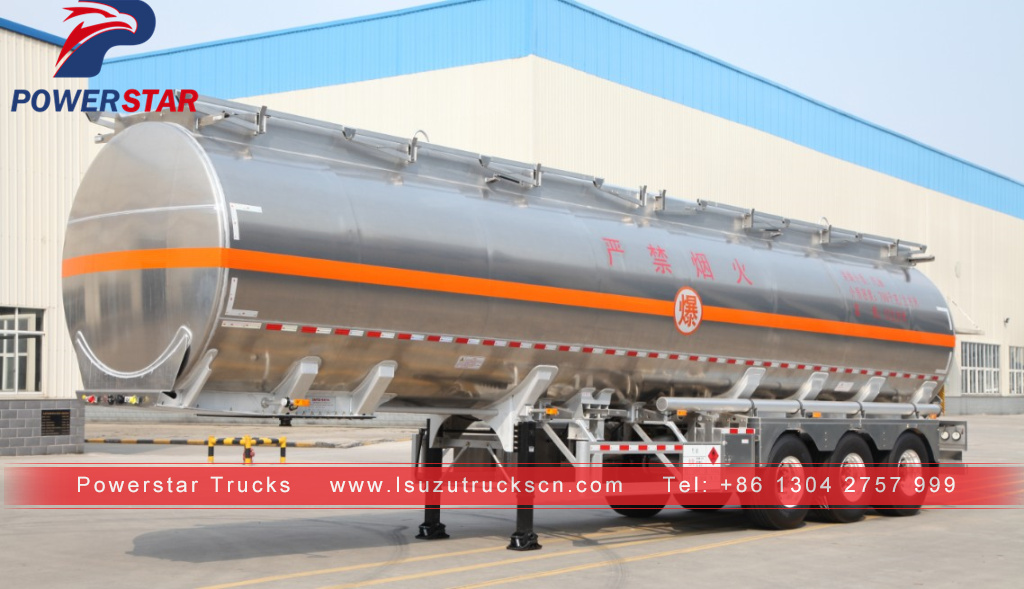

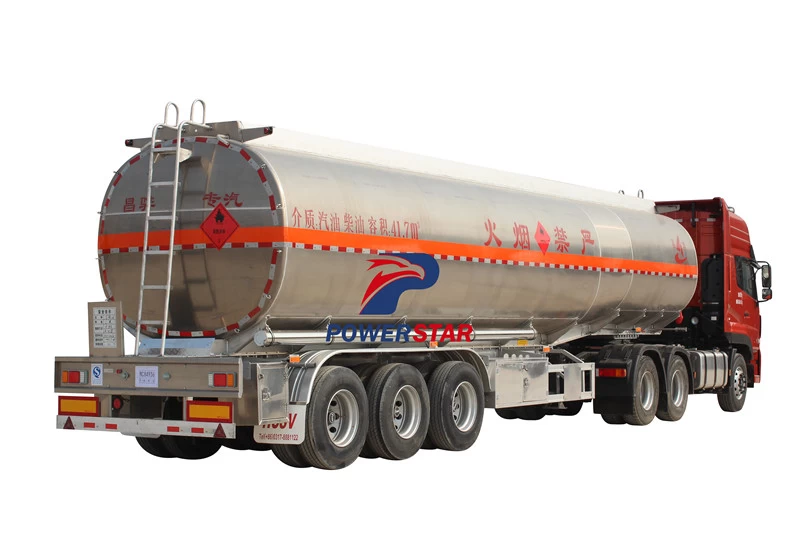

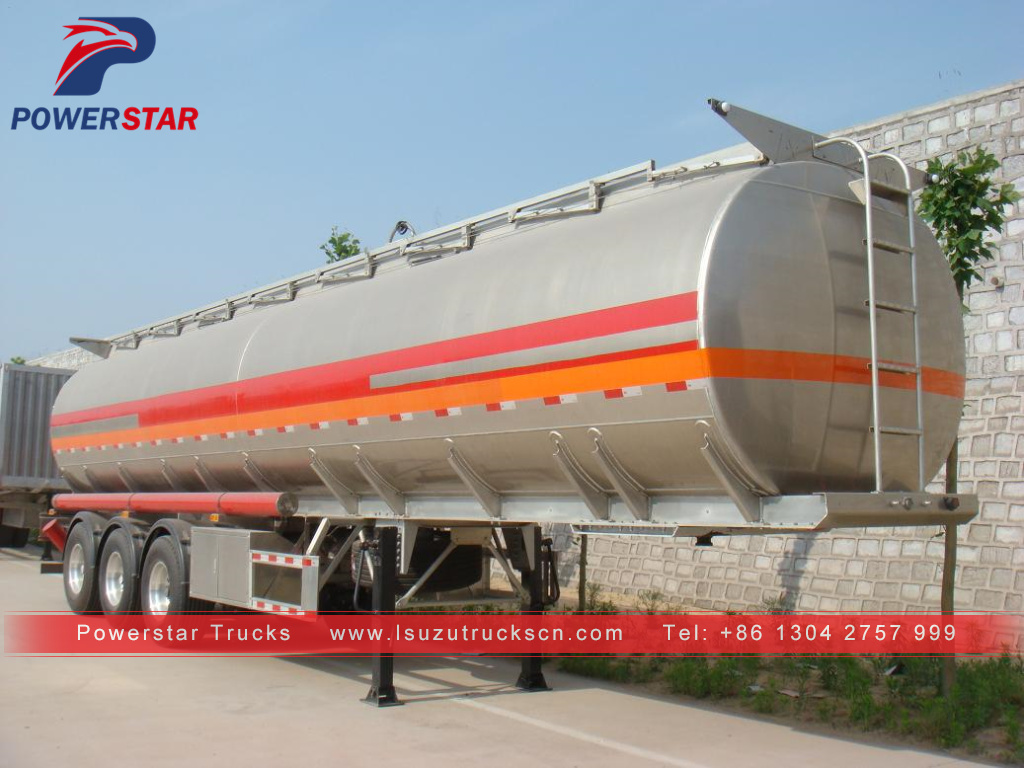

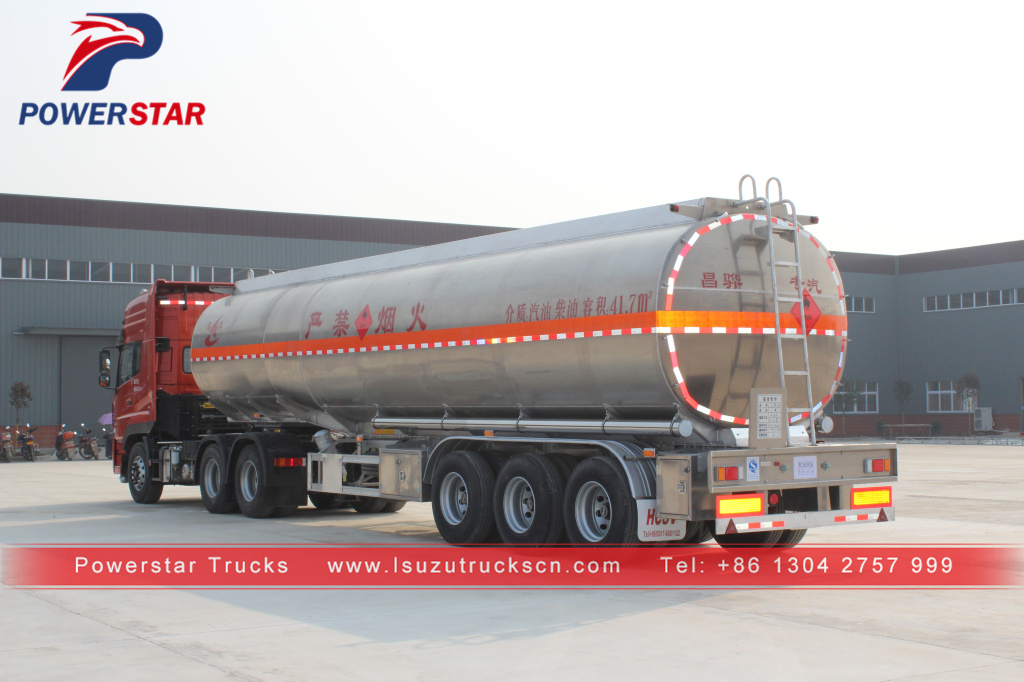

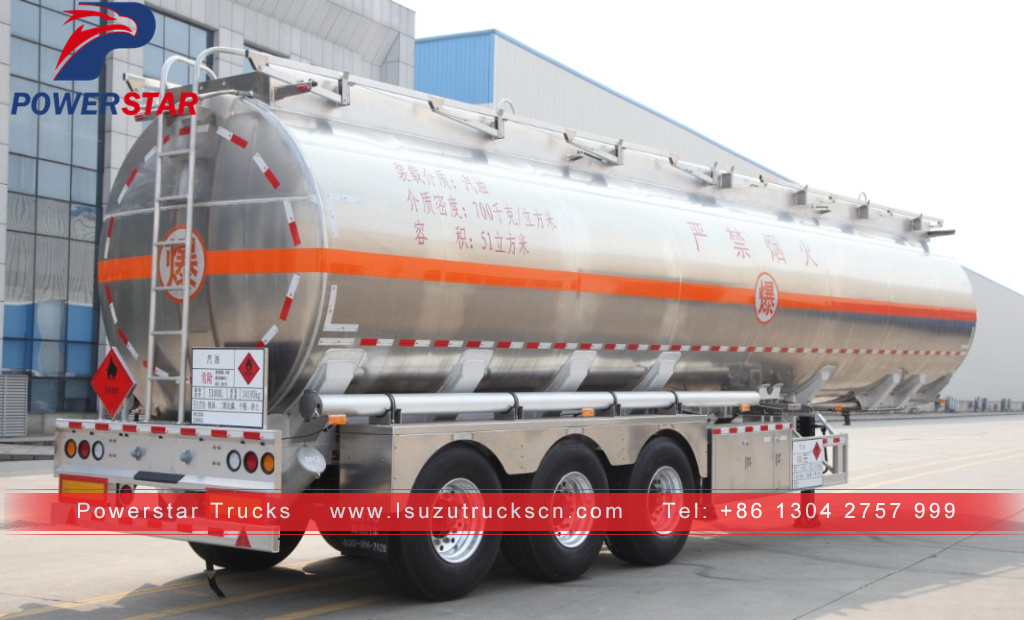

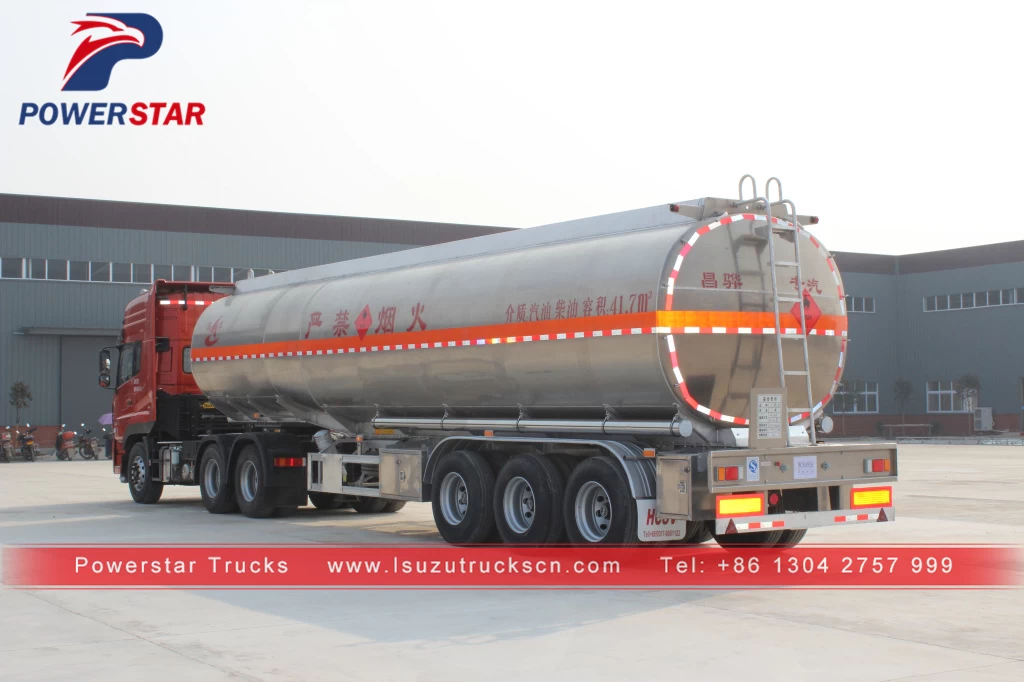

50CBM Aluminum Oil Tanker trailer
Applications:
Aluminum Fuel Tank Semi Trailer (also called Aluminum oil tanker trailer, Oil tank trailer with aluminum alloy, Factory 3-axle aluminum alloy fuel tanker trailer, ADR mirror finish aluminum alloy fuel tank trailer, gasoline pertroleum oil tanker trailer) is suitable for transporting oil products, like fuel, diesel, gasoline and so on.
Powerstar brand Aluminum tank trailer is the updated version of normal fuel tank trailer. The is main tanker body is made from aluminum plate instead of steel, which will increase the total weight of the trailer.
The chassis can be steel type or aluminum type. Pump drainage or gravity drainage can be used to discharge the fuel. Other components include: Lipstick, Liquid level indicator, fire extinguisher, vapor recovery system, vent valve, discharge valve.
Key Features:
---- Light weight: About 3.6T lighter than same size steel tanker.
---- Easy maintenance: anti-corrosion and long service life.
---- Capacity from 30CBM to 70CBM.
---- Various components purchased from famous brand.
---- Quickly delivery to Worldwide.
Specifications:
Barrel
|
Material
|
Aluminum Alloy
|
Bottom thickness Thickness
|

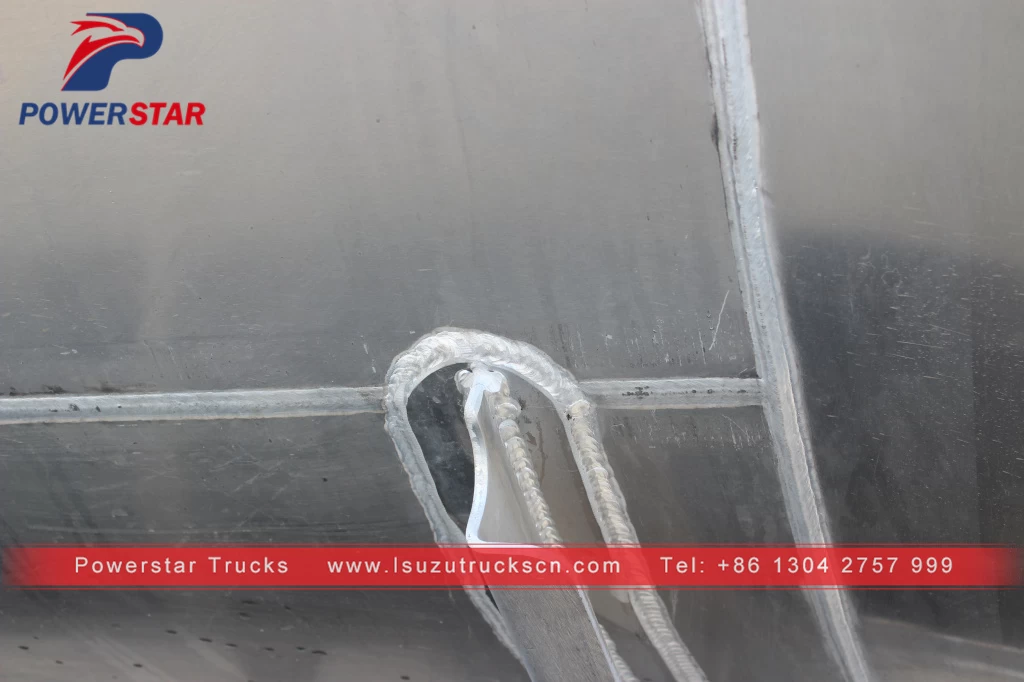

Bottom 7mm; Top & sides 7mm; Head 7mm; Bulkhead 7mm; Surge baffles 5mm
|
Shell Finish
|
Interior: vacuum clean; Exterior: mill finished without painting
|
Shape
|
Semi-elliptical straight
|
Capacity
|
50,000L + 5~10% ullage
|
Compartment
|
5 equivalent compartment
|
Fittings and piping
|
Manhole cover
|
5 liquid VOH series manhole cover, with breather valve to each compartment
|
Emergency (foot) valve
|
1*4’’ liquid foot valve, fixed to bottom of each compartment, with pneumatic control
|
Emergency cut-off switch
|
1 pc at each side, 1 pc at the rear
|
Pneumatic control set
|
Civacon
|
Discharge valve
|
1*4’’ liquid API aluminum alloy discharge valve with 25mm sight glas
|
Discharge valve coupling
|
1*4’’/3’’ liquid aluminum alloy adaptor to each compartment
|
Barrel bottom piping
|
4’’ aluminum alloy piping system for each compartment
|
Vapor recovery system
|
Liquid vapor recovery vent and adaptor;
|
Overfill protection system
|
Liquid overfill protection probe and socket
|
Anti-static system
|
Antistatic wire reel, locate at discharge calve control area, with grounding belt.
|
Dip stick
|
Liquid 25mm*25mm square hollow aluminum with measurement in litres
|
Product indicator
|
Aluminum alloy rotate type, with product indicatior label.
|
Accessories
|

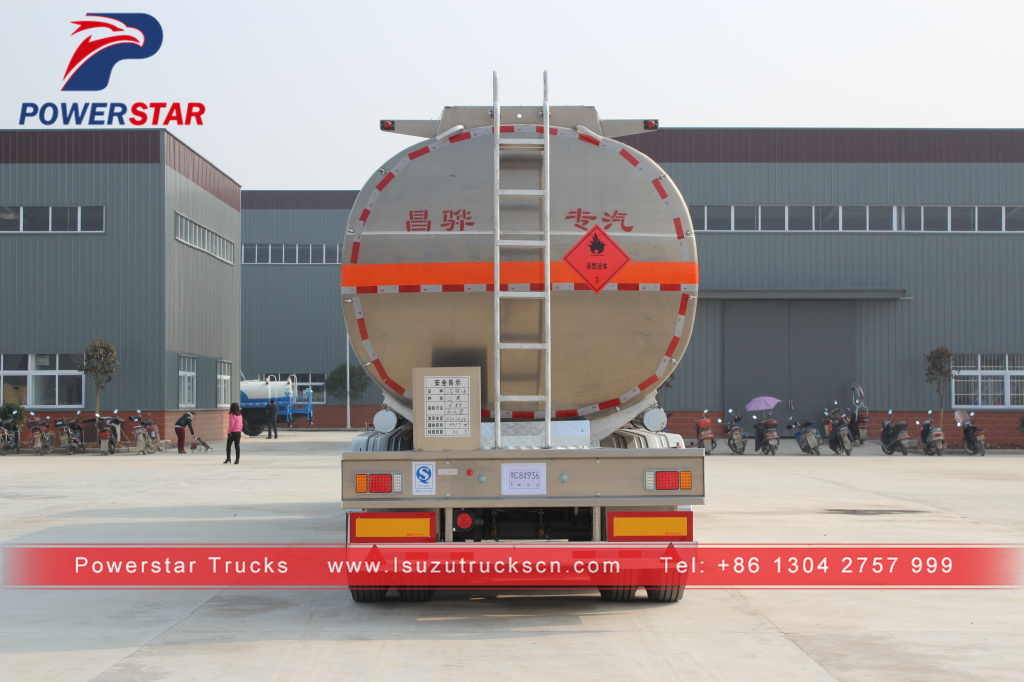

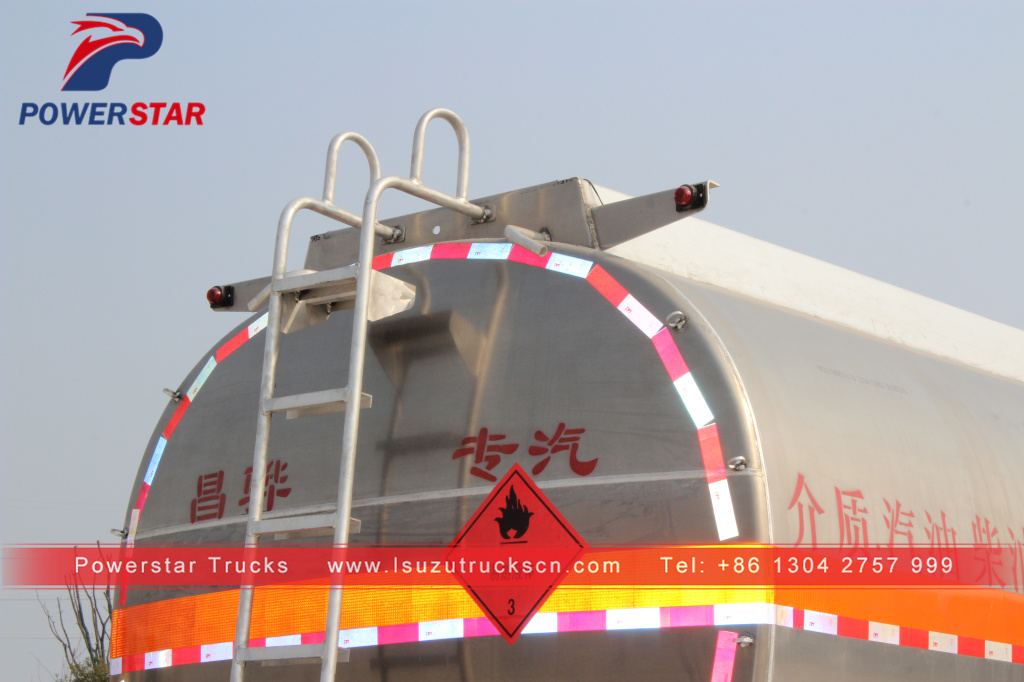

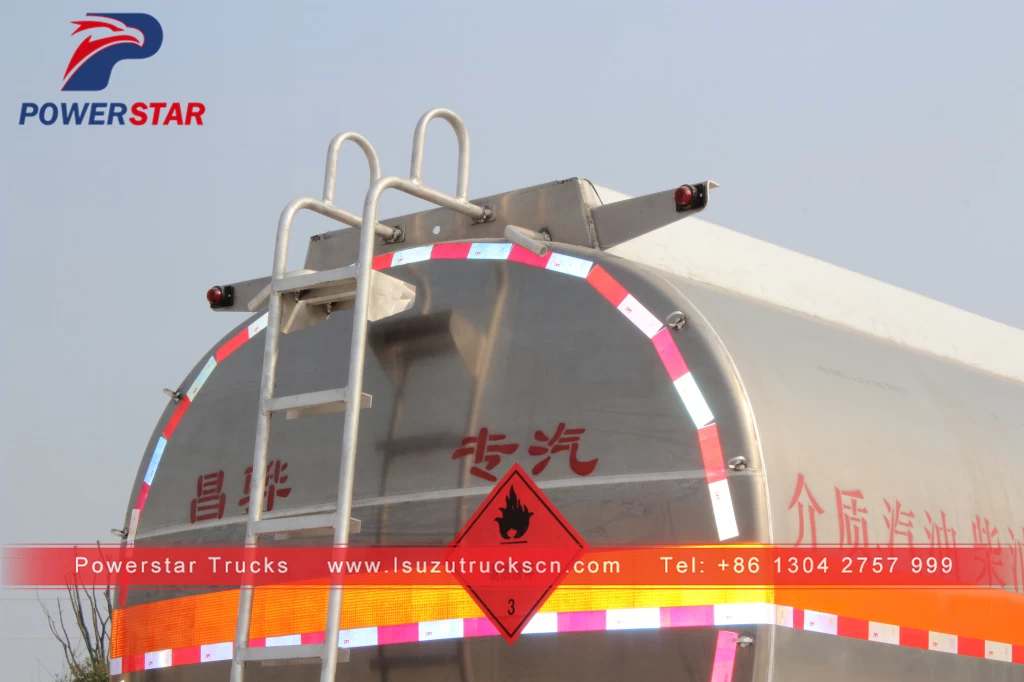

Ladder
|
Detachable aluminum alloy ladder, fixed at the front
|
Drain pipe
|
2 pcs at the rear of barrel, end with ball valve
|

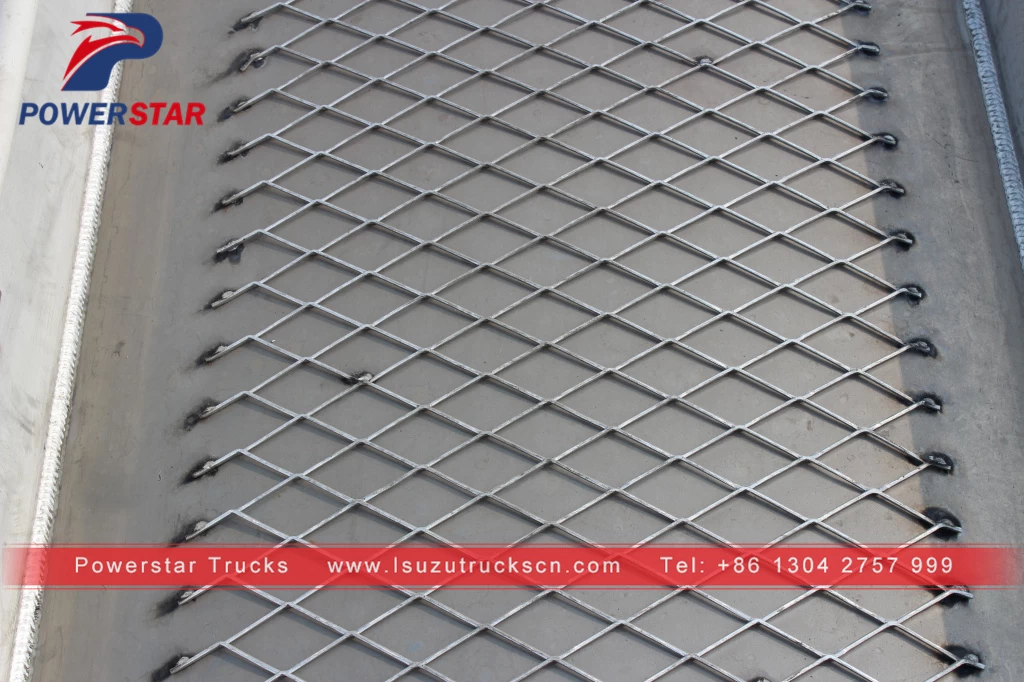

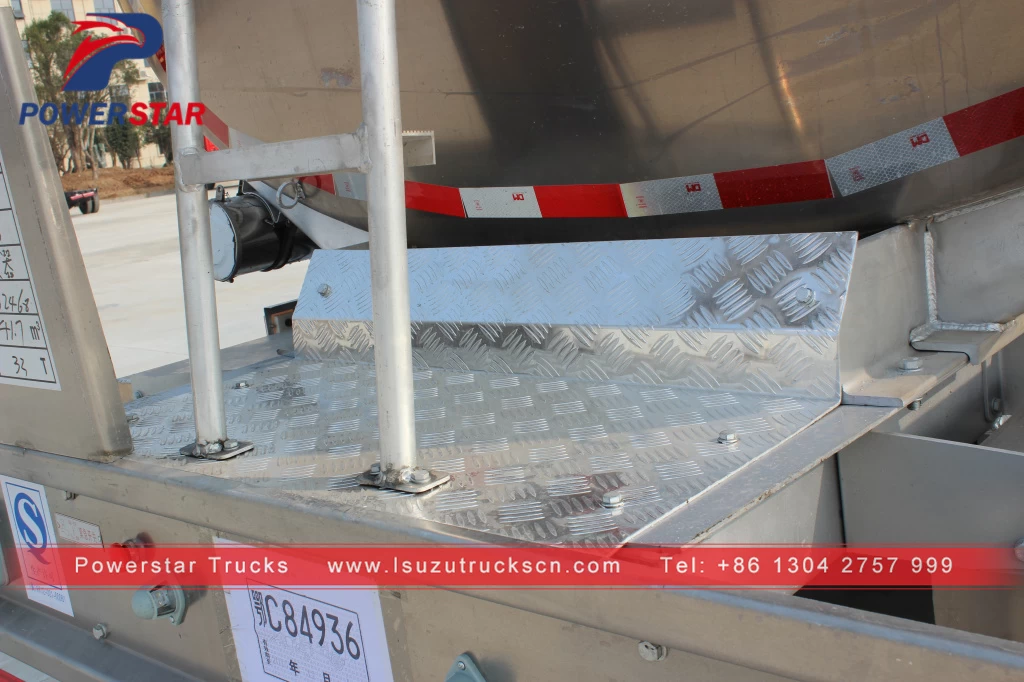

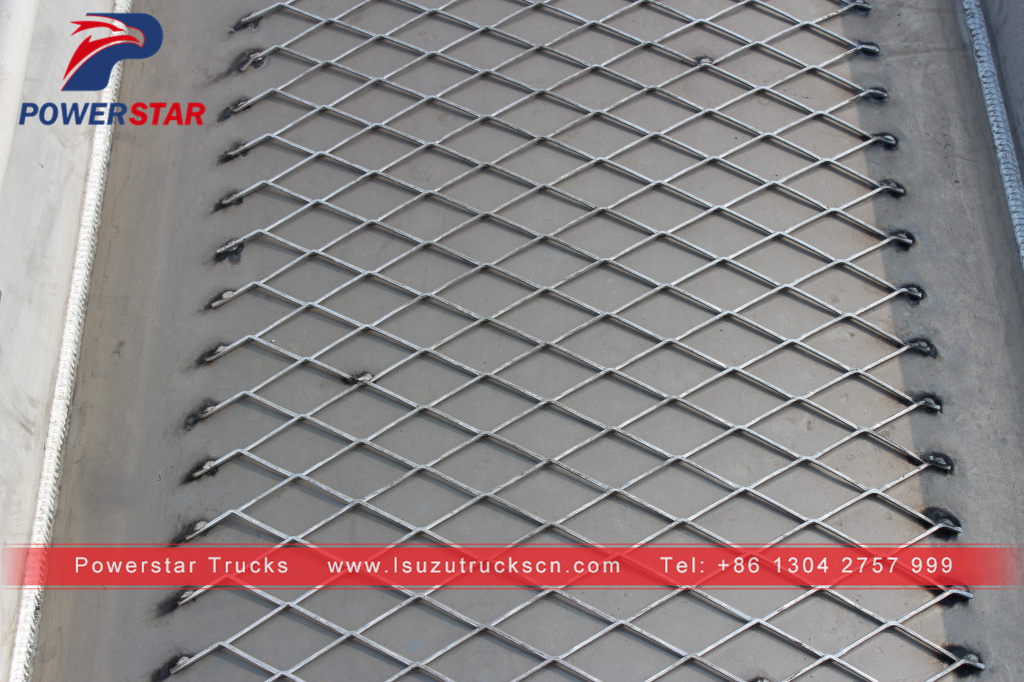

Walkway platform
|
Barrel top with anti-skid painting
|
Platform Railing
|
Aluminum alloy
|

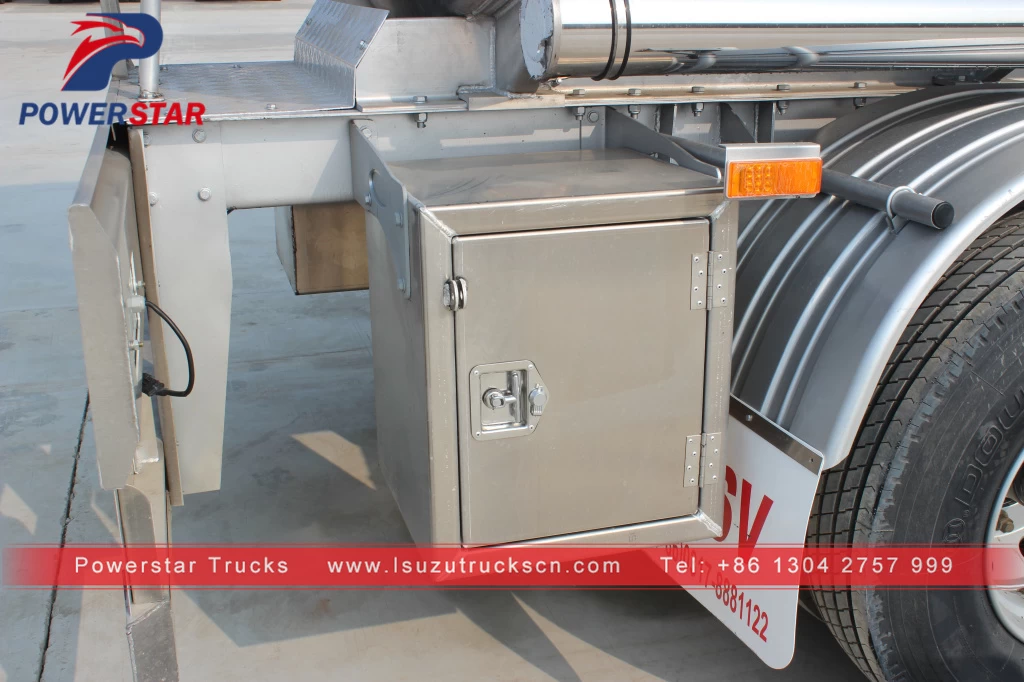

Discharge valve control housing
|
Aluminum alloy lockable box
|
Dischage hose housing
|
Aluminum alloy round tube, 1 pcs at each side
|
Dischage hose
|
2 pcs of 3’’ * 6m hose, with male and female camlock coupling
|
Fire extinguisher housing
|
2pcs, steel type
|
Fire extinguisher
|
2 sets of 9kg, one foam type, one dry powder type, fitting with safty test tags.
|

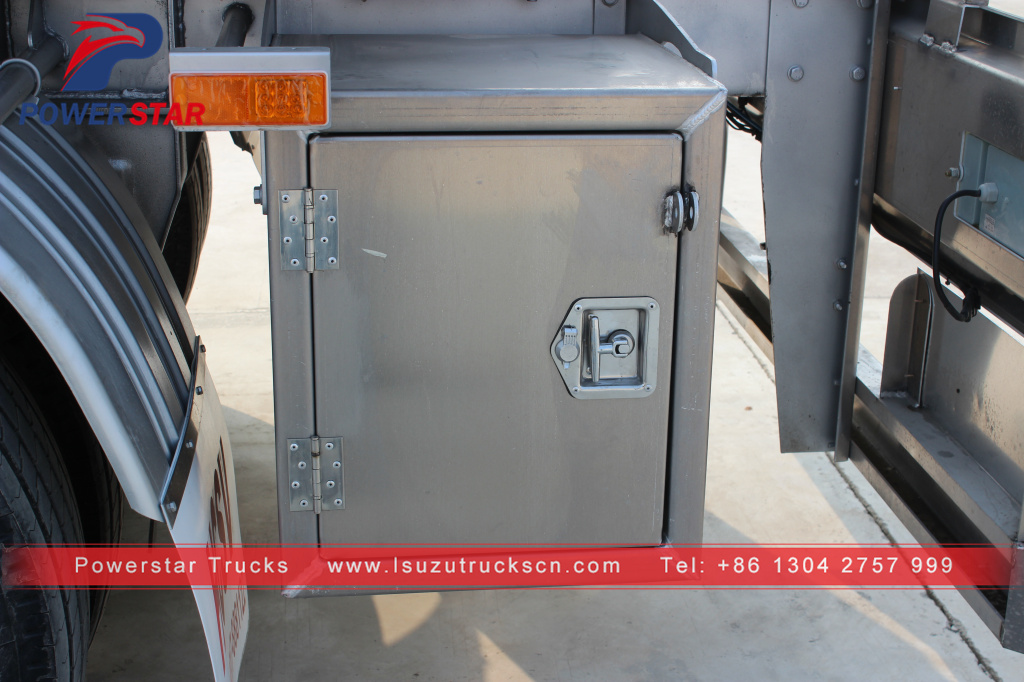

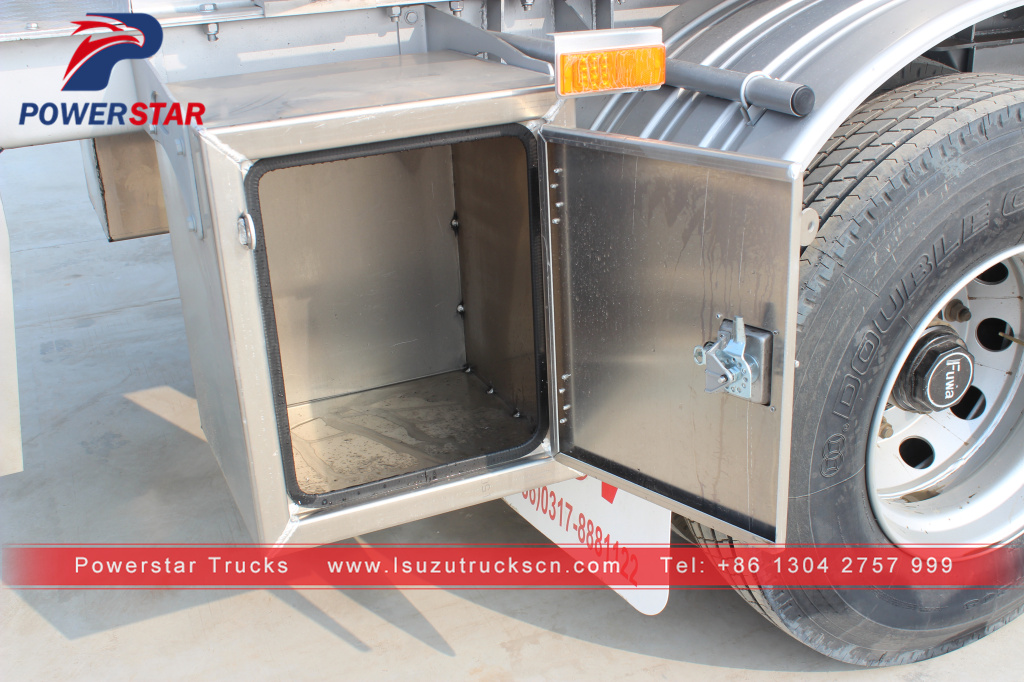

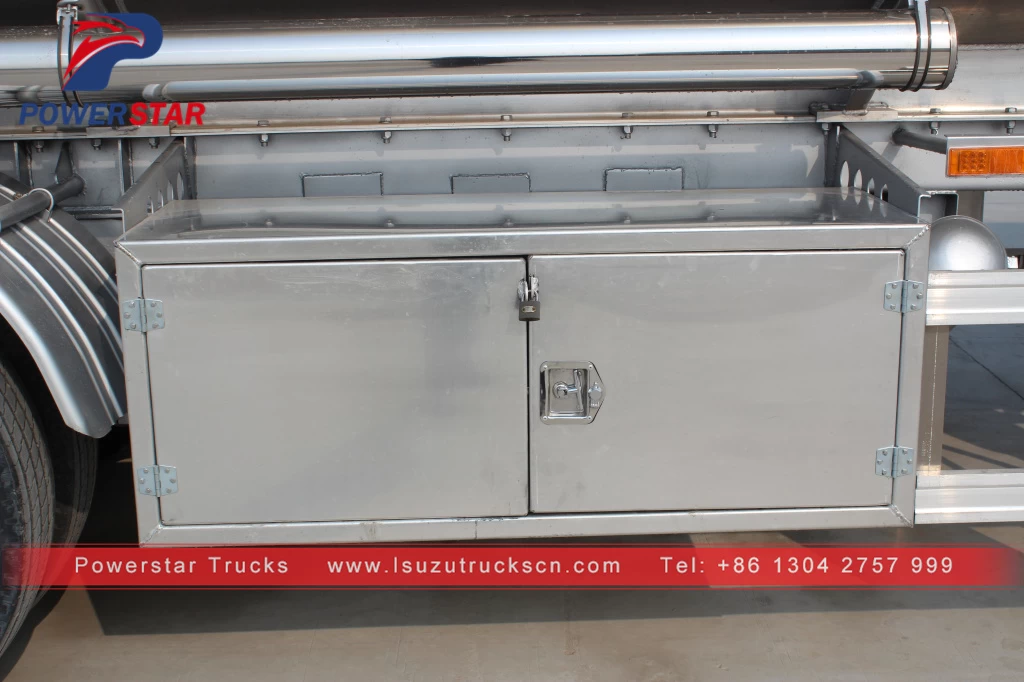

Tool box
|
One tool box 500*500*500mm
|
Safety cone holder
|
1ps on the side fender
|
Traier construction & fixture
|

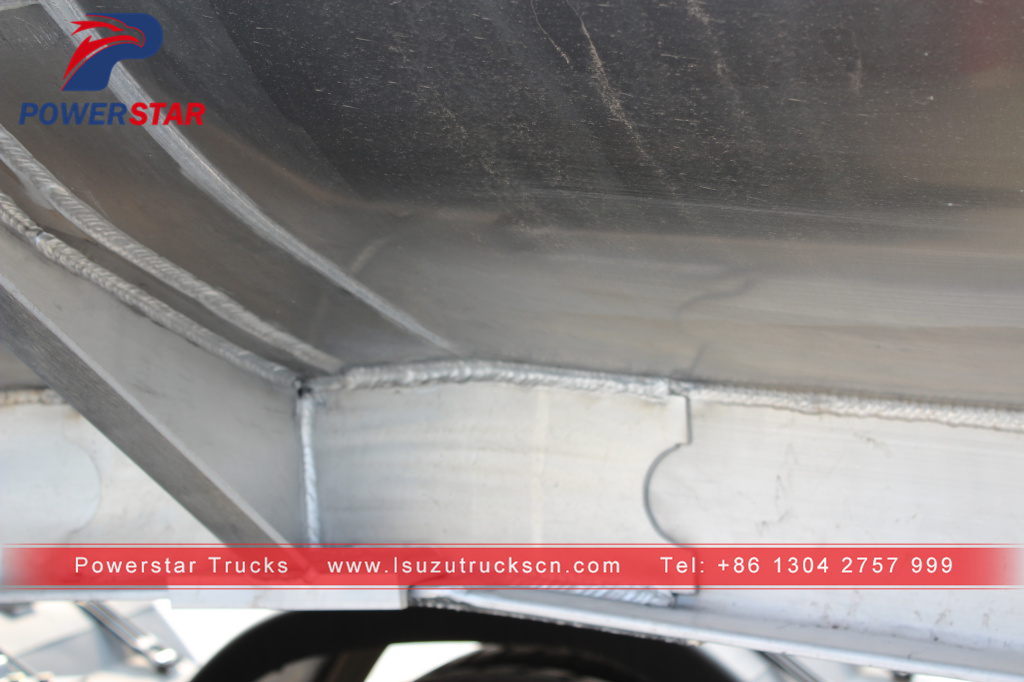

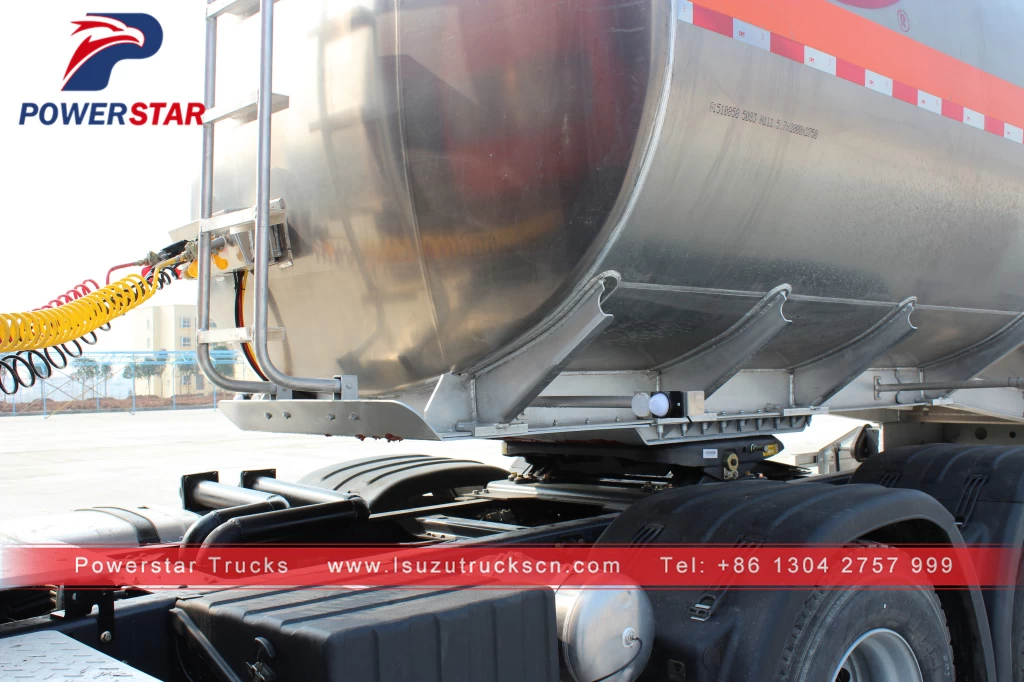

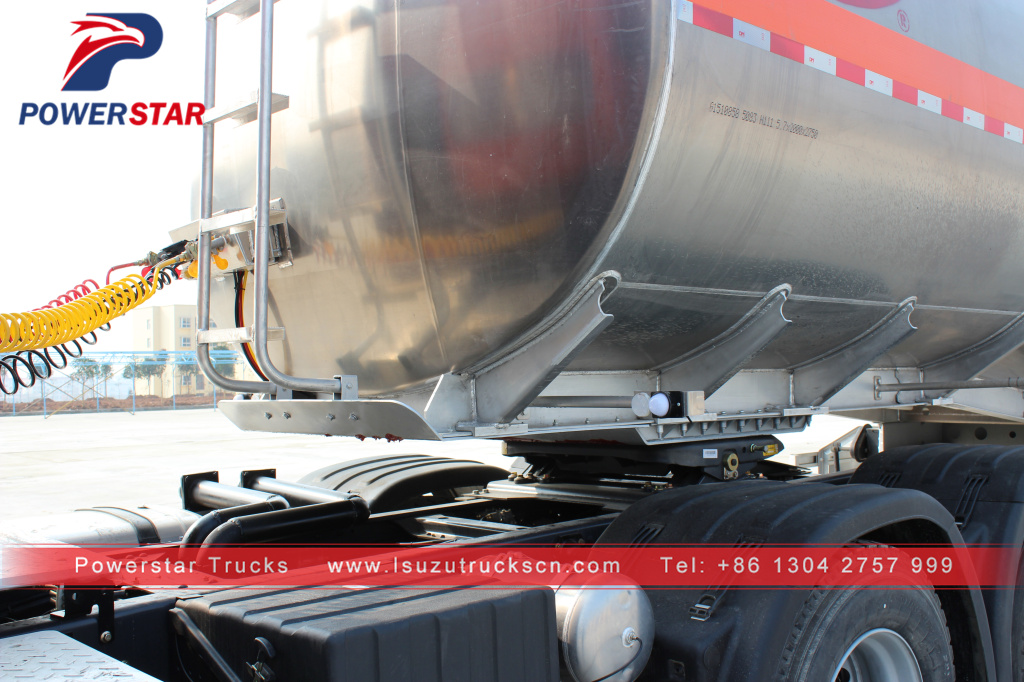

Chassis
|

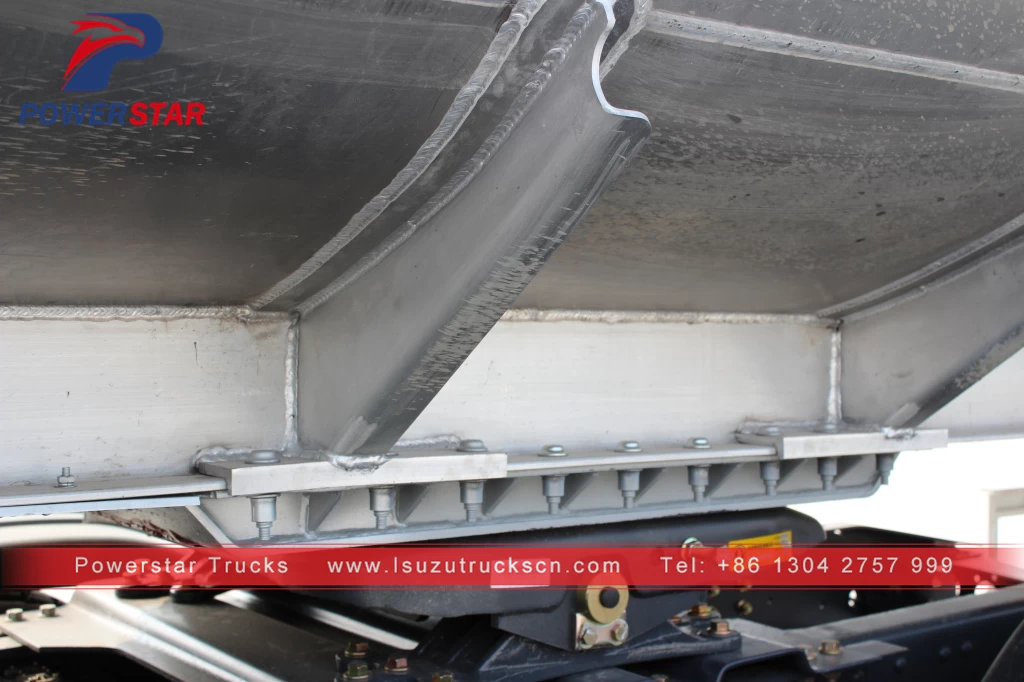

Steel Q345 chassis, with heavy duty T shape sub-frame
|

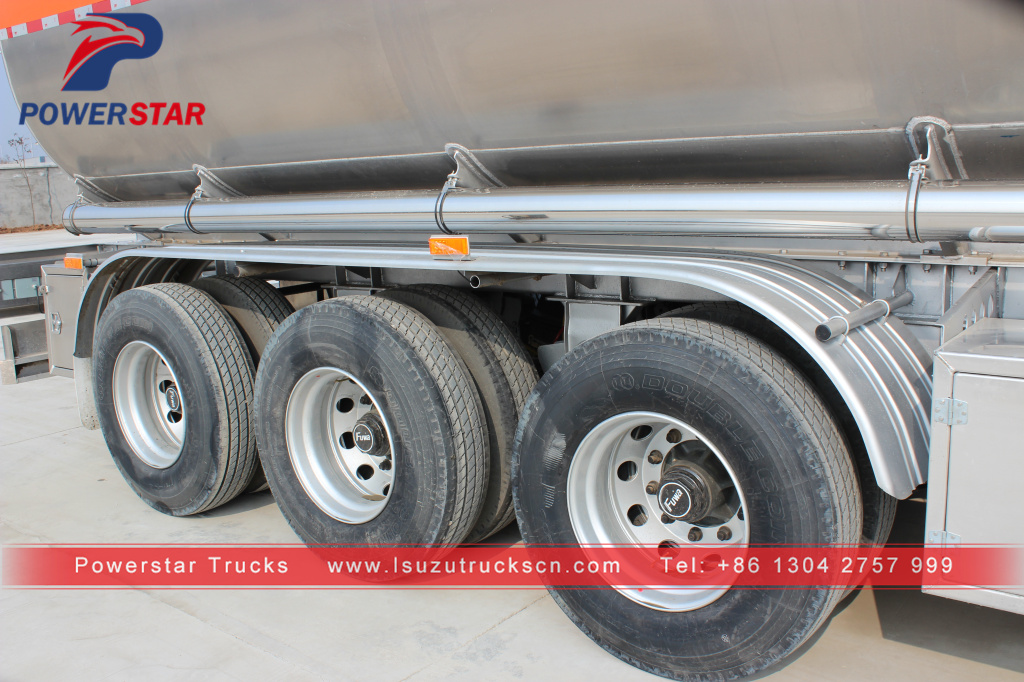

Axles & suspension
|
3 axles, BPW 12T spoke axle, 9 leafs spring suspension
|

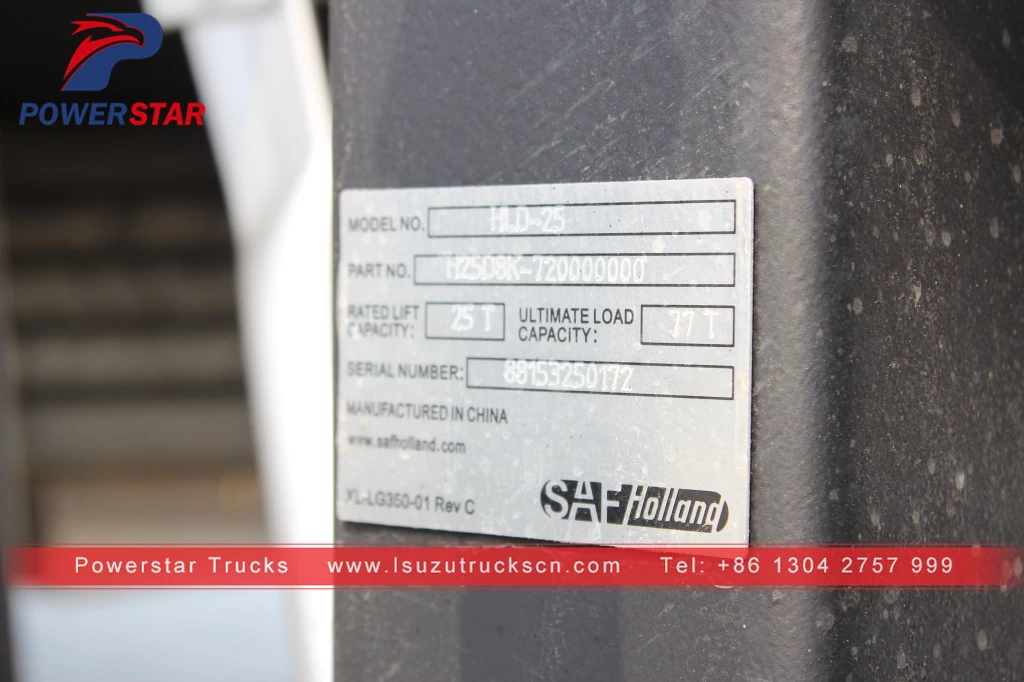

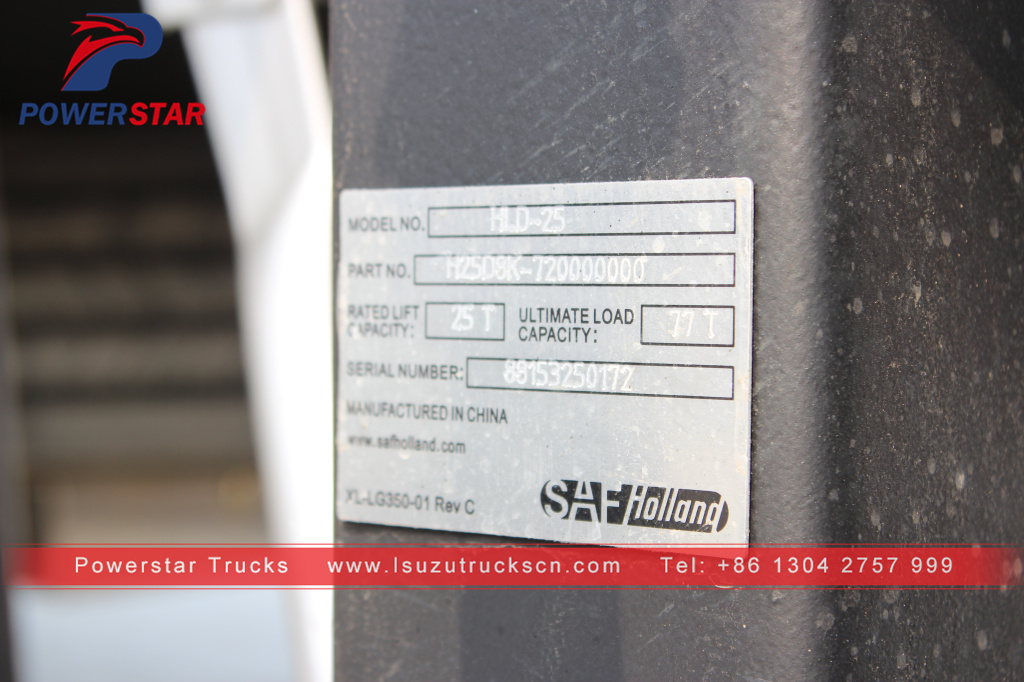

Landing gear
|
JOST C200 at both front sides of the trailer, control on the left
|
Kingpin
|
Dia 2’’ JOST kingpin fixed to tensile steel plate
|
Braking system
|
Dual-way air brake, drum brake system with WABCO ABS.
|
Electrical system
|
24V, Australian standard
|
Lighting
|
24V Orion LED tail lamps, side warning light, turning light and brake light.
|
Side fender
|
Aluminum alloy, at both side of trailer
|

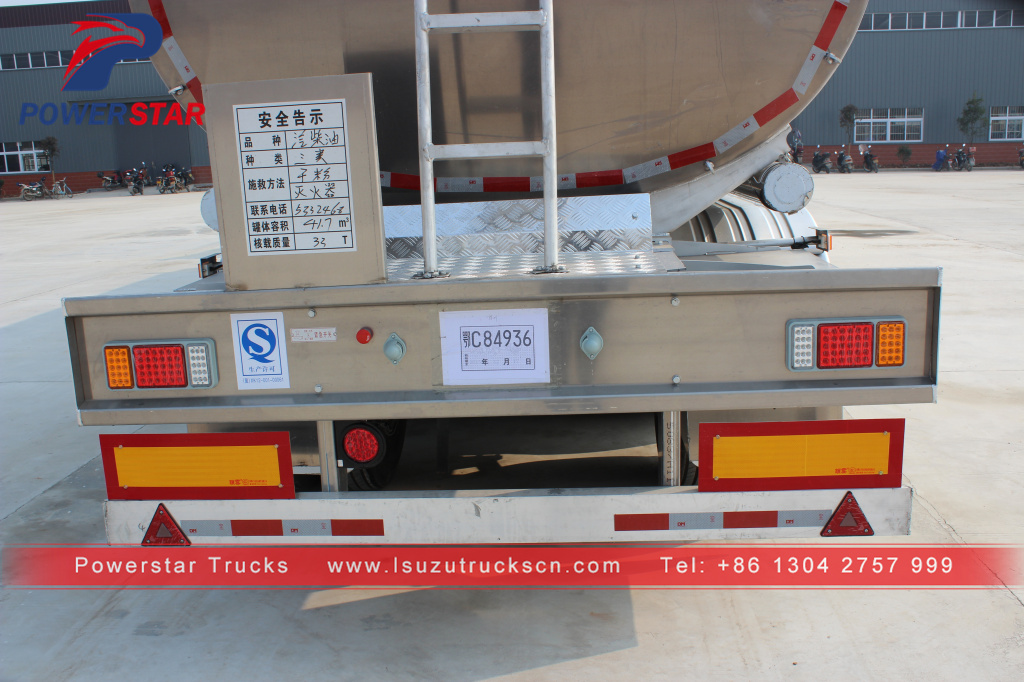

Rear Bumper
|
Full width rear bumper complete with under run protection
|
Mud guard and mud flap
|
Rubber type
|

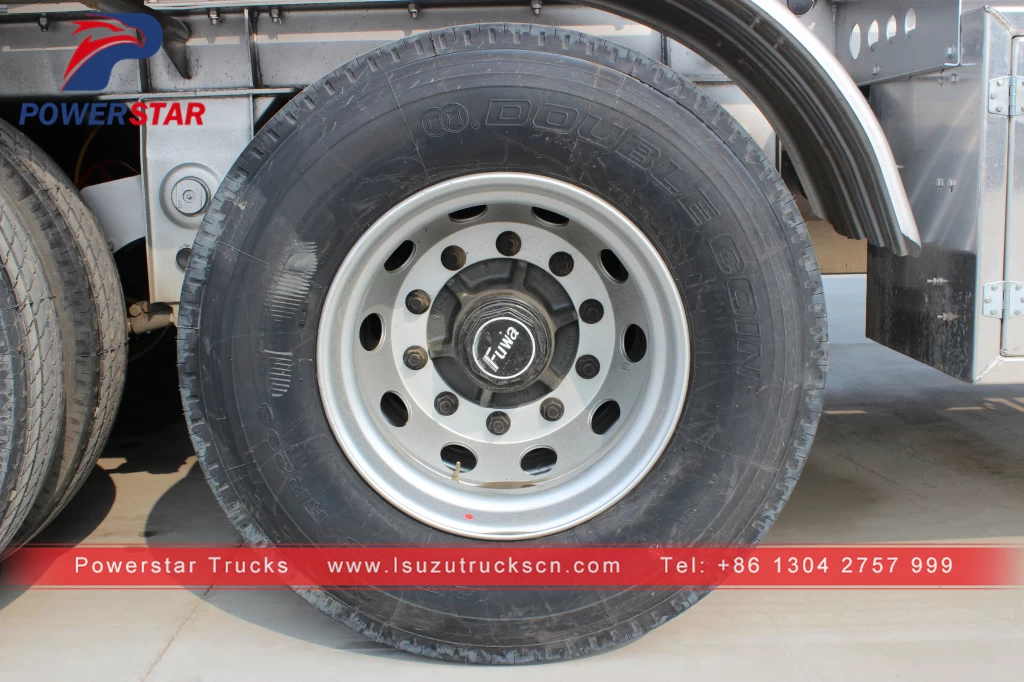

Tire rim & tire
|
12+1 8.25*22.5 steel rims, double coin 12R22.5 tires
|
Spare tire carrier
|
Swing type
|
Chassis finishes
|
Sand blasted pre-treatment, 1 coat anti-rust, 1base coat and 1 finishing coats
|
Reverse Buzzer
|
Manufacturer’s standard
|
The aluminum tanker trailer shall better be shipped completely, resulting a higher freight charge. Even the key parts are made from aluminum, wax treatment is still required for the prevention of corrosion. The freight cost is normally charged by cubic meter.
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
Powerstar brand Aluminum alloy Fuel Tank Semi Trailer/Liquid Tank Trailer
Powerstar brand Aluminum alloy Fuel Tank Semi Trailer/Liquid Tank Trailer
Powerstar brand Aluminum alloy Fuel Tank Semi Trailer/Liquid Tank Trailer
Powerstar brand Aluminum alloy Fuel Tank Semi Trailer/Liquid Tank Trailer
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
