China beiben dump trucks manufacturer in china, supplying the best quality beiben 30 T, 40 T, 50 T , 60 T dumper for west africa countriese and other africa countries. We are the best exporter for beiben 6*4 dump truck and beiben 8*4 dump truck supplier in china.



HEAVY DUTY type for china beiben dump trucks, benz technology NG80 cabin

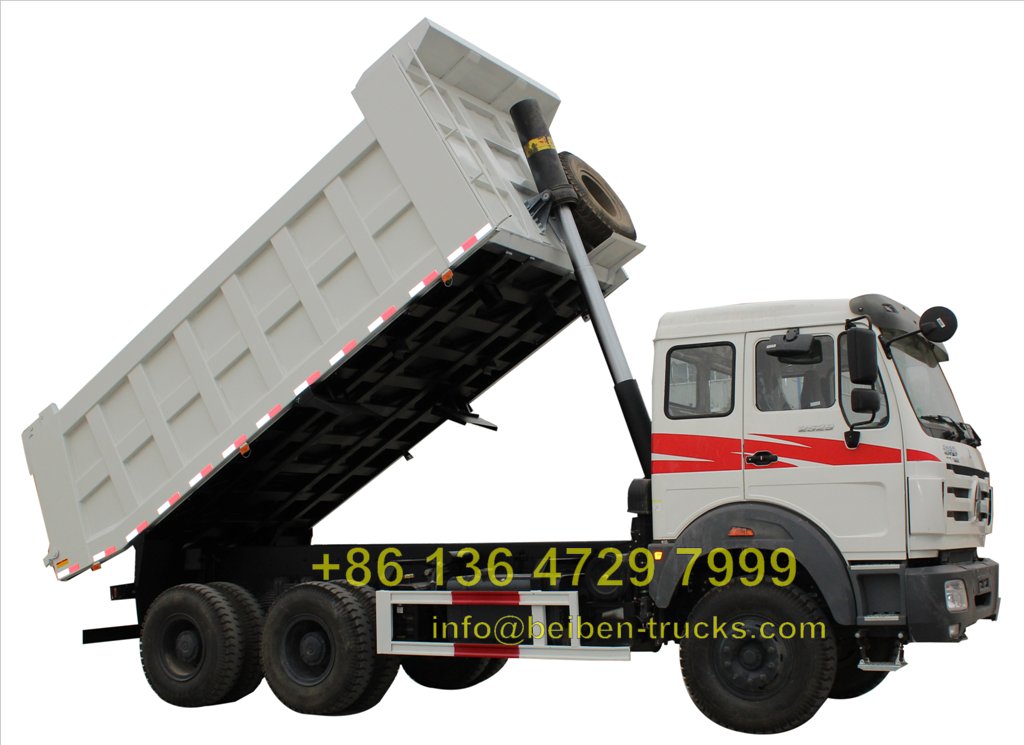

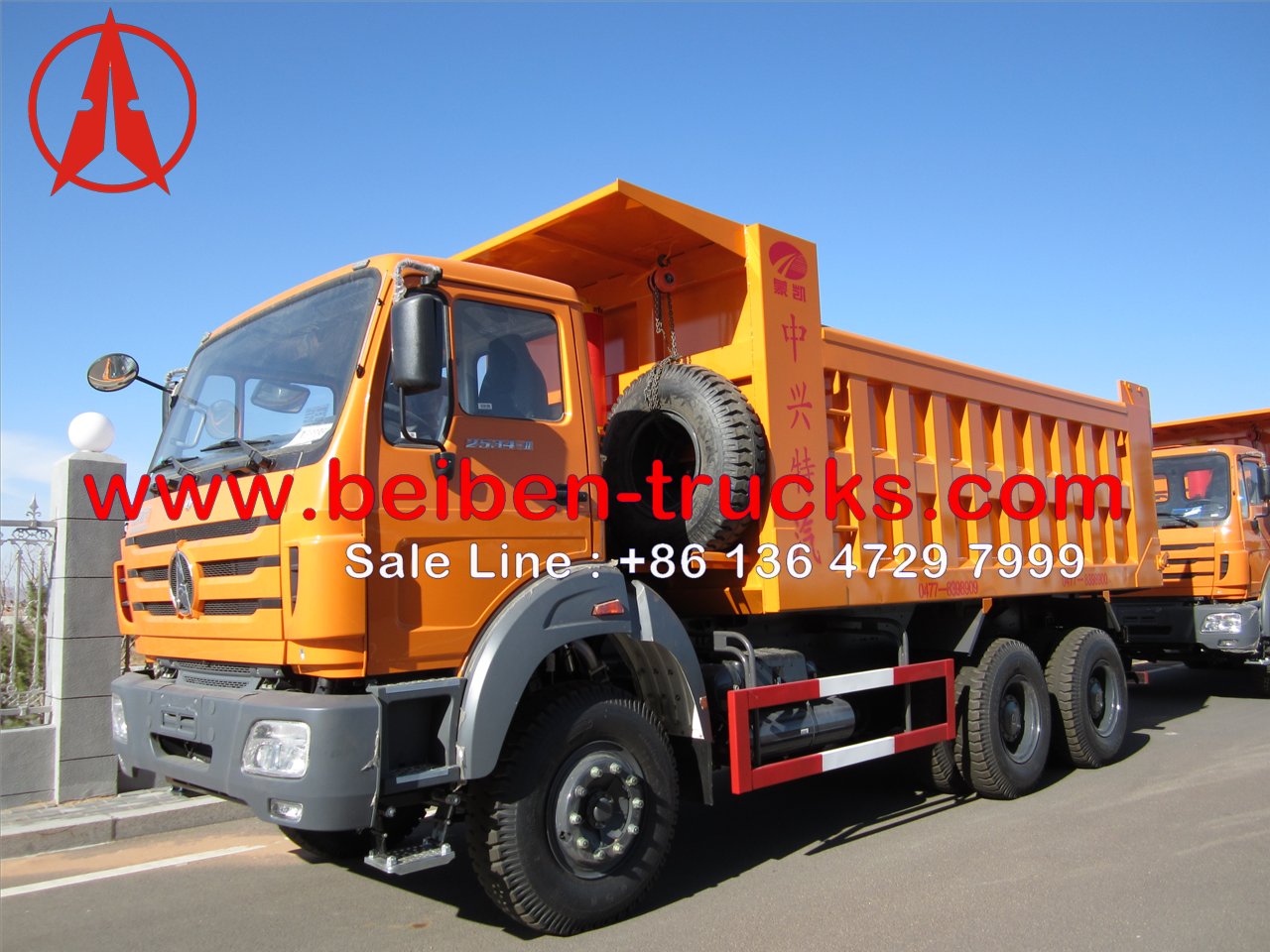

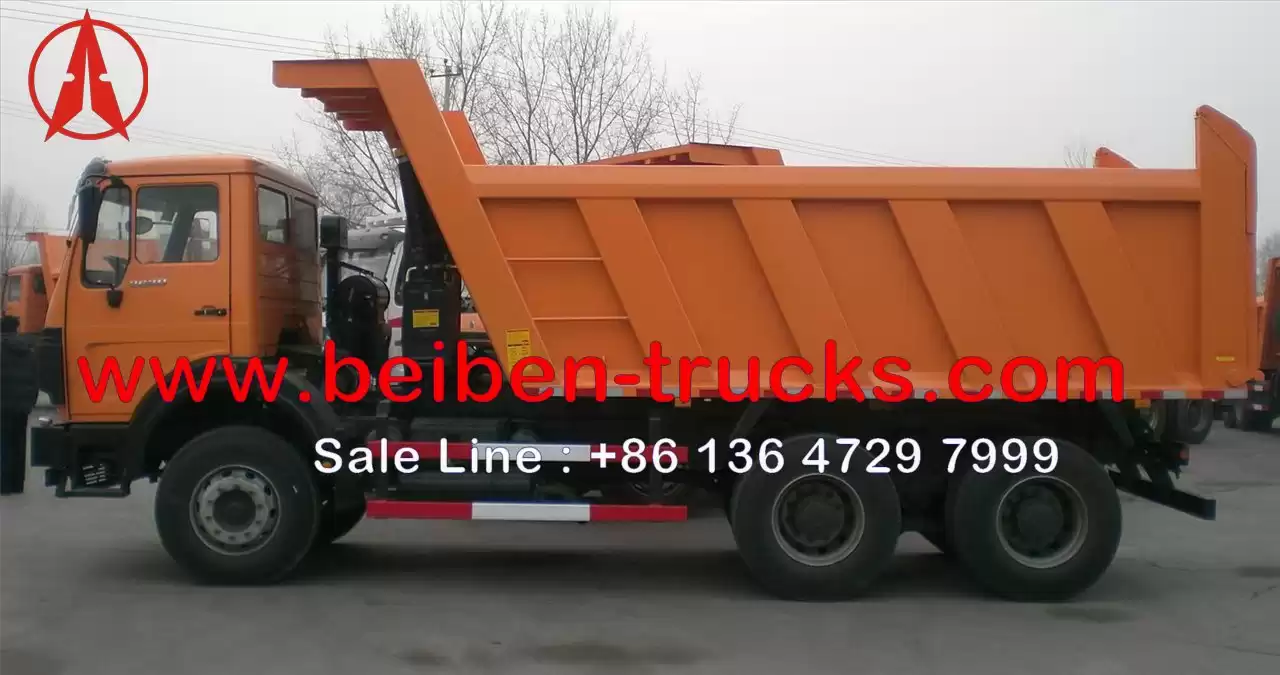

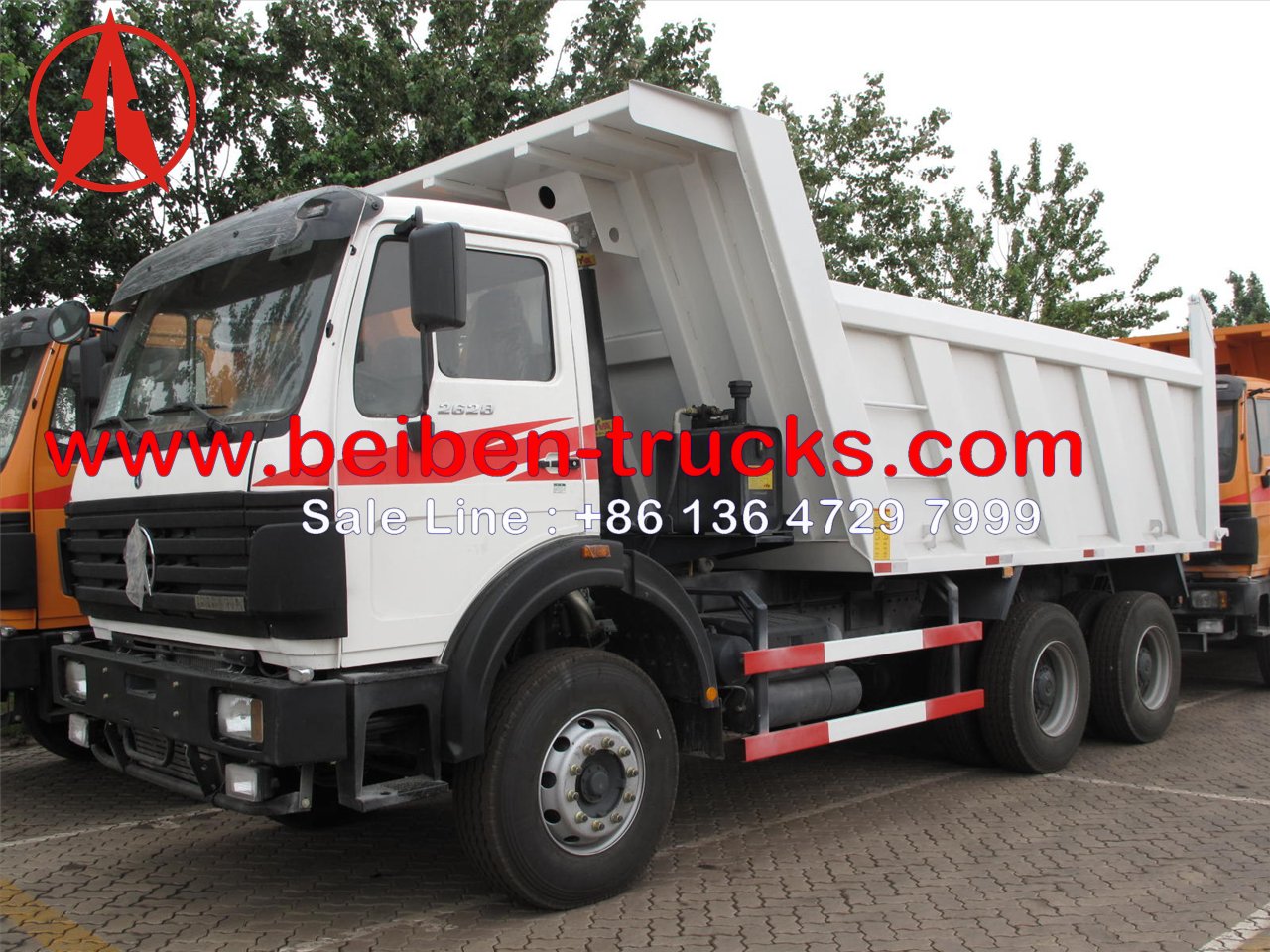

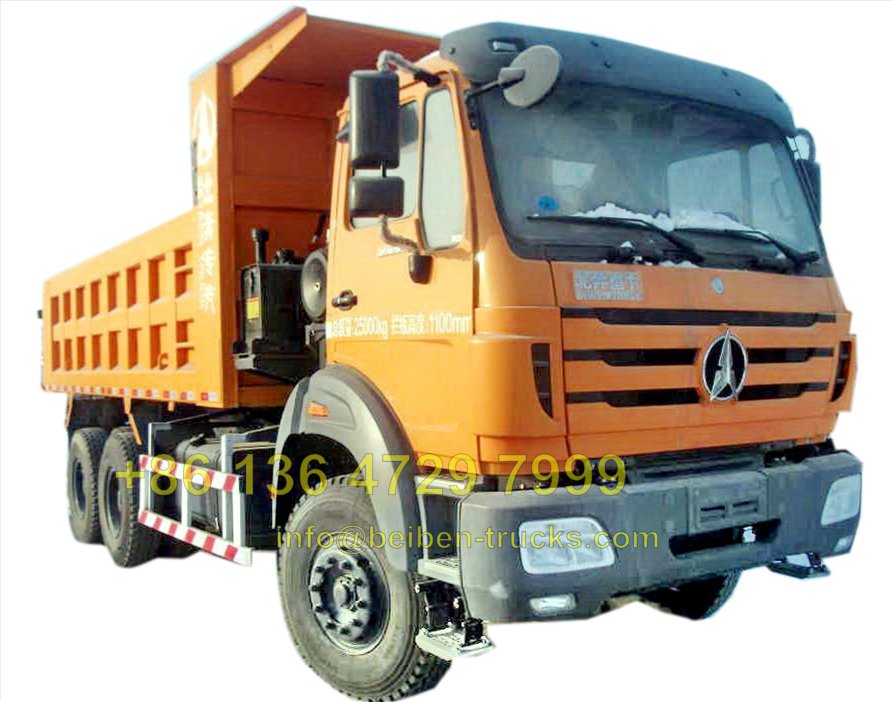

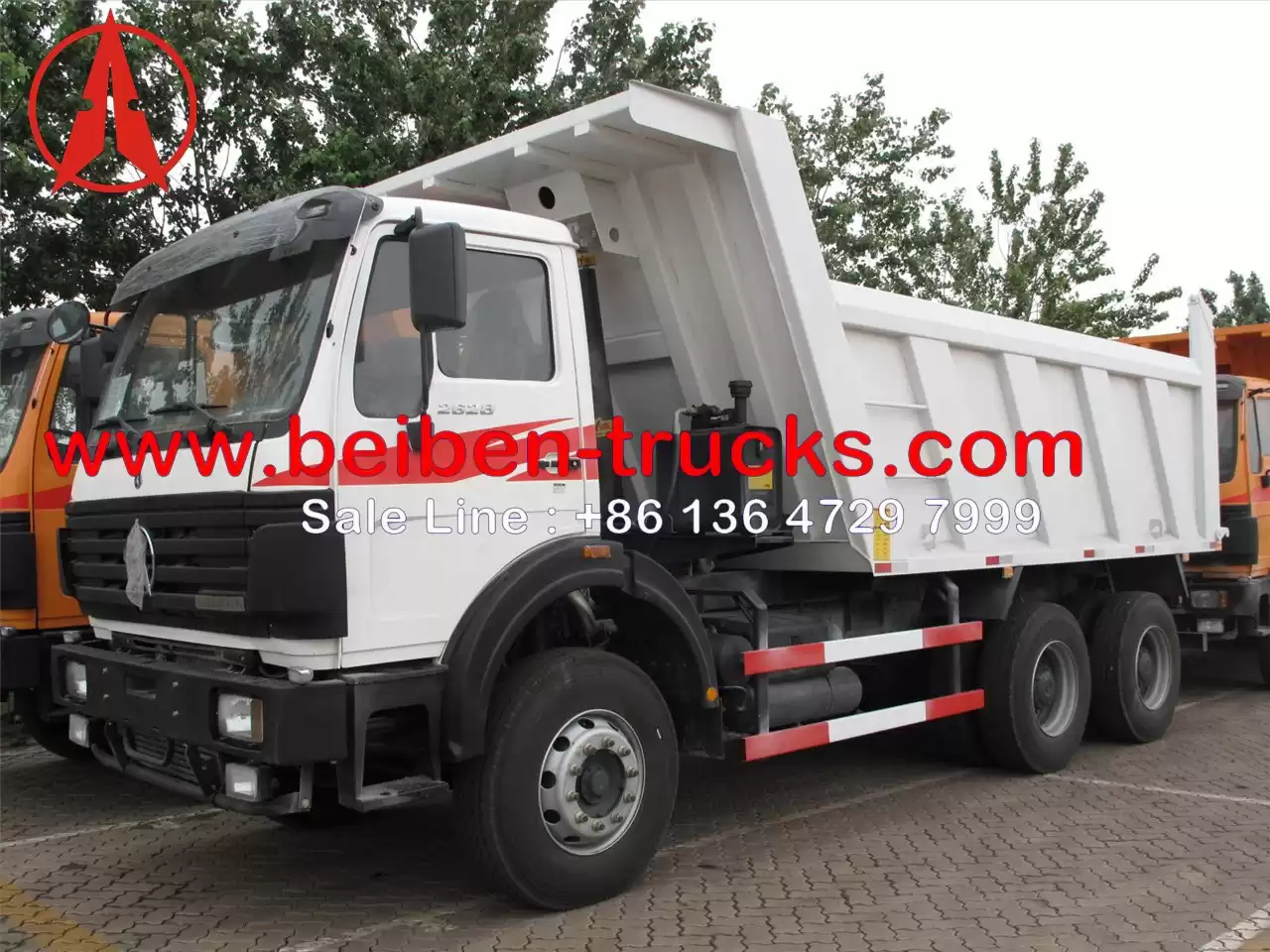

BEIBEN Tipper truck / dump truck 2634K 6x4 truck
|
Wheel base (mm)
|
3800+1450 wheel
|
Model
|
BEIBEN --2534K
|
Curb weight kg
|
12160
|
Engine
|
Model
|
WP10.340E32 WEICHAI Engine
|
Power,
max CV/rpm
|
340/2200
|
Emission standard
|
EUROIII
|

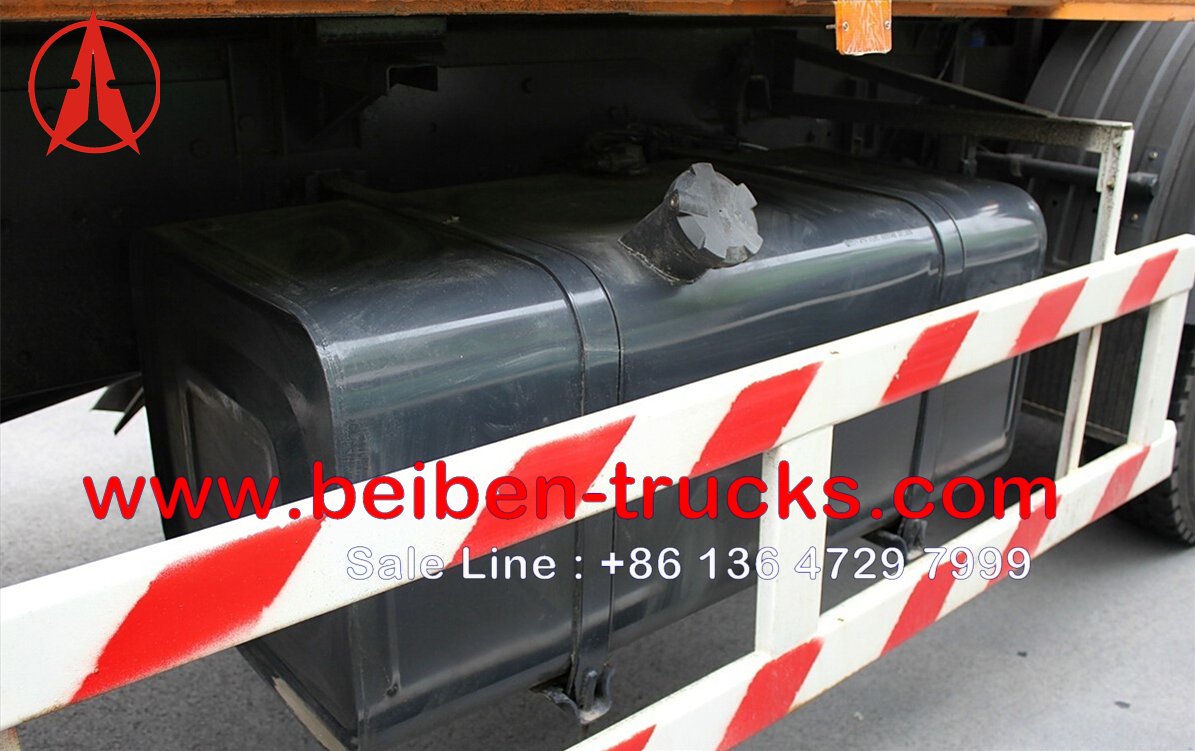

Fuel tanker capacity L
|
300
|
Clutch
|
Model
|
GFX420, Single dry frictional disc,
Hydraulic boosting
|
Gearbox
|
Model
|
RT11509C (9+1 gear) or
9JS150A
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically,
double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and
rear wheels.
|
Steering system
|
Model
|
TAS85
|
Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
Front axle
|
Double-shoe pneumatic brake, non-driving steering axle
|

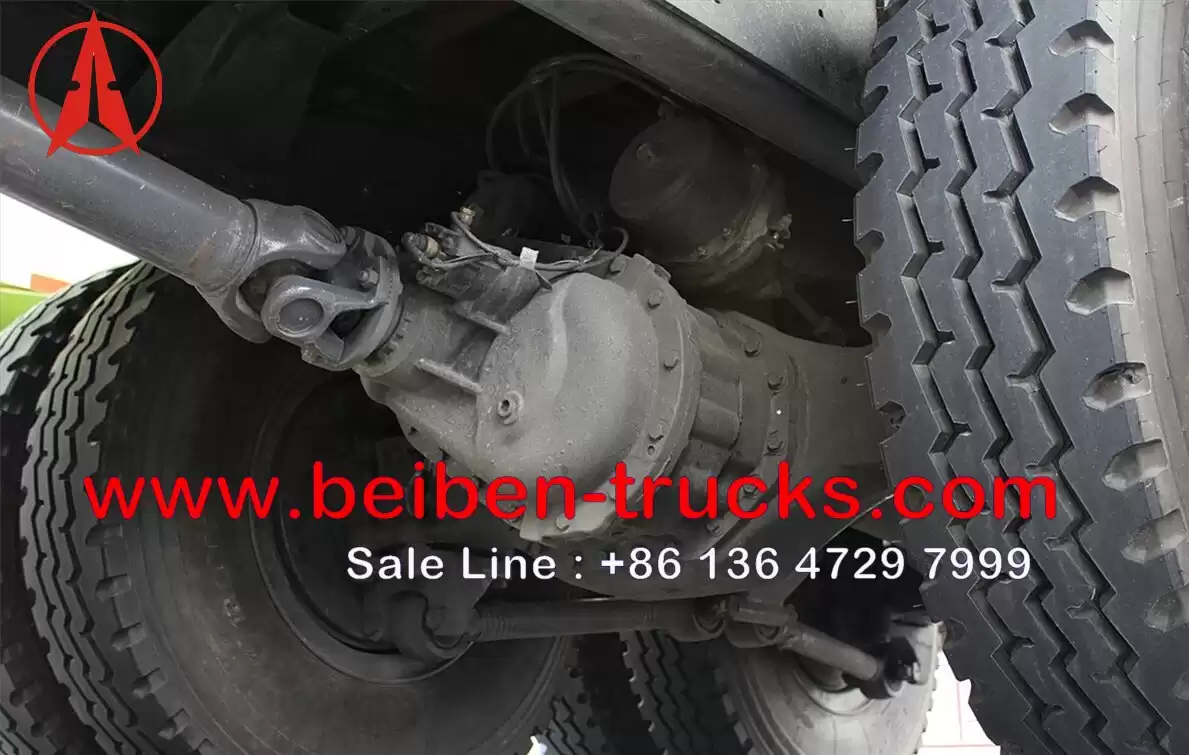

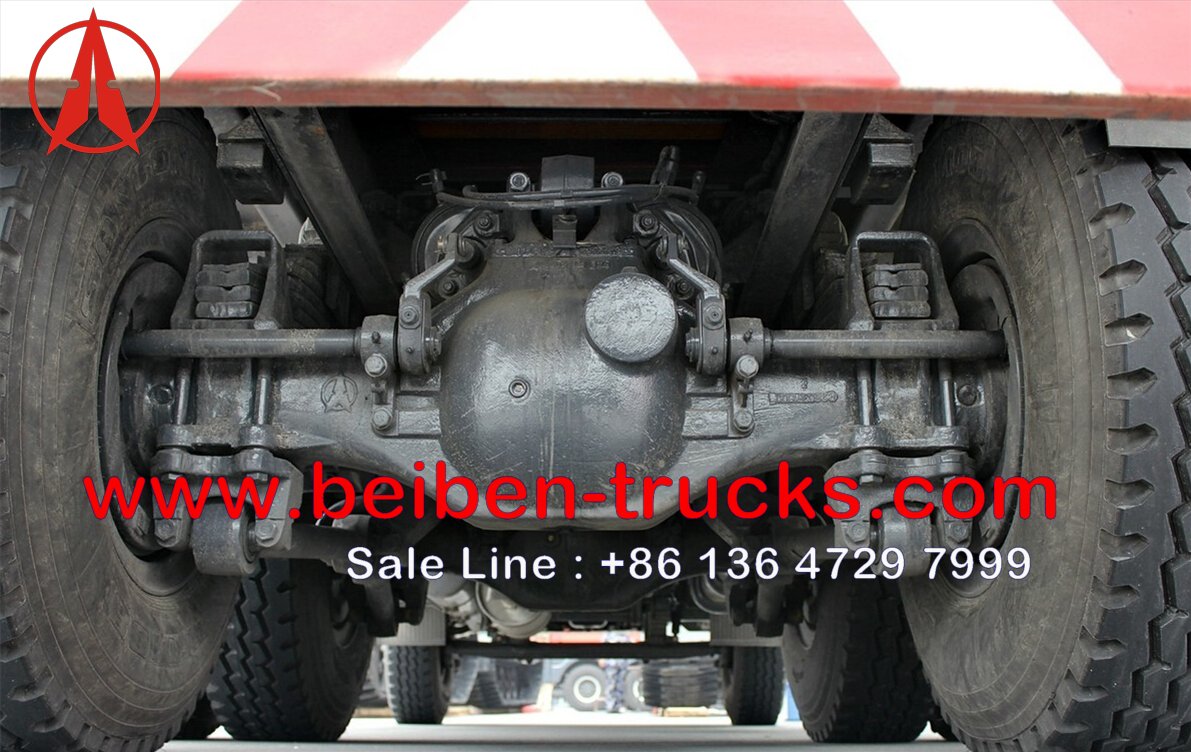

Middle and Rear axle
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double
reduction driving axle, ratio:5.921 or 5.2
|
Tyre
|
12.00-20 /1200R20/ 315/80R22.5 /1200R24
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|

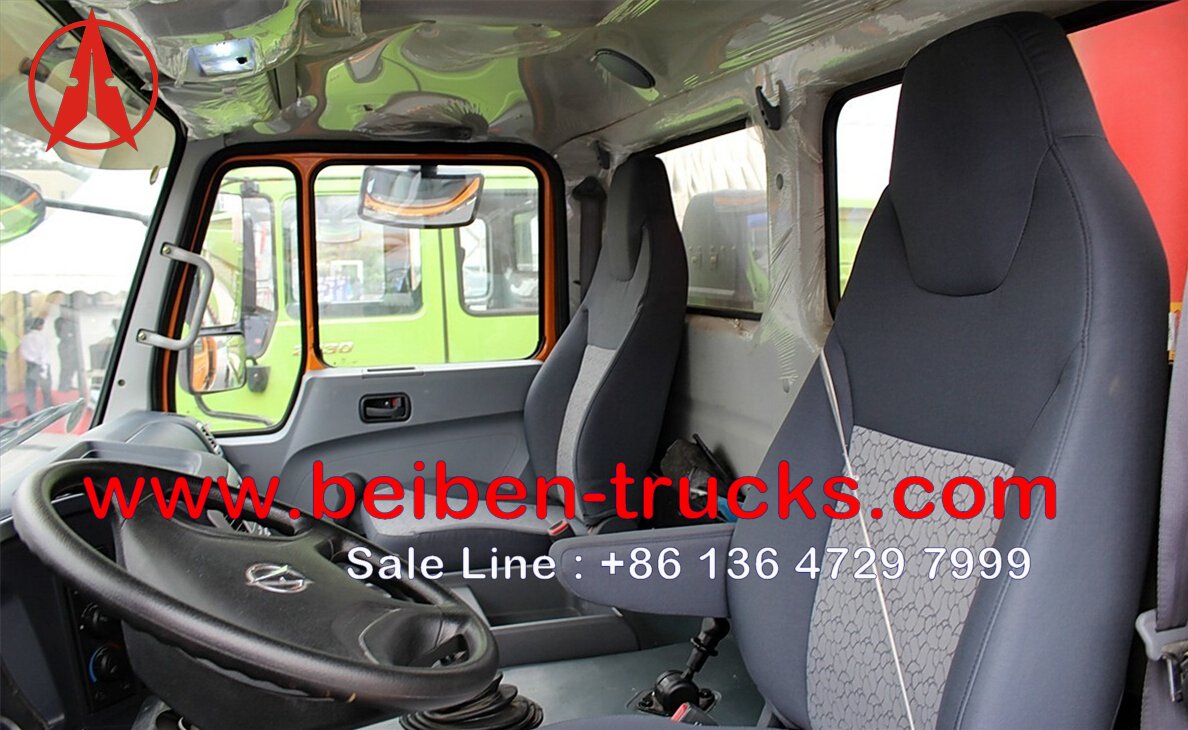

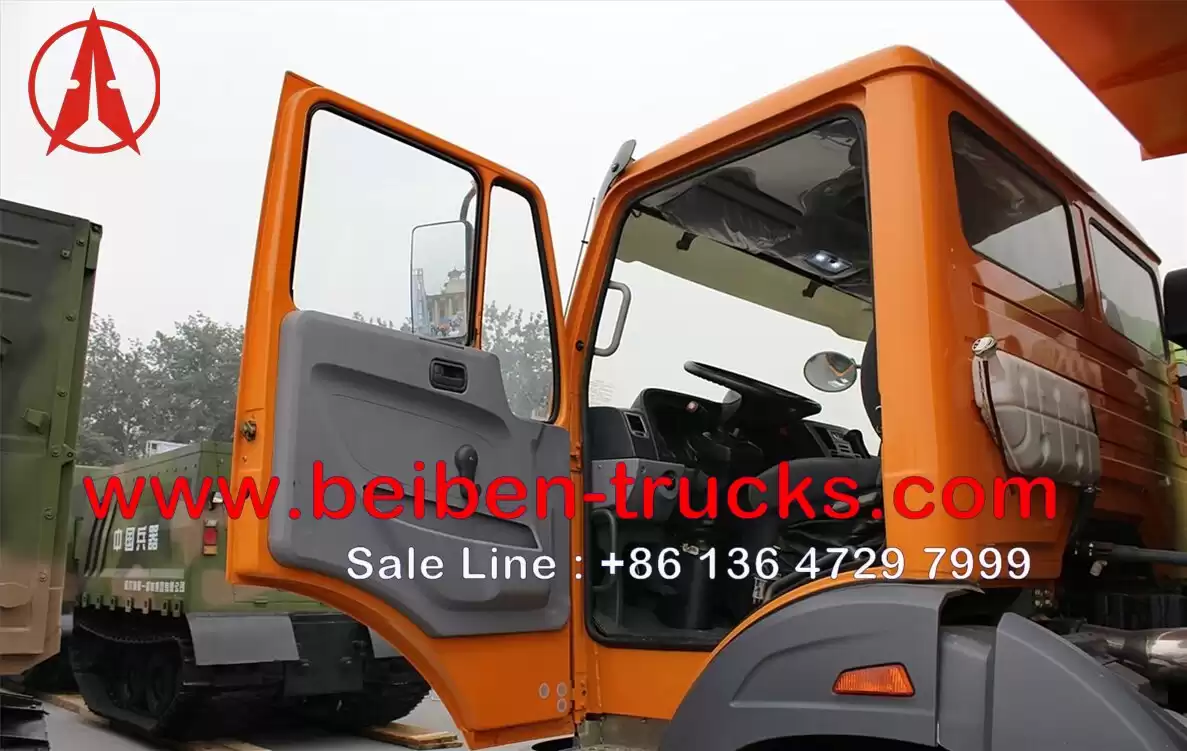

Cabin
|
Short
cab without bed ,left handed, made by full steel material, anti-crash
performance can be ensured by double hollow chamber structure.
|
Overall dimension
|
8530*2500*3410mm
|
Nominal loading
|
12710Kg
|

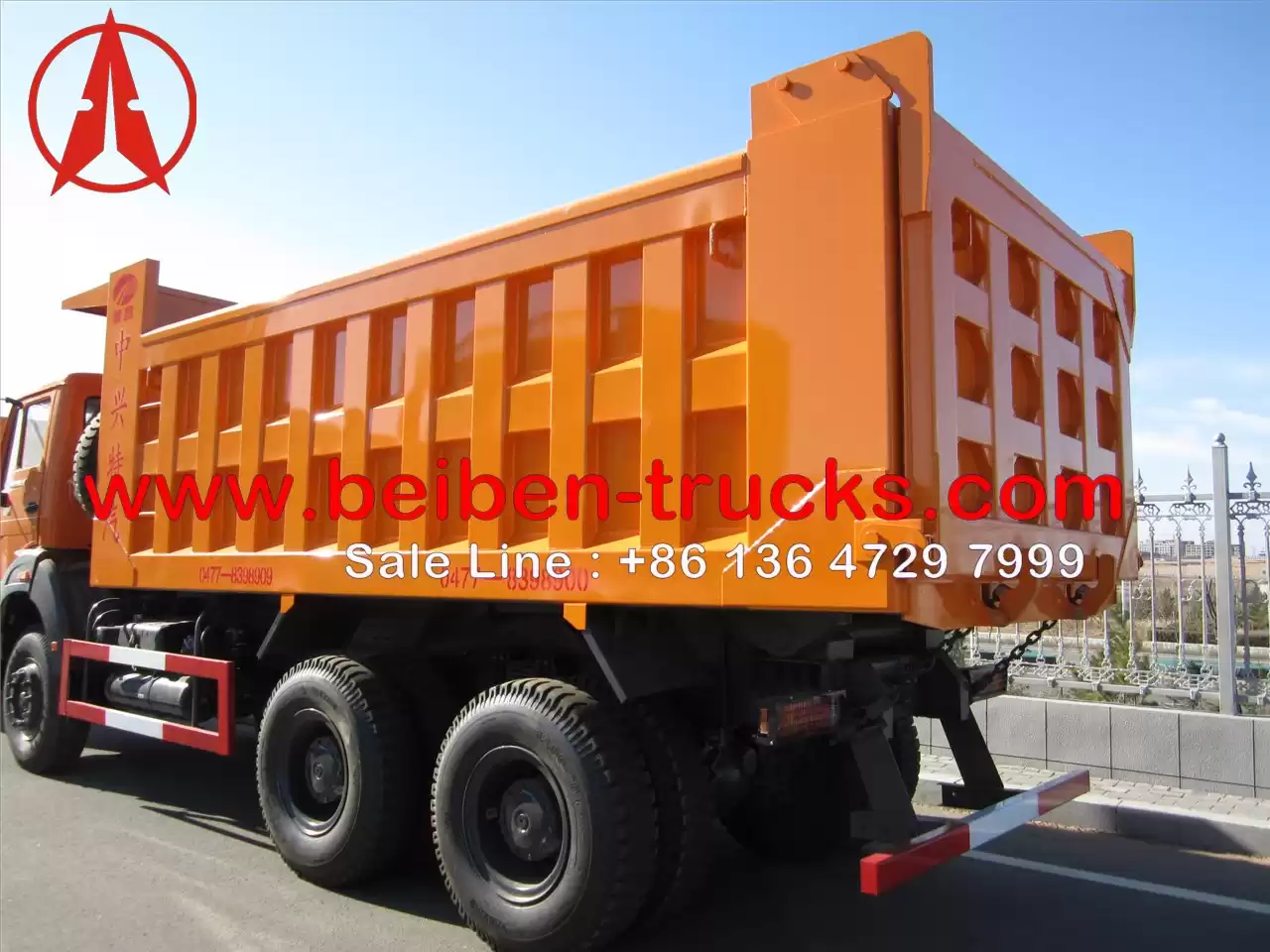

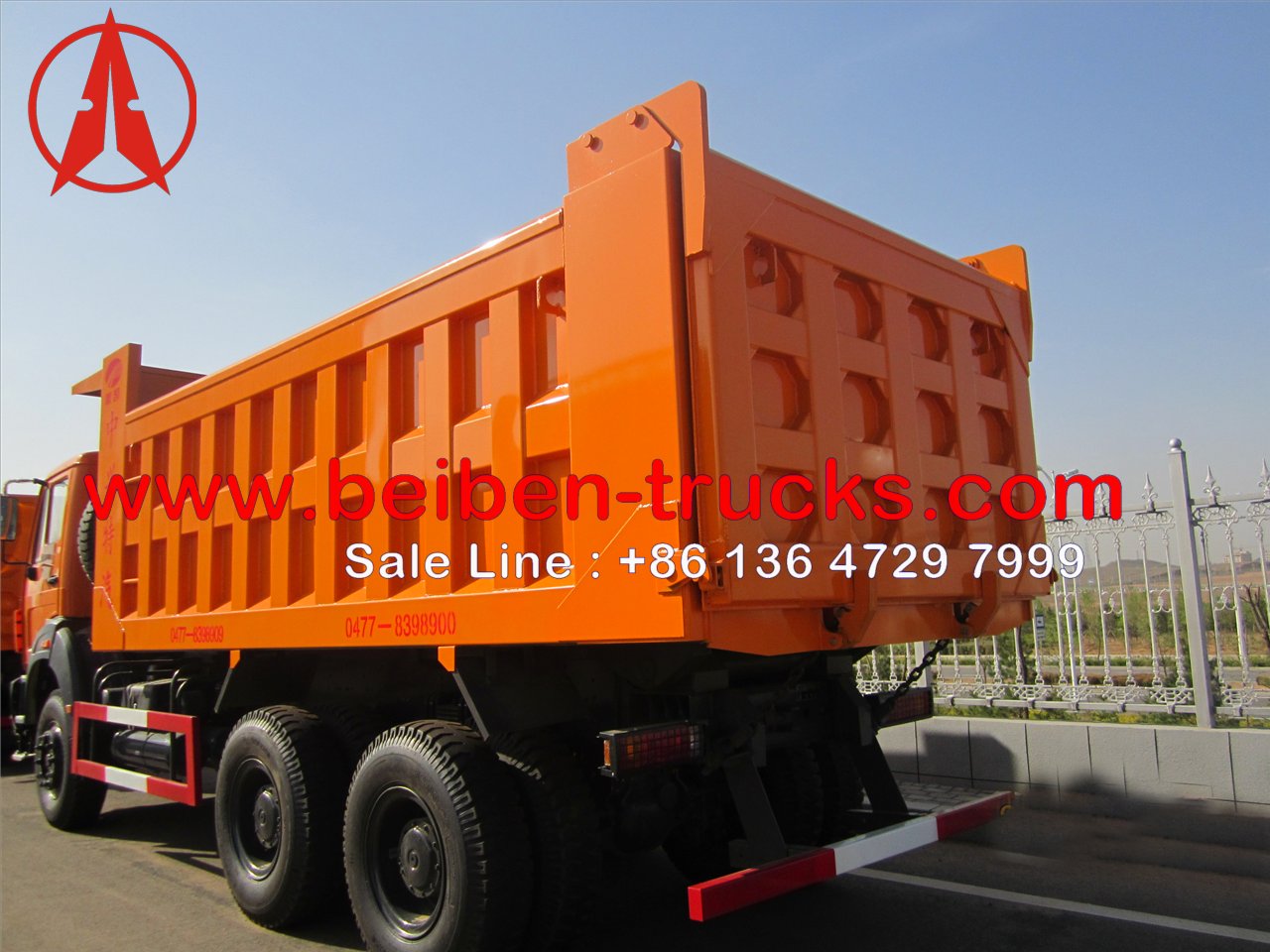

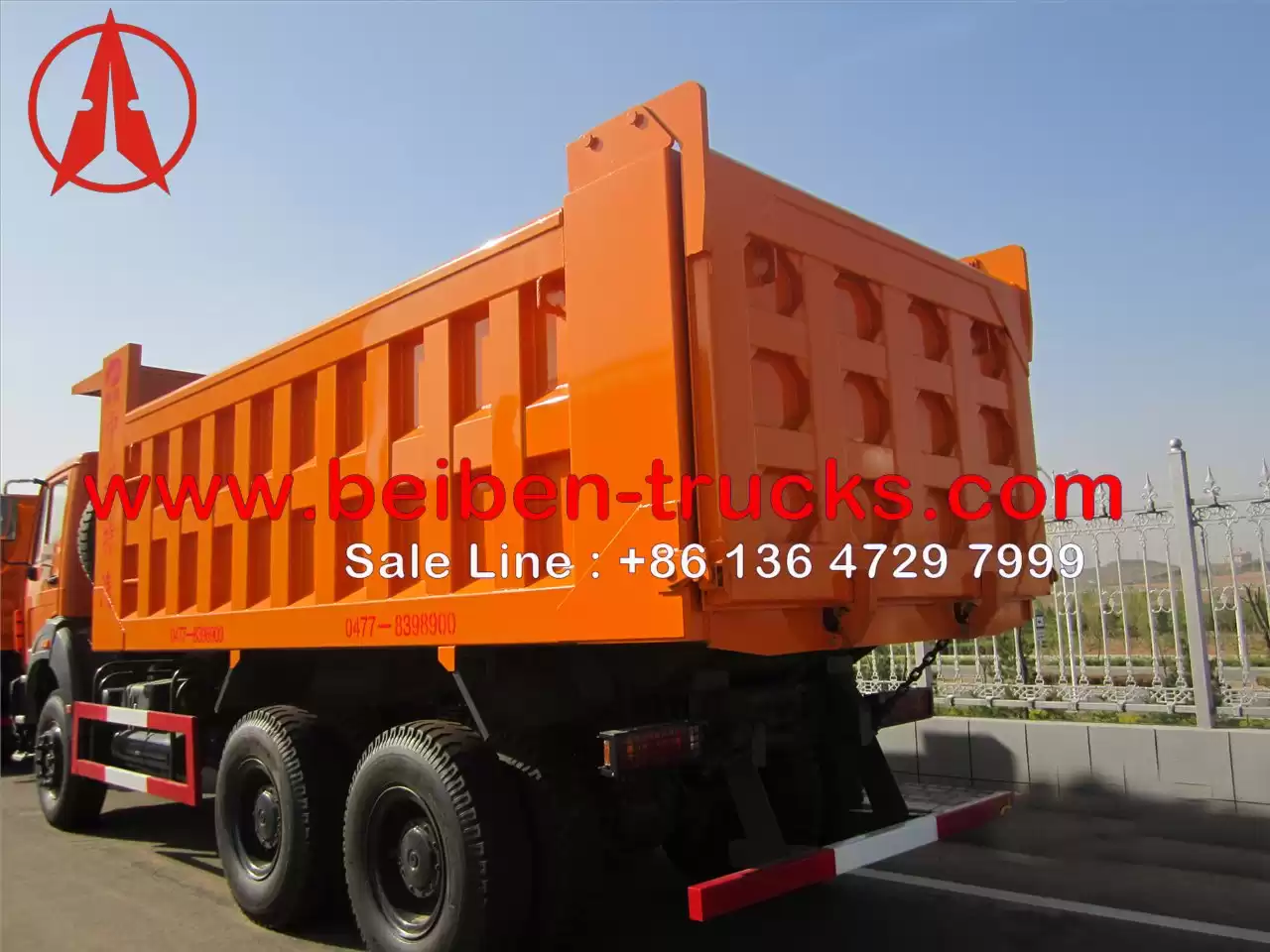

Truck Body
|

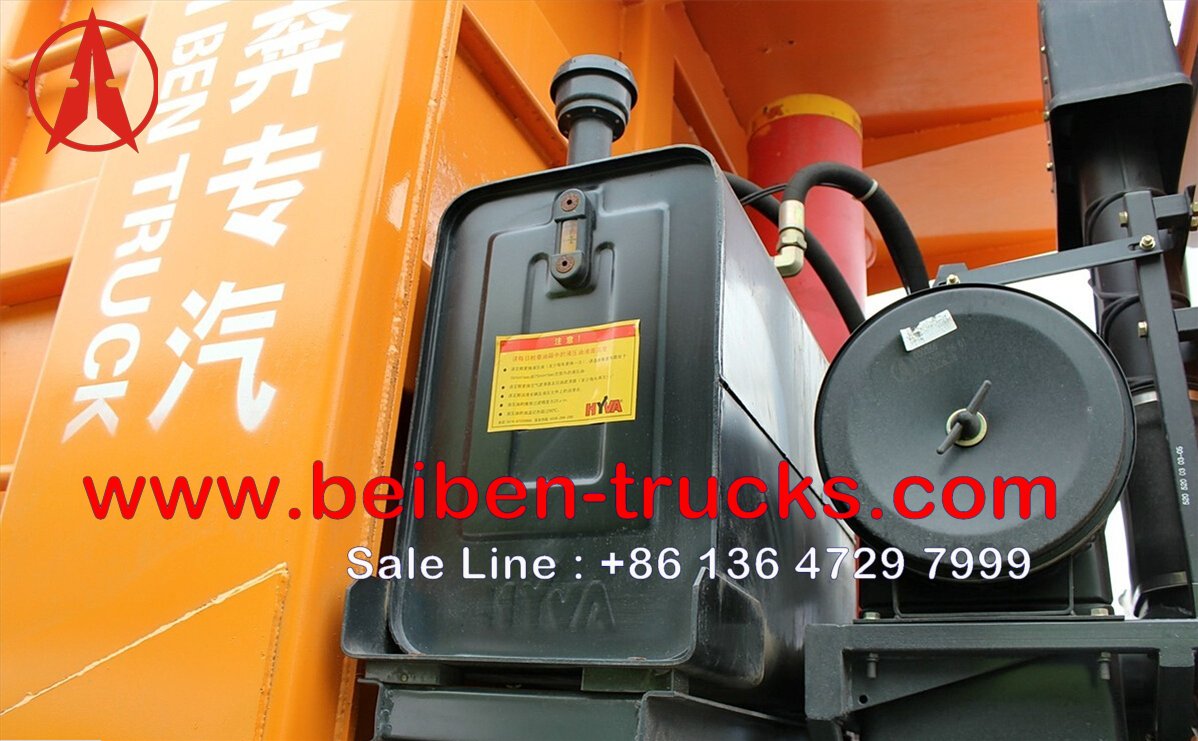

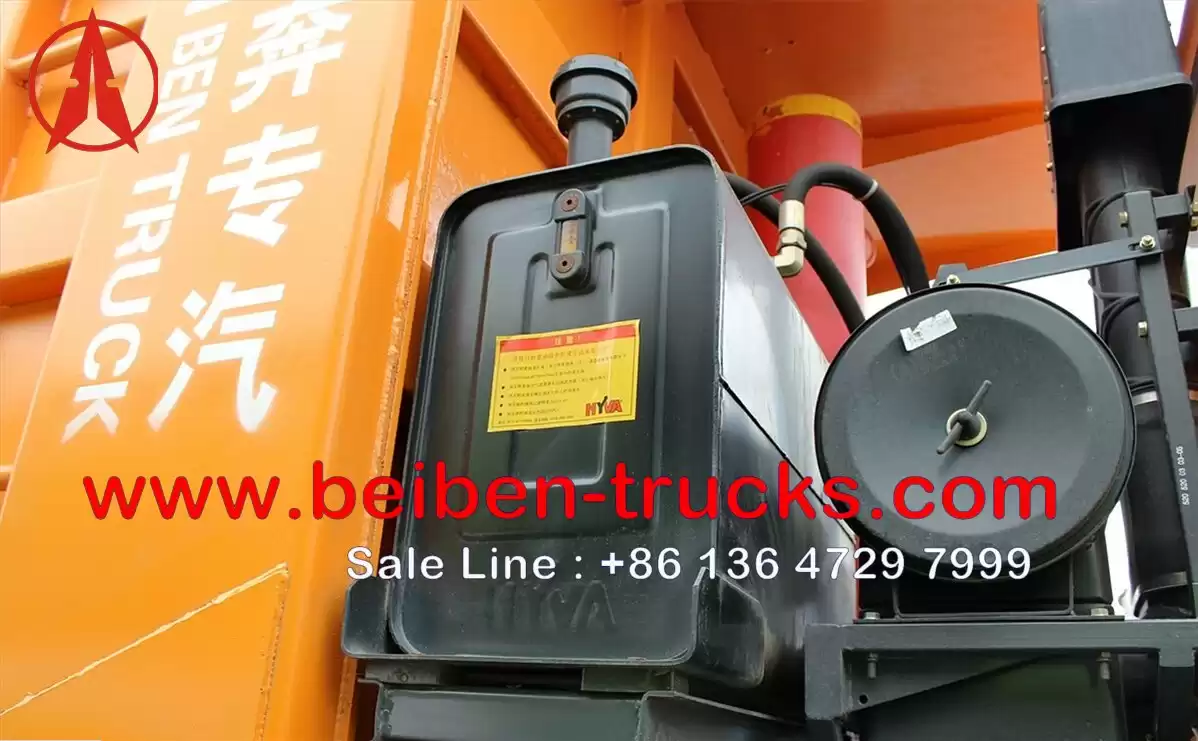

5600*2300*1500 (side 6mm, floor 8mm), HYVA 149 front hoisting hoisting system.

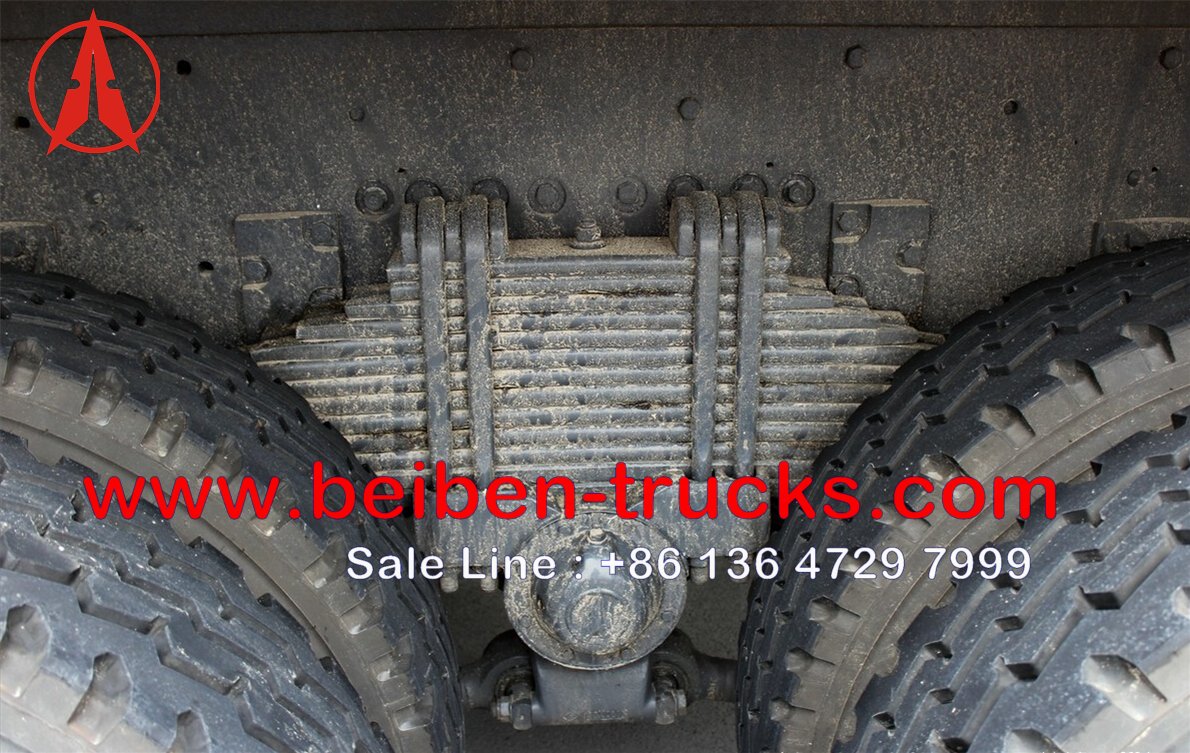

Suspension : Strength 13 pcs steel spring and 4 U bolt , desert air filter.
|
Color
|
Orange or white.
|
