Main Spec.:
1. Use Benz Technology lengthened flat roof;
2. Man Technology Axle
3. Safe Choice
4. Low price
Product Description
Model
|
ND52501GJBZ
|
Drive Type
|
6x4
|
Vehicle Main
Dimensions
|
Max length, width, height
|
10005×2500×3980(mm)
|
Wheel base(mm)
|
4100+1450
|
Front/Rear overhang(mm)
|
1515/2940
|
Approach/Departure
|
23/22
|
Weight
|
Kerb mass
|
15155
|
Total mass
|
25000kg
|
Engine
|
Brand
|
WEICHAI
|
Model
|
WD10.340E32
|
Power(kw/HP)
|
250/340
|
Displacement(L)
|
9.726
|
Emission Standard
|
Euro III
|
Transmission
|
Brand
|
FAST
|
Model
|
9T1680
|
Control type
|
Manual
|
Gear shift
|
9-forward and 1-reserve speeds
|
Clutch
|
Diameter(mm)
|
430
|
Steering
|
TAS85
|
Axle
|
Front axel
|
7.5 tons
|
Rear axel
|
13 tons double reduction axle
|
Tires
|
Type(Standard)
|
12.00R20
|

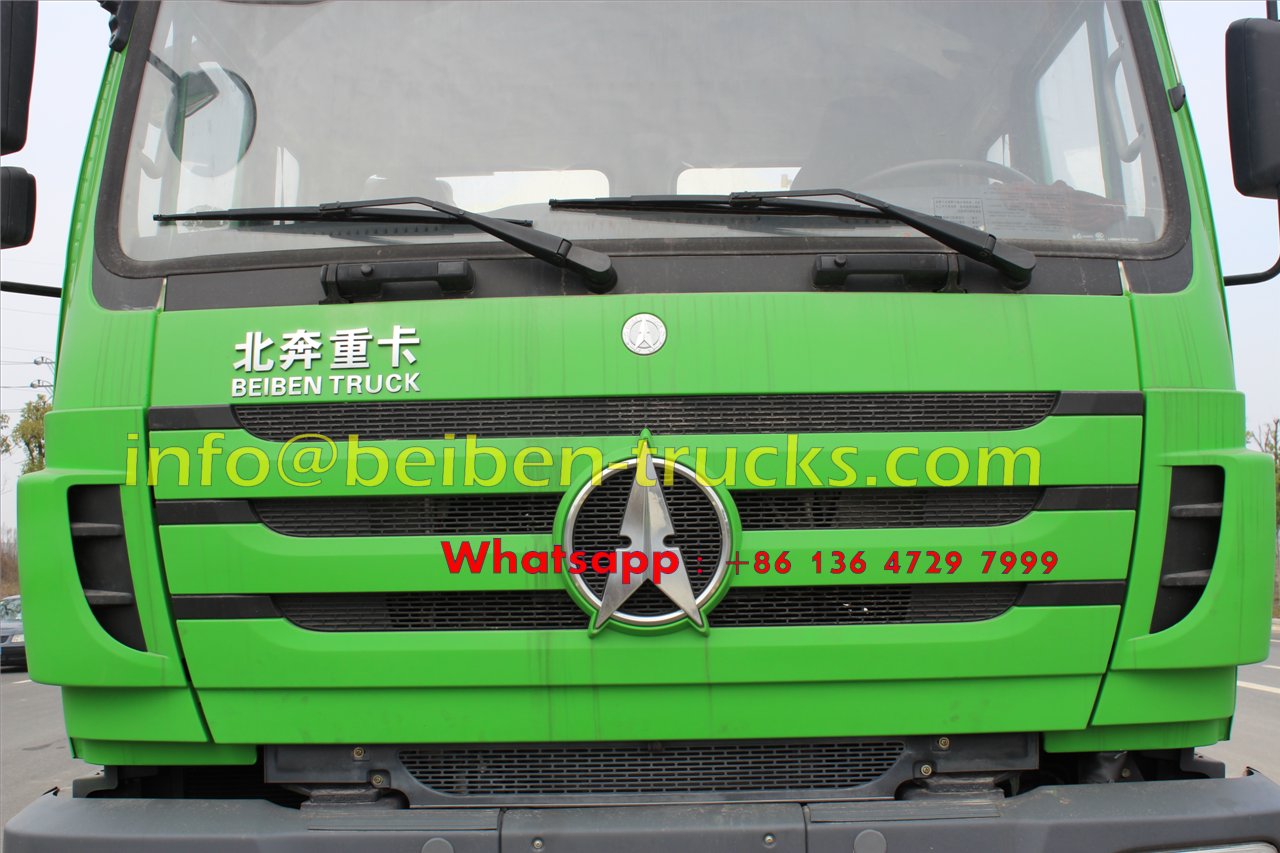

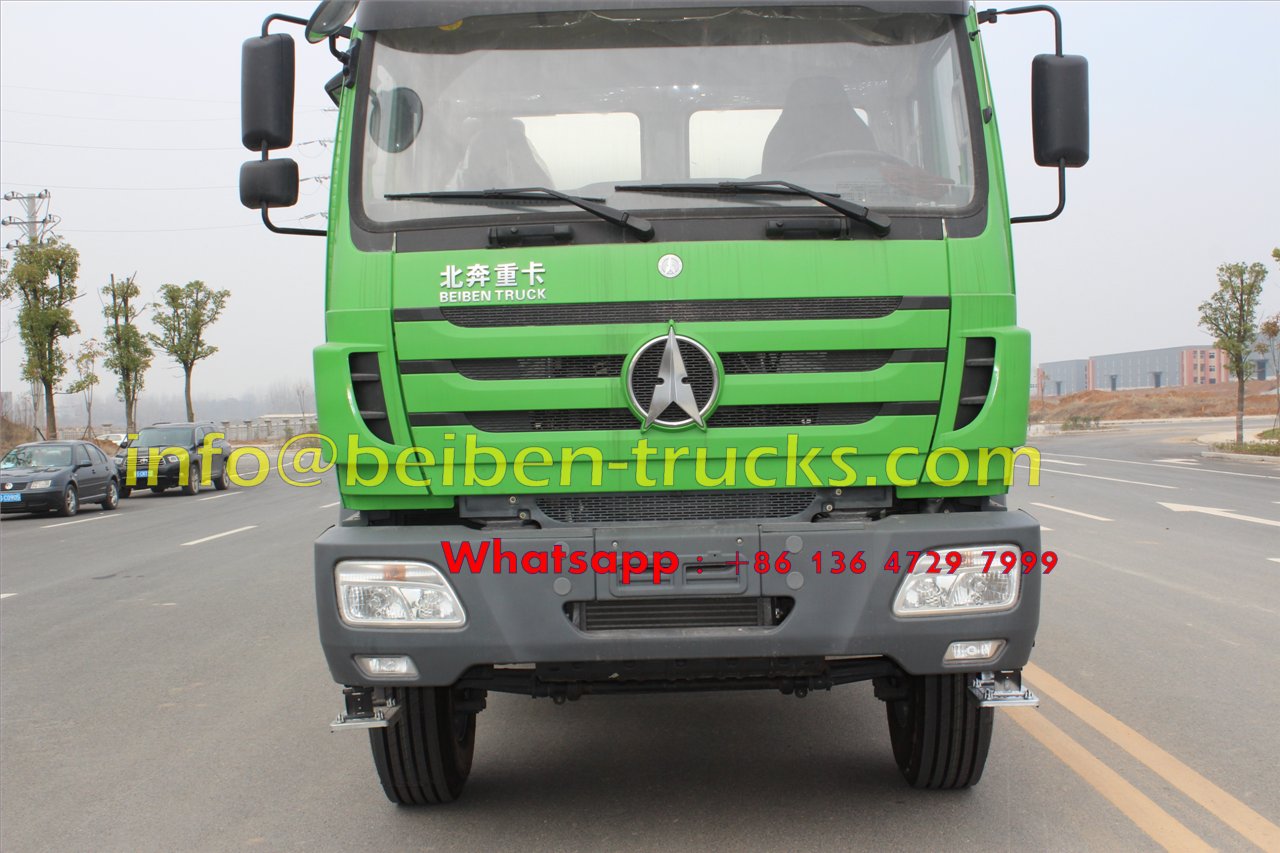

Cab
|
Type
|
Use Benz technology V3 lengthened flat roof
|
Equipments
|
2rear
window, mechanical clerestory, hydraulic suspension cab, hydraulic
chair with seatbelts, one sleeping bed, hydraulic reversal cab, with
USB, can play radio broadcasting and audio in MP3 format;
|
Other
|
Effective volume(m³)
|
10m³
|

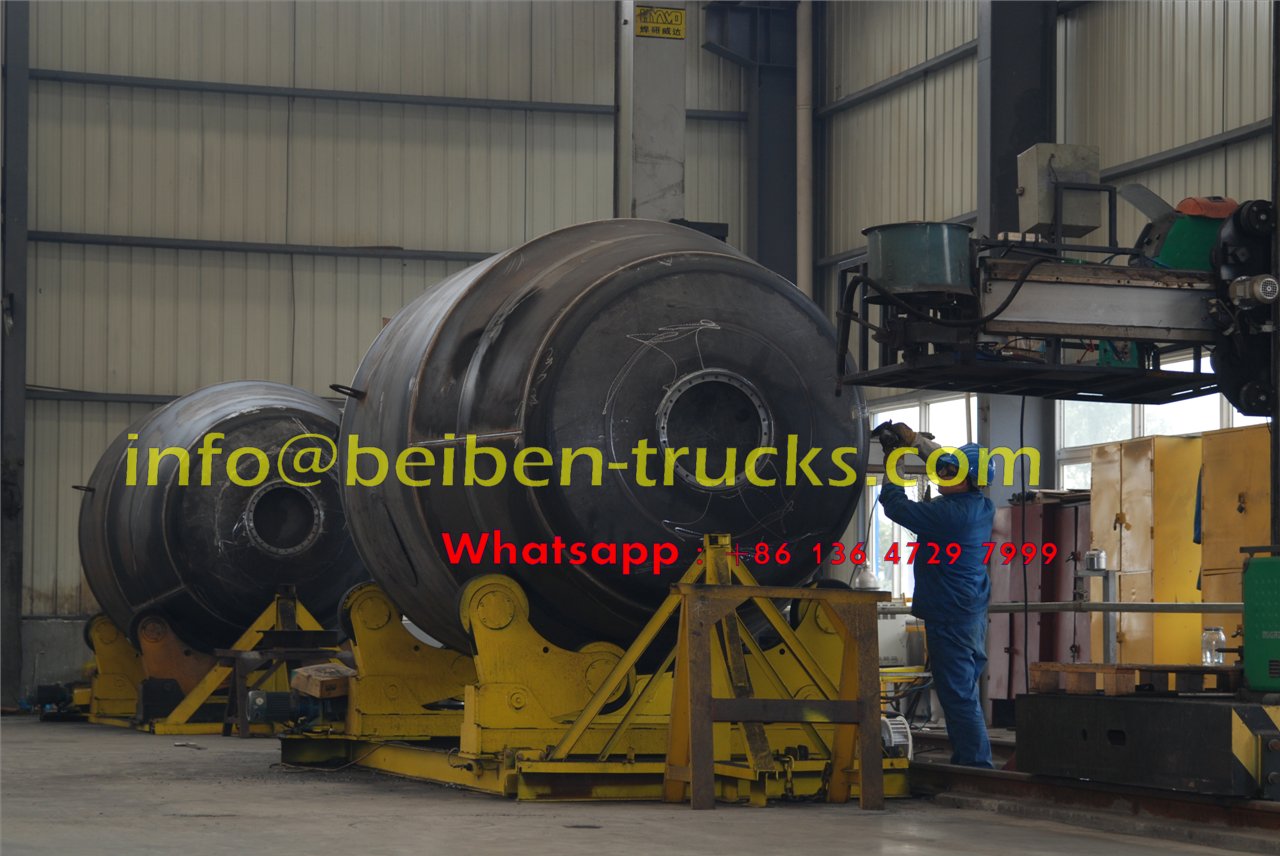

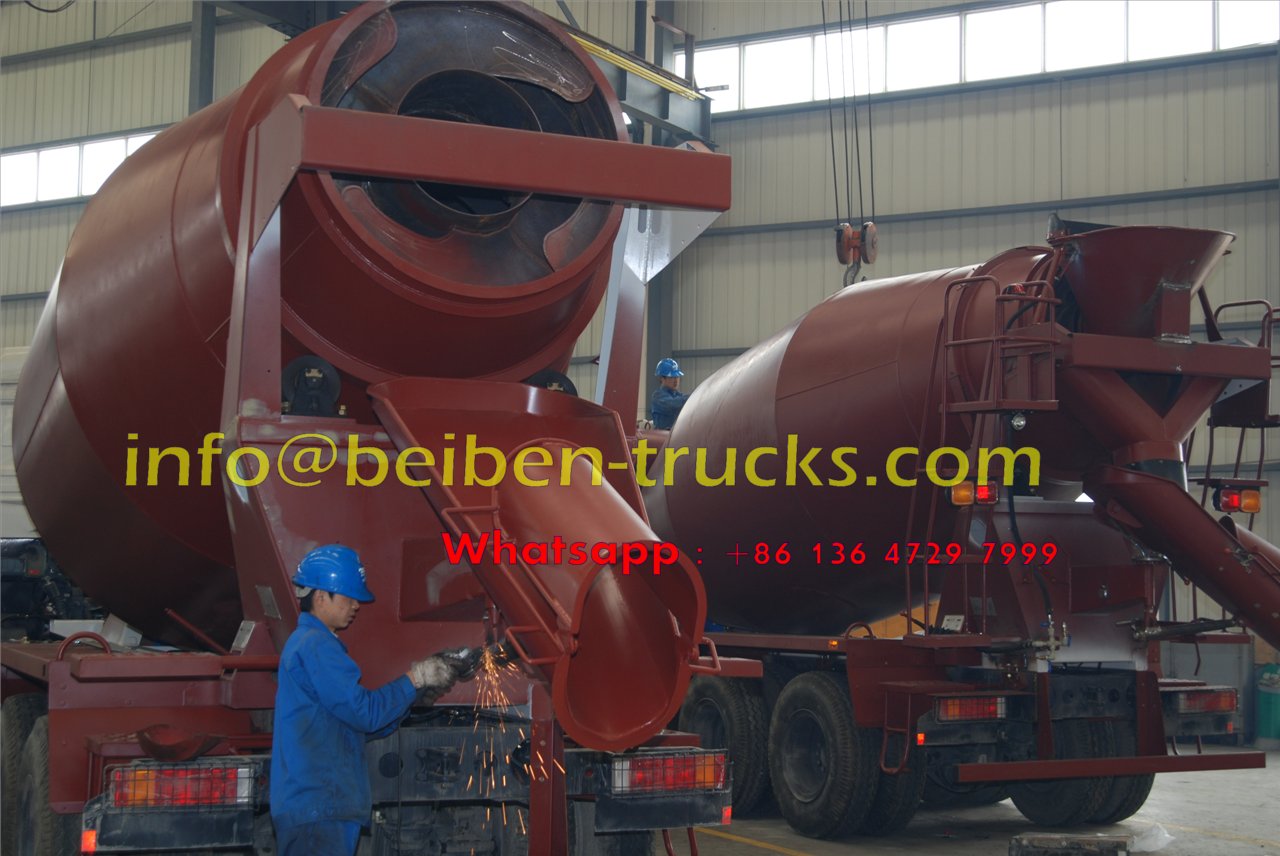

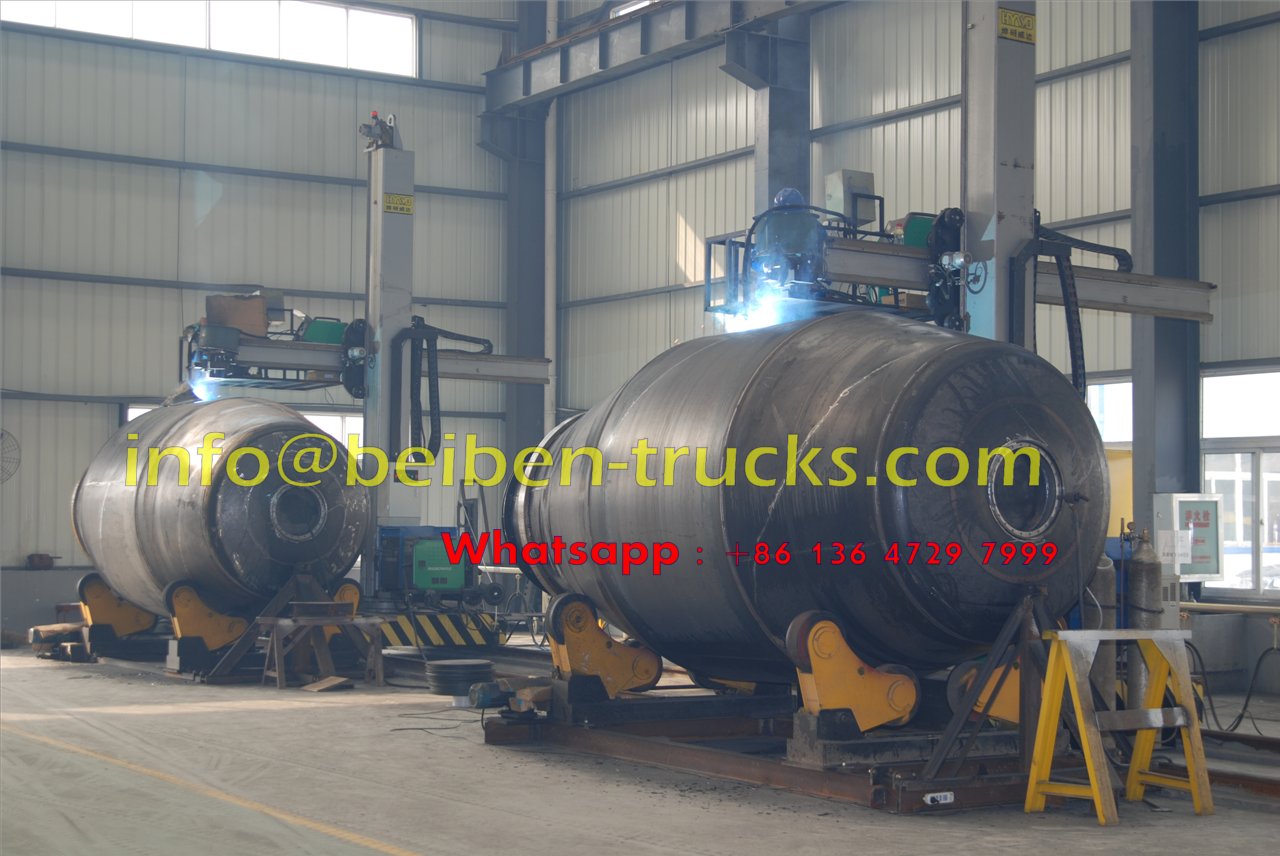

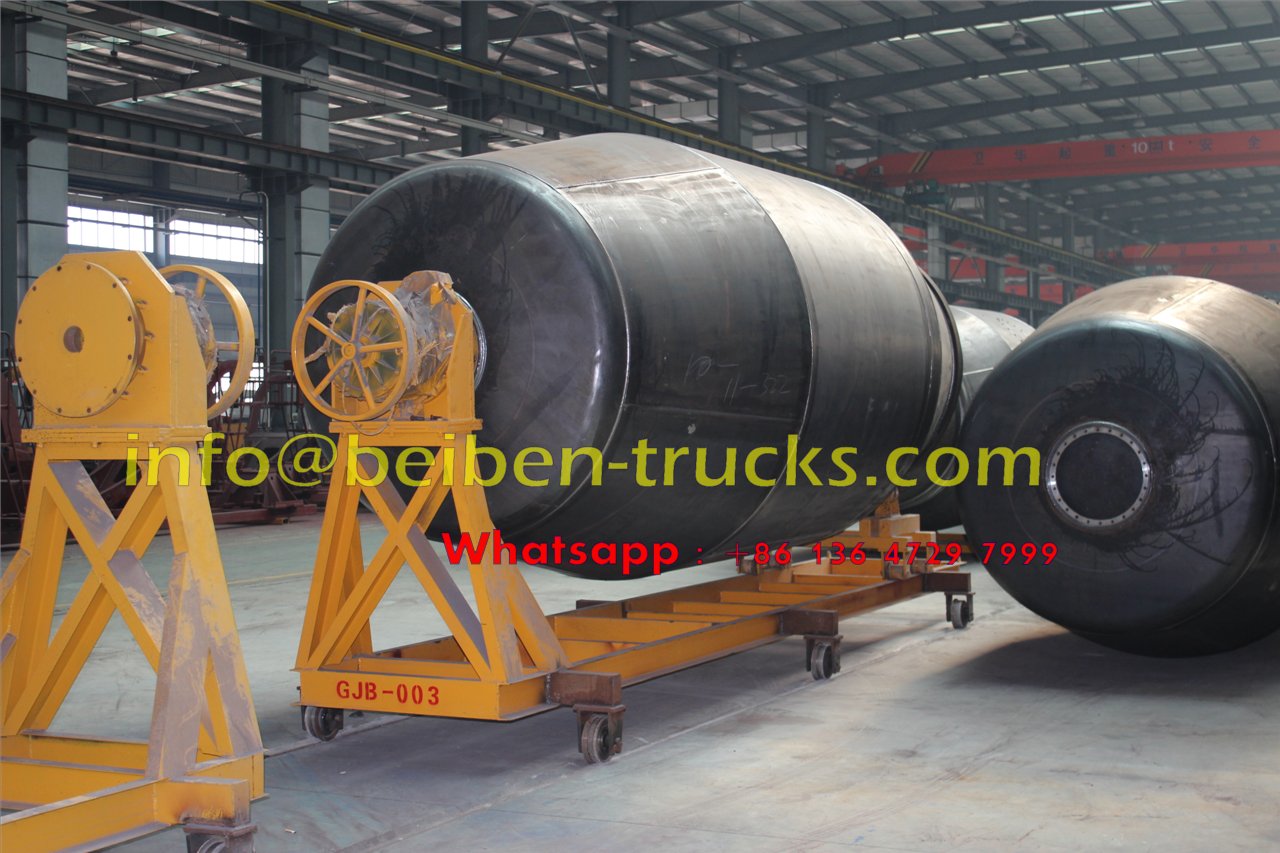

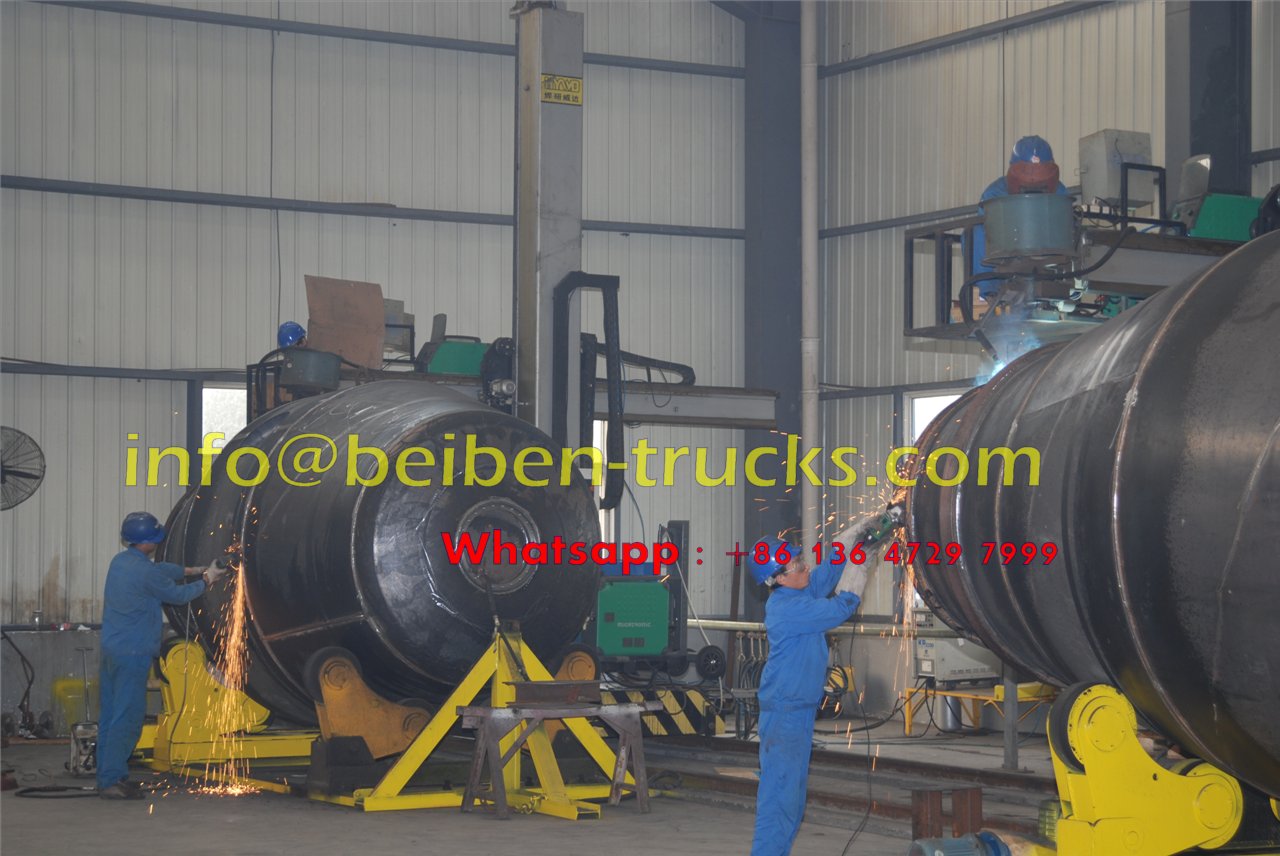

Beiben concrete mixer truck workshop in china.
