China truck North Benz truck head
Weichai engine
prime mover
12 speeds transmission
radial tires

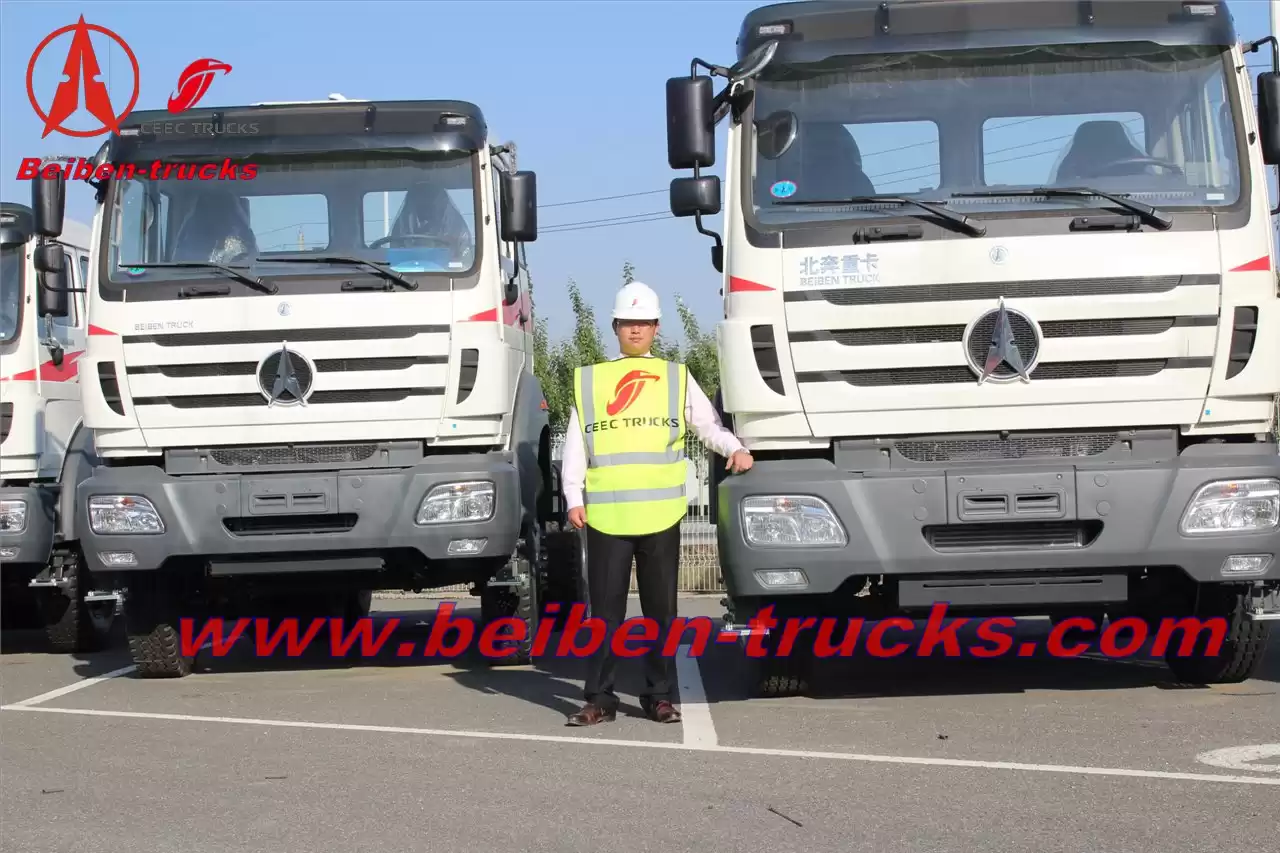

CHINA BEIBEN TRACTOR TRUCK 6X4 420HP

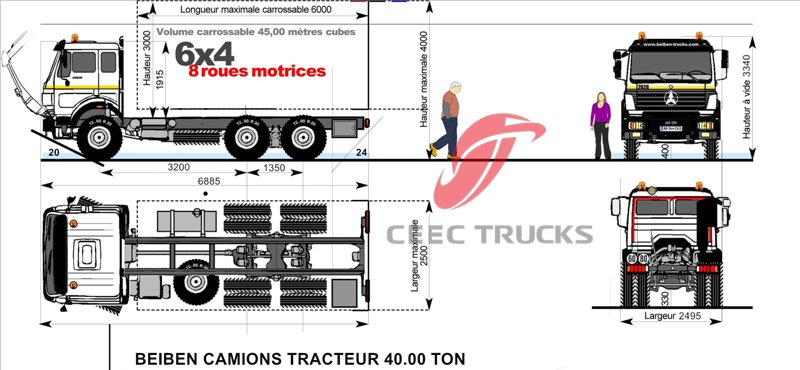

| Dimension (mm×mm×mm) |
6800×2495×3100 |
| Wheel base (mm) |
3200+1350 |
| Curb weight (kg) |
8800 |
| Gross towing trailer weight (kg) |
40000 |
| Engine Model |
WP10.380E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
| Fuel tanker capacity (L) |
400 |
| Clutch Model |
#430, Single dry frictional disc,Hydraulic boosting |
| Gearbox Model |
12JS160T, mechanical type,Based on Fuller Eaton technology ,12Forward speed gear. |
| Steering system Model |
TAS85 |
| Frame |
Fish belly shape, variable width, variable sections |
| Clutch Model |
430,Hydraulic boosting |
| Axle |
Mercedes Benz Technology |
| Tire |
12.00R20 radial tire |
| Cab |
Long cab
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly; With A/C |
| Fifth wheel |
50 single direction(JOST) |
