China Best 50W IP65 Solar Powered Street lights with Bridgelux 45mil Chips-LEDcent
50W LED street light installation height 6-8 m , widely used in urban slip roads, residential roads, rural roads.
LEDCENT dawn series LED street light are famous for high lumens, the brightness is better than the industry, average 30%.
Dawn street lamps have a strong weathering performance, can stably work in a temperature of -40 ~ +55 ℃. Products had used in many terrible area, like Russia, Africa, China Xinjiang, northeastern regions of China and other extreme temperatures area.
1、We use a higher luminous efficiency of LED chip to ensure that solar street lights have a better performance output;
2、Pure copper chip holder, providing a strong thermal conductivity LED chip capacity;
3、The use of Dow Corning silicone encapsulation, to provide a more stable light-emitting chip environment;
4、Gold-free package technology for LED chip optional, greatly extend the life of the light source;
1、6030T high-performance aluminum alloy determines it's physical properties, this radiator has excellent thermal conductivity, strength, toughness, weather resistance;
2、Surface anodizing treatment, with good anti-corrosion properties;
3、Radiator fin corrugated design, large area to increase the thermal radiation capacity;
4、Thermal design has a strong air convection capacity, can quickly take away the heat of solar street light;

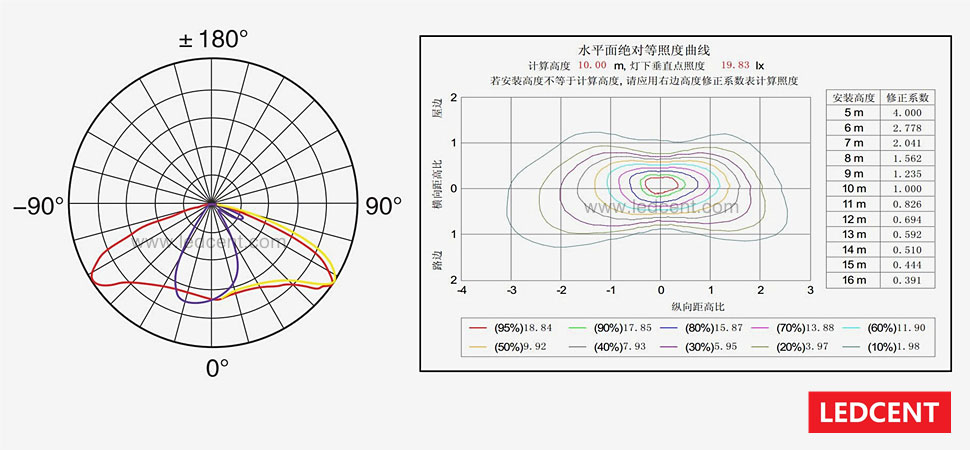

1、Professional batwing lighting distribution, 135 ° beam angle;
2、More professional LED solar street light distribution, the light can be more uniform output to the lighting area;
3、A grade optical glass, light transmission rate of 92%;
All fasteners are made of 304 stainless steel
1、Modular design, lamps can quickly complete with the disassembly and maintenance;
2、Single module damage does not affect the work of other modules;
Patent design, open the lamp cavity in 2 seconds, to maintain the interior of the lighting fixture;
1、Lamps can achieve ± 15 ° multi-angle adjustment;
2、The series of LED solar street light has excellent protection, protection rating of IP67;
3、Through the professional wind tunnel test, the maximum wind speed 65m / s (i.e 17 level of the hurricane) environment, no deformation and loosening firmly;
50W LED street light with solar panel
1、Polysilicon solar PV modules, the conversion rate of more than 17%;
2、Monocrystalline silicon solar PV modules, the conversion rate of more than 19%;
3、With a strong compressive capacity, can withstand 3800 Pa pressure and 5400 Pa snow pressure;
4、Surface covered with nano-coating, with automatic cleaning function;
5、Can work in low light conditions, maximum utilizing solar energy converting it to electric energy;
1、The use of high-quality solar dedicated battery to ensure the stability of LED solar street lights working;
2、According to different application of the environment, we provide lithium batteries, gel batteries, lead-acid batteries, and other different types of products;
1、PWM charging;
2、High precision constant current control, the highest efficiency up to 96%;
3、Realize multi section dimming, 0-15 hours can be set, 0-100% power can be set;
4、Automatically adjusting load power according to battery power;
5、With over charge protection, over discharge protection, short circuit protection, open circuit protection, reverse connection protection;
1、More professional solar LED street lamp special connectors optional, protection class IP68;
2、Strong corrosion resistance and aging resistance;
3、Plug and play, can achieve rapid installation;

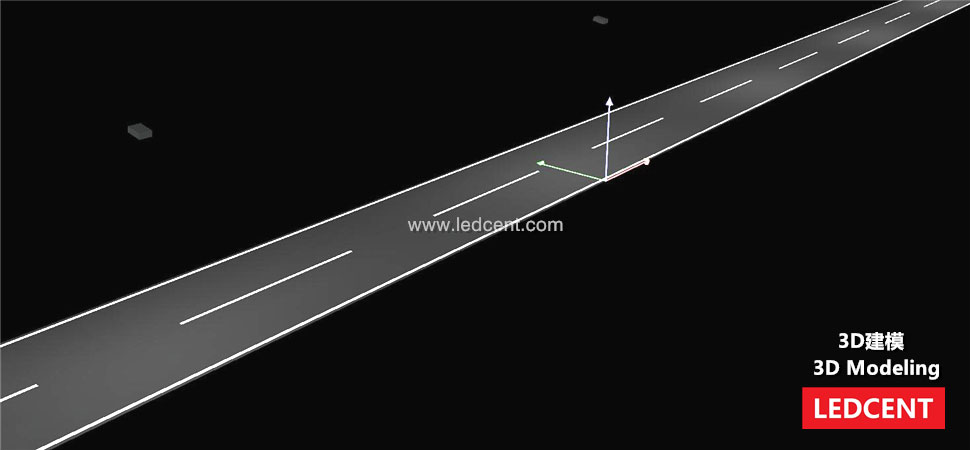

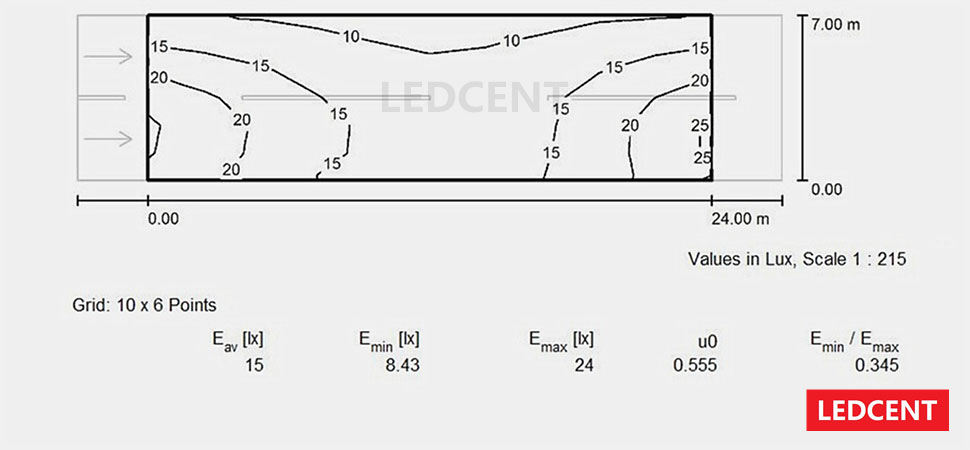

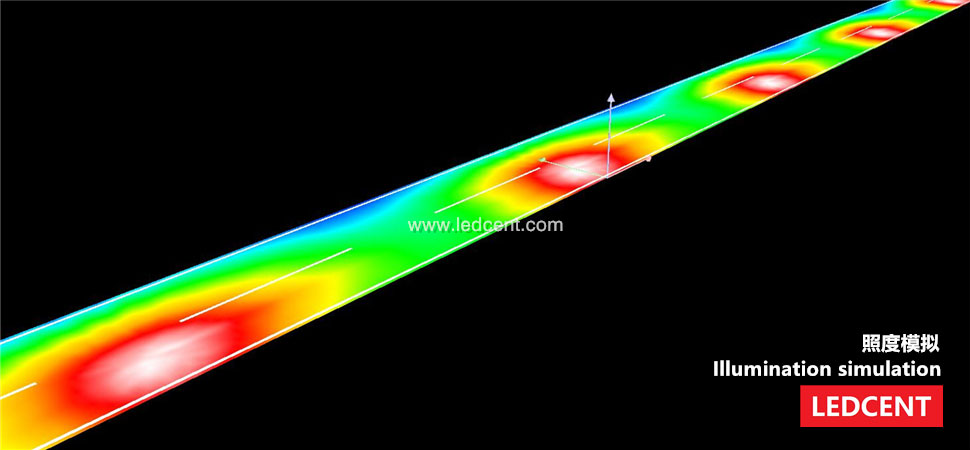

Road illumination simulation
Road width: 7 meters Arrangement mode: single side cloth lamp Height: 8 meters Installation distance: 25 meters
Lamp elevation: 5 Product power: 50W
Product parameters
Model :
|
LC-T001-1-50
|
Power
|
50W
|
Luminare Flux
|
5500lm
|
Color Temperature
|
2700 ~ 6000K
|
Color Rending Index
|
75
|
Input Voltage
|
DC 12V / 24v
|
Solar panel power
|
180W (3 hours of sunshine) 150W (3.5 h) 135W (4 h) 120W (4.5 h) 110W (5 h)
|
Battery capacity
|
150Ah, 12V
|
Protection class
|
IP67
|
Working time
|
10 hours
|
Rainy days
|
3-4 days
|
Operating mode
|
full 5 hours before the next 5 hours half-power operation
|
Applicable temperature
|
-25 ℃ ~ 55 ℃
|
Applicable height
|
7 ~ 8 meters
|
Applicable distance
|
25 to 30 meters
|
Note: the above data for reference only, according to the different areas of sunshine, environment, workinging time and other factors change, allocation will change
