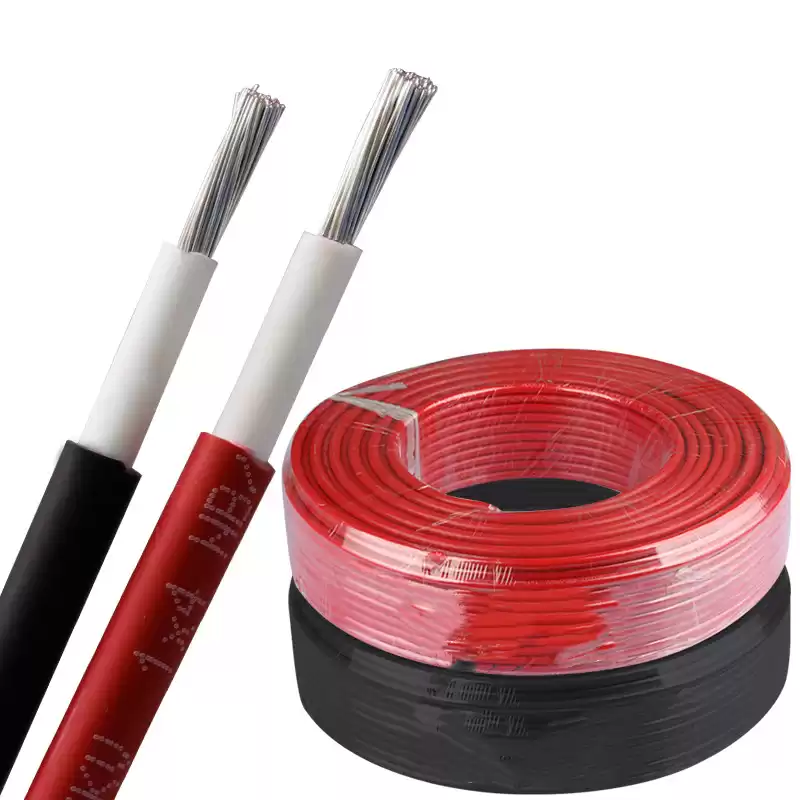

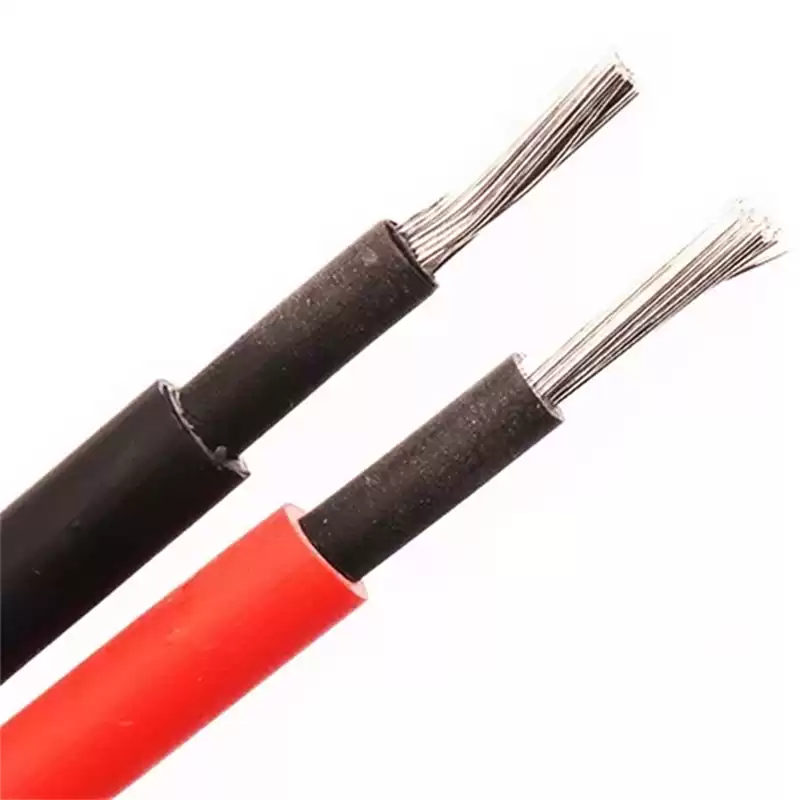

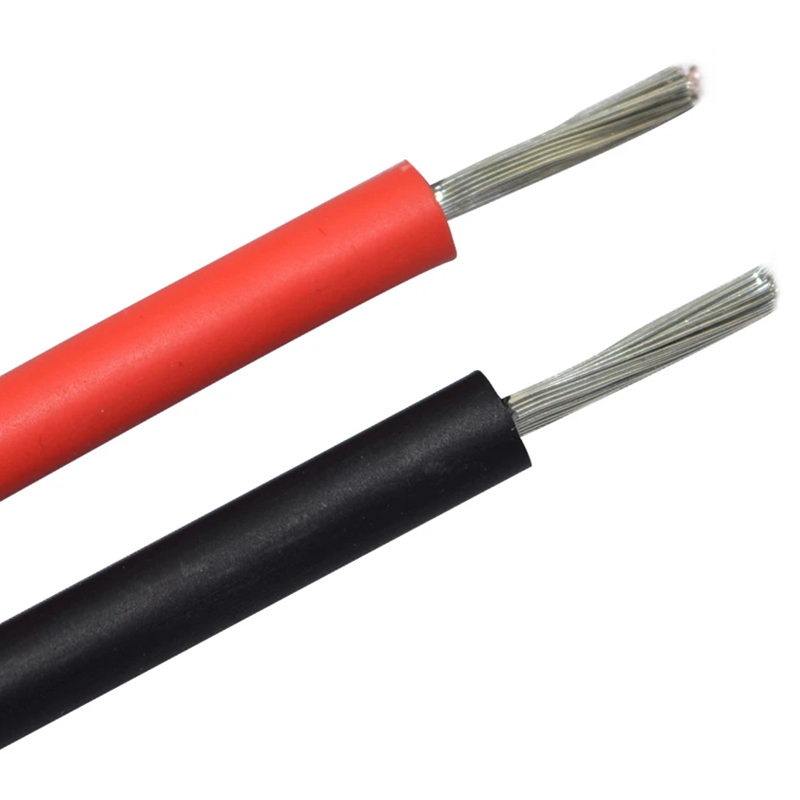

China Customized TÜV 2 pfg 1169 PV1-F Solar Cable
PRODUCTS NAME
China Customized TÜV 2 pfg 1169 PV1-F Solar Cable.
PRODUCTS KEYWORDS
solar cable, TÜV 2 pfg 1169, tuv standard solar cable, pv1-f, photovoltaic cable, H1Z2Z2-K Cable, WDZ-RYJY, solar panel connect cable, tinned copper wire, LSZH insulated cable, electrical wire, electric cable, wire and cables, China customized cables.
PRODUCTS APPLICATION

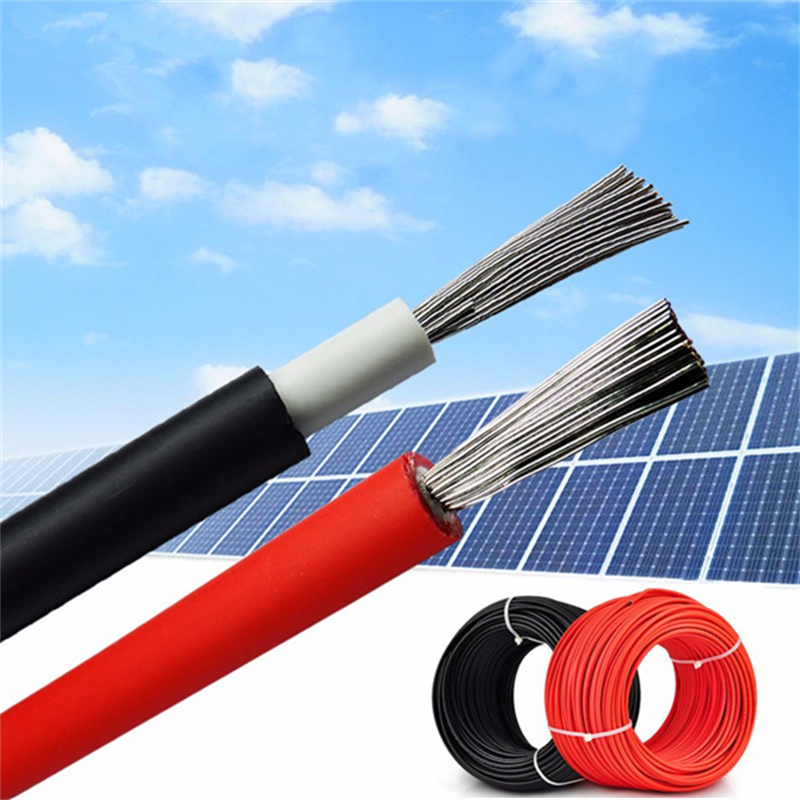

China Customized TÜV 2 pfg 1169 PV1-F Solar Cable, Updated harmonised (H1Z2Z2-K) European standard solar
cable intended for the interconnection within photovoltaic
systems such as solar panel arrays. Suitable for fixed
installations, internal and external, within conduit or systems.
Impact tested - Suitable for direct burial. For installations
where fire, smoke emissions and toxic fumes create a
potential risk to life and equipment. Water resistant to AD8.

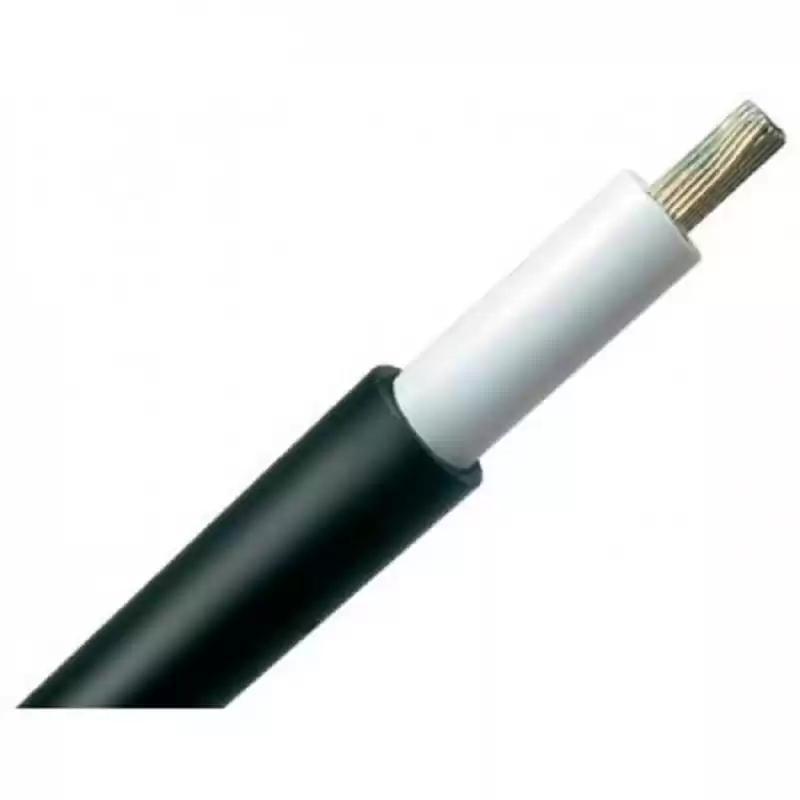

PRODUCTS STRUCTURE

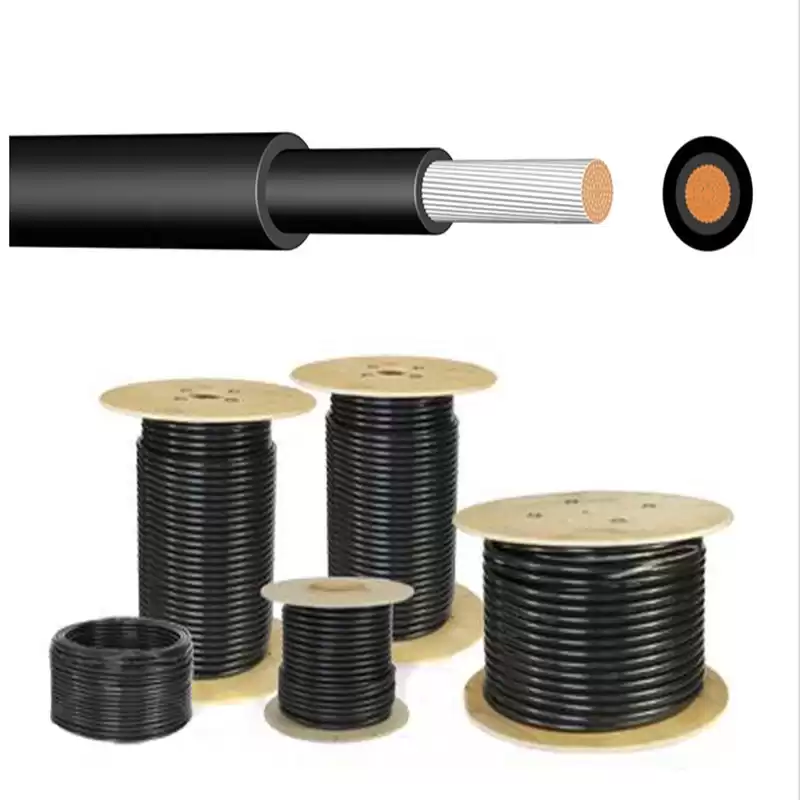

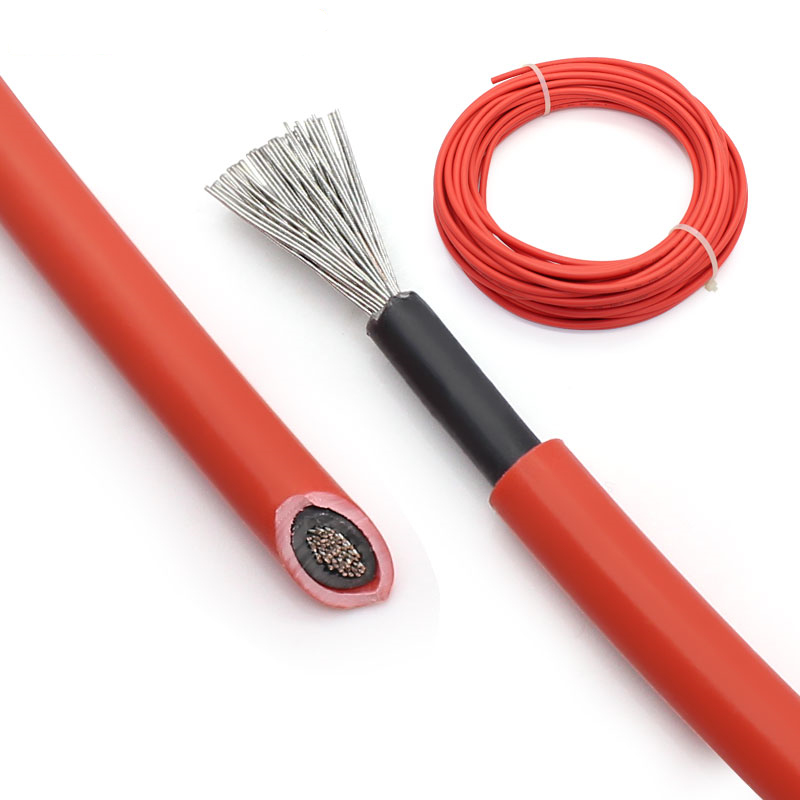

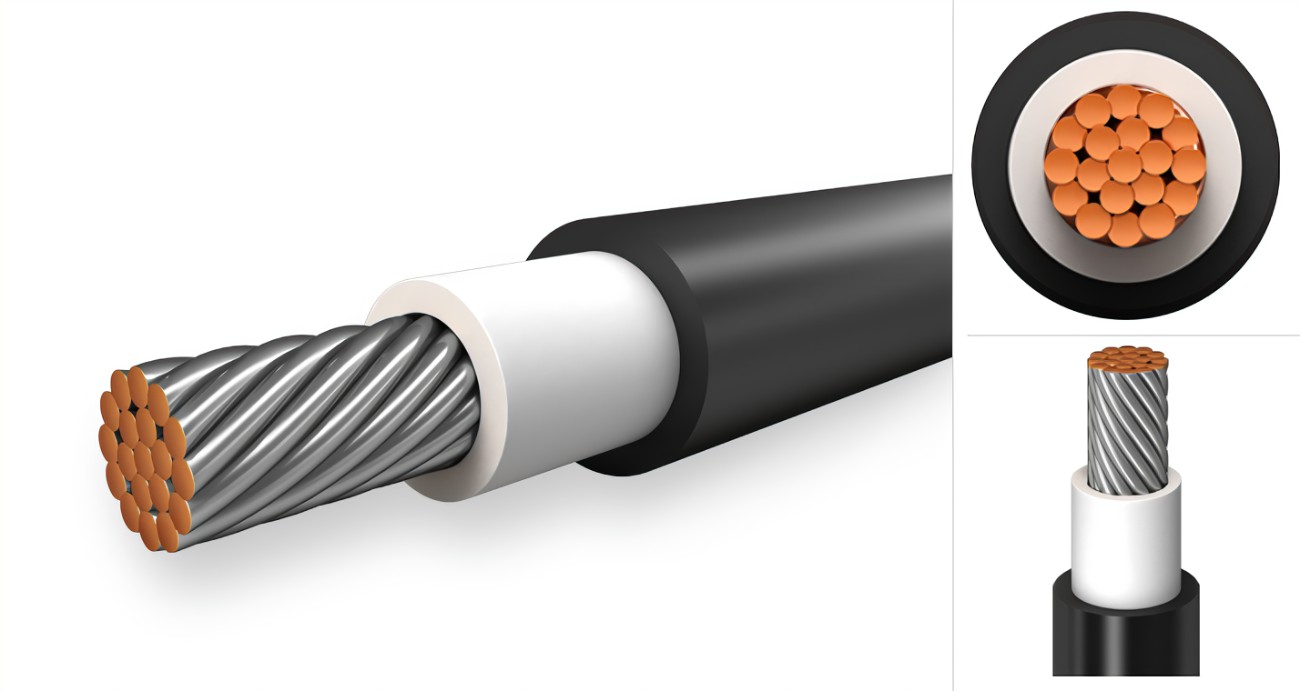

China Customized TÜV 2 pfg 1169 PV1-F Solar Cable:
---Conductor Material
Tinned annealed copper wire, stranded Class 5.
---Insulation Material
LSZH (low smoking zero halogen).
---Sheath Material
LSZH (low smoking zero halogen).
aPRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
China Customized TÜV 2 pfg 1169 PV1-F Solar Cable.
|
|
Conductor Material
|
Tinned annealed copper wire, stranded Class 5.
|
|
Conductor Structure
|
1C x 58/0.29 mm.
|
|
Insulation Material
|
LSZH (low smoking zero halogen).
|
|
Insulation Thickness
|
0.7 mm.
|
|
Insulation Colour
|
Black, white, or others.
|
|
Sheath Material
|
LSZH (low smoking zero halogen).
|
|
Sheath Thickness
|
0.8 mm.
|
|
Sheath Colour
|
Black, red, or others.
|
|
Conductor Cross-section
|
1 x 4 mm2.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
5.6 mm.
|
|
Voltage Rate
|
0.6/1kV (U0/U).
|
|
About Net Weight
|
60 kg/km.
|
|
Production Standard
|
TÜV 2 pfg 1169.08-2007, JB/T 10491-2004, GB/T 19666-2019
|
|

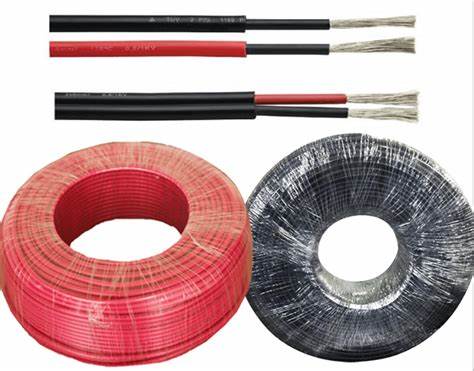

Products Packing
|

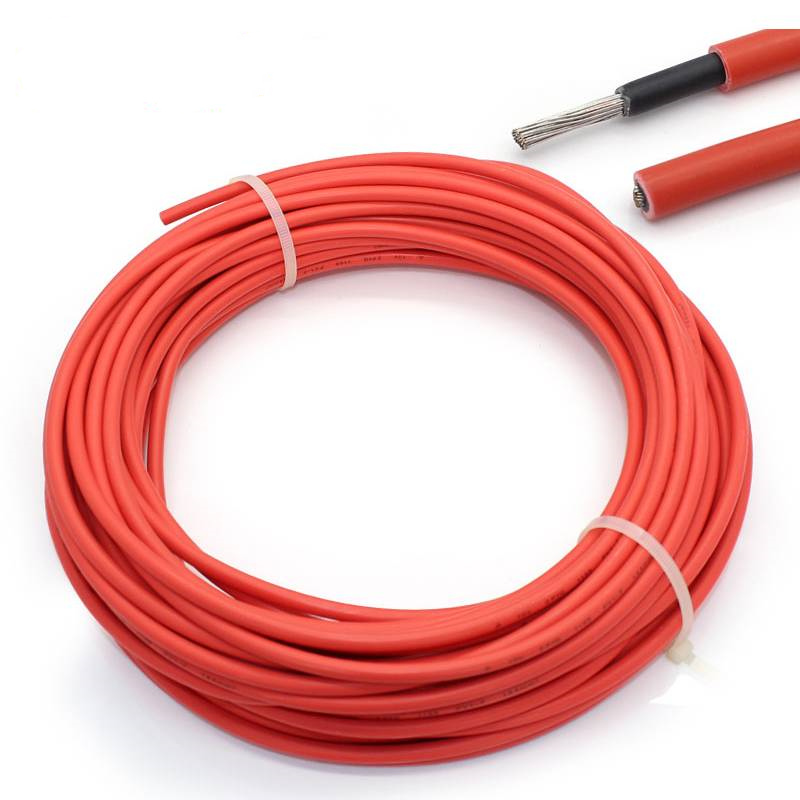

100 Meters per roll, or according to the customers requirement.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
7.98 Ω/km.
|
|
Max. Ampacity at 40 ℃ in air
|
55A.
|
|
Working Temperature
|
-20℃ to +90℃
|
|
Max. Working Temperature
|
+120℃
|
