Dual power supply 48V 24V open frame SMPS 800W
Description:
Dual 48V 24V power supplyis the ac to dc switching power supply 800W open frame SMPS,it can meet the ETL certification standards,it is designed by our engineers team.
Features:
1,dual power supply 48V 24Vis high efficiency, low temperature rise;
2,open frame 800W power supply;
3, 800W switching power supply open with short circuit, overload, overvoltage protection.
Parameter
|
|
Item NO
|
K18C-UP800D48+24
|
|
Output
|
Output Voltage
|
CH1:+48VDC; CH2:+24VDC
|
|
Rated Current
|
CH1:16A; CH2:1.5A
|
|
Current Range
|
CH1:0-16A; CH2:0-1.5A
|
|
Rated Power
|
804W
|
|
Ripple & Noise
|
CH1:550mVp-p; CH2:300mVp-p
|
|
Adjustable Output Range
|
CH1:46-51V
|
|
Output Accuracy
|
CH1:±2% CH2:+/-2%
|
|
Line Regulation
|
CH1:±0.5% CH2:+/-0.5%
|
|
Load Regulation
|
CH1:±1% CH2: +/-1%
|
|
Set up,Rise,Keep up time
|
300ms, 20ms, 12ms
|
|
Input
|
Input Voltage Range
|
88~264VAC
|
|
Input Current
|
7.6A/115V,3.8A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
92%@230V
|
|
Power Factor
|
95%@230VAC
|
|
Inrush Current
|
Cool start 60A/230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup protection,automatic recovery
|
|
Short Circuit Protection
|
Locked protection,re-power on to recover.
|
|
Output over-voltage protection
|
>150% automatic recovery
|
|
Over-temperature protection
|
＞105 ℃ protection, automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-20~60℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:4KV;I/P-FG:1.8KV;O/P-FG:0.5KV AC
|
|
Insulation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
............
|
|
Others
|
Dimension
|
168*82*40mm(L*W*H)
|
|
Weight
|
0.68kg
|
|
MTBF
|
>50hrs
|
|
Fan Supply
|
YES
|
|
Notes
|
1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 20cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

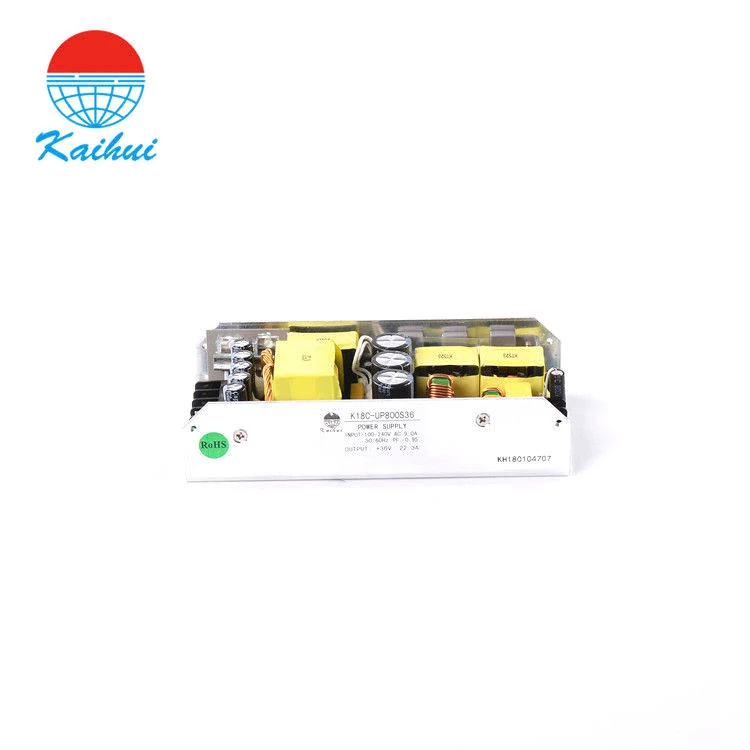

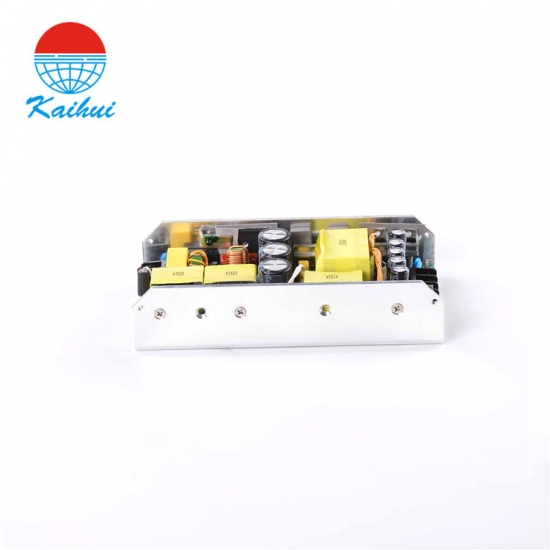

Product picture:
