China Factory H07V-U Solid Copper Wire PVC Insulated Electrical Wire

China Factory H07V-U Solid Copper Wire PVC Insulated Electrical Wire, H07V-U are harmonized PVC European flexible single-conductor hook-up wires, with a solid bare copper core. Ideal for the internal wiring of appliances, apparatus, switchboards and distributor boards or where a solid core is required. Suitable in dry rooms for fixed and flexible laying. May be used for exposed and embedded conduits.



China Factory H07V-U Solid Copper Wire PVC Insulated Electrical Wire



PRODUCTS NAME

China Factory H07V-U Solid Copper Wire PVC Insulated Electrical Wire.

PRODUCTS KEYWORDS

H07V-U, 6491X, NYA, BV, solid copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables, China factory.

PRODUCTS APPLICATION

China Factory H07V-U Solid Copper Wire PVC Insulated Electrical Wire, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

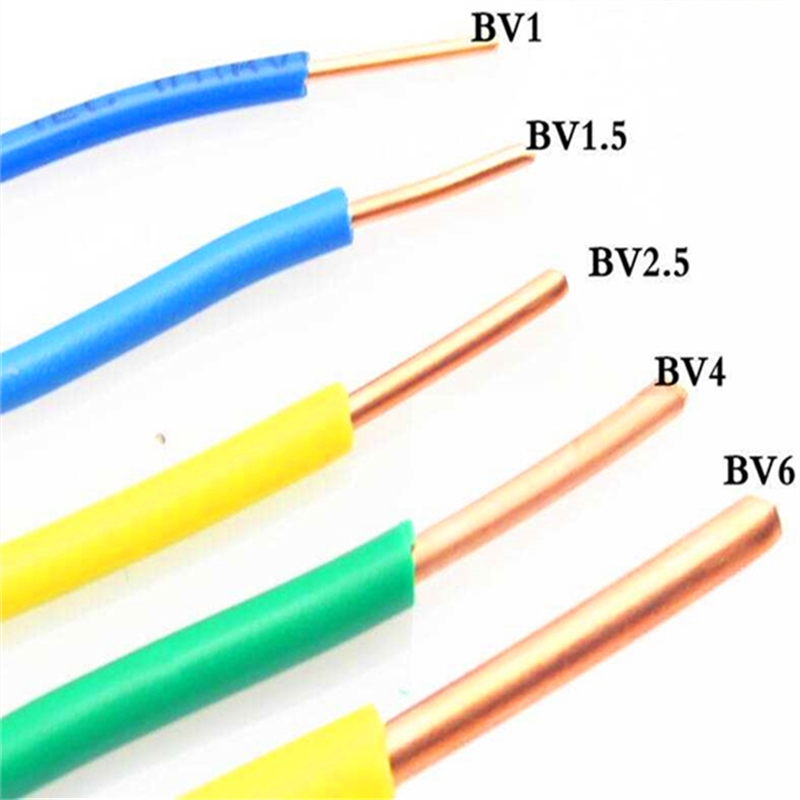

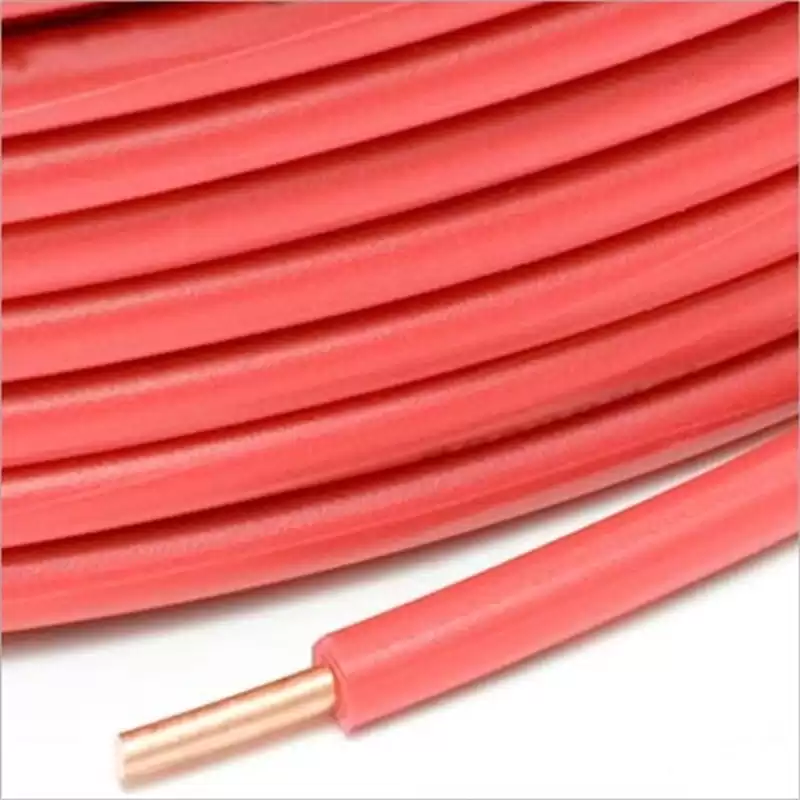

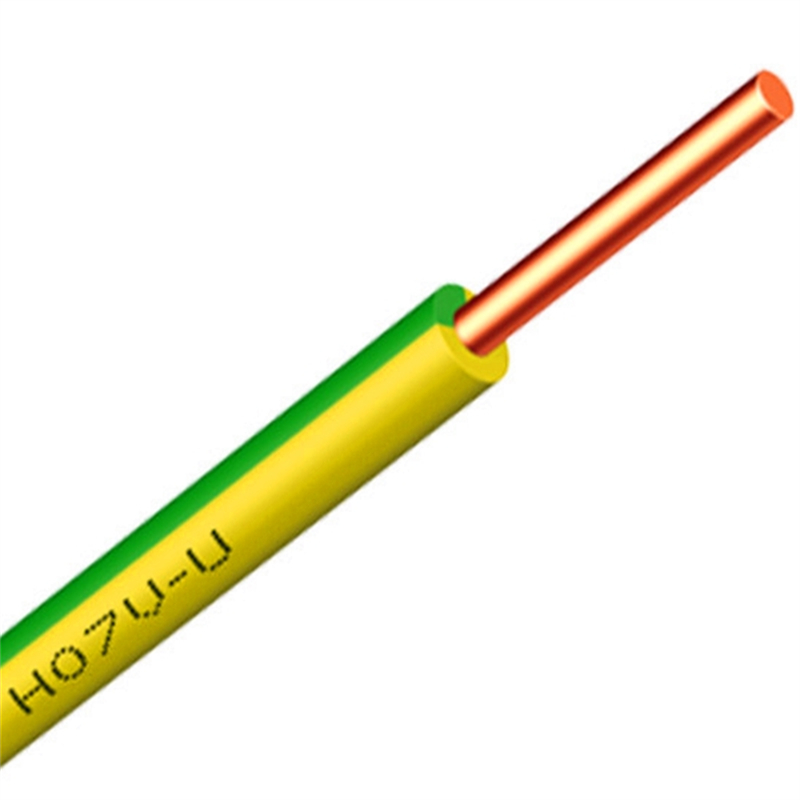

H07V-U Solid Copper BV Electric Cables

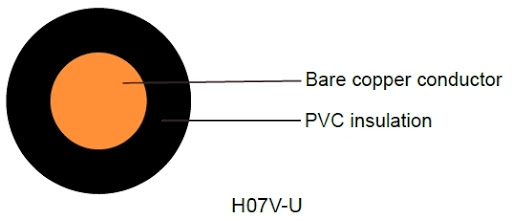

PRODUCTS STRUCTURE

China Factory H07V-U Solid Copper Wire PVC Insulated Electrical Wire, the structure as below:

---Conductor Material

Plain annealed copper wire, solid Class 1.

---Insulation Material

PVC (polyvinyl chloride).

---Sheath Material

Non-Sheath.

a

PRODUCTS DESCRIPTION

 Description of Cable   Products Main Technical Sheet
 Products Name

 China Factory H07V-U Solid Copper Wire PVC Insulated Electrical Wire.

 Conductor Material  Plain annealed copper wires, solid Class 1.
 Conductor Structure  1/1.38 mm.
 Insulation Material  PVC (Polyvinyl Chloride).
 Insulation Thickness  0.7 mm.
 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  1 x 1.5 mm2.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  2.8 mm.
 Voltage Rate  450/750V (U0/U).
 About Net Weight  20 kg/km.

 Max. Conductor DC

 Resistance at 20℃ in Air

 12.2 Ω/km.

 Min. Insulated

 Resistance at 70

 0.011 MΩ.km.

 Max. Ampacity

 at 40 ℃ in air

 21A.
 Production Standard  JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.

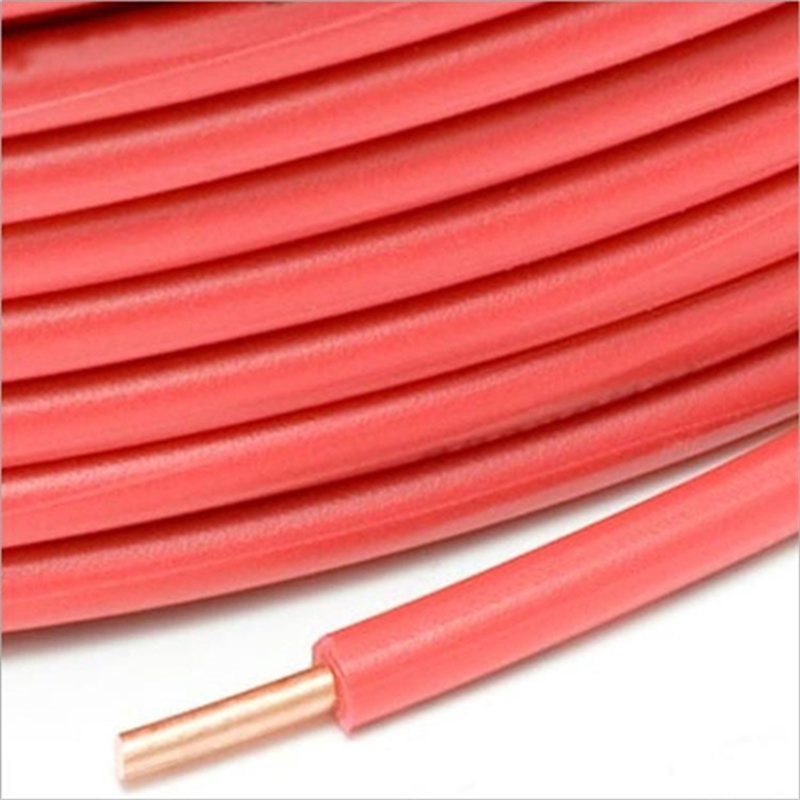

H07V-U solid roll

COMPANY PROFILE

Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.

COMPANY ADVANTAGE

---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.
---ISO9001, CCC, CE, CB, RoHS, SAA, VDE, DEKRA, UL, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.

---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.

Seebest Cable

COMPANY PRODUCTS

---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,

    VDE 0250, and other Electronic Wires.

---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power

    Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.

---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.

---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.

Seebest Cable

COMPANY SLOGAN

---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,

Technology Supporter, and Sales Assistant in Wire and Cables Industry.

COMPANY FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.

2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.

3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;

For the Power Cables more than 25mm2, the MOQ is 1,000 meters;

For the networking cables, the MOQ is 100 boxes/cartons;

For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.

For other customized wire and cables, please negotiate the MOQ with us immediately.

Seebest Cable


4. Can you give me the price discount?

We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.

In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.

5. Can you provide the OEM, OBM and ODM services?

Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.

Seebest Cable
