| Product name |
Multifunctional Klip Lok Components |
| Installation Site |
Solar Roof Mounting system |
| Tilt Angle |
0-60° |
| Surface Treatment |
Anodised |
| PV module |
framed,unframed |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
12Years |

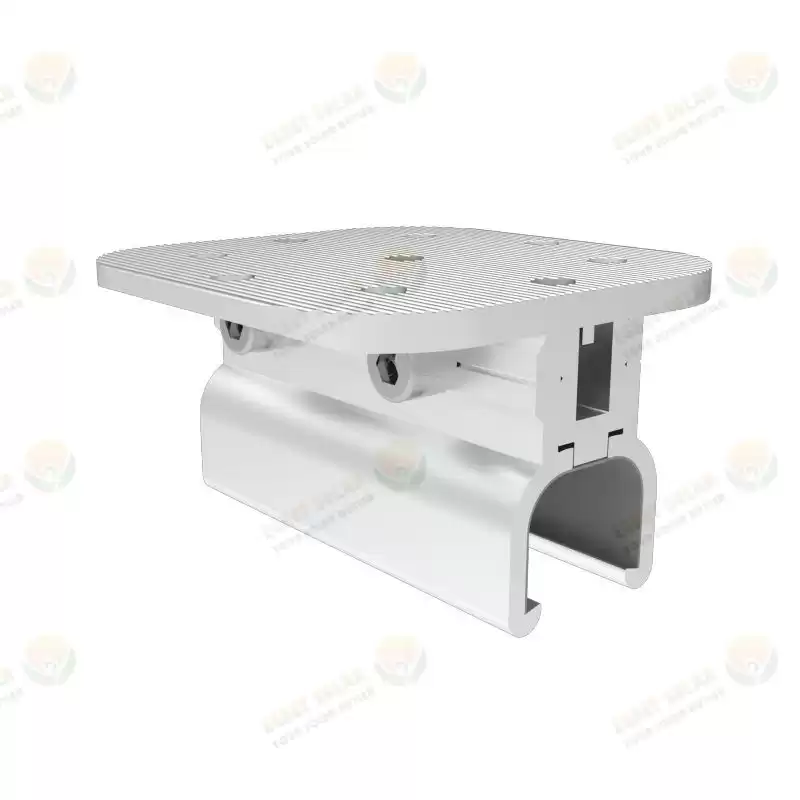

Product Description
The Multifunctional Klip Lok Components is suitable for 406 color steel tile and 400 color steel tile bracket. The upper part can be matched with 50 rails or 47 rails, or the battery board can be directly placed on the fixture, which is easy to install.

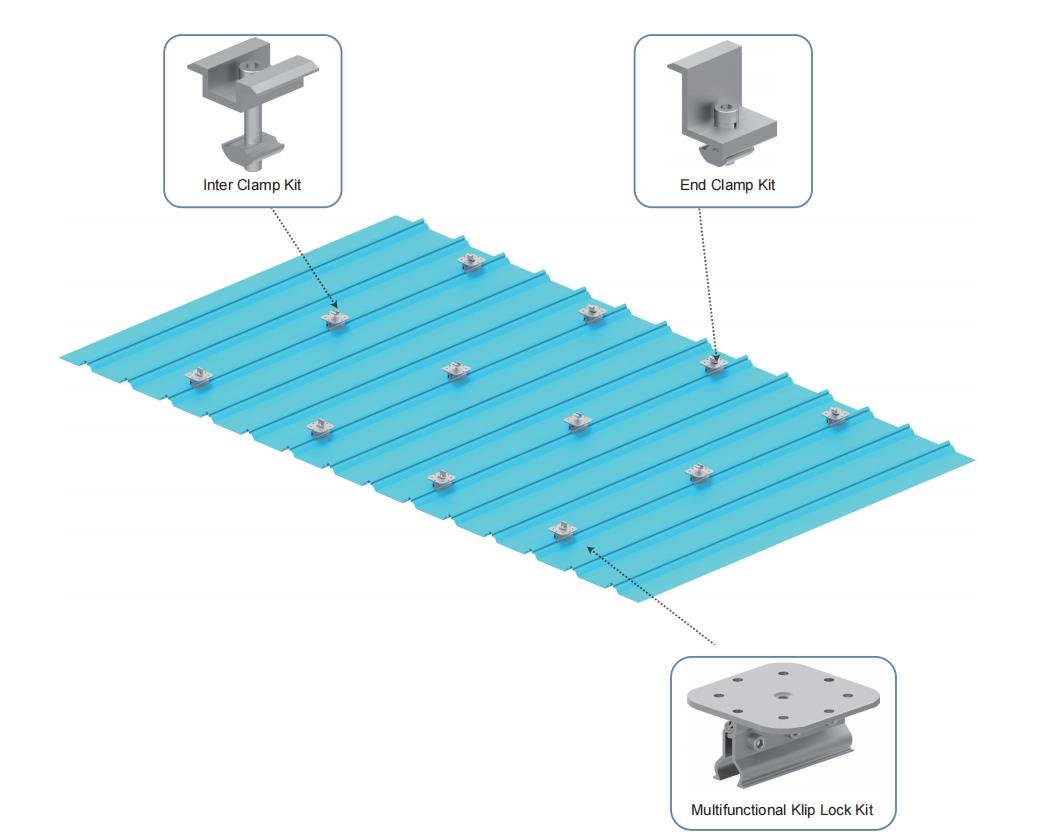

Product Show

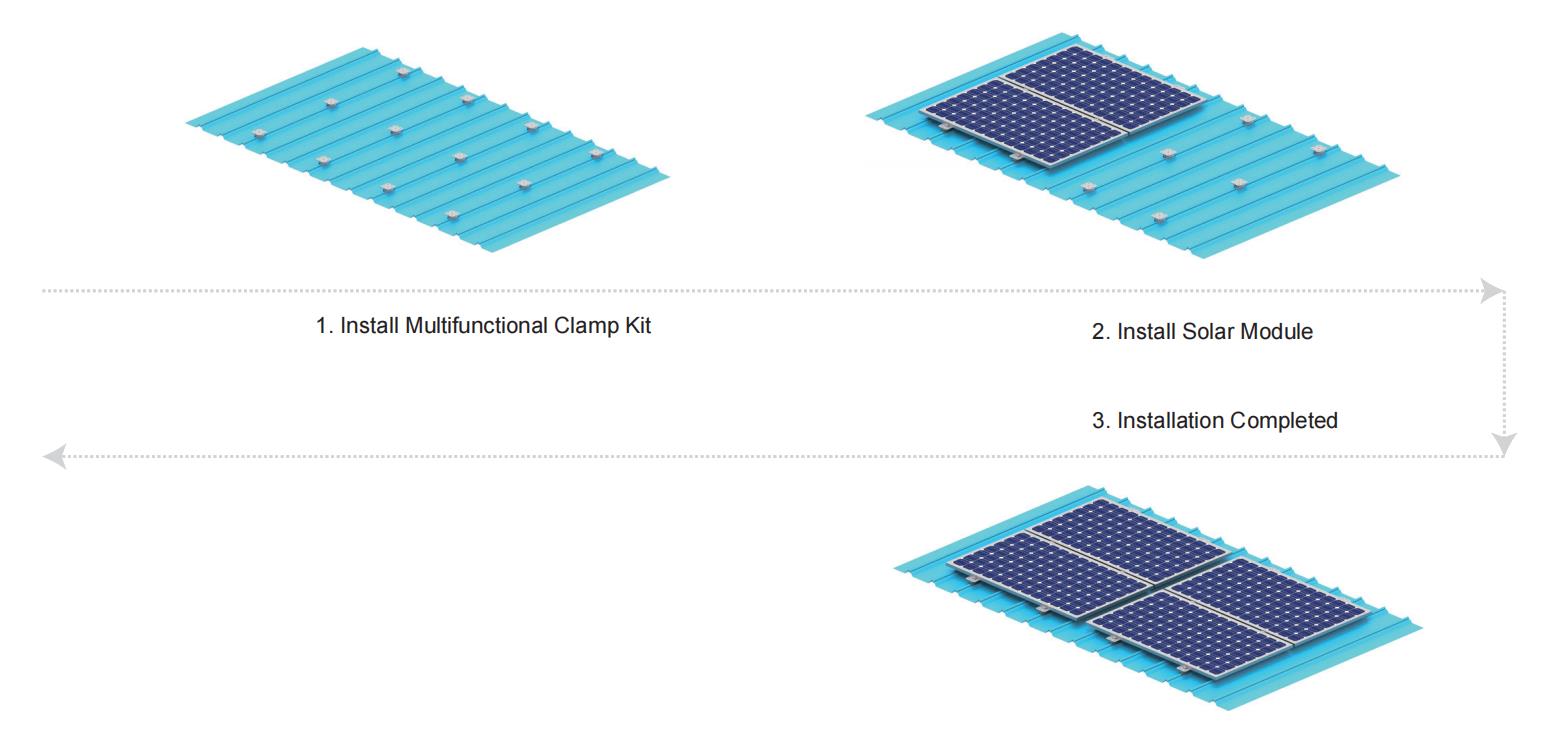

Installation Steps

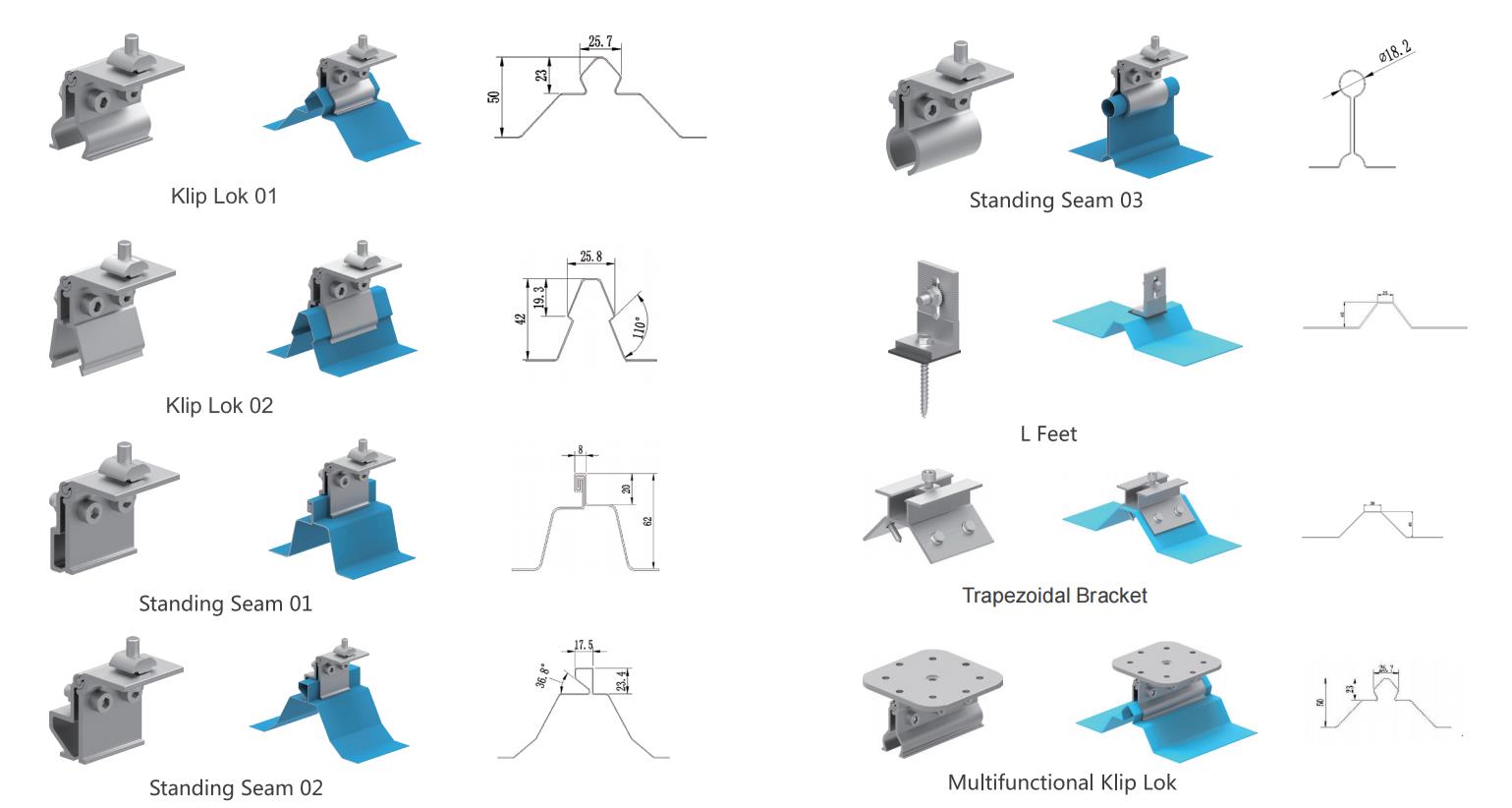

Others Model
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
