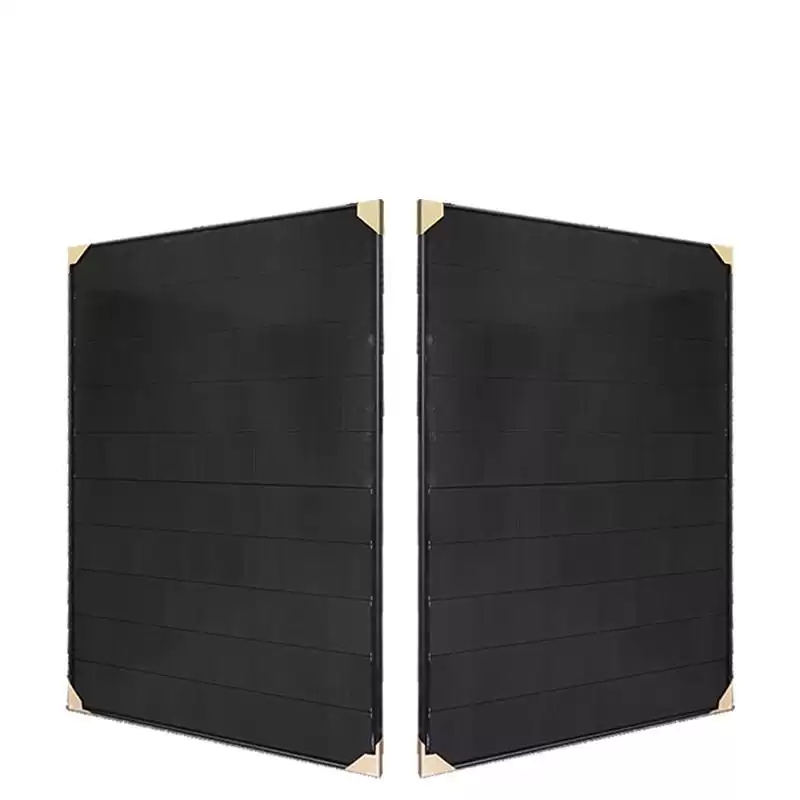

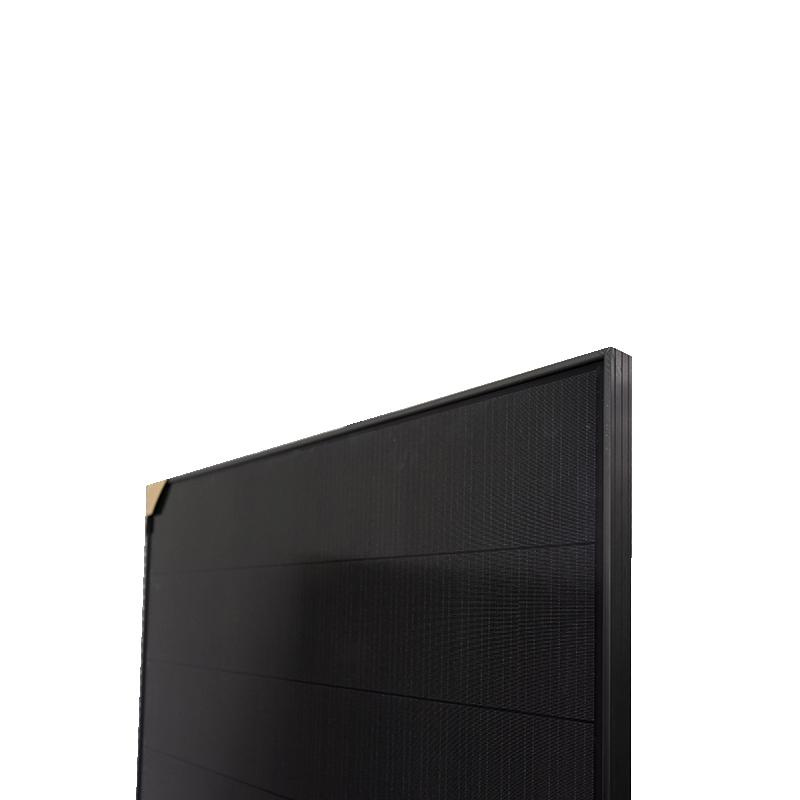

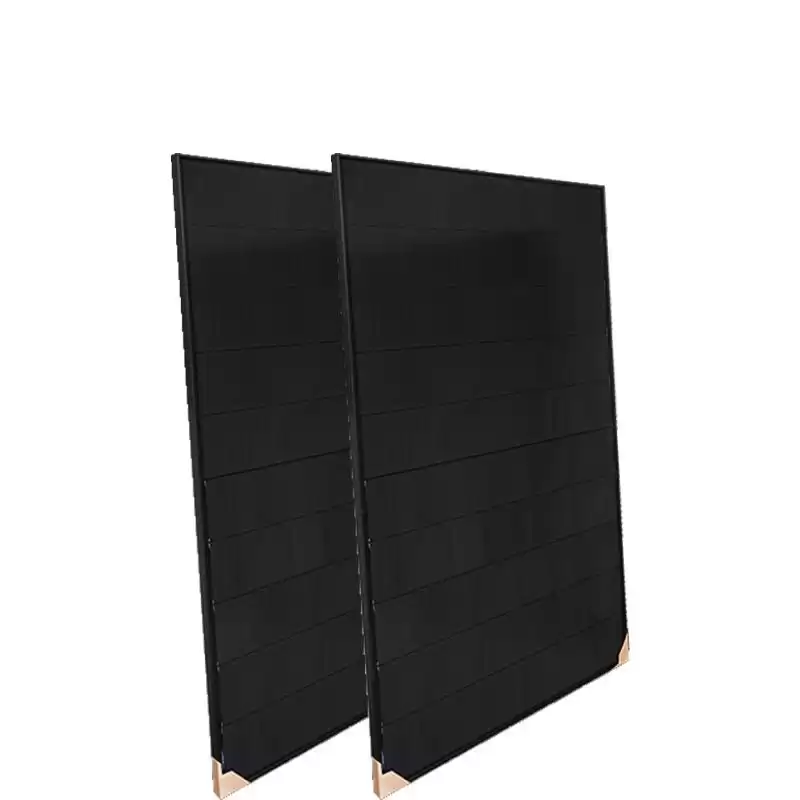

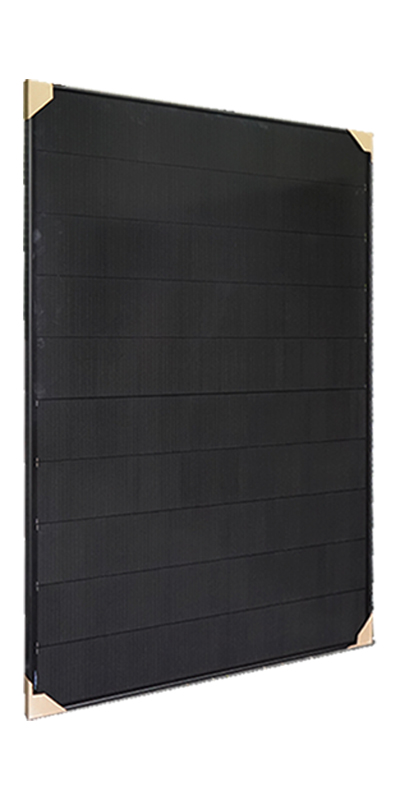

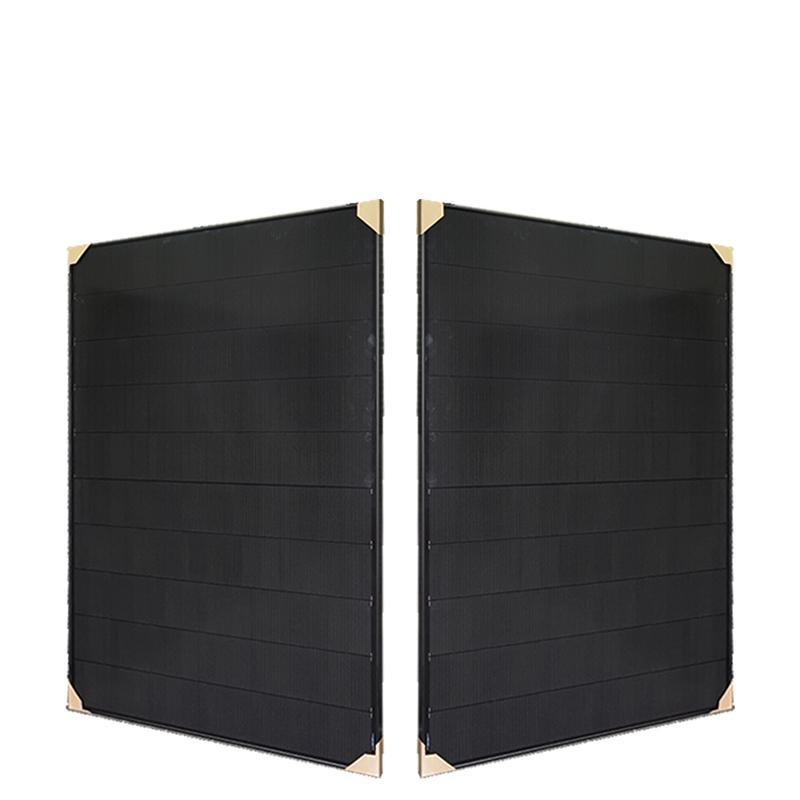

Monocrystalline Black Frame Shingled Solar Panel
Product Details
-
Innovative structure, low temperature adhesive, high-density typesetting
-
The layout is even and consistent, which is more technologically beautiful
-
No welding cracks, low operating temperature, high pressure resistance
Product Specification
|
MECHANICAL CHARACTERISTICS
|
|
Solar Cells
|
Monocrystalline silicon
|
|
NO. of Cells
|
340(34*10)
|
|

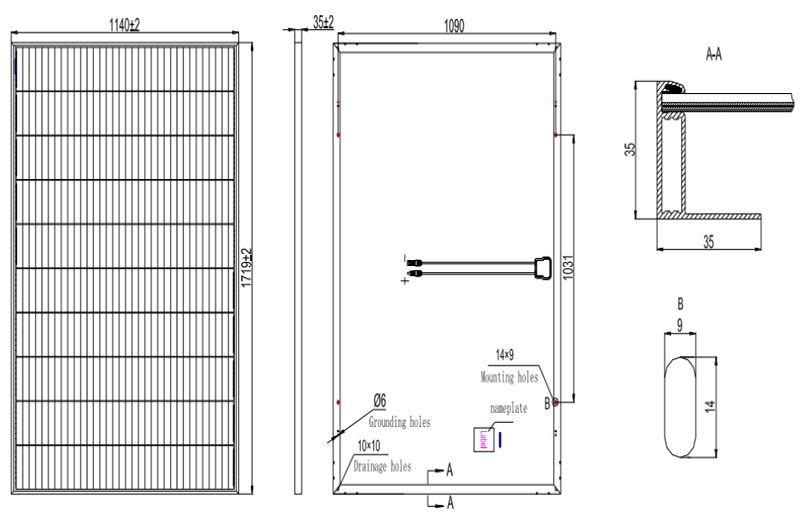

Dimensions
|
1719*1140*35mm
|
|
Weight
|
22kg
|
|

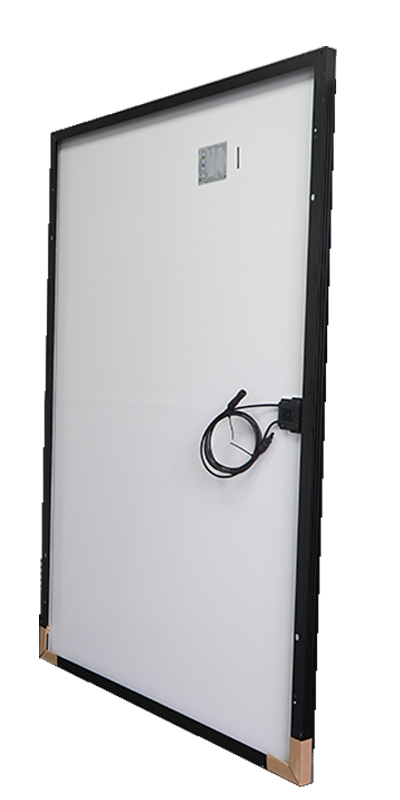

Junction Box
|
IP68, two diodes
|
|
Front Glass
|
AR coating tempered glass, 3.2mm
|
|
Frame
|
Anodized aluminum profile
|
|
Output Cables
|
4.0mm²,800mm（Be customized by customers）
|
|
Connectors
|
MC4
|
|
ELECTRICAL PARAMETERS
|
|
410
|
405
|
400
|
395
|
390
|
385
|
|
Rated Maximum Power (Pmax) [Wp]
|
410
|
405
|
400
|
395
|
390
|
385
|
|
Open Circuit Voltage (Voc) [V]
|
46.6
|
46.5
|
46.4
|
46.3
|
46.3
|
46.2
|
|
Short Circuit Current (Isc) [A]
|
11.07
|
11.02
|
10.97
|
10.92
|
10.87
|
10.82
|
|
Maximum Power Voltage (Vmp) [V]
|
38.8
|
38.7
|
38.6
|
38.5
|
38.5
|
38.4
|
|
Maximum Power Current (Imp) [A]
|
10.57
|
10.47
|
10.36
|
10.26
|
10.13
|
10.03
|
|
Module Efficiency [%]
|
20.9
|
20.7
|
20.4
|
20.2
|
19.9
|
19.6
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
Maximum System Voltage
|
DC 1500 /1000 (IEC)
|
|
Maximum Series Fuse Rating
|
20
|
|
Application Class
|
Class A
|
|
Maximum Surface Load Capacity[Pa]
|
5400
|
Difference
|
|
|

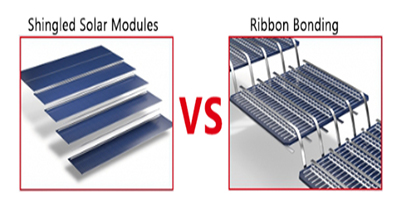

Different welding methods
|

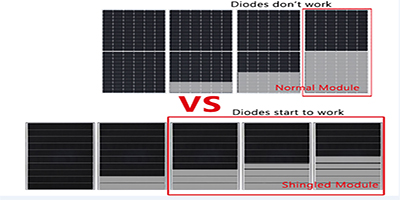

When shaded by shadow,shingled pv modules have the best output power if the shingled modules are installed vertically.
|

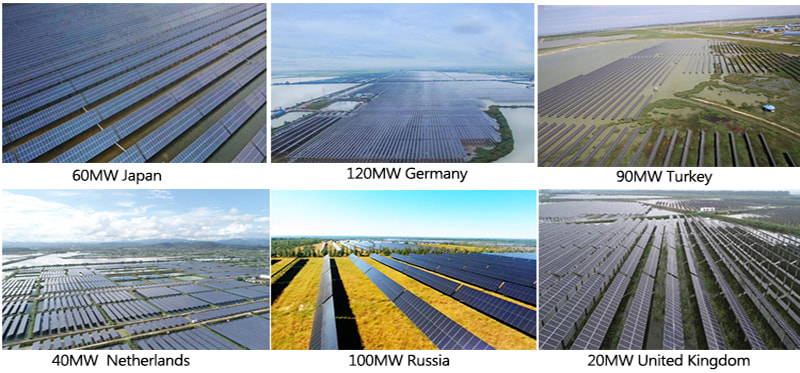

Projects

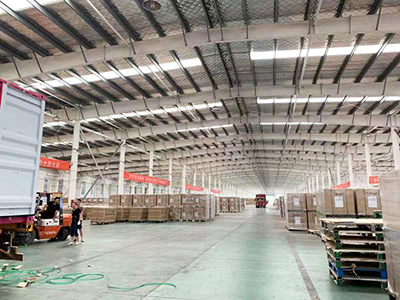

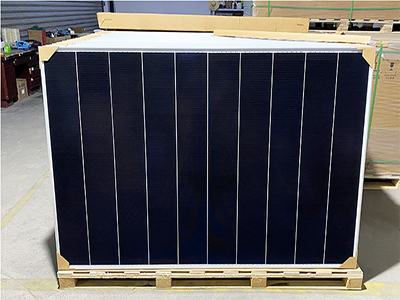

Packing
