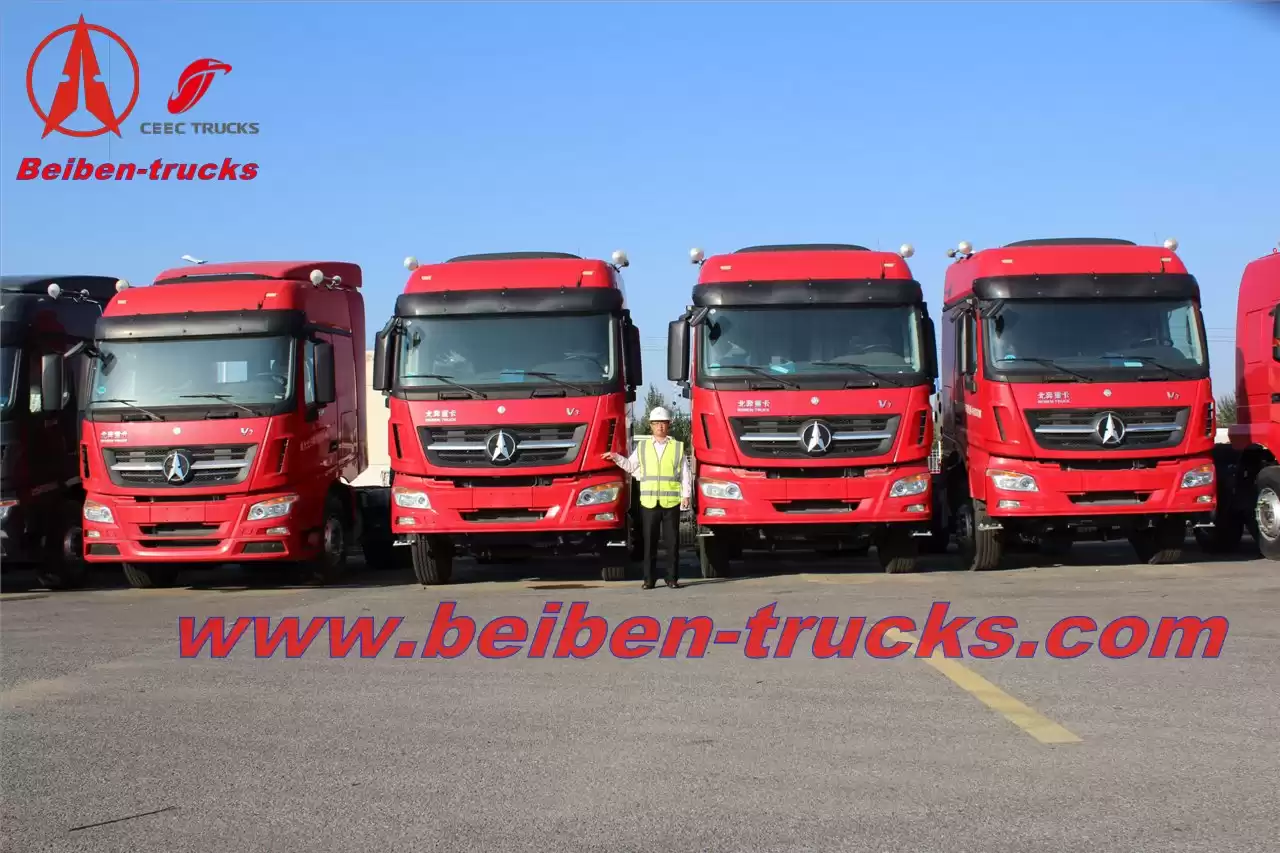

China heavy truck Beiben V3 380hp prime mover 10 wheels truck head

China heavy truck Beiben V3 380hp prime mover 10 wheels truck head,China heavy truck Beiben V3 380hp
1. weichai engine
2. fast transmission
3. tubeless tires
4. Professional service



CHINA HEAVY TRUCK BEIBEN V3 380HP 10 WHEELS PRIME MOVER



Wheel base  (mm)

3850+1450

Curb weight kg

9300

Engine

Model

WP12.420(WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection

Displacement     L

12/Diesel

Power, max   kw/rpm

420Hp 309/2200

Emission

EUROIII

Fuel tanker capacity   L

300

Clutch

Model

φ430, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

Fuller 9JS180

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.

The Fifth wheel

90#single (JOST)
