China Histology instruments Tissue embedding working station
with cold plate with capacity 5L
Model number: BM&BL
Specifications:

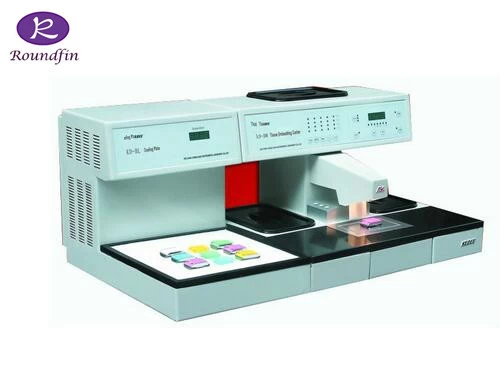

---Tissue embedding center
---The paraffin Embedding System allows a convenient, quick and careful paraffin embedding of tissue spec
---The paraffin Embedding System allows a convenient, quick and careful paraffin embedding of tissue specimens. The modular structure permit to combine the three modules of the embedding Station so as to meet the needs of the user.
---Paraffin Dispenser: Stainless steel paraffin large tank of 5 liters capacity. The
sensor allows to supply paraffin without any mechanism (and without maintenance).
--Halogen lamp to light up the working area. Cooled spot for a quick cooling of
specimens. Wide aluminium hot plate, with 6 holes for forceps. Heated basin to
collect the excess of paraffin. Possibility to apply heated forceps directly to
the Dispenser Unit.
---Thermal Unit: Stainless steel Upper chamber for paraffin moulds and Lower basin for
liquid paraffin ( to store samples from tissue processor) are heated and regulated
separately. The stainless steel basin is removable in order to facilitate
cleaning operations.
---Cooling Plate: The cooling plate can be used either for embedding and also during
microtome cutting operation. The cooling plate has a new frame all around the stainless
steel surface which improve cooling performances and prevents the dropping
of water around the instrument.
Technical features:
---Dimensions overall. 900 x 500 x 360 mm (W x D x H), Weight: 53 kg.
---Working Voltage: 220 V / 50 Hz.
---Power: < 1000 Watt.
---Accessories:
1. Magnifier.
2. Foot Switch.
3. Heated forceps (with internal power supply - preinstalled).
